ToolkitRC M8AC Smart Charger Instruction Manual

1. Introducció

The ToolkitRC M8AC is a versatile 600W 20A smart charger designed for a wide range of battery types. It features both AC and DC input capabilities, making it suitable for various charging environments. The charger supports LiPo, LiHV, LiFe, Li-Ion, LTO (1-8S), NiMH (1-20S), and Pb (1-12S) batteries. Its 2.4-inch IPS LCD provides clear and easy navigation through its functions, while the 1000mA balance charging capability helps optimize battery health and longevity.

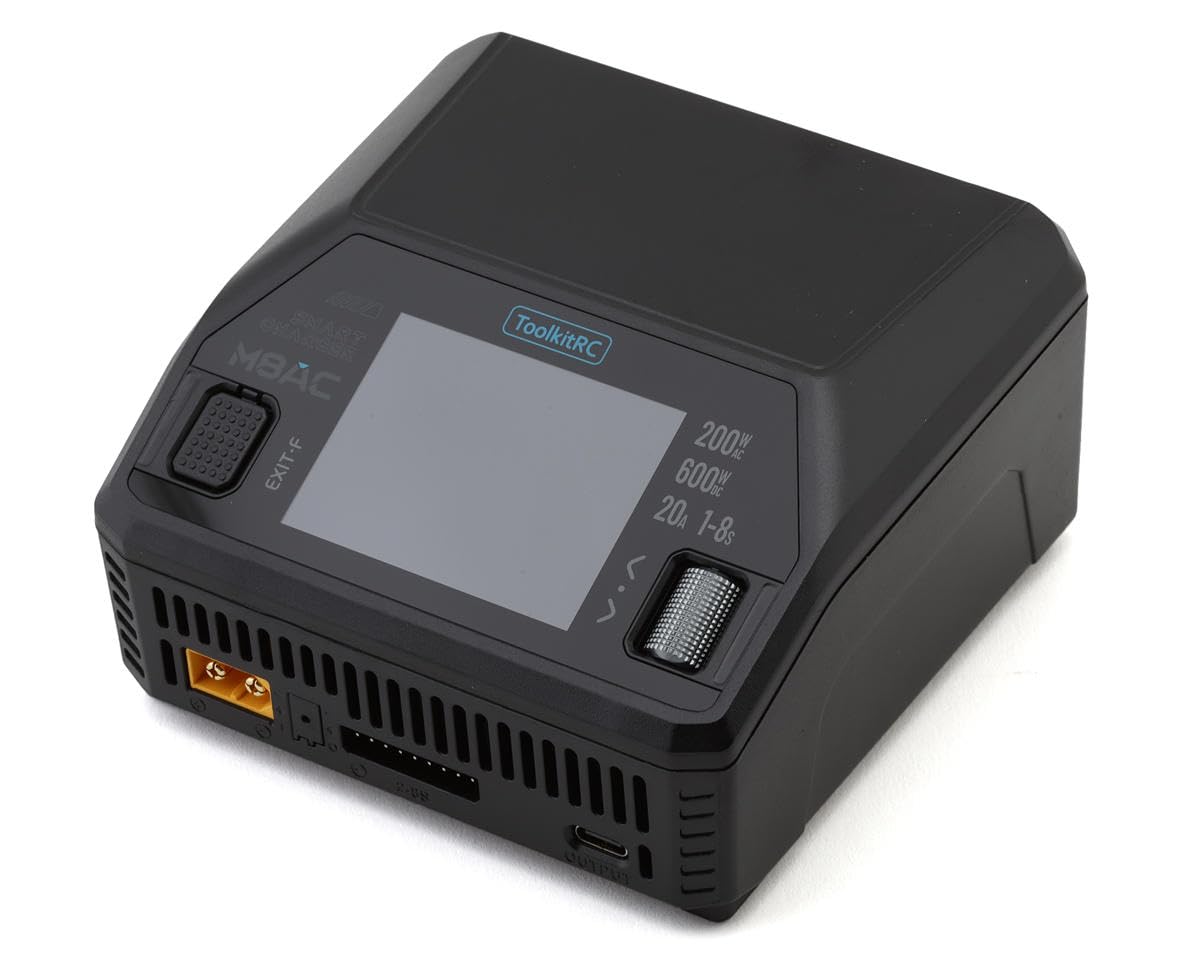

Image: The ToolkitRC M8AC Smart Charger, a compact device with a digital display and multiple ports for battery connections, including XT60-2.5.

2. Configuració

1. Connexió d'alimentació: Connect the charger to a suitable power source. Use the AC input for wall outlets or the DC input for external power supplies (e.g., a power bank or car battery). Ensure the power source meets the charger's voltage i requisits actuals.
2. Connexió de la bateria: Connect your battery to the appropriate charging port on the M8AC. For LiPo and similar batteries, ensure both the main power connector (e.g., XT60) and the balance lead are securely connected to their respective ports on the charger.
3. Encesa inicial: Once connected, the charger's IPS LCD will power on, displaying the main interface.

3. Instruccions de funcionament

The M8AC offers various operating modes for different battery management needs. Use the navigation buttons to select and confirm options on the display.

• Mode de càrrega: Select this mode to charge your battery. The charger will automatically detect the battery type and cell count. You can adjust the charging current (Amps) as needed. Always refer to your battery's specifications for safe charging rates.
• Mode de descàrrega: Use this mode to safely discharge your battery to a lower voltage. This is often used for storage or to prepare batteries for disposal.
• Mode d'emmagatzematge: This mode charges or discharges the battery to a specific voltage level recommended for long-term storage, which helps preserve battery health.
• Balance Charge: This is the recommended charging method for multi-cell LiPo batteries. It ensures that all cells within the battery pack are charged to the same voltage, preventing imbalances that can degrade battery performance and safety.
• Tipus de bateries: The M8AC supports LiPo, LiHV, LiFe, Li-Ion, LTO (1-8S), NiMH (1-20S), and Pb (1-12S) batteries. Ensure the correct battery type is selected in the charger settings to prevent damage.

4. Manteniment

• Neteja regular: Mantingueu el carregador net i lliure de pols i brutícia. Feu servir un drap suau i sec per netejar-lo.
• Ventilació: Ensure the charger has adequate ventilation during operation to prevent overheating. Do not block the cooling vents.
• Emmagatzematge de la bateria: Always store LiPo batteries at their recommended storage voltage (typically 3.8V-3.85V per cell) using the charger's storage mode. This prevents cell degradation and swelling.
• Inspecció del cable: Periodically inspect all charging cables and connectors for signs of wear or damage. Replace any damaged cables immediately.

5. Solució De Problemes

• El carregador no s'encén: Comproveu la connexió del cable d'alimentació i assegureu-vos que la font d'alimentació estigui activa.
• Bateria no detectada: Verify that both the main power connector and the balance lead are securely connected to the charger. Ensure the battery is not severely over-discharged.
• Missatge d'error de càrrega: Refer to the specific error code displayed on the screen. Common issues include incorrect battery type selection, imbalanced cells, or faulty connections.
• Sobreescalfament: Ensure proper ventilation around the charger. Reduce the charging current if the charger consistently overheats.

6. Especificacions

• Pes de l'article: 1.44 lliures
• Marca: ToolkitRC
• Fabricant: ToolkitRC
• Color: Negre
• Edat recomanada: 14 anys i més

7. Garantia i Suport

Els detalls específics de la garantia i la informació de contacte d'assistència no es proporcionen a les dades del producte disponibles. Consulteu l'embalatge del producte o el fullet oficial del fabricant. website for comprehensive warranty terms and customer support resources.
