Generic FL-40 12V Mini Submersible Diaphragm Water Pump User Manual

1. Introducció

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Generic FL-40 12V Mini Submersible Diaphragm Water Pump. Please read these instructions carefully before using the pump to ensure proper function and longevity.

2. Característiques del producte

• Pes: Aproximadament 2.3 kg.
• Model: FL-40 / FL-44.
• Font d'alimentació: Elèctric.
• Tipus de bomba: Diaphragm pump.
• Cabal màxim: 4.5 GPM (17 Liters per minute).
• Tube Gauge: Designed for 20 mm hose connections.
• Aplicacions versàtils: Suitable for agricultural irrigation, industrial drainage, residential water transfer, and off-grid solar-powered pumping systems.

3. Especificacions

4. Configuració

Una configuració correcta és crucial per al rendiment i la seguretat de la bomba. Seguiu aquests passos amb atenció:

1. Muntatge: Securely mount the pump on a stable, flat surface using the integrated mounting feet. Ensure the pump is in a dry, well-ventilated area, protected from direct weather exposure.
2. Connexions de fontaneria: Connect the inlet and outlet hoses (20 mm) to the pump. Ensure all connections are tight to prevent leaks. Use appropriate clamps for a secure fit. The inlet should be connected to the water source, and the outlet to the destination.
3. Connexió elèctrica: Connect the pump to a 12V DC power source. Observe correct polarity: the red wire is positive (+), and the black wire is negative (-). Ensure the power source can provide sufficient current for the pump's operation. It is recommended to use an inline fuse for protection.
4. Priming (if necessary): For some installations, especially if the pump is above the water source, priming may be required. Ensure the pump chamber is filled with water before initial operation to prevent dry running.

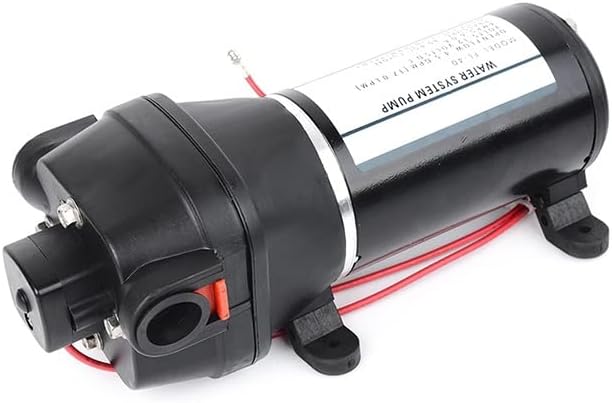

Imatge 1: Lateral view of the FL-40 pump, highlighting the inlet and outlet ports for hose connections.

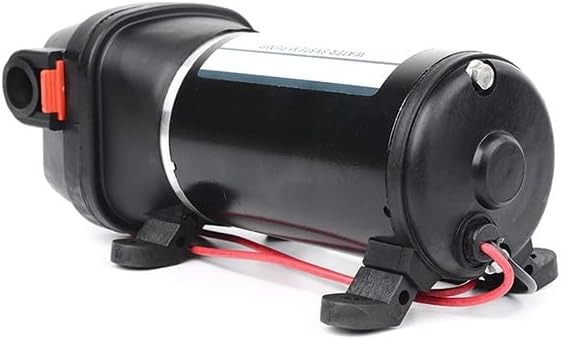

Image 2: Lower angle view of the FL-40 pump, illustrating the sturdy mounting feet for secure installation.

5. Instruccions de funcionament

Un cop instal·lada correctament la bomba, seguiu aquests passos per al seu funcionament:

1. Assegurar el subministrament d'aigua: Verify that the water source connected to the pump's inlet is adequate and free of large debris.
2. Encès: Apply 12V DC power to the pump. The pump should begin to operate, drawing water from the source and pushing it through the outlet.
3. Monitoritzar el rendiment: Observe the pump's operation. Check for consistent flow, unusual noises, or leaks.
4. Apagar: To stop the pump, disconnect the 12V DC power supply.

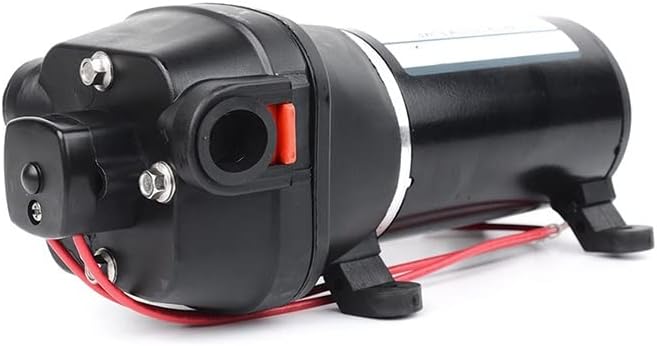

Imatge 3: Lateral view of the FL-40 pump, showing the product label with model and specification details.

6. Manteniment

Regular maintenance helps ensure the longevity and optimal performance of your pump:

• Inspeccionar connexions: Periodically check all plumbing and electrical connections for tightness and signs of wear or corrosion.
• Neteja el filtre d'entrada: If your system includes an inlet filter, clean it regularly to prevent blockages and maintain flow rate.
• Comproveu si hi ha fuites: Regularly inspect the pump and hoses for any signs of water leaks. Address leaks promptly to prevent damage.
• Hivernització (si escau): In freezing conditions, drain the pump and hoses completely to prevent damage from ice expansion.

Imatge 4: posterior view of the FL-40 pump, detailing the electrical wiring connections (red for positive, black for negative).

7. Solució De Problemes

Si teniu problemes amb la bomba, consulteu els següents problemes i solucions habituals:

• La bomba no arrenca:
  • Check the 12V DC power supply and ensure it is connected correctly and providing power.
  • Verify electrical connections for proper polarity and tightness.
  • Check for a blown fuse in the power line.
• Low Flow or No Water Output:
  • Inspect the inlet for blockages or debris. Clean any filters.
  • Ensure the water source is adequate and the pump is properly primed (if applicable).
  • Check for kinks or obstructions in the hoses.
  • Verify all plumbing connections are sealed to prevent air leaks.
• Soroll inusual:
  • Assegureu-vos que la bomba estigui ben muntada i que no vibri contra altres superfícies.
  • Check for air in the system; re-prime if necessary.
  • Inspect for any foreign objects that may have entered the pump.
• Fuites:
  • Apretar tota la mànega clamps i connexions.
  • Inspect hoses and pump housing for cracks or damage.

8. Garantia i Suport

This product is subject to a 30-day return policy. If you have any questions or require assistance with the product, please do not hesitate to contact our professional customer service team. We are committed to providing effective solutions and support.
