Generic Q8-001 Security Camera with Bluetooth Speaker and Night Light - Instruction Manual

Introducció

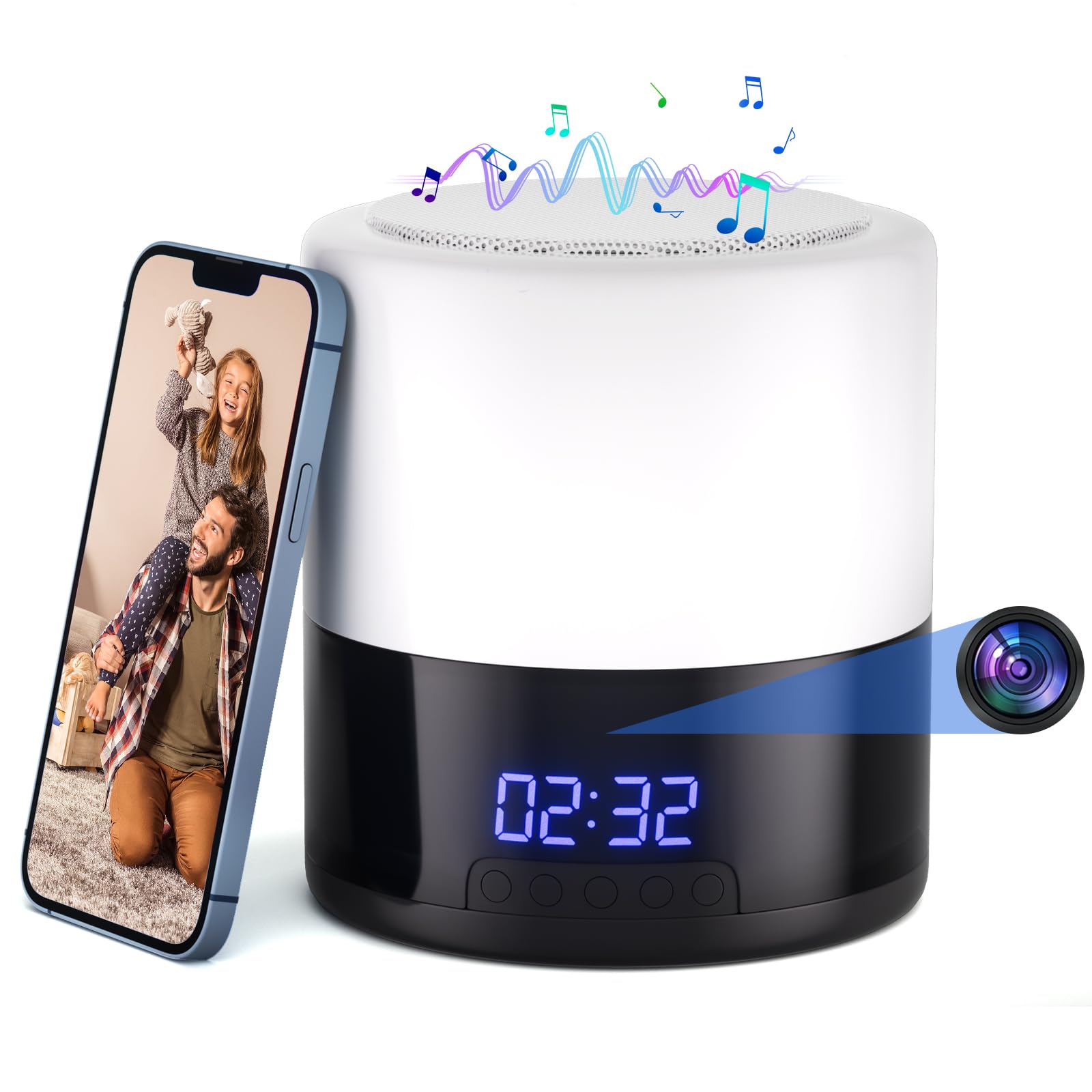

This manual provides detailed instructions for setting up and operating your Generic Q8-001 Security Camera with Bluetooth Speaker and Night Light. This multifunctional device combines a 1080P Full HD camera with a 160° wide-angle rotating lens, a high-quality Bluetooth speaker, and a night light with 5 adjustable colors. It features advanced AI motion detection with real-time alerts and supports both local microSD card storage and secure cloud storage. Designed for indoor use, it offers remote live viewing via a mobile app, making it an ideal solution for home security and ambiance enhancement.

Què hi ha a la caixa

• Generic Q8-001 Security Camera with Bluetooth Speaker and Night Light
• Cable de càrrega USB
• Adaptador d'alimentació
• Manual d'instruccions

Producte acabatview

Familiarize yourself with the key components and features of your Q8-001 device.

• Davant: Digital clock display, hidden camera lens.
• A dalt: Control buttons for various functions (e.g., power, volume, light).
• Enrere: USB Type-C power input.
• A baix: ON/OFF switch, Micro SD card slot (supports up to 128GB, not included), reset button.

Guia de configuració

Follow these steps to quickly set up your Q8-001 device and connect it to the mobile application.

1. Inseriu la targeta Micro-SD: If you plan to use local storage, insert a Micro-SD card (up to 128GB, not included) into the designated slot on the bottom of the camera.
2. Descarrega l'aplicació: Scan the QR code in the instruction manual or search for "Cloud365" in the App Store (iOS) or Google Play Store (Android) to download and install the application.
3. Encès: Connect the device to power using the provided USB cable and adapter. Turn on the device using the ON/OFF switch.
4. Afegeix un dispositiu a l'aplicació: Open the "Cloud365" app, create an account or log in, and follow the in-app instructions to add your new device. Ensure your smartphone is connected to a 2.4GHz Wi-Fi network (5GHz Wi-Fi is not supported).
5. Configura el Wi-Fi: Within the app, configure the device to connect to your home's 2.4GHz Wi-Fi network.
6. Remot Viewing: Once connected, you can use the app for remote live viewing, playback, and control of the camera's features.

Instruccions de funcionament

Característiques de la càmera

The Q8-001 camera offers advanced surveillance capabilities:

• 1080P Full HD Vision: Enjoy crystal-clear video quality for detailed monitoring.
• 160° Rotating Lens: The wide-angle lens can rotate 160 degrees, allowing for a freely adjustable field of view per cobrir més àrea.
• Smart AI Motion Detection & Human Tracking: The camera automatically identifies human movement, tracks their position, and sends instant alerts to your phone via the mobile app.
• Visió nocturna: Equipped with night vision for clear recording in low-light conditions.

Bluetooth Speaker & Night Light Function

Beyond security, the Q8-001 enhances your living space:

• High-Quality Bluetooth Speaker: Connect your smartphone or other Bluetooth-enabled devices to play music.
• 5 Adjustable Night Light Colors: Choose from various colors to create a cozy atmosphere. The light features 3 adjustable lighting modes and 5 levels of brightness, with easy voice control.

Opcions d'emmagatzematge

Your Q8-001 device offers flexible storage solutions for your recorded footage:

• Local MicroSD Card Storage: Supports up to 128GB (not included) for continuous 24/7 recording. Footage can be easily accessed and replayed through the mobile app.
• Emmagatzematge al núvol: Secure cloud storage options are available, allowing you to access, replay, or download recorded footage anytime, anywhere, without needing a physical SD card.

Especificacions

Resolució de problemes

• El dispositiu no es connecta a la Wi-Fi: Ensure your router is broadcasting a 2.4GHz Wi-Fi signal. The device does not support 5GHz networks. Try resetting the device using the reset button (refer to Product Overview for location) and re-attempt the connection process through the app.
• App not finding the device: Make sure the device is powered on and within range of your Wi-Fi router. Check that your phone's Bluetooth is enabled and that the app has necessary permissions (location, local network access).
• Poca qualitat de vídeo: Ensure the camera lens is clean and free from obstructions. Check your Wi-Fi signal strength; a weak signal can affect streaming quality.
• Motion detection alerts not working: Verify that motion detection is enabled in the app settings and that app notifications are allowed on your smartphone.
• Bluetooth speaker not pairing: Ensure the device is in Bluetooth pairing mode (refer to the manual for specific button presses if not automatically enabled). Check your phone's Bluetooth settings to see if the device is discoverable.
• Night light not functioning: Check the power connection and ensure the night light feature is activated via the device's controls or the mobile app.

Garantia i Suport

Your Generic Q8-001 Security Camera with Bluetooth Speaker and Night Light comes with an instruction manual to guide you through its features and operation. For additional peace of mind, protection plans are available for purchase separately:

• Pla de protecció de 2 anys
• Pla de protecció de 3 anys
• Protecció completa: A monthly plan covering all eligible past and future purchases.

Please refer to the included instruction manual for detailed warranty information and contact support channels.
