Talladora de plasma AZZUNO 55AmpManual d'instruccions del CUT-55L

1. Introducció

This manual provides essential information for the safe and effective operation of your AZZUNO CUT-55L Plasma Cutter. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

2. Informació de seguretat

WARNING: Plasma cutting can be dangerous. Always follow safety precautions to prevent serious injury or death.

• Descàrrega elèctrica: Ensure the machine is properly grounded. Do not operate in wet conditions. Always wear dry gloves.
• Fums i gasos: Ensure adequate ventilation. Avoid breathing fumes. Use a respirator if necessary.
• Raigs d'arc: Protect your eyes and skin. Wear a welding helmet with appropriate shade, safety glasses, and protective clothing.
• Incendi i explosió: Mantingueu els materials inflamables allunyats de la zona de tall. Tingueu a mà un extintor.
• Parts calentes: Allow the machine and workpiece to cool before handling.
• Soroll: Utilitzeu protecció auditiva durant el funcionament.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al vostre paquet:

• Plasma Cutter x 1
• Cutting Torch x 1
• Terra Clamp x 1
• Mànega d'aire x 1
• 220V~110V Adapter Cord x 1
• Consell x 2
• Electrode x 2
• Hose Bands x 2
• Brush Hammer x 1

Note: The packaging box may incorrectly state "Welding Machine". The product inside is the correct Plasma Cutter.

Image: The AZZUNO CUT-55L Plasma Cutter with its complete set of accessories, including the cutting torch, ground clamp, air hose, power adapter, tips, electrodes, hose bands, and a brush hammer.

4. Producte acabatview

The AZZUNO CUT-55L Plasma Cutter features a user-friendly interface and robust design for efficient metal cutting. Key components and controls are detailed below.

Imatge: Davant i darrere view of the plasma cutter, highlighting the torch connector, torch switch, pilot arc, ground clamp connector, power switch, air filter, and cooling fan.

Funcions del panell frontal:

• TEST AIR / PRE-FLOW / POST-FLOW Switch: Selects air flow control modes.
• 2T/4T Switch: Toggles between 2-stroke and 4-stroke torch operation.
• Flow Time / Amperage Adjusting Knob: Controls air flow duration and cutting amperage.
• Pantalla LED gran: Shows current amperage, air pressure, and selected mode settings.

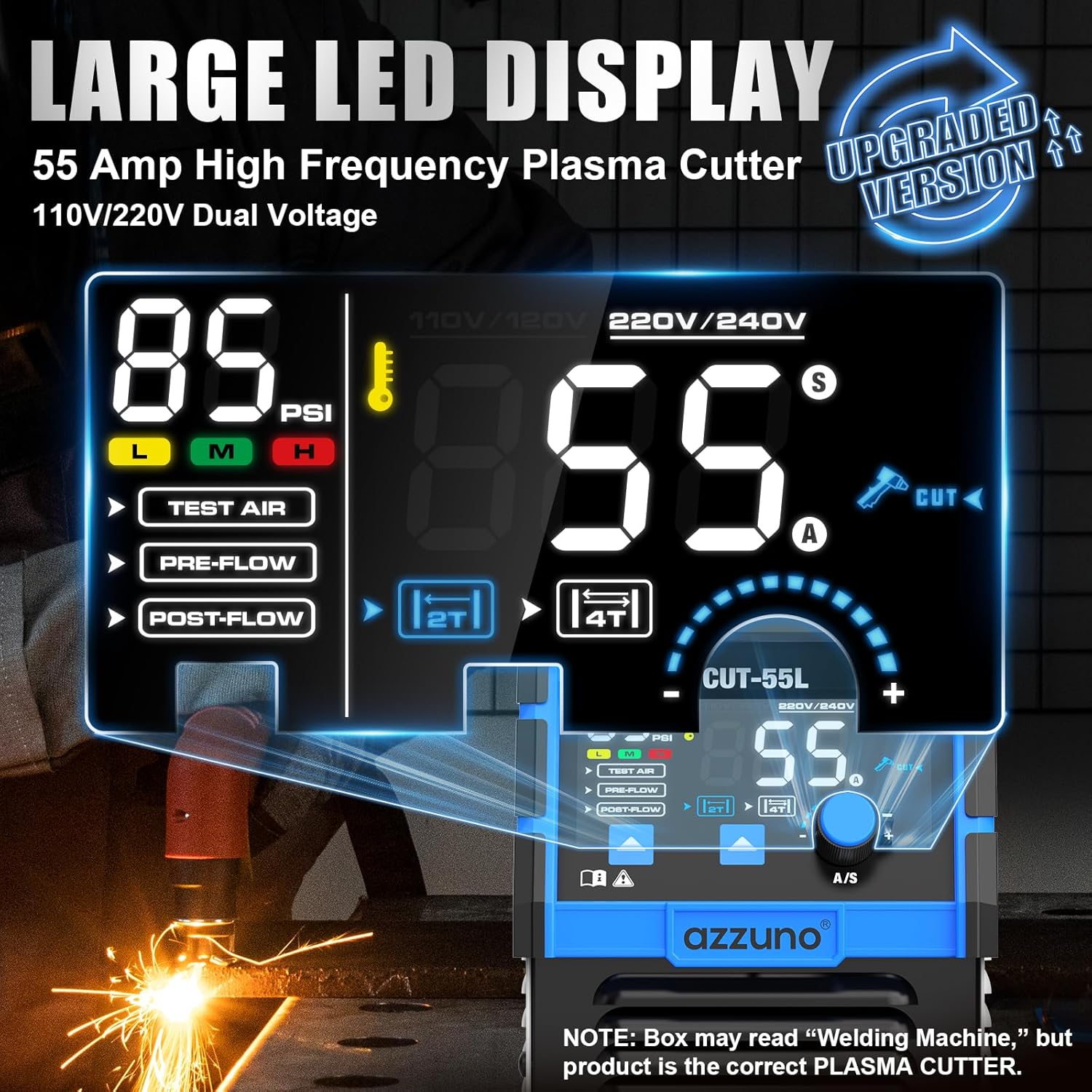

Image: The large LED display clearly showing amperage, air pressure (PSI), and mode selections like TEST AIR, PRE-FLOW, POST-FLOW, 2T, and 4T.

5. Configuració

Follow these steps to set up your plasma cutter for operation:

1. Connexió d'alimentació: Connect the plasma cutter to a suitable power source. The machine supports 110V or 220V. Use the provided adapter cord for 110V connections if necessary.
2. Connexió aèria: The unit features a built-in air regulator. Connect your air compressor hose to the pre-assembled air connector on the rear panel. Secure it with a hose band. Ensure your air compressor provides clean, dry air at the recommended pressure (typically 85 PSI for optimal cutting).
3. Terra Clamp Connexió: Enganxa el terra clamp cable to the designated connector on the front panel. Securely attach the ground clamp a la peça de treball o a la taula de treball, garantint un bon contacte elèctric.
4. Cutting Torch Connection: Connect the cutting torch cable to the torch connector on the front panel.
5. Encès: Flip the power switch on the rear panel to the 'ON' position. The LED display will illuminate.

Image: The rear panel of the plasma cutter, illustrating the pre-assembled air connector for easy air hose attachment and the 220V power plug with a 110V adapter option.

6. Instruccions de funcionament

6.1. Non-Touch Pilot Arc

The AZZUNO CUT-55L features a 55A high-frequency, non-touch pilot arc. This technology allows the arc to ignite without direct contact with the metal, reducing consumable wear and providing cleaner, more precise cuts on painted, rusted, or uneven surfaces.

Image: The plasma torch in action, demonstrating the non-touch pilot arc cutting through a metal surface, highlighting the enhanced cutting power.

6.2. Cutting Capacity

The machine offers powerful plasma cuts with precision. Optimal cutting capacity depends on the input voltage:

• Tall net:
  • 3/8" (10 mm) @ 110V
  • 5/8" (16 mm) @ 220V
• Max Cut:
  • 1/2" (12 mm) @ 110V
  • 3/4" (20 mm) @ 220V

It is capable of cutting various metals including mild steel, stainless steel, aluminum, and copper. It effectively handles solid plate, expanded metal, and perforated mesh.

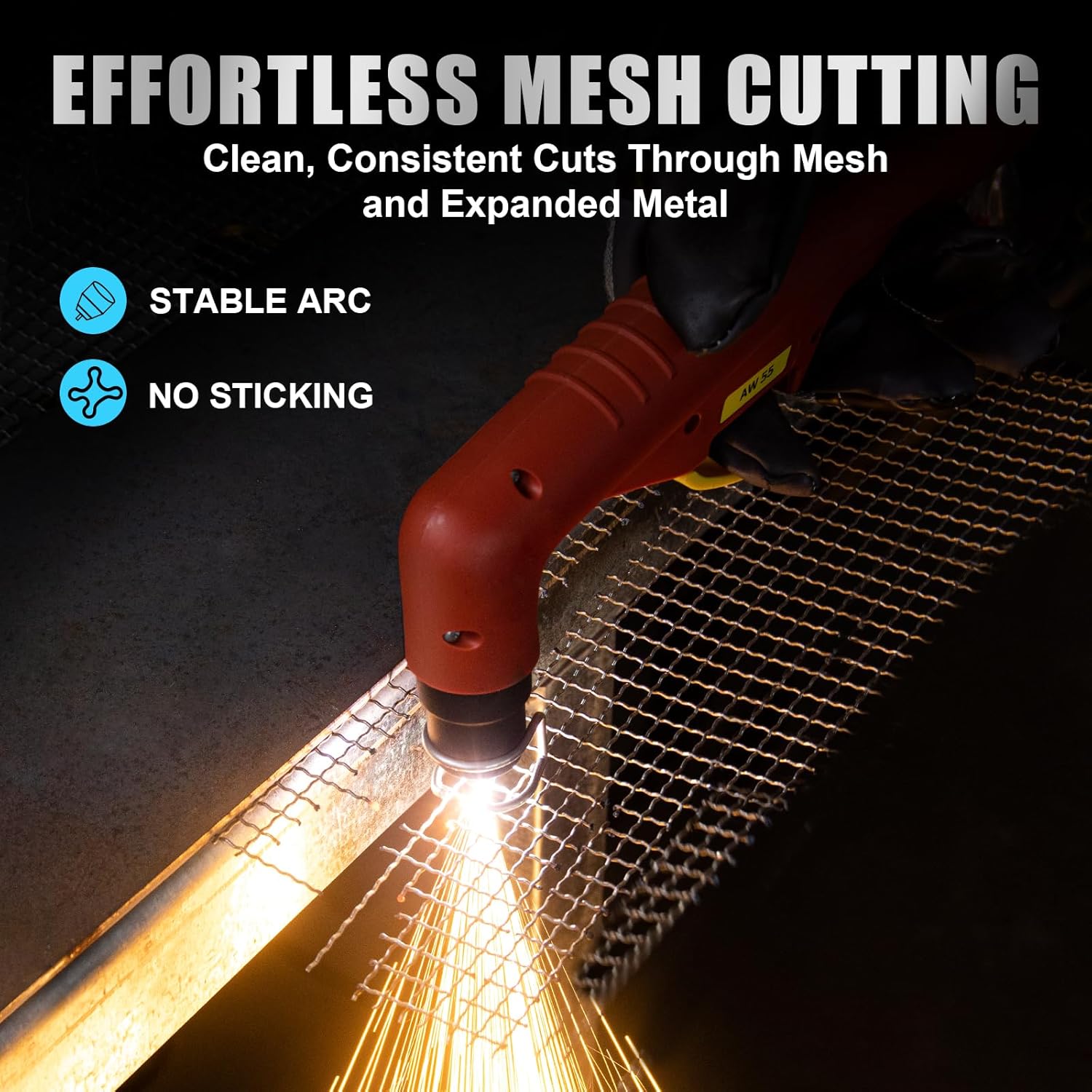

Image: The plasma torch cutting through expanded metal mesh, demonstrating stable arc and no sticking for clean, consistent results.

6.3. Multiple Cutting Modes

The plasma cutter includes several settings for precise control:

• TEST AIR: Allows checking airflow without igniting the arc.
• PRE-FLOW: Controls the gas delay (0.1-1s) before arc ignition for smoother starts.
• POST-FLOW: Sets the cooling time (1-10s) after cutting to protect the torch and consumables.
• 2T/4T Settings:
  • 2T (2-Stroke): Press and hold the torch trigger to cut. Release to stop. Ideal for short cuts.
  • 4T (4-Stroke): Press the trigger once to start cutting, release to continue cutting without holding. Press again to stop. Ideal for longer cuts and reduced finger fatigue.

6.4. Air Sensor Technology

A built-in pressure monitoring system with a warning light alerts you if the air pressure is outside the optimal range (Low, Normal, High). This ensures consistent performance and helps prevent machine damage.

Image: The LED display showing the air pressure warning system with indicators for Low Pressure (insufficient air supply), Normal Pressure (ready to cut), and High Pressure (overpressure detected).

7. Manteniment

Regular maintenance ensures the longevity and optimal performance of your plasma cutter:

• Consumibles: Regularly inspect the torch tip and electrode for wear. Replace them when they show signs of degradation to maintain cut quality.
• Filtre d'aire: Check and clean the air filter periodically to ensure a clean and dry air supply. Replace if damaged.
• Neteja: Keep the machine clean and free from dust and metal particles. Use compressed air to blow out internal components if necessary, ensuring the machine is unplugged.
• Cables i connexions: Inspect all cables and connections for damage or loose fittings before each use.

8. Solució De Problemes

Consulteu aquesta secció per conèixer els problemes comuns i les seves possibles solucions:

9. Especificacions

Detailed technical specifications for the AZZUNO CUT-55L Plasma Cutter:

Image: A table displaying the technical specifications of the CUT-55L model, including voltage, current, duty cycle, and protection class.

10. Garantia i Suport

For warranty information, technical support, or service inquiries, please contact AZZUNO customer service through their official weblloc web o el distribuïdor on es va comprar el producte. Conserveu el rebut de compra com a comprovant de compra.
