Manual d'instruccions

1. Introducció

This manual provides essential information for the safe and efficient operation, installation, and maintenance of the YNF300-2T External Rotor Axial Fan. Please read this manual thoroughly before installation or operation to ensure proper use and to prevent damage to the product or injury to personnel.

The YNF300-2T is a 3-wire AC220V, 0.56A, 150W low noise and energy-saving external rotor axial fan designed for various industrial and scientific applications requiring efficient air circulation.

2. Informació de seguretat

Observeu sempre les precaucions de seguretat següents per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Seguretat elèctrica: Ensure the power supply matches the fan's specifications (AC220V). Disconnect power before installation, maintenance, or troubleshooting. All electrical connections should be performed by a qualified electrician in accordance with local and national electrical codes.
• Instal·lació: Mount the fan securely to prevent vibration and accidental detachment. Ensure adequate clearance around the fan for proper airflow and to prevent obstruction of moving parts.
• Funcionament: Do not insert fingers or any objects into the fan blades while the fan is operating or connected to power. Keep children and pets away from the fan during operation.
• Manteniment: Only perform maintenance when the fan is completely powered off and disconnected from the power source. Use appropriate personal protective equipment (PPE).
• Medi ambient: Do not operate the fan in environments with excessive dust, moisture, or corrosive gases unless specifically designed for such conditions.

3. Contingut del paquet

Upon unpacking, please verify that all items listed below are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

• YNF300-2T External Rotor Axial Fan (1 unit)
• Note: Shipped as shown in the picture, no other accessories are included.

4. Producte acabatview

The YNF300-2T axial fan features a robust design for efficient air movement. Below are images illustrating the fan's appearance and key dimensions.

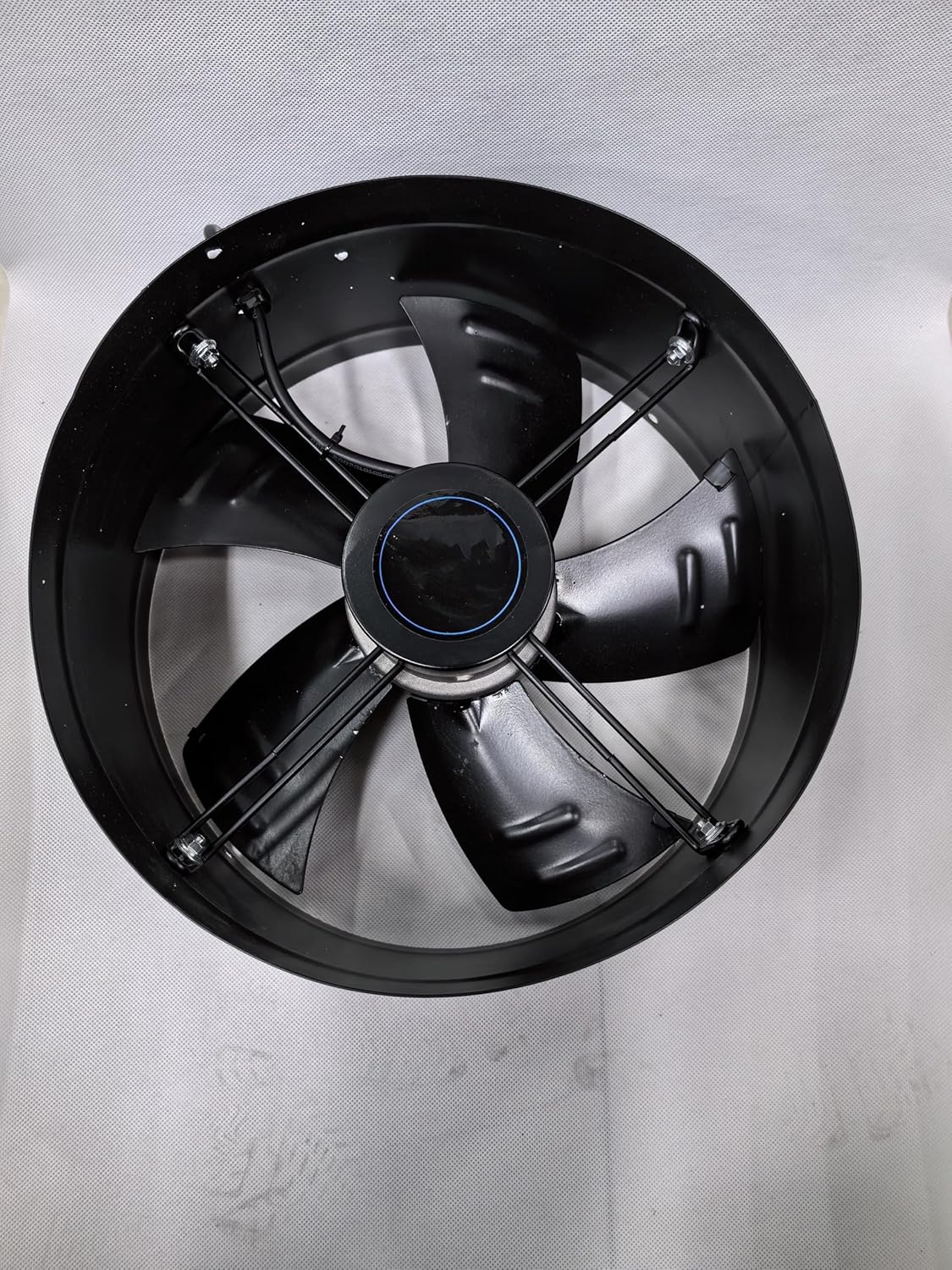

Figura 4.1: De dalt a baix view of the YNF300-2T axial fan, highlighting the fan blades and the circular housing.

Figura 4.2: Angle view of the YNF300-2T axial fan, showing the motor assembly and the attached power cable.

Figura 4.3: Pro lateralfile of the fan, demonstrating its depth with a measuring tape for reference.

Figura 4.4: De dalt a baix view of the fan, showing its overall diameter with a measuring tape for reference.

Figure 4.5: Product label displaying technical specifications of the YNF300-2T fan.

5. Especificacions

6. Configuració i instal·lació

Proper installation is crucial for the fan's performance and longevity. It is recommended that installation be performed by a qualified professional.

1. Desembalatge: Carefully remove the fan from its packaging. Inspect for any visible damage.
2. Lloc de muntatge: Choose a stable and secure location that can support the fan's weight and withstand any vibrations. Ensure adequate space for airflow and maintenance access.
3. Muntatge: Secure the fan using appropriate fasteners through the mounting holes on the fan's housing. Ensure the fan is level and firmly attached to prevent excessive vibration or noise.
4. Connexió elèctrica:
   • Ensure the main power supply is disconnected before making any electrical connections.
   • Connect the fan's 3-wire cable to a compatible AC220V power source. Refer to local electrical codes for proper wiring. Typically, these wires are Live, Neutral, and Ground. If unsure, consult a qualified electrician.
   • Verify all connections are secure and insulated to prevent short circuits.
5. Comprovació prèvia al funcionament: Before restoring power, double-check all connections and ensure there are no obstructions around the fan blades.

7. Funcionament

The YNF300-2T axial fan is designed for continuous operation once properly installed and connected to power.

1. Encès: Restore power to the fan's circuit. The fan should begin operating immediately.
2. Seguiment: Observe the fan during its initial operation for any unusual noises, vibrations, or signs of malfunction.
3. Apagar: To stop the fan, disconnect power from its circuit.

8. Manteniment

Un manteniment regular ajuda a garantir la longevitat i el rendiment òptim del ventilador.

• Desconnexió d'alimentació: Always disconnect the fan from the power supply before performing any maintenance.
• Neteja:
  • Periodically clean the fan blades and housing to remove dust and debris. Accumulated dust can reduce efficiency and cause overheating.
  • Use a soft cloth, brush, or compressed air. Do not use abrasive cleaners or solvents that could damage the fan's finish or components.
• Inspecció:
  • Check for any loose screws or mounting hardware and tighten as necessary.
  • Inspect the power cable for any signs of wear, cuts, or damage. Replace if necessary.
  • Listen for any unusual noises during operation that might indicate bearing wear or other mechanical issues.
• Lubricació: This fan features an external rotor design, and typically, the bearings are sealed and do not require lubrication. Refer to manufacturer specifications if unsure.

9. Solució De Problemes

If you encounter issues with your YNF300-2T fan, refer to the following table for common problems and their solutions.

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client o amb un tècnic de servei qualificat.

10. Garantia i Suport

This product is manufactured by Generic. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. General support inquiries can be directed to the point of purchase.

For technical assistance or service, please have your product model (YNF300-2T) and ASIN (B0FB9148ZG) ready when contacting support.
