GDFStudio Full Size Murphy Wall Bed with Shelves

Introducció

Thank you for choosing the GDFStudio Full Size Murphy Wall Bed with Shelves. This innovative and space-saving furniture solution is designed to provide a comfortable sleeping area while maximizing your living space. When not in use, the bed folds neatly into a stylish cabinet, complemented by integrated shelving for additional storage. This manual provides essential information for safe assembly, operation, and maintenance of your new wall bed.

Informació de seguretat

• Wall Mounting is Mandatory: This Murphy bed deu be securely anchored to a wall stud or solid structural support. Failure to properly anchor the unit can result in serious injury or death. Consult a professional if you are unsure about your wall structure.
• Capacitat de pes: Do not exceed the maximum weight capacity of 600 lbs (272.16 kg) for the bed. This includes the mattress and occupants.
• Gruix del matalàs: Use a mattress no thicker than 8 inches. Thicker mattresses may prevent the bed from closing properly or damage the mechanism.
• Liquidació: Ensure adequate clearance around the bed when opening and closing. Keep children and pets away from the unit during operation.
• Muntatge: Assembly requires at least two adults. Follow all instructions carefully. Do not use power tools for tightening fasteners unless explicitly instructed, as over-tightening can damage components.
• Comprovacions periòdiques: Periodically inspect all fasteners and connections to ensure they remain tight and secure.

Contingut del paquet

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, contact GDFStudio customer support.

• Murphy Wall Bed Cabinet Frame
• Bed Frame with Slatted Base
• Dual Piston Mechanism
• Integrated Shelving Unit
• Hardware Pack (screws, bolts, wall anchors, etc.)
• Assembly Tools (basic wrenches, Allen keys)
• Manual d'instruccions

Muntatge i muntatge

Assembly of the GDFStudio Murphy Wall Bed requires careful attention to detail and the assistance of at least two adults. Please read all instructions before starting.

1. Prepara la zona: Clear a spacious area for assembly. Lay out all parts and hardware. Keep small parts out of reach of children.
2. Muntar el marc del gabinet: Follow the step-by-step diagrams provided in the separate assembly guide to construct the main cabinet structure. Ensure all connections are secure but do not fully tighten until instructed.
3. Attach the Shelving Unit: The five-layer shelving unit can be installed on either side of the main cabinet. Secure it according to the assembly instructions, ensuring the adjustable shelf pins are correctly placed.
4. Install the Bed Frame and Slats: Assemble the bed frame and insert the flexible slats into their designated positions. These slats are designed to provide mattress support and comfort.
5. Integrate the Dual Piston Mechanism: Carefully install the dual piston metal folding mechanism. This system assists in the smooth lifting and lowering of the bed. Ensure it is correctly oriented and securely fastened.
6. Attach Bed Legs: Secure the foldable bed legs to the bed frame. These legs provide stability when the bed is in the open position.
7. Muntatge a la paret: This is a critical step. Position the assembled unit against the desired wall. Locate wall studs using a stud finder. Mark the drilling points on the wall and the unit. Drill pilot holes and securely fasten the unit to the wall studs using appropriate hardware. Failure to properly anchor the unit can lead to tipping and severe injury.
8. Comprovacions finals: Once assembled and wall-mounted, double-check all fasteners for tightness. Test the opening and closing mechanism several times without a mattress to ensure smooth operation.

Figure 1: Product dimensions for the GDFStudio Full Size Murphy Wall Bed.

Figura 2: Intern view of the bed mechanism and slatted base during assembly.

Figure 3: Detail of the dual piston mechanism.

Figure 4: Detail of the bed leg attachment.

Instruccions de funcionament

The GDFStudio Murphy Wall Bed is designed for ease of use with its dual piston mechanism.

1. To Open the Bed:
   • Assegureu-vos que la zona davantera de l'armari estigui lliure d'obstacles.
   • Gently pull the handles on the front of the cabinet. The bed will begin to lower smoothly.
   • As the bed lowers, the support legs will automatically extend. Ensure they are fully deployed and stable on the floor.
   • Once fully open, the bed is ready for use.
2. To Close the Bed:
   • Remove any bedding or items that might obstruct the closing mechanism. Ensure the mattress is properly seated on the slats.
   • Lift the bed frame from the foot end. The dual piston mechanism will assist in lifting the bed back into the cabinet.
   • Guide the bed upwards until it is fully retracted into the cabinet. The support legs will fold back automatically.
   • Ensure the bed is securely latched in the closed position.

Figure 5: Murphy Wall Bed in the open position.

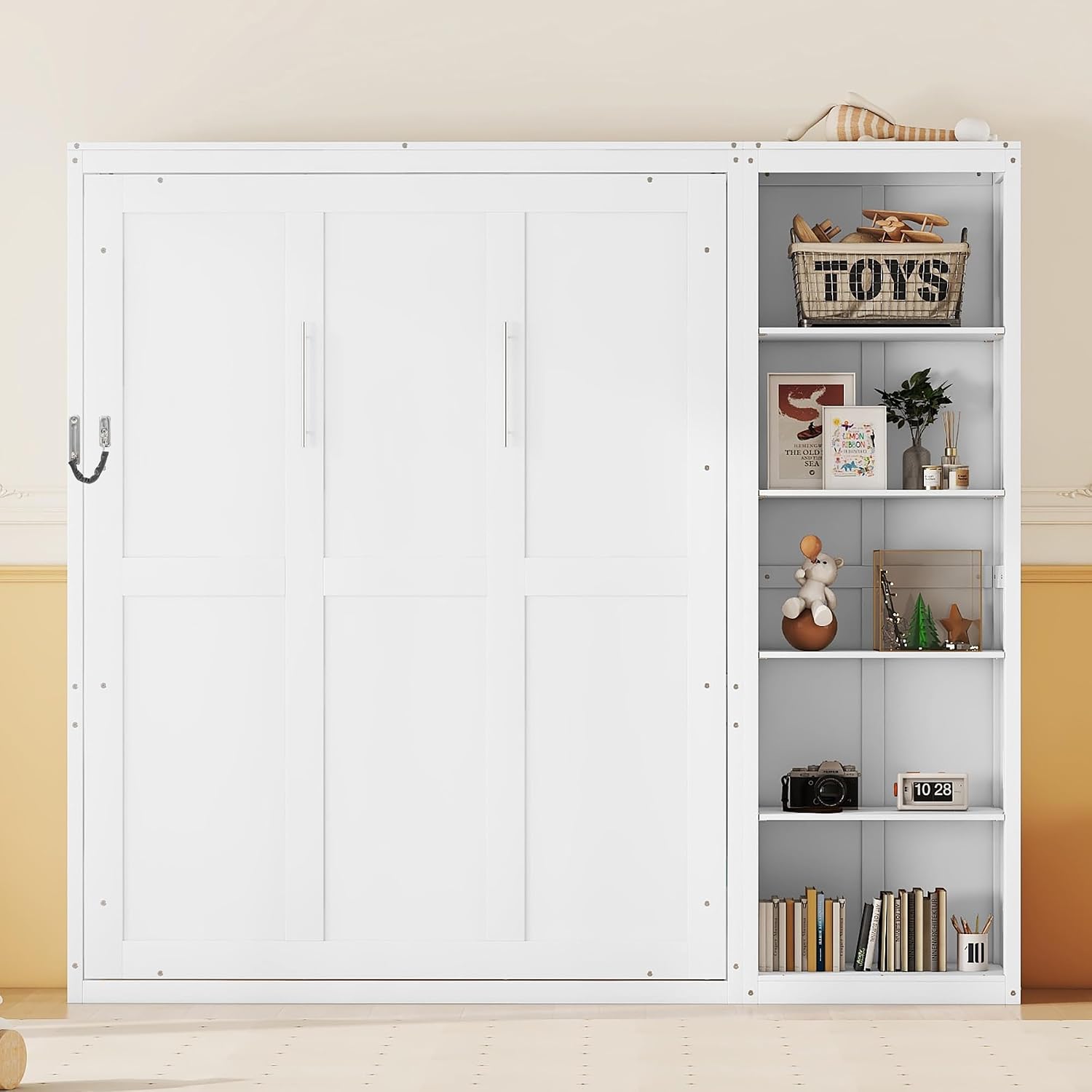

Figure 6: Murphy Wall Bed in the closed (cabinet) position.

Figure 7: Detail of the extended bed leg.

Manteniment

Proper maintenance ensures the longevity and safe operation of your Murphy Wall Bed.

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid harsh chemicals or abrasive cleaners that can damage the finish.
• Comprovació de maquinari: Periodically (e.g., every 3-6 months) check all screws, bolts, and connections to ensure they are tight. Re-tighten as necessary.
• Mechanism Inspection: Inspect the dual piston mechanism for any signs of wear or damage. If you notice any issues, contact customer support. Do not attempt to repair the mechanism yourself.
• Lubricació: The piston mechanism is generally maintenance-free. Do not apply lubricants unless specifically instructed by the manufacturer.
• Cura del matalàs: Follow your mattress manufacturer's care instructions. Ensure the mattress remains within the recommended thickness for the Murphy bed.

Resolució de problemes

If you encounter issues with your GDFStudio Murphy Wall Bed, refer to the following common solutions:

If troubleshooting steps do not resolve the issue, please contact GDFStudio customer support for further assistance.

Especificacions

Garantia i Suport

For warranty information or customer support, please refer to the documentation included with your purchase or contact GDFStudio directly through their official website or the retailer where the product was purchased. Please have your model number (B0FBGC4PR7) and purchase date available when contacting support.
