1. Introducció
This manual provides essential information for the safe and efficient use of your MOSEWORTH 12V 100Ah LiFePO4 Lithium Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.
Safety Warning: Always handle batteries with care. Ensure proper ventilation and use appropriate protective gear. Do not short-circuit the terminals. Do not disassemble or expose to extreme temperatures or fire.
Figure 1: MOSEWORTH 12V 100Ah LiFePO4 Lithium Battery
2. Característiques del producte
The MOSEWORTH 12V 100Ah LiFePO4 Lithium Battery is designed for high performance and durability, offering numerous advantages over traditional lead-acid batteries:
- Advanced 100A BMS: Built-in Battery Management System provides comprehensive protection against overcharge, over-discharge, short circuits, and overheating.
- Protecció de baixa temperatura: Features low-temperature cutoff (-4°F/-20°C) and high-temperature protection (140°F/60°C) for safe operation in various conditions.
- Càrrega ràpida: Charges significantly faster than lead-acid batteries, achieving a full charge in approximately 2 hours with a 600W solar system.
- Compacte i lleuger: With dimensions of 13x6.77x8.43 inches, it offers a compact footprint and lighter weight compared to lead-acid alternatives.
- Expandable & Versatile: Can be connected in series (up to 4 batteries for 48V) or unlimited in parallel for increased capacity, suitable for a wide range of applications.
- Llarga vida útil: Constructed with premium Grade A LiFePO4 cells, providing 10+ years of reliable power with over 5000 deep cycles.
- Ecològic: A more sustainable and environmentally conscious power solution.
Figure 2: High Performance Lithium Battery with 100A BMS, Grade A Cells, IP65 Waterproof & Dust-proof
Figure 3: Built-in 100A BMS with comprehensive protection features
Figure 4: Low-Temperature Protection ensures safe operation in cold environments.
Figure 5: LiFePO4 batteries offer superior lifespan and depth of discharge compared to lead-acid batteries.
3. Contingut del paquet
En obrir el paquet, comproveu que tots els elements hi siguin presents i que no estiguin danyats:
- 1 x MOSEWORTH 12V 100Ah LiFePO4 Lithium Battery
- Manual d'usuari (aquest document)
4. Especificacions
| Atribut | Valor |
|---|---|
| Marca | MOSEWORTH |
| Model | M12100 |
| Voltage | 12 V |
| Capacitat | 100 Ah |
| BMS | BMS de 100A integrat |
| Cicle de Vida | 5000+ cycles (10+ years) |
| Low-Temp Cutoff | -4 °F (-20 °C) |
| High-Temp Protection | 140 °C (60 °F) |
| Dimensions (L x A x A) | 13 x 6.77 x 8.43 polzades |
| Volum de càrrega recomanattage | 14.6 V |
5. Configuració
5.1 Inspecció inicial
Before connecting the battery, inspect it for any visible damage. Ensure the terminals are clean and free of corrosion. Confirm the battery dimensions fit your intended application.

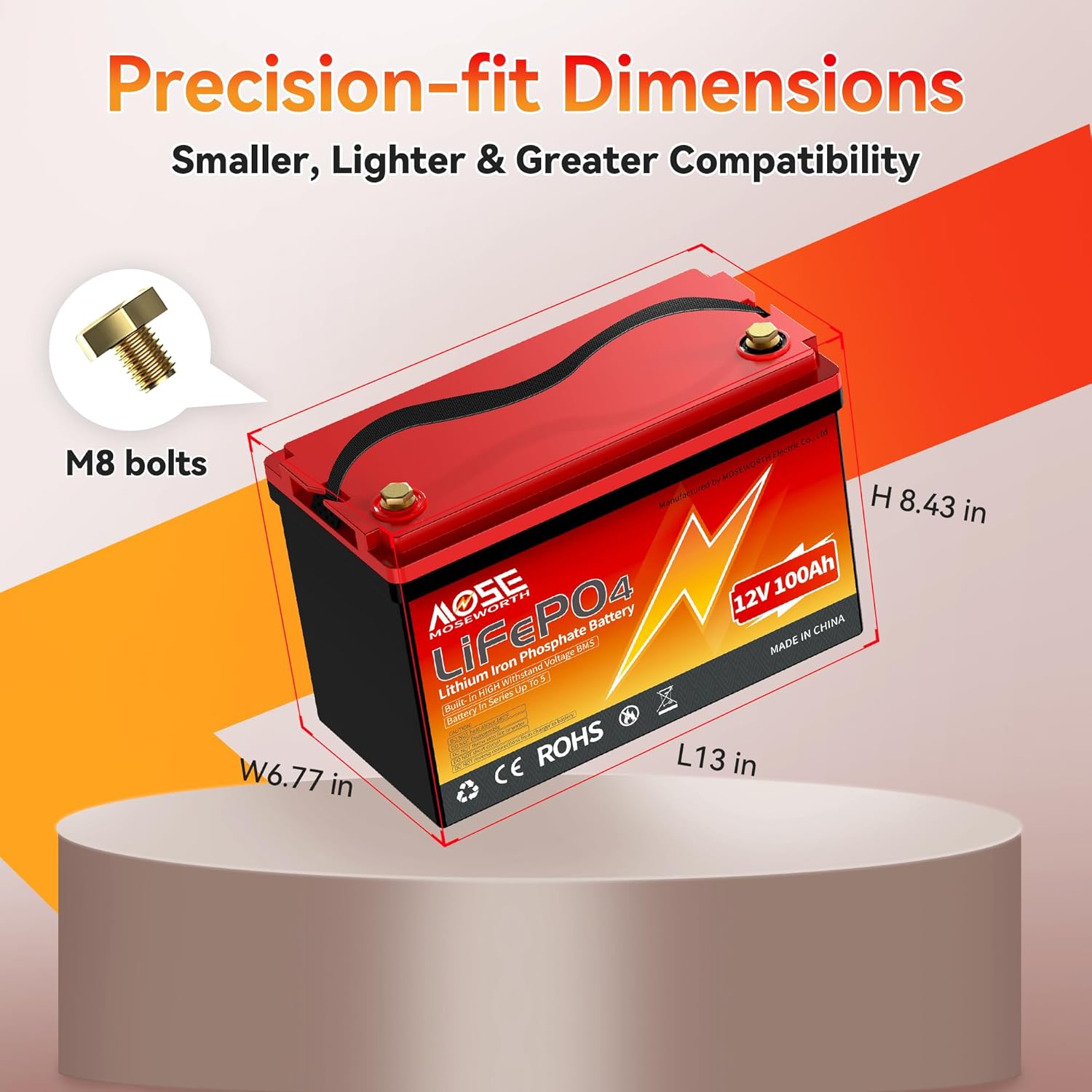

Figure 6: Precision-fit dimensions for easy integration into various systems.
5.2 Pautes de connexió
Always use appropriate cables and connectors for your battery system. Ensure all connections are secure to prevent arcing and potential damage. For marine or wet environments, it is highly recommended to use a waterproof battery compartment.
5.2.1 Connexió paral·lel
For increased capacity (Ah), connect batteries in parallel. Connect all positive terminals together and all negative terminals together. This maintains the system voltage mentre incrementasing the total available current.
Video 1: This video demonstrates various aspects of MOSEWORTH LiFePO4 batteries, including parallel and series connection diagrams. The parallel connection segment illustrates how to connect multiple batteries to increase overall capacity while maintaining the same voltage.
5.2.2 Connexió en sèrie
For increased voltage (V), connect batteries in series. Connect the positive terminal of one battery to the negative terminal of the next. You can connect up to 4 batteries in series to achieve a 48V system.
Video 2: This video demonstrates various aspects of MOSEWORTH LiFePO4 batteries, including parallel and series connection diagrams. The series connection segment illustrates how to connect multiple batteries to increase the overall voltage for higher power applications.
5.2.3 Connexió del panell solar
The battery is compatible with solar charging systems. Ensure you use an appropriate MPPT (Maximum Power Point Tracking) charge controller to regulate the voltage and current from your solar panels to the battery. This optimizes charging efficiency and protects the battery.
Figure 7: The battery can be charged using a dedicated LiFePO4 charger, solar panels, or a generator.
6. Instruccions de funcionament
6.1 Càrrega
Use a LiFePO4 compatible charger with a recommended voltage of 14.6V. Avoid using lead-acid chargers as they may damage the battery. The battery's internal BMS will manage the charging process, but using the correct charger is crucial for optimal performance and safety.
6.2 Alta
The battery is designed for deep cycling, allowing for 100% depth of discharge. The BMS will protect the battery from over-discharge. If the battery is fully discharged, recharge it within 12 hours to maintain optimal performance and extend its lifespan.
6.3 Aplicacions
This battery is ideal for various applications requiring reliable and long-lasting power. It is suitable for:
- Trolling Motors (30-70 lb thrust)
- RV i Camper Power Systems
- Boat and Marine Applications (with waterproof enclosure)
- Sistemes d'emmagatzematge d'energia solar
- Potència de seguretat d'emergència
- Off-Grid Living Solutions
Note: This battery is not designed for use as a starting battery for vehicles or for golf cart applications.
Figure 8: The MOSEWORTH LiFePO4 battery is suitable for a wide range of recreational and power storage applications.
7. Manteniment i emmagatzematge
Proper maintenance ensures the longevity and performance of your LiFePO4 battery:
- Inspecció periòdica: Periodically check battery terminals for cleanliness and tightness.
- Neteja: Mantingueu la bateria neta i seca. Feu servir l'anunciamp drap per netejar l'exterior.
- Temperatura: Guardeu la bateria en un lloc fresc i sec, allunyat de la llum solar directa i de temperatures extremes.
- Emmagatzematge a llarg termini: If storing the battery for an extended period, ensure it is charged to approximately 50% state of charge. Recharge every 3-6 months to prevent self-discharge.
- Tancament impermeable: For marine or wet environments, always use a waterproof battery box to protect the battery from moisture.
8. Solució De Problemes
This section addresses common issues you might encounter with your battery. If the problem persists, please contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La bateria no es carrega | Incorrect charger type; Loose connections; BMS protection activated; Charger malfunction | Ensure LiFePO4 compatible charger is used; Check all cable connections; Allow battery to cool if overheated; Test charger with another device or replace. |
| La bateria no proporciona energia | Battery fully discharged; BMS protection activated (over-discharge, short circuit); Loose connections; Device malfunction | Recharge battery immediately; Check for short circuits or excessive load; Secure all connections; Test device with another power source. |
| Sobreescalfament de la bateria | Excessive discharge/charge current; Poor ventilation; High ambient temperature | Reduce load or charging current; Ensure adequate airflow around the battery; Move battery to a cooler environment. |
| Reduced capacity/runtime | Battery not fully charged; Aging battery; High discharge rate; Low temperature operation | Ensure full charge cycles; Consider battery replacement if very old; Reduce load; Note that capacity is reduced in very cold conditions. |
9. Garantia i atenció al client
MOSEWORTH stands behind the quality of its products. Your 12V 100Ah LiFePO4 Lithium Battery is backed by a 5-year warranty, ensuring peace of mind and reliable performance.
For any questions, technical assistance, or warranty claims, please contact MOSEWORTH customer support. Our dedicated team is available 24/7 to provide fast and effective solutions.
Contacta amb nosaltres:
- Via Amazon: Use the messaging system on the Amazon product page or your order details.
- Visit the MOSEWORTH Store: MOSEWORTH Official Store
