DIERYA Falcon M1 Wireless Gaming Mouse User Manual

1. Producte acabatview

The DIERYA Falcon M1 is a high-performance wireless gaming mouse designed for precision and versatility. It features multiple connectivity options, customizable settings, and an ergonomic design for extended use.

Figura 1.1: Acabatview of the DIERYA Falcon M1 Wireless Gaming Mouse, illustrating its honeycomb design, 2.4GHz/Bluetooth 5.2/USB-C connectivity, 200-24000 DPI range, 125-1000Hz polling rate, 1000mAh battery, 6 programmable buttons, customizable RGB strip, dedicated software support, 20 million click durability, and ultra-light 90-gram weight.

Figura 1.2: The Falcon M1 mouse from a side view, highlighting its performance specifications including a maximum tracking speed of 300 IPS, a DPI range of 200-24000, a polling rate of 125-1000Hz, and 35G acceleration.

2. Contingut del paquet

Si us plau, verifiqueu que tots els elements que s'enumeren a continuació estiguin inclosos al vostre paquet:

• DIERYA Falcon M1 Wireless Gaming Mouse
• Cable USB-C
• Manual d'instruccions

3. Configuració

3.1. Càrrega del ratolí

Before initial use, fully charge the mouse. Connect the provided USB-C cable to the mouse's charging port and the other end to a USB power source (e.g., computer USB port, USB wall adapter). A full charge typically takes approximately 1 hour.

3.2. Connectar el ratolí

The Falcon M1 supports three connection modes: 2.4GHz Wireless, Bluetooth 5.2, and USB-C Wired.

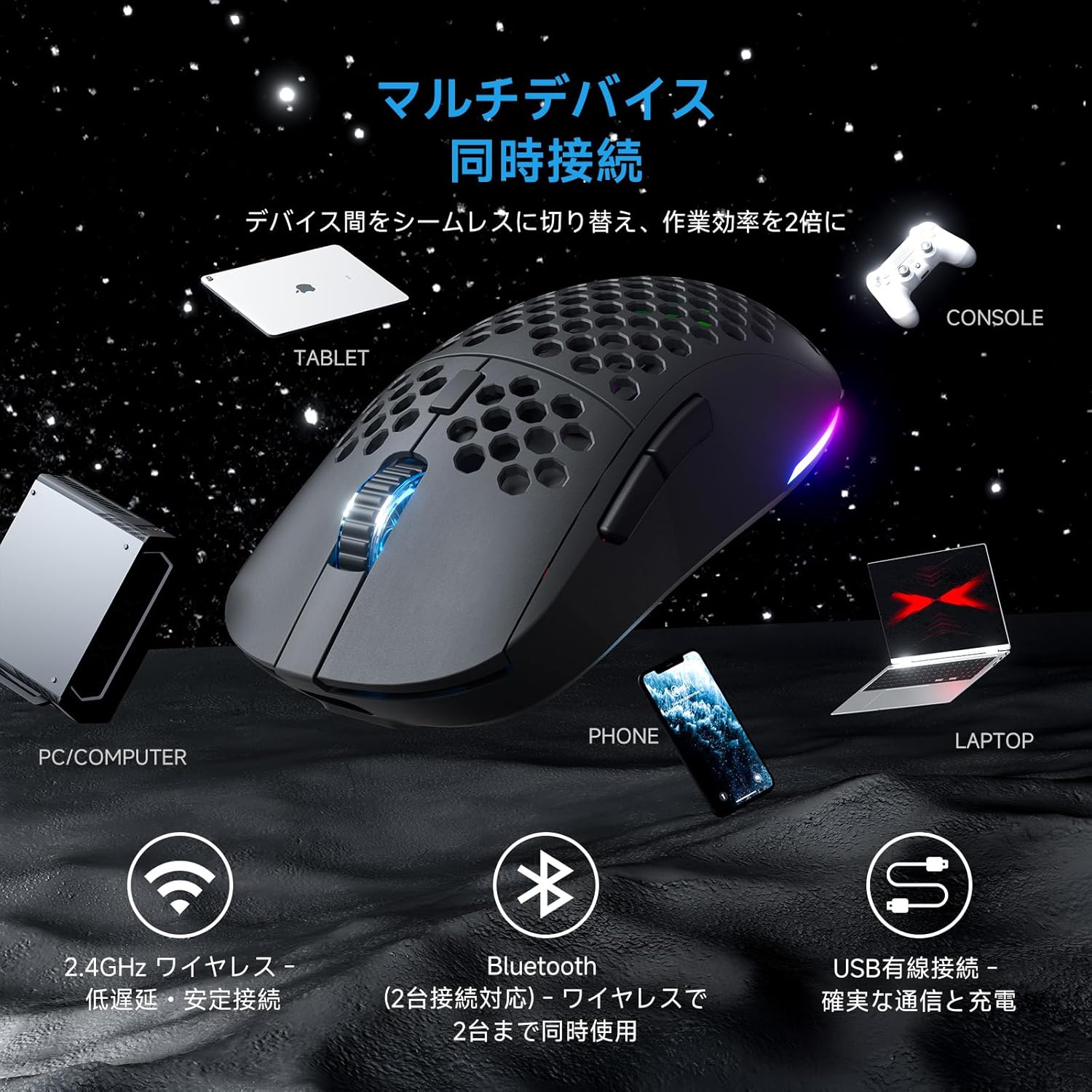

Figura 3.1: The Falcon M1 mouse demonstrating multi-device simultaneous connection capabilities, including PC/Computer, Tablet, Phone, Laptop, and Console via 2.4GHz wireless, Bluetooth 5.2, and USB wired connections.

3.2.1. Connexió sense fil de 2.4 GHz

1. Locate the USB 2.4GHz receiver (dongle) inside the mouse's bottom compartment.
2. Connecteu el receptor USB a un port USB disponible de l'ordinador.
3. Turn on the mouse using the power switch on the bottom. The mouse will automatically connect to the receiver.
4. The LED indicator on the mouse will show the connection status.

3.2.2. Connexió Bluetooth 5.2

1. Turn on the mouse and switch to Bluetooth mode using the mode switch on the bottom.
2. Al dispositiu (PC, portàtil, tauleta, telèfon), activa el Bluetooth i cerca dispositius nous.
3. Select "DIERYA Falcon M1" from the list of available devices to pair.
4. The mouse supports simultaneous connection to two Bluetooth devices. Use the bottom button to switch between saved profiles.

3.2.3. Connexió amb cable USB-C

1. Connect the provided USB-C cable to the mouse and the other end to your computer's USB port.
2. El ratolí canviarà automàticament al mode amb cable i començarà a carregar-se.

4. Instruccions de funcionament

4.1. Ajust de DPI

The Falcon M1 offers a wide DPI range from 200 to 24,000, adjustable in 1-unit increments. It comes with 6 preset DPI levels (400/800/1600/3200/4800/6400). You can cycle through these presets using the dedicated DPI button on the mouse. The current DPI setting is indicated by the color of the wheel LED and RGB strip (White/Yellow/Light Blue/Blue/Green/Red).

4.2. Personalització de botons

The mouse features 6 programmable buttons. To customize button functions, assign macros, or fine-tune settings, download and install the dedicated driver software from the official DIERYA website. The software is compatible with Windows systems.

Figura 4.1: Screenshot of the DIERYA Falcon M1 customization software, showing options for key functions, DPI adjustment, USB report rate, and various lighting effects. Note: This software is primarily for Windows systems.

4.3. Control de la il·luminació RGB

The Falcon M1 features customizable RGB lighting with 13 preset effects (e.g., breathing, flicker, flow, starlight) and 16.8 million color options. Lighting effects can be adjusted through the dedicated driver software.

Figura 4.2: The Falcon M1 mouse showcasing its customizable RGB full-color lighting, with options for 13 preset light effects and 16.7 million colors, allowing for personalized lighting modes.

4.4. Gestió d'energia

The mouse is equipped with a 1000mAh battery, offering up to 180 hours of use in ECO mode (RGB lighting off) and 48 hours with full RGB lighting. It features automatic sleep functions to conserve power:

• Son lleuger: Activates after 1 minute of inactivity.
• El somni profund: Activates after 5 minutes of inactivity.

The sleep activation times can be configured via the dedicated software.

Figura 4.3: Illustration of the Falcon M1's smart power management, showing a 1000mAh battery providing up to 180 hours in ECO mode (RGB off) and 45 hours with RGB on. It also details light sleep (1 min inactivity) and deep sleep (5 min inactivity) features.

5. Manteniment

5.1. Neteja

Per mantenir un rendiment i un aspecte òptims, netegeu el ratolí regularment:

• Feu servir un drap suau i sec per netejar la superfície del ratolí.
• Per a la brutícia persistent, lleugerament dampNetegeu el drap amb aigua o una solució de neteja suau. Eviteu productes químics agressius.
• Use compressed air to clear dust from the honeycomb structure and sensor area.

5.2. Emmagatzematge

When not in use for extended periods, store the mouse in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the mouse is turned off to conserve battery life.

6. Solució De Problemes

If you encounter issues with your DIERYA Falcon M1 mouse, please refer to the following common solutions:

• El ratolí no respon: Ensure the mouse is charged and turned on. Check the connection mode (2.4GHz, Bluetooth, or wired) and ensure it matches your device's connection. For 2.4GHz, ensure the USB receiver is properly plugged in. For Bluetooth, re-pair the device.
• Els DPI no canvien: Press the DPI button to cycle through presets. If using custom DPI settings, ensure the driver software is installed and configured correctly.
• La il·luminació RGB no funciona: Check if RGB lighting is enabled in the driver software. Ensure the mouse has sufficient battery charge, as RGB consumes power.
• Retard o desconnexions: For wireless connections, ensure there are no strong interferences (e.g., other wireless devices, large metal objects) between the mouse and the receiver/device. Try moving closer to the receiver or switching to a wired connection.

For further assistance, please visit the official DIERYA support weblloc.

7. Especificacions

Detailed technical specifications for the DIERYA Falcon M1 Wireless Gaming Mouse:

Figura 7.1: The Falcon M1 mouse with its dimensions (125mm length, 63mm width, 41mm height) and illustrations of compatible grip styles: Palm Grip, Finger Tip Grip, and Claw Grip. Optimized for medium to large hands (approx. 17cm or larger).

Figura 7.2: Primer pla view of the Falcon M1 mouse, highlighting its breathable honeycomb structure for comfort, sure-grip matte texture, and ultra-smooth PTFE feet for effortless gliding.

8. Garantia i Suport

8.1. Informació de la garantia

The DIERYA Falcon M1 Wireless Gaming Mouse comes with a 1 any de garantia against manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2. Atenció al client

For technical support, warranty claims, or additional product information, please visit the official DIERYA weblloc web o poseu-vos en contacte amb el seu servei d'atenció al client. Consulteu l'embalatge o la fitxa oficial weblloc web per obtenir les dades de contacte més actualitzades.
