Introducció
Thank you for choosing the Rii RK211 Wireless Keyboard and Mouse Combo. This product provides a reliable 2.4G wireless connection for your computer, laptop, or other compatible devices. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new wireless keyboard and mouse.
Instruccions de configuració
Follow these steps to set up your Rii RK211 Wireless Keyboard and Mouse Combo:
- Instal·leu les bateries: The keyboard requires 1 AAA battery, and the mouse requires 1 AA battery. Open the battery compartments on both devices and insert the batteries, ensuring correct polarity.
- Localitza el receptor USB: The tiny nano USB receiver is stored in the compartment next to the mouse battery slot. Open the mouse battery cover to find it.
- Connecteu el receptor: Connecteu el receptor USB a un port USB disponible de l'ordinador o portàtil.
- Encès: Turn on the mouse using the ON/OFF switch located on its underside. The keyboard does not have a separate power switch and will activate upon battery installation and key press.
- Connexió automàtica: The keyboard and mouse will automatically connect to your device. No additional drivers are required for most operating systems.
Image: The Rii RK211 wireless keyboard and mouse connected to a laptop using a single unifying nano receiver for plug-and-play functionality.
Image: The USB receiver is conveniently stored inside the mouse's battery compartment for safekeeping.
Instruccions de funcionament
This section details the usage of your Rii RK211 Wireless Keyboard and Mouse Combo.
Característiques del teclat:
- Full-Sized Layout: The keyboard features a standard US QWERTY layout with a numeric keypad for efficient typing.
- Angle d'inclinació ajustable: Utilize the adjustable legs on the underside of the keyboard to set a comfortable typing position and reduce wrist fatigue.
- Tecles d'accés directe multimèdia: Access 9 dedicated multimedia hotkeys for quick control over media playback, email, internet browser, volume, and more. Note: These shortcuts may have limited compatibility with Mac operating systems.
Image: The keyboard features an ergonomic design with adjustable legs to enhance typing comfort.
Característiques del ratolí:
- Disseny ergonòmic: The mouse is contoured to fit comfortably in your hand, supporting extended use.
- DPI ajustable: Cycle through DPI settings of 800, 1000, 1200, and 1600 to adjust cursor sensitivity and precision on various surfaces. The DPI button is typically located near the scroll wheel.
Image: The mouse features an ergonomic design for comfortable use.
Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment òptim del vostre auricular sense fil.
- Substitució de la bateria: Replace batteries when performance degrades. The keyboard uses 1 AAA battery, and the mouse uses 1 AA battery.
- Neteja: Feu servir un drap suau i sec per netejar les superfícies del teclat i el ratolí. Per a la brutícia persistent, netegeu lleugerament.amp cloth can be used, ensuring no moisture enters the internal components. Avoid harsh chemicals.
- Emmagatzematge: When not in use for extended periods, turn off the mouse to conserve battery life. Store the USB receiver in the mouse's battery compartment to prevent loss.
- Estalvi automàtic d'energia: Both devices feature an automatic sleep function. If inactive for more than 10 minutes, they will enter sleep mode. To reactivate, simply click any mouse button or press any key on the keyboard.

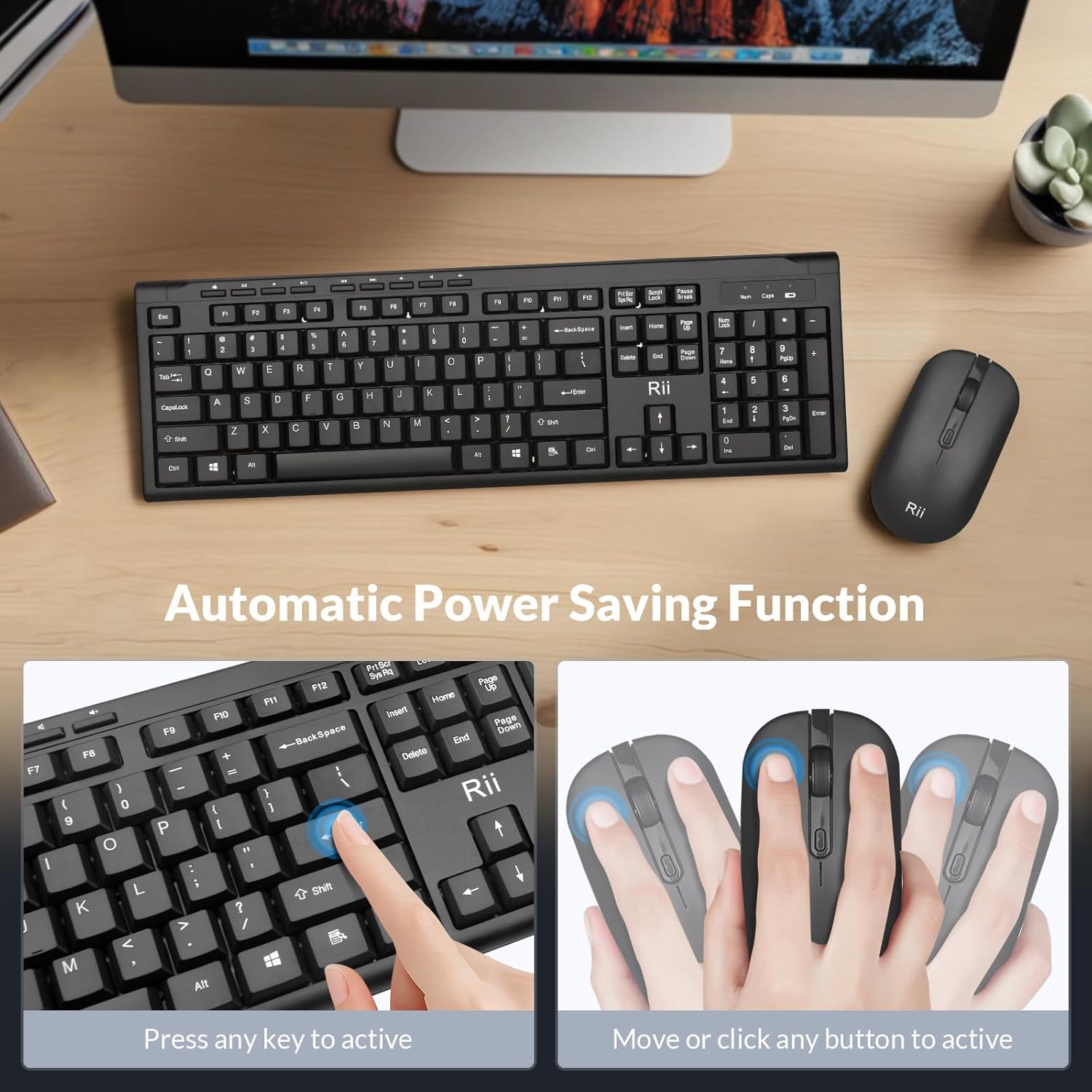

Image: The keyboard and mouse feature an automatic power saving function, activated by pressing any key or moving/clicking the mouse.
Resolució de problemes
Si teniu problemes, consulteu els següents consells de resolució de problemes:
- Sense connexió/Retard:
- Assegureu-vos que el receptor USB estigui ben connectat a un port USB que funcioni.
- Comproveu si el ratolí està encès.
- Canvieu les piles tant del teclat com del ratolí.
- Move the devices closer to the USB receiver to rule out range issues (max 33 ft).
- Prova de connectar el receptor USB a un port USB diferent de l'ordinador.
- Mouse Cursor Jumps/Inaccurate:
- Change the DPI setting using the DPI button on the mouse.
- Ensure the mouse is used on a suitable surface (not highly reflective or transparent).
- Netegeu el sensor òptic de la part inferior del ratolí.
- Keyboard Not Typing:
- Premeu qualsevol tecla per activar el teclat del mode de repòs.
- Replace the AAA battery in the keyboard.
- Ensure the USB receiver is connected.
- Multimedia Keys Not Working on Mac:
- Some multimedia shortcuts may not be fully compatible with Mac OS. This is expected behavior.
Especificacions
| Marca | veure |
| Número de model | RK211 |
| Color | Negre |
| Tecnologia de connectivitat | 2.4G sense fil |
| Característica especial | Disseny ergonòmic |
| Dispositius compatibles | Laptop, Desktop, PC, Chromebook, Notebook (Windows 11/10/8/7/Vista/XP, Chrome OS, Linux, Mac OS) |
| Piles necessàries | Yes (1 AAA for keyboard, 1 AA for mouse - Not Included) |
| Pes de l'article | 0.7 quilos |
| Descripció del teclat | Multimèdia |
| Configuració de DPI del ratolí | 800-1000-1200-1600 DPI |
Image: Detailed dimensions of the Rii RK211 keyboard and mouse.
Informació de la garantia
The Rii RK211 Wireless Keyboard and Mouse Combo comes with a 365 dies de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i garanteix que el producte funcioni tal com està previst en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.
Suport
For further assistance, technical support, or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official Rii weblloc. També podeu visitar el Rii Store on Amazon per a més informació i recursos del producte.
