Seesii D2 Lite Pro 3/8" Digital Torque Wrench Instruction Manual

Introducció

This manual provides detailed instructions for the safe and effective use of your Seesii D2 Lite Pro 3/8" Digital Torque Wrench. This precision tool is designed for accurate fastener tightening in various applications, including automotive, motorcycle, and bicycle maintenance. Please read this manual thoroughly before operation and retain it for future reference.

Què hi ha a la caixa

Your Seesii D2 Lite Pro Digital Torque Wrench package includes the following items:

• 1 x Seesii D2 Lite Pro Digital Torque Wrench (3/8" drive)
• 1 adaptador de 3/8" a 1/2"
• 1 adaptador de 3/8" a 1/4"
• 1 x 3" Extension Bar
• 2 x piles AA
• 1 x Maletí de transport
• 1 x Manual d'usuari

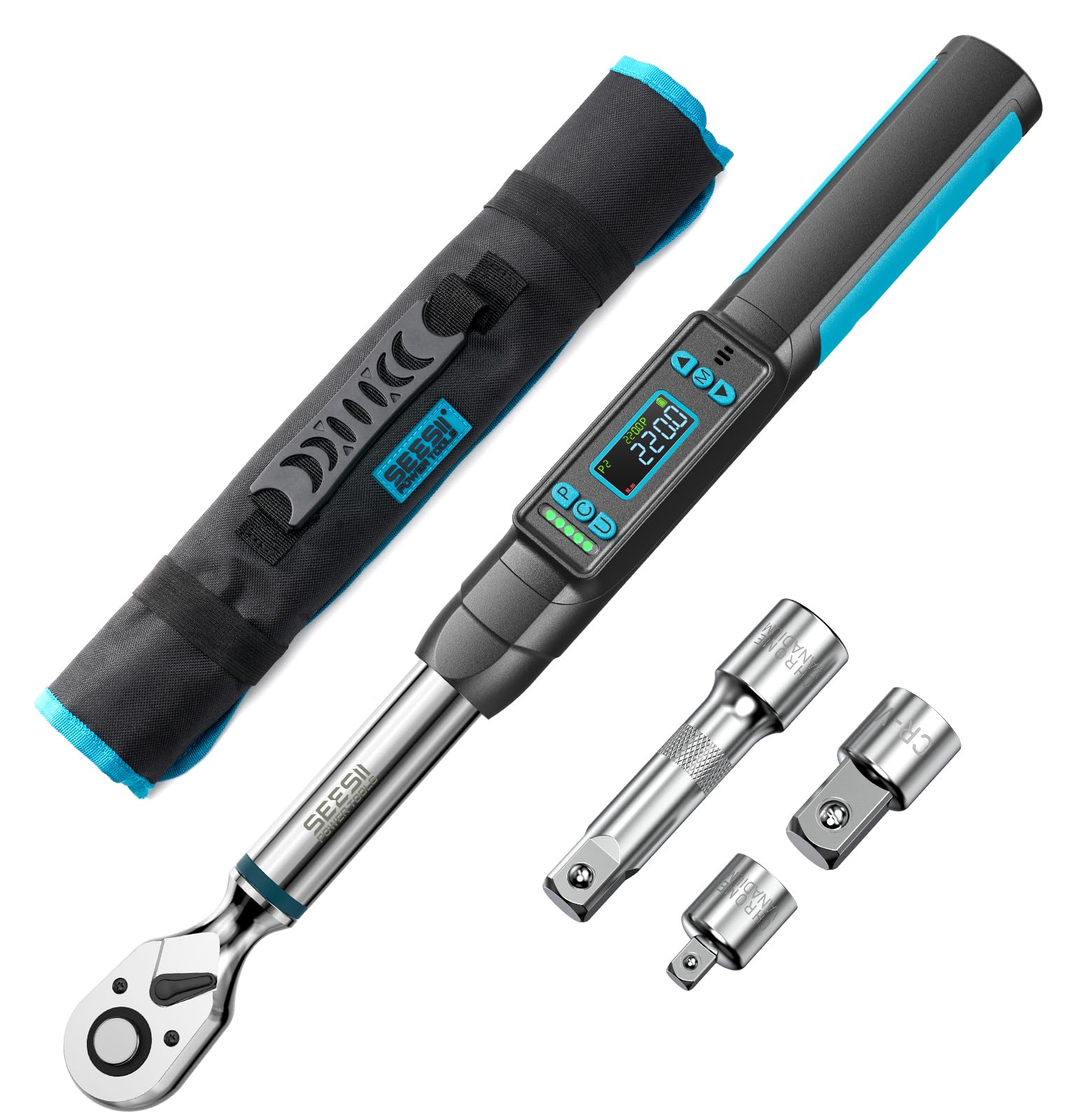

Image: All components included in the Seesii Digital Torque Wrench kit, neatly arranged for inspection.

Característiques clau

• Alta precisió: The wrench provides a wide 0–220 N·m (0–162 ft-lbs) torque range with ±2% accuracy for precise tightening.
• Electronic Dual Modes: Features Peak Mode to capture maximum torque and Real-Time Mode for continuous tracking.
• Preset Function & Memory Storage: Save up to 10 preset torque values and record 400 sets of data for quick, repeatable work.
• HD LCD Display & Multi-Unit Conversion: Large LCD display supports N·m, lbf-ft, lbf-in, kgf·cm, and kgf·m.
• LED & Buzzer Dual Alarm System: Smart warning alerts (green light + slow beep at 80%, yellow light + fast beep at 90%, red light + long beep at 100%) prevent over-tightening.
• Durable Ratchet & Ergonomic Handle: Built with a reversible ratchet head and a non-slip ergonomic grip for comfortable and heavy-duty use.
• Compacte i portàtil: 3/8 inch torque wrench with a 72-tooth ratchet head and 5° swing arc, ideal for tight spaces. Includes a protective storage pouch.

Configuració

1. Instal·lació de la bateria

Locate the battery compartment, typically at the base of the handle. Insert the two AA batteries provided, ensuring correct polarity (+/-). Securely close the battery compartment cover.

2. Encendre/apagar

To power on the device, double-press the 'C' button. To power off, long-press the 'C' button.

Image: The digital display of the torque wrench, illustrating the power on/off procedure using the 'C' button.

Instruccions de funcionament

1. Canvi d'unitats

Press the 'U' button to cycle through the available measurement units: N·m, lbf·ft, lbf·in, kgf·cm, and kgf·m. Select the unit appropriate for your task.

Image: The wrench's display showing the selection of different torque units (N·m, lb·ft, lb·in, kg·cm, kg·m).

2. Mode Selection (Peak & Real-Time)

Press the 'P' button to switch between Peak Mode and Real-Time (Track) Mode. Peak Mode captures the maximum torque applied, while Real-Time Mode displays the live torque value as it is being applied.

3. Setting Preset Torque Values

The wrench allows you to save up to 10 preset torque values. To set a preset:

1. Enter Preset Mode by pressing the 'M' button until 'P' appears on the display.
2. Use the Up/Down arrow buttons to select a preset group (P1-P10).
3. Press 'M' again to enter the value adjustment. Use the Up/Down arrow buttons to set the desired torque value.
4. Press 'M' to confirm and save the preset.

4. Data Storage & Recall

The wrench can store up to 400 sets of torque data. To recall stored data, press the 'M' button until 'M000' appears on the display. Use the Up/Down arrow buttons to navigate through the stored data sets.

5. Esborrant dades

To delete stored data:

1. Enter the data recall mode ('M000').
2. Press the 'C' button. The display will show 'ONE' or 'ALL'.
3. Use the Up/Down arrow buttons to select whether to delete a single record ('ONE') or all records ('ALL').
4. Press 'C' to confirm deletion. The display will show 'SUCC' upon successful deletion.

6. Using the Wrench for Tightening

Attach the appropriate socket or adapter to the 3/8" drive head. Place the socket onto the fastener. Apply steady force to tighten the fastener. The LCD display will show the real-time torque. The dual alarm system (LED lights and buzzer) will provide visual and audible feedback as you approach and reach the target torque:

• 80% of Target Torque: Green LED light illuminates, slow beep.
• 90% of Target Torque: Yellow LED light illuminates, fast beep.
• 100% of Target Torque: Red LED light illuminates, long continuous beep.

Stop applying force immediately when the red light and long beep indicate 100% of the target torque has been reached to prevent over-tightening.

Image: The digital torque wrench in action, tightening a lug nut on a car wheel, with the display showing the applied torque.

Image: The LED indicator and buzzer alarm system on the wrench's display, showing visual and audible alerts at different torque thresholds.

Manteniment

• Neteja: Netegeu la clau anglesa amb un drap suau i sec després de cada ús. No utilitzeu productes de neteja abrasius ni dissolvents.
• Emmagatzematge: Store the torque wrench in its protective carrying case in a dry, clean environment away from direct sunlight and extreme temperatures.
• Substitució de la bateria: Canvieu les piles quan aparegui l'indicador de bateria baixa a la pantalla per garantir lectures precises.
• Calibració: For continued accuracy, periodic calibration by a qualified service center is recommended, especially after heavy use or impact.

Resolució de problemes

Especificacions

Garantia i suport

Your Seesii D2 Lite Pro Digital Torque Wrench is backed by a 3-Year Warranty. For any questions, technical assistance, or warranty claims, please contact Seesii customer support. Our team is available 24/7 to assist you.
