Unifit PID Controller with WiFi for Pit Boss Platinum Series Brunswick Wood Pellet Vertical Smoker (Model 80148) User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of the Unifit PID Controller with WiFi, specifically designed for the Pit Boss Platinum Series Brunswick Wood Pellet Vertical Smoker (PBV5PL). Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Producte acabatview

The Unifit PID Controller is an advanced digital control board engineered to enhance the cooking experience with your Pit Boss Platinum Series Brunswick Smoker. It features precise temperature management, WiFi connectivity for remote control, and a user-friendly digital touch screen interface.

Característiques principals:

• Compatibilitat: Specifically designed for Pit Boss Platinum Series Brunswick Wood Pellet Vertical Smoker (PBV5PL), Part NO. 80148.
• Digital PID Control: Maintains precise and steady temperatures within +/- 5 degrees Fahrenheit by constantly adjusting the auger pellet feed rate and blower fan airflow.
• Connectivitat WiFi: Allows control of the smoker from a mobile device.
• Interval de temperatura: Operates within a temperature range of 150°F to 420°F.
• Versatilitat de cuina: Supports 8-in-1 cooking functions including Grill, Smoke, Bake, Braise, Roast, Sear, Char-Grill, and Barbecue.
• Meat Probe Support: Includes inputs for up to two meat probes (probes not included).
• Pantalla tàctil digital: Intuitive interface for setting and monitoring temperatures.

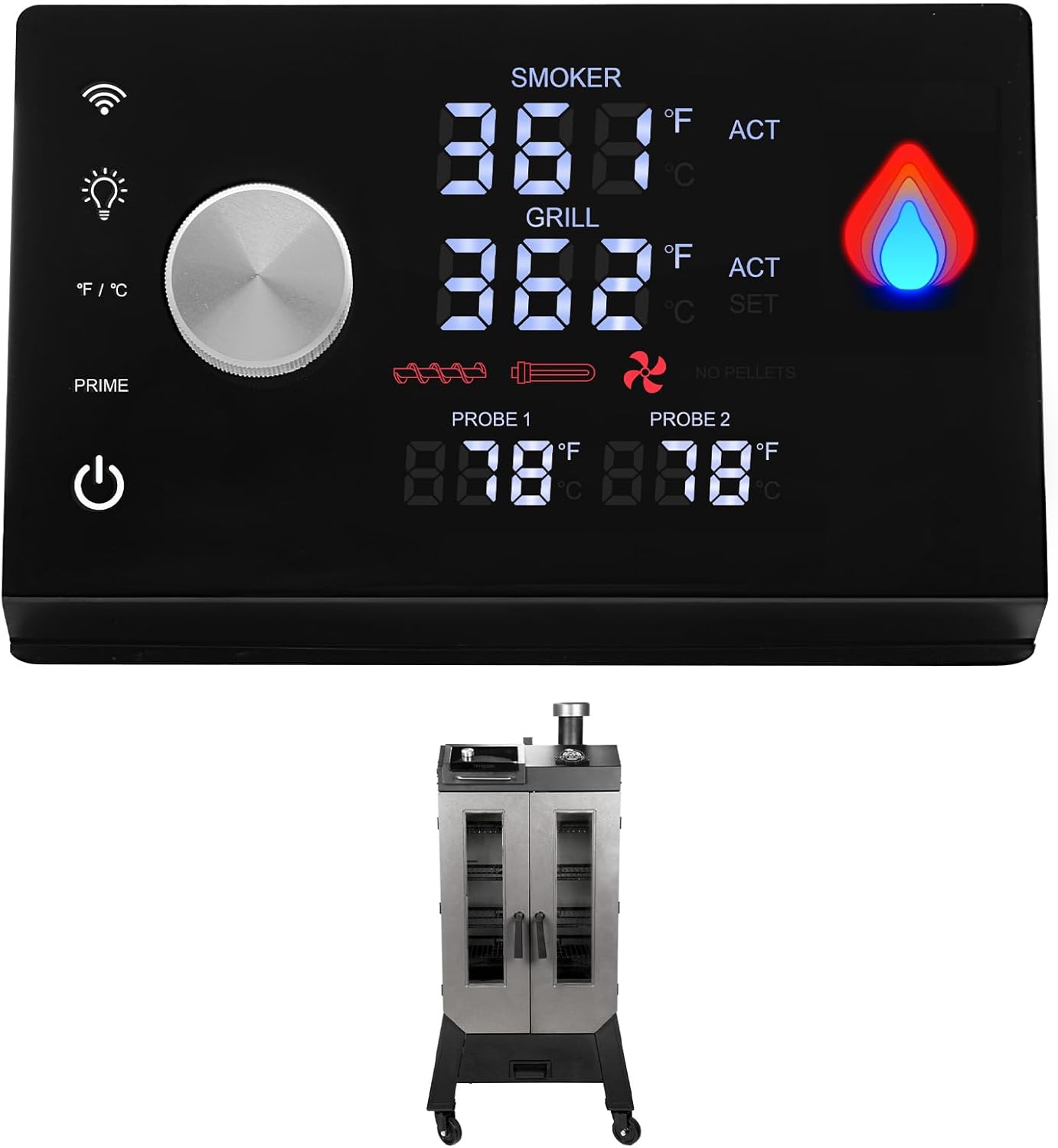

Image 2.1: The Unifit PID Controller with WiFi shown alongside a Pit Boss Platinum Series Brunswick Vertical Smoker, illustrating the product and its intended application.

3. Configuració i instal·lació

The Unifit PID Controller is designed for straightforward replacement, often referred to as 'plug and play'.

Passos d'instal·lació:

1. La seguretat primer: Ensure the smoker is completely powered off and unplugged from the electrical outlet before beginning any installation or replacement procedures.
2. Access the Existing Control Board: Locate the current control board on your Pit Boss Platinum Series Brunswick Smoker. This typically involves removing a cover panel.
3. Desconnecteu el cablejat: Carefully disconnect all wiring harnesses and connectors from the existing control board. Note the position of each wire for correct re-connection. Taking a photograph before disconnecting can be helpful.
4. Treure la placa antiga: Desenrosqueu o desenganxeu la placa de control antiga del seu suport.
5. Instal·lar la placa nova: Position the Unifit PID Controller in the same location. Secure it using the original screws or clips.
6. Connecteu el cablejat: Reconnect all wiring harnesses and connectors to the new Unifit PID Controller. Ensure each connection is firm and correctly seated.
7. Cobertura segura: Replace any cover panels removed earlier.
8. Encès: Plug the smoker back into the electrical outlet and power it on.

Imatge 3.1: Un intern view of a smoker's control panel area, showing the wiring for the control board. This illustrates the 'easy replacement plug and play' aspect of the Unifit PID Controller installation.

Image 3.2: The Unifit PID Controller positioned next to a Pit Boss Platinum Series Brunswick Wood Pellet Vertical Smoker, emphasizing its compatibility with this specific model.

4. Instruccions de funcionament

The Unifit PID Controller provides precise control over your smoker's temperature and cooking functions.

Funcionament bàsic:

• Encès/apagat: Use the power button on the control panel to turn the smoker on or off.
• Configuració de la temperatura: Utilize the digital touch screen and control knob to set your desired cooking temperature within the 150°F – 420°F range. The PID system will automatically adjust to maintain this temperature.
• Monitorització de la temperatura: The display shows both the actual smoker temperature and the set temperature. If meat probes are connected, their readings will also be displayed.
• Control WiFi: Refer to the specific instructions provided with the controller or the manufacturer's website for details on connecting to your mobile device and using the WiFi features. This allows for remote monitoring and adjustment of settings.
• 8-in-1 Cooking Versatility: The PID controller supports various cooking methods. Adjust temperature and smoke settings as needed for grilling, smoking, baking, braising, roasting, searing, char-grilling, and barbecuing.

Image 4.1: The Unifit PID Controller's digital display showing current smoker and grill temperatures, along with icons representing its 8-in-1 cooking versatility.

5. Manteniment

The Unifit PID Controller is designed for durability and requires minimal maintenance. However, proper care of your smoker system will ensure the longevity of all components, including the control board.

• Mantenir net: Netegeu regularment l'exterior del panell de control amb un drap suau i sec.amp cloth. Avoid using abrasive cleaners or excessive moisture, which could damage electronic components.
• Protegir dels elements: When not in use, ensure your smoker, and thus the control board, is protected from rain, snow, and extreme temperatures. A smoker cover is recommended.
• Inspeccioneu el cablejat: Periodically check the wiring connections to the control board for any signs of wear, fraying, or loose connections. Ensure all connections are secure.
• Eviteu l'exposició a l'aigua: Prevent water from entering the control board housing, as this can cause short circuits and damage.

6. Solució De Problemes

This section provides guidance on common issues and error codes you might encounter with your Unifit PID Controller.

Error Code Diagnosis:

Image 6.1: The Unifit PID Controller's display illustrating various error codes and their corresponding diagnostic information.

If you encounter an error not listed here, or if troubleshooting steps do not resolve the issue, please contact customer support.

7. Especificacions

8. Garantia i Suport

For warranty information and customer support regarding your Unifit PID Controller, please refer to the documentation included with your purchase or contact the seller directly. Ensure you have your purchase details and model number (80148) available when seeking support.
