Savalo SCFR500P30SS 33-inch French Door Refrigerator Instruction Manual

Introducció

Thank you for choosing the Savalo SCFR500P30SS 33-inch Bottom Mount French Door Refrigerator. This appliance is designed to provide efficient and convenient food storage with a total capacity of 16.5 cu. ft. (11.74 cu. ft. refrigerator, 4.76 cu. ft. freezer). Key features include a total no-frost design, an energy-efficient inverter compressor, LED lighting, electronic controls, and a sleek recessed handle. The interior is thoughtfully designed with three spill-proof glass shelves, two humidity-controlled crisper drawers, six door racks (including a gallon door balcony), and an automatic ice maker in the freezer section. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

Informació de seguretat

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. Keep flammable materials and vapors away from the refrigerator. Do not store explosive substances. Ensure proper grounding to prevent electrical shock. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. Only authorized service personnel should perform repairs. Unplug the appliance before cleaning or maintenance.

Configuració

Desembalatge

Remove all packaging materials, including tape and protective films. Dispose of packaging responsibly. Ensure no parts are missing or damaged. Keep plastic bags away from children.

Ubicació

Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Allow adequate clearance around the appliance for proper ventilation. Recommended clearances are 2 inches (5 cm) at the back, 0.4 inches (1 cm) at the sides, and 0.4 inches (1 cm) at the top. The dimensions of the unit are approximately 26 inches (D) x 33 inches (W) x 70 inches (H).

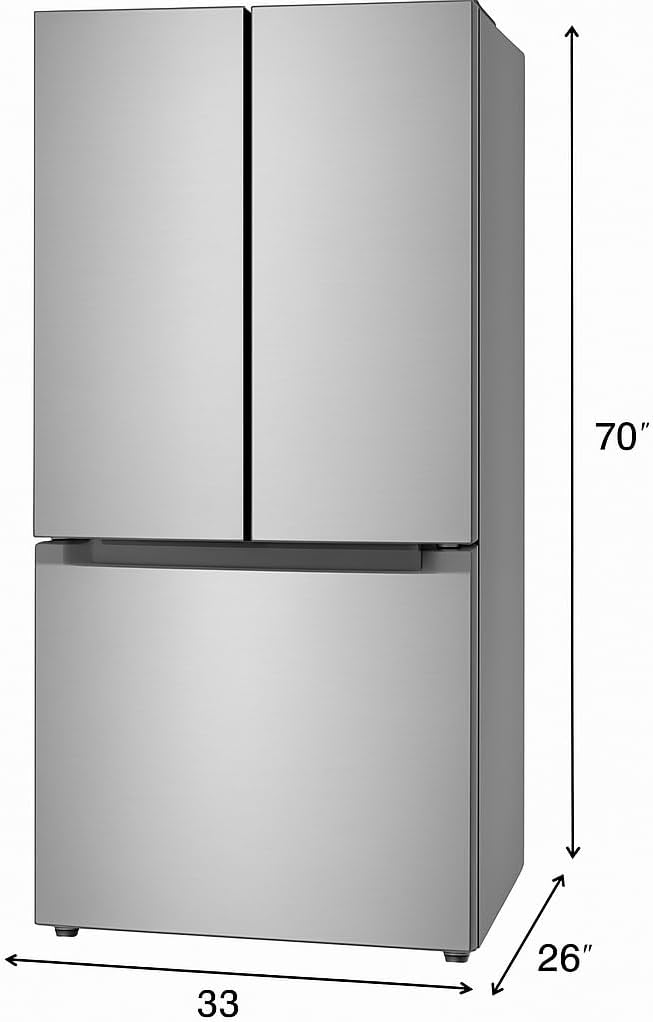

Imatge: Frontal view of the Savalo SCFR500P30SS refrigerator with overall dimensions (70 inches height, 33 inches width, 26 inches depth) indicated.

Connexió elèctrica

Connecteu la nevera a una presa de corrent dedicada de 120 volts, 60 Hz, 15 Amp circuit. Ensure the outlet is properly grounded. Do not use extension cords or adapter plugs.

Connexió a la línia d'aigua

For the automatic ice maker, connect the refrigerator to a potable water supply. Refer to the detailed water line installation instructions provided in the separate installation guide for proper connection and leak prevention.

Neteja inicial

Abans del primer ús, netegeu l'interior i l'exterior de la nevera amb un detergent suau i aigua tèbia. Assequeu-la amb un drap suau.

Instruccions de funcionament

Tauler de control

The refrigerator features electronic controls for precise temperature management. Adjust settings as needed for both the refrigerator and freezer compartments. Consult the display for current temperature readings and operational status.

Compartiment de la nevera

The fresh food section includes three spill-proof glass shelves that can be adjusted to accommodate items of various heights. Two humidity-controlled crisper drawers are ideal for storing fruits and vegetables, helping to maintain their freshness. Six door racks, including a gallon door balcony, provide ample space for condiments, beverages, and larger containers.

Image: The interior of the refrigerator compartment, displaying adjustable glass shelves, two crisper drawers, and door bins filled with various food items.

Compartiment congelador

The bottom-mount freezer features an inner drawer for organized storage of frozen goods. The automatic ice maker continuously produces ice, which is stored in a dedicated bin for easy access. Bottom ventilation ensures enhanced freezing performance.

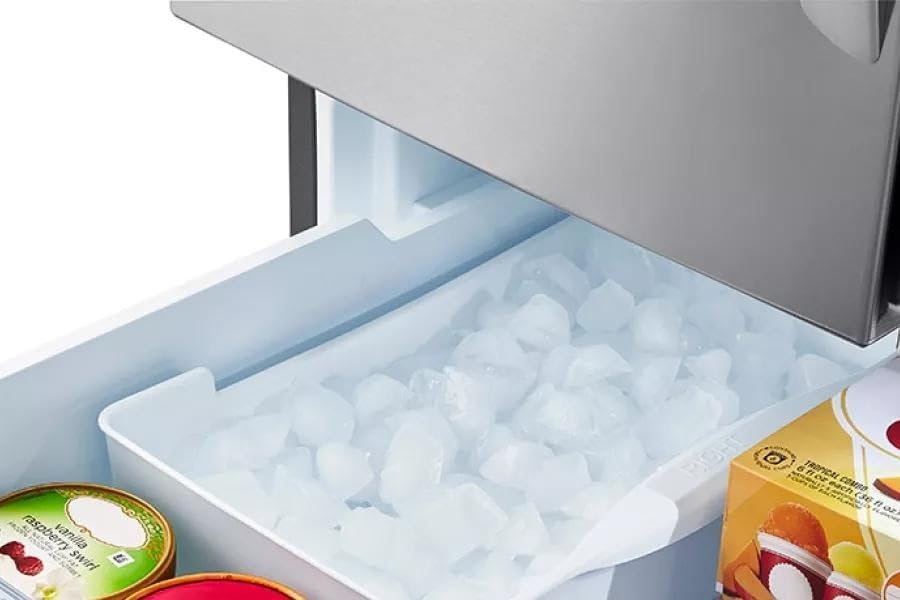

Imatge: Un primer pla view of the freezer drawer, showing the automatic ice maker bin filled with ice cubes.

Tecnologia Total No Frost

This refrigerator is equipped with Total No Frost technology, which prevents ice buildup in both the refrigerator and freezer compartments. This eliminates the need for manual defrosting and helps keep food fresher for longer by maintaining consistent temperatures.

Energy-Efficient Inverter Compressor

The inverter compressor adapts its operation to cooling demands, ensuring optimal temperature control while reducing energy consumption and noise levels. This contributes to a longer lifespan for the appliance and Energy Star certification.

Manteniment

Neteja

Regularly clean the interior with a solution of mild soap and water. For the exterior, use a soft cloth and a stainless steel cleaner. Wipe door seals clean to ensure a tight seal. Avoid abrasive cleaners or harsh chemicals.

Substitució del filtre d'aigua

The refrigerator is equipped with a water filter. Monitor the water filter status indicator (if available) and replace the filter as recommended by the manufacturer, typically every six months, to ensure clean and fresh water/ice.

Potència Outage Directrius

En cas d'una potènciatage, keep the refrigerator and freezer doors closed as much as possible to maintain internal temperatures. Food can remain frozen for approximately 24-48 hours depending on the ambient temperature and how full the freezer is.

Resolució de problemes

• La nevera no refreda: Check if the power cord is securely plugged in. Ensure the temperature settings are correct. Verify that the doors are closing properly and not obstructed.
• La màquina de gel no produeix gel: Confirm the water supply is connected and the water valve is open. Check if the ice maker is turned on and the ice bin is correctly positioned.
• Sorolls inusuals: Some operational noises are normal (e.g., compressor hum, refrigerant flow). If noises are excessive or unusual, ensure the refrigerator is level and not touching walls or cabinets.
• Fuites d'aigua: Check the water line connection for tightness. Ensure the drain pan is not overflowing and the drain tube is clear.

Especificacions

Garantia i Suport

For warranty information, please refer to the warranty card included with your product or visit the official Savalo website. For technical support, parts, or service, please contact Savalo customer service. Keep your purchase receipt and model number handy for faster assistance.

Assistència en línia: www.savalo.com/support

Customer Service Hotline: 1-800-XXX-XXXX
