Glen Electric Egg Boiler Machine SA3036EBSPLUS User Manual

1. Producte acabatview

The Glen Electric Egg Boiler Machine SA3036EBSPLUS is a versatile kitchen appliance designed for boiling eggs and steaming various foods. It features a 350W heating element, automatic shut-off, and a non-stick cooking plate for ease of use and cleaning. This appliance can boil up to 16 eggs simultaneously and includes a steaming rack for vegetables, dumplings, or momos.

Imatge 1.1: Desplegada view of the Glen Electric Egg Boiler Machine, showing the base unit, egg tray, steaming tray, and lid.

2. Instruccions de seguretat importants

Si us plau, llegiu atentament totes les instruccions abans d'utilitzar l'aparell. Conserveu aquest manual per a futures consultes.

• Assegureu-vos sempre que l'aparell estigui col·locat sobre una superfície estable i resistent a la calor.
• No submergiu la unitat principal, el cable ni l'endoll en aigua ni en cap altre líquid.
• Mantenir l'aparell fora de l'abast dels nens.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo.
• No feu funcionar l'aparell si el cable o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• Avoid touching hot surfaces. Use handles or knobs. Steam released during operation is hot.
• No utilitzeu accessoris no recomanats pel fabricant, ja que això pot causar lesions.
• Ensure the water level does not exceed the maximum fill line to prevent overflow.
• The appliance is equipped with an automatic shut-off feature. Do not attempt to override this safety mechanism.

3. Contingut del paquet

En desempaquetar, comproveu que tots els elements que s'enumeren a continuació hi són presents i en bon estat:

• Main Unit (Base with heating plate)
• 2 Steam Food/Egg Plates (Trays for eggs or steaming)
• Tapa de policarbonat
• Polycarbonate Extender (for two-level cooking)
• Measuring Cup with Egg Piercing Pin

Image 3.1: Visual representation of the main unit, two egg/steam plates, polycarbonate lid, polycarbonate extender, and measuring cup with piercing pin.

4. Configuració i primer ús

1. Desembalar: Traieu amb cura tots els components de l'embalatge.
2. Neteja: Wash the polycarbonate lid, extender, egg/steam plates, and measuring cup with warm, soapy water. Rinse thoroughly and dry. Wipe the main unit's heating plate with a damp tela. No submergiu la unitat principal a l'aigua.
3. Muntar: Place the main unit on a flat, stable, heat-resistant surface.

5. Instruccions de funcionament

5.1. Boiling Eggs

1. Afegeix aigua: Use the provided measuring cup to add the appropriate amount of water to the heating plate of the main unit. The measuring cup has markings for soft, medium, and hard-boiled eggs.
2. Perfora els ous: Use the egg piercing pin located at the bottom of the measuring cup to gently pierce the larger end of each egg. This helps prevent cracking during boiling.
3. Col·locar els ous: Arrange the pierced eggs on the egg plate(s). You can use one or two plates depending on the quantity of eggs (up to 16 eggs). If using two plates, place the polycarbonate extender between the main unit and the top egg plate.
4. Portada: Place the polycarbonate lid securely on top.
5. Comença a cuinar: Plug the appliance into a suitable power outlet. Press the power button. The indicator light will illuminate, signifying that the appliance is active and heating.
6. Apagat automàtic: The appliance will automatically switch off once all the water has evaporated. The indicator light will turn off.
7. Servir: Carefully remove the lid (beware of hot steam) and the egg plate(s). Rinse the eggs under cold water to stop the cooking process and make them easier to peel.

Image 5.1: The egg boiler in operation, demonstrating its capacity to cook up to 16 eggs simultaneously for various consistencies from soft to hard-boiled.

5.2. Steaming Vegetables or Other Foods

1. Afegeix aigua: Pour a suitable amount of water into the heating plate. The amount of water will depend on the steaming time required for your food.
2. Preparar menjar: Place chopped vegetables, dumplings, or momos onto the steam food plate(s).
3. Muntar: Place the steam food plate(s) on the main unit. If using two plates, use the polycarbonate extender.
4. Portada: Place the polycarbonate lid securely on top.
5. Comença a cuinar al vapor: Plug in and press the power button. The indicator light will turn on.
6. Monitor: The appliance will automatically shut off when the water evaporates. For longer steaming times, you may need to add more water.
7. Servir: Carefully remove the lid and the steamed food.

Image 5.2: The appliance configured for two levels of cooking, demonstrating simultaneous steaming of vegetables and boiling of eggs.

5.3. Using as a Hot Plate (Non-stick Cooking Plate)

The non-stick heating plate can be used for preparing instant noodles or scrambled eggs directly.

1. Prepara: Ensure the heating plate is clean and dry. Add a small amount of oil or butter if needed for scrambled eggs.
2. Afegir ingredients: Place instant noodles with water, or pour beaten eggs directly onto the non-stick plate.
3. cuiner: Plug in and press the power button. Stir as needed for scrambled eggs.
4. Monitor: The appliance will continue to heat until the water evaporates or the power button is pressed again to turn it off.
5. Servir: Carefully transfer the cooked food.

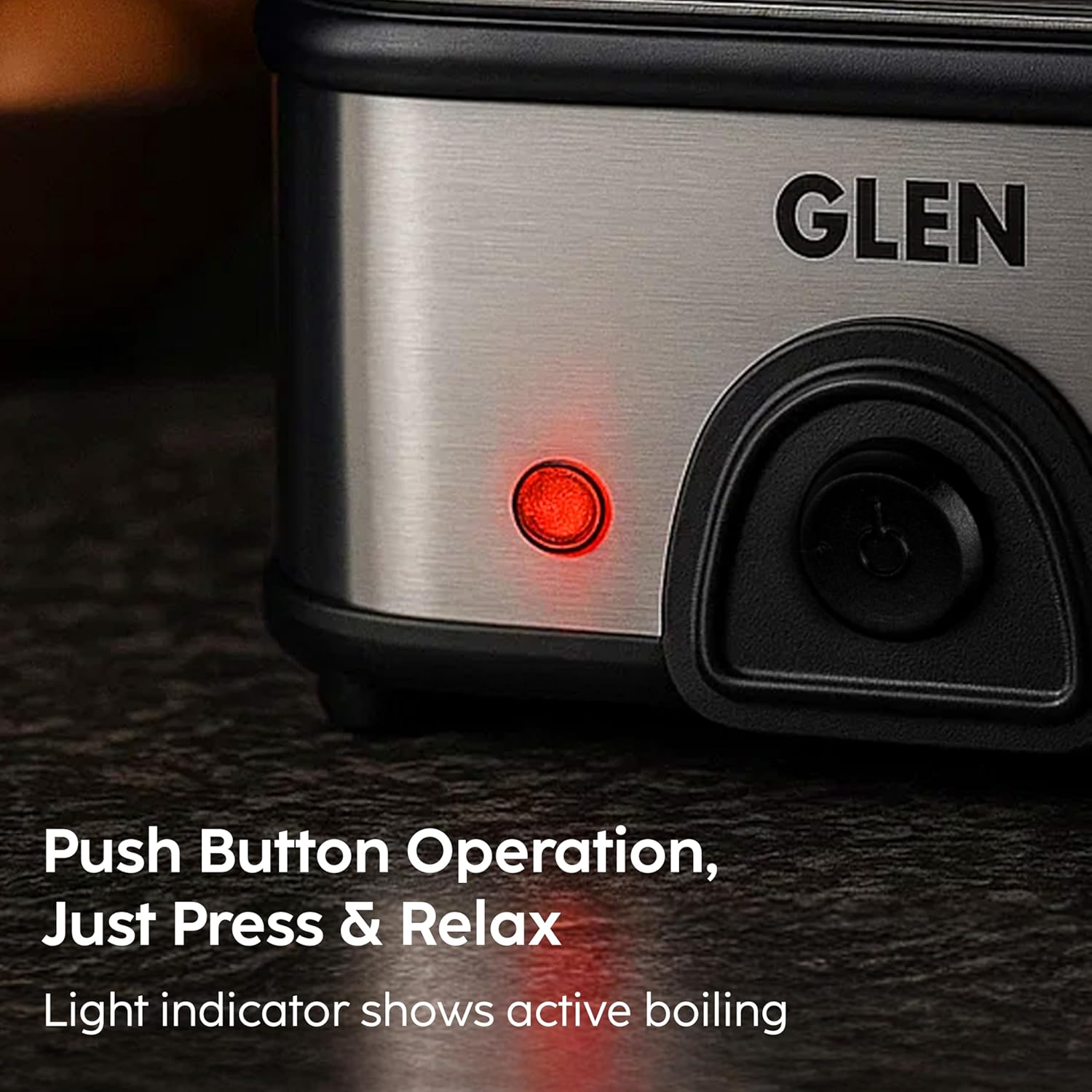

Image 5.3: Detail of the push-button operation and the illuminated indicator light, showing the appliance is actively cooking.

6. Manteniment i Neteja

Una neteja regular garanteix un rendiment òptim i allarga la vida útil del teu electrodomèstic.

• Desconnecta sempre: Abans de netejar, assegureu-vos que l'aparell estigui desconnectat i que s'hagi refredat completament.
• Unitat principal: Netegeu l'exterior de la unitat principal amb un drap suau i sec.amp cloth. For the non-stick heating plate, gently wipe with a soft sponge and mild detergent. Do not use abrasive cleaners or scourers, as this can damage the non-stick coating. Never immerse the main unit in water.
• Parts desmuntables: The polycarbonate lid, extender, egg/steam plates, and measuring cup are dishwasher safe or can be washed by hand with warm, soapy water. Rinse thoroughly and dry.
• Dipòsits minerals: Over time, mineral deposits may form on the heating plate. To remove, add a small amount of vinegar and water to the heating plate and let it sit for 10-15 minutes. Gently scrub with a non-abrasive sponge and rinse.
• Emmagatzematge: Store the appliance in a dry place, away from direct sunlight and moisture, when not in use.

7. Solució De Problemes

If you encounter any issues, please refer to the following troubleshooting guide:

8. Especificacions

9. Garantia i Suport

Glen Appliances provides a warranty for this product against manufacturing defects. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, service, or to inquire about spare parts, please contact Glen customer support:

• Fabricant: Glen Appliances Pvt. Ltd.
• Adreça: Plot No. 919, Sector 68, IMT, Faridabad, Haryana Pincode: 121004
• Weblloc: www.glenindia.com (Si us plau, consulteu la informació oficial) weblloc web per obtenir la informació de contacte més actualitzada.)

When contacting support, please have your product model number (SA3036EBSPLUS) and purchase date ready.
