Talkpod N39plus PoC Radio User Manual

1. Introducció

The Talkpod N39plus is an advanced Push-to-Talk over Cellular (PoC) radio designed for nationwide communication. Utilizing mobile cellular networks, it offers extended range beyond traditional radio signals. This device features a user-friendly interface with dual virtual channel monitoring, intuitive frequency display, and quick keypad input, similar to a traditional amateur radio. It is suitable for various applications including family use, logistics, and company operations.

Image 1.1: The Talkpod N39plus PoC Radio, showcasinel seu disseny compacte i la seva pantalla.

2. Què hi ha a la caixa

Upon unboxing your Talkpod N39plus, please verify that all the following components are included:

• 1 x N39plus Radio
• 1 x antena
• 1 x bateria d'ions de liti
• 1 x cable de càrrega USB-C
• 1 x Clip de cinturó
• 1 x cordó

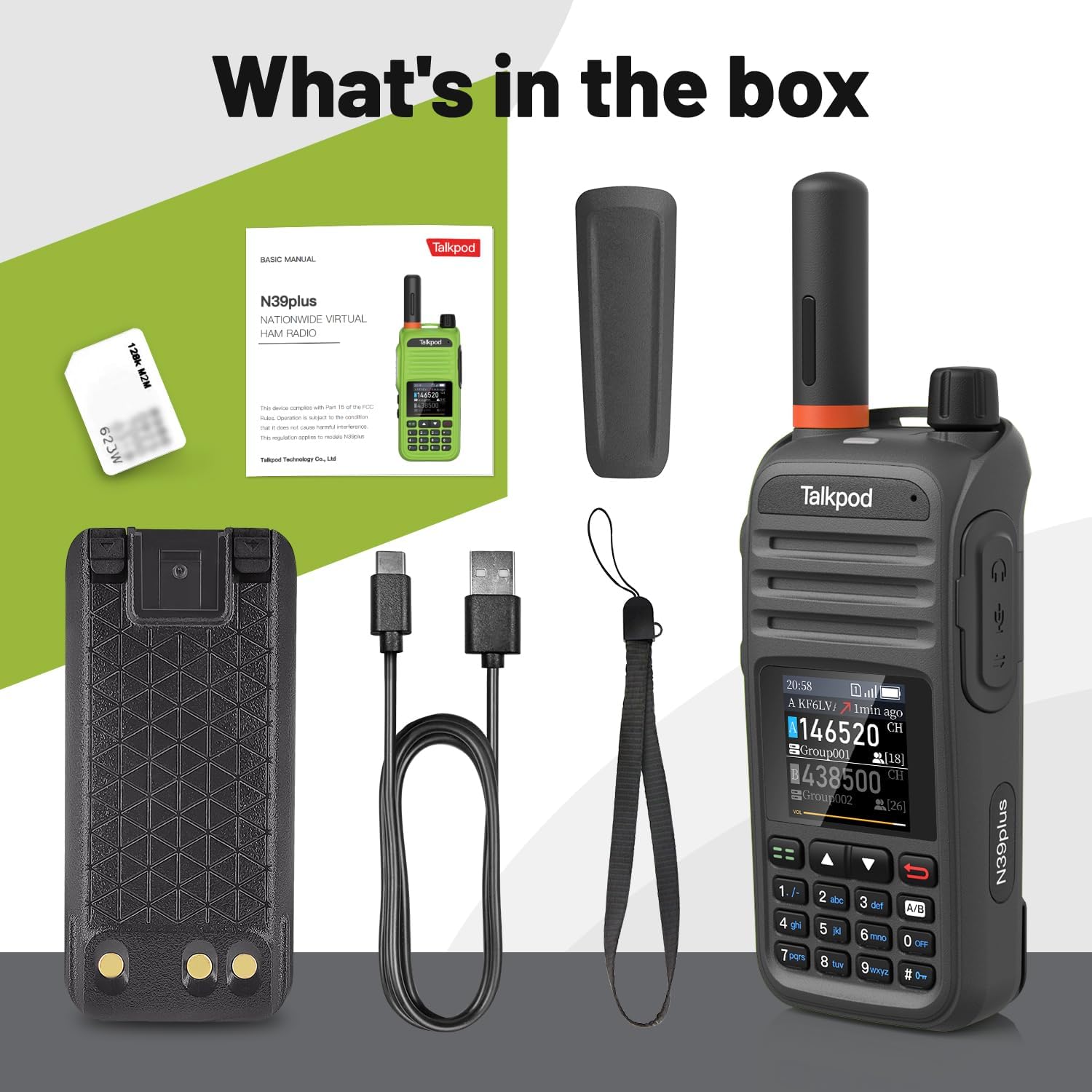

Image 2.1: All components included in the Talkpod N39plus package: radio, antenna, battery, USB-C cable, belt clip, and lanyard.

3. Característiques del producte

The Talkpod N39plus incorporates several key features for enhanced communication:

• Tecnologia innovadora: Leverages cellular networks (4G/5G) for nationwide communication, overcoming traditional radio signal limitations.
• Interfície fàcil d'utilitzar: Features dual virtual channel monitoring, virtual frequency display, quick keypad input, clear screen, and an intuitive menu system.
• Personalització: Users can set custom callsigns, view caller ID for incoming transmissions, and access a call history log.
• Bateria de llarga durada: Equipped with a high-capacity battery providing up to 24 hours of standby and talk time.
• Càrrega còmoda: Supports fast charging via USB-C.
• Free Authorization: Includes free authorization to use the Linkpoon HAM App for at least 5 years.
• Pla de dades: Comes with a 1-year SIM data plan (up to 800MB/Month*12Month), suitable for regular voice-only communication.

Image 3.1: Key features of the Talkpod N39plus, highlighting ease of use and broad coverage.

Image 3.2: Additional features including global intercom, call record inquiry, and the 3000mAh battery.

4. Configuració

Follow these steps to set up your Talkpod N39plus radio:

1. Instal·la la bateria: Insert the provided Lithium-ion battery into the battery compartment on the back of the radio. Ensure it clicks securely into place.
2. Connecteu l'antena: Enrosqueu l'antena en sentit horari al connector de la part superior de la ràdio fins que quedi ben ajustada amb els dits.
3. Targeta SIM: The N39plus comes with a pre-installed SIM card. No additional installation is required for the SIM card.
4. Càrrec inicial: Connect the USB-C charging cable to the radio and a power source to fully charge the battery before first use.
5. Encès: Rotate the top-left knob clockwise to turn on the radio and adjust the volume.
6. App Authorization: The device includes free authorization for the Linkpoon HAM App. Follow the instructions provided with the radio or on the Talkpod website to activate this authorization.

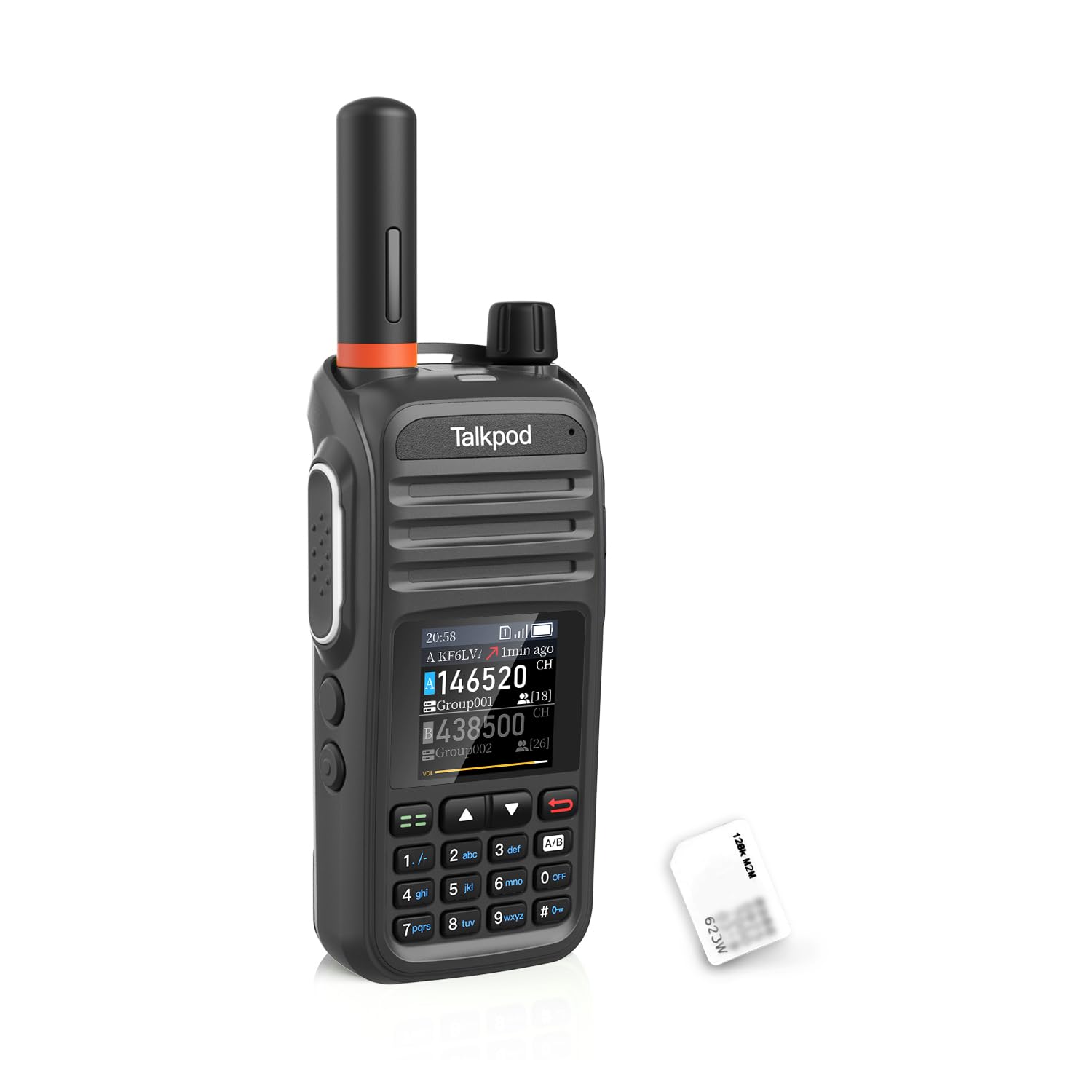

Image 4.1: The Talkpod N39plus highlighting the pre-installed SIM card, simplifying setup.

5. Instruccions de funcionament

Understanding the controls and basic operation of your N39plus radio:

5.1. Controls sobreview

Image 5.1: Diagram illustrating the various parts and controls of the Talkpod N39plus radio, including antenna, volume knob, battery clip, headphone/data interface, function shortcut keys, PTT button, loudspeaker, screen, and numeric keypad.

• Turn On/Off Volume Knob: Located at the top-left, rotate to power on/off and adjust audio volume.
• Antena: For signal reception and transmission.
• PTT (Push-to-Talk) Launch Key: Located on the side, press and hold to transmit, release to listen.
• Altaveu: Per a la sortida d'àudio.
• Pantalla: Displays virtual channels, frequencies, battery status, and menu options.
• Teclat: For numeric input, menu navigation, and function shortcuts.
• Port de càrrega USB: Per carregar el dispositiu.

5.2. Funcionament bàsic

1. Encès: Rotate the volume knob clockwise.
2. Select Channel/Group: Use the keypad or navigation buttons to select your desired virtual channel or communication group.
3. Transmetre: Press and hold the PTT button on the side of the radio. Speak clearly into the microphone. Release the PTT button to listen for a response.
4. Ajustar el volum: Rotate the volume knob to increase or decrease the listening volume.
5. Personalize Callsign: Access the menu system to set your unique callsign. Refer to the on-screen menu for specific steps.
6. View Historial de trucades: Navigate through the menu to access the call history log, which displays previous transmissions and caller IDs.

Image 5.2: The Talkpod N39plus being used in different environments, demonstrating its versatility for businesses, outdoor hiking, camping, and self-driving tours.

6. Manteniment

Proper maintenance ensures the longevity and optimal performance of your Talkpod N39plus:

• Càrrega: Always use the provided USB-C charging cable. Ensure the radio is charged regularly, especially before extended use. Avoid overcharging or completely draining the battery for optimal battery life.
• Neteja: Netegeu la ràdio amb un suau, damp drap. No utilitzeu productes químics agressius ni netejadors abrasius. Assegureu-vos que el port de càrrega estigui lliure de pols i deixalles.
• Resistència a l'aigua: The N39plus has an IP54 rating, meaning it is protected against dust ingress and splashing water from any direction. It is not designed for submersion. Avoid exposing it to heavy rain or direct water jets.
• Emmagatzematge: Store the radio in a cool, dry place away from direct sunlight and extreme temperatures when not in use for prolonged periods.
• Cura de l'antena: Ensure the antenna is securely attached. Do not bend or force the antenna, as this can damage the radio's internal components.

7. Solució De Problemes

If you encounter issues with your Talkpod N39plus, refer to the following common problems and solutions:

7.1. Cannot Connect to Network

If your device has a SIM inserted but cannot connect to the network, consider these possibilities:

• SIM Not Activated: Ensure your SIM card is properly activated.
• Configuració de l'APN: Check if APN (Access Point Name) settings are correct or missing.
• Service Expired: Verify that your data plan or service has not expired.
• Local Carrier Incompatibility: Confirm compatibility with your local cellular network.
• Reinici del dispositiu: Proveu de reiniciar el dispositiu.

If these steps do not resolve the issue, please provide your ICCID and order number when contacting support.

7.2. Weak Signal or Unstable Connection

Weak signal or unstable connections are typically related to cellular coverage:

• Ubicació: Areas such as basements, elevators, parking garages, metal buildings, rural areas, and mountains often have poor cellular coverage.
• Interferència: Thick concrete walls, hills, or adverse weather conditions can affect signal strength.

Solució: Try moving to a location with better cellular reception, such as closer to a window or outdoors. Remember, PoC radios rely on live cellular towers, not satellite or long-range RF.

7.3. General Issues - Contacting Support

To help us assist you quickly and accurately, please prepare the following information when contacting support for any product issues:

• Amazon Order ID / ICCID
• Number of devices affected
• A short video or photo showing the screen, error message, or behavior
• What you have already tried to resolve the issue

Image 7.1: A visual representation of common questions and answers regarding the Talkpod N39plus, including network connectivity and signal strength issues.

8. Especificacions

Detailed technical specifications for the Talkpod N39plus PoC Radio:

9. Informació de la garantia

Specific warranty details are not provided in the product information. Please refer to your purchase documentation or contact Talkpod customer support for warranty terms and conditions.

10. Suport

For any product issues, technical assistance, or after-sales service, please contact Talkpod support directly:

Correu electrònic: Support@talkpod.com

Image 10.1: Contact information for Talkpod customer support via email.
