HelloBaby Baby Monitor User Manual

1. Producte acabatview

The HelloBaby HB6363 is an advanced video baby monitor system designed to provide peace of mind with its large 6-inch LCD display and comprehensive monitoring features. It operates without WiFi, ensuring a secure and stable connection for monitoring babies, pets, or elderly family members.

Image: The HelloBaby HB6363 baby monitor system, showing the monitor unit with a 6-inch IPS LCD screen displaying a baby, and the pan-tilt camera unit.

2. Característiques clau

• Unique 6-inch IPS Screen: Large, colorful, and clear display with 2x digital zoom for detailed viewing.
• 320° Pan-Tilt Camera: Remote control for 320° horizontal and 120° vertical rotation, providing a wide view de l'habitació.
• Visió nocturna automàtica: Switches automatically to black and white mode in low light, with a viewdistància de fins a 5 metres.
• Xerrada bidireccional: Built-in microphone and speaker for real-time voice interaction with your baby.
• 8 Cançons de bressol: Selection of natural white noise and lullabies with single song or loop playback modes.
• Llarga vida útil de la bateria: 4000mAh battery offering 16-30 hours of use (up to 30 hours in ECO mode).
• Secure FHSS Transmission: 2.4GHz FHSS encryption technology for anti-interference, privacy, and security, with a range of up to 1000ft (outdoor) / 165ft (indoor).
• Intelligent Environmental Monitoring: Real-time room temperature monitoring with alerts for over-temperature or under-temperature.
• Sound Level LED Indicator: Visual indication of environmental noise intensity (green/yellow/red).
• Multi-Camera Expansion: Supports connection of up to 4 cameras (additional cameras sold separately).
• 150 opcions d'idioma: Versatile language support for global families.

Image: An infographic highlighting the key features of the HelloBaby HB6363 monitor, including 4000mAh battery, ECO mode, auto night vision, 2-way talk, multi-camera support, pan/tilt/zoom, long range, temperature alarm, 8 lullabies, and 150 languages.

3. Guia de configuració

3.1 Càrrega de les unitats

Before first use, fully charge both the monitor unit and the camera unit. The monitor unit has a built-in rechargeable battery, while the camera unit is powered by a corded electric connection.

1. Connect the power adapter to the DC-Jack on the monitor unit and plug it into a power outlet.
2. Connect the power adapter to the camera unit and plug it into a power outlet.
3. Allow both units to charge until the battery indicator on the monitor shows a full charge.

3.2 Col·locació de la càmera

Col·loqueu la unitat de càmera en un lloc que ofereixi una visió clara view of your baby, ensuring it is out of reach of children. The camera can be freestanding, screw-mounted, or placed on a shelf or bassinet.

• Ensure the camera is placed at least 3 feet (1 meter) away from the baby to avoid potential hazards.
• For optimal night vision, avoid placing the camera directly facing a light source.
• Consider the camera's pan-tilt capabilities when choosing its position to maximize coverage.

3.3 Encès

1. Press and hold the Power Key on the monitor unit until the screen turns on.
2. Ensure the camera unit is plugged in and powered on. The monitor should automatically connect to the camera.
3. If the connection is not established automatically, refer to the Troubleshooting section for pairing instructions.

4. Instruccions de funcionament

4.1 Panoràmica, inclinació i zoom

The camera offers remote pan, tilt, and digital zoom functions to adjust your viewangle de ing.

• Use the directional buttons on the monitor to pan (move horizontally) and tilt (move vertically) the camera.
• Press the 'Scan / Zoom' button to activate the 2x digital zoom. Use directional buttons to navigate the zoomed image.

Image: The HelloBaby HB6363 monitor displaying a baby sleeping in a crib, illustrating the automatic night vision feature transitioning from day to night mode.

4.2 Conversa bidireccional

Communicate with your baby or partner through the monitor's two-way talk feature.

• Press and hold the 'Two Way Talk' button on the monitor to speak. Release the button to listen.
• Ensure the speaker on the baby unit is not obstructed.

Image: A visual representation of the two-way talk feature, showing a parent speaking into the monitor and a baby hearing the voice from the camera unit.

4.3 Visió nocturna

The monitor automatically switches to night vision mode in low light conditions.

• The screen will display a black and white image when night vision is active.
• El màxim viewing distance in night vision is 5 meters.

4.4 ECO Mode (Power Saving)

Activate ECO mode to conserve battery life on the monitor unit.

• In ECO mode, the screen will turn off when no sound is detected from the baby unit.
• The screen will automatically turn back on when sound is detected.
• This mode significantly extends battery life, up to 30 hours on a single charge.

Image: A comparison showing 18 hours of screen-on time versus 30 hours in ECO mode for the HelloBaby HB6363 monitor, highlighting its 4000mAh battery.

4.5 Lullabies and Language Settings

Access and control lullabies and adjust language settings through the monitor's menu.

• Navigate to the 'Lullaby' icon on the main menu to select from 8 built-in lullabies. You can choose single play or loop play mode.
• Navigate to the 'Language' icon to select from 150 available languages.

Image: Screenshots of the HelloBaby HB6363 monitor's interface showing the selection of 8 lullabies and various language options, indicating support for 150 languages.

4.6 Volume and Brightness Adjustment

Adjust the monitor's volume and screen brightness directly using dedicated buttons.

• Use the 'Volume / Brightness' button to cycle through adjustment modes.
• Use the directional buttons to increase or decrease the volume or brightness.

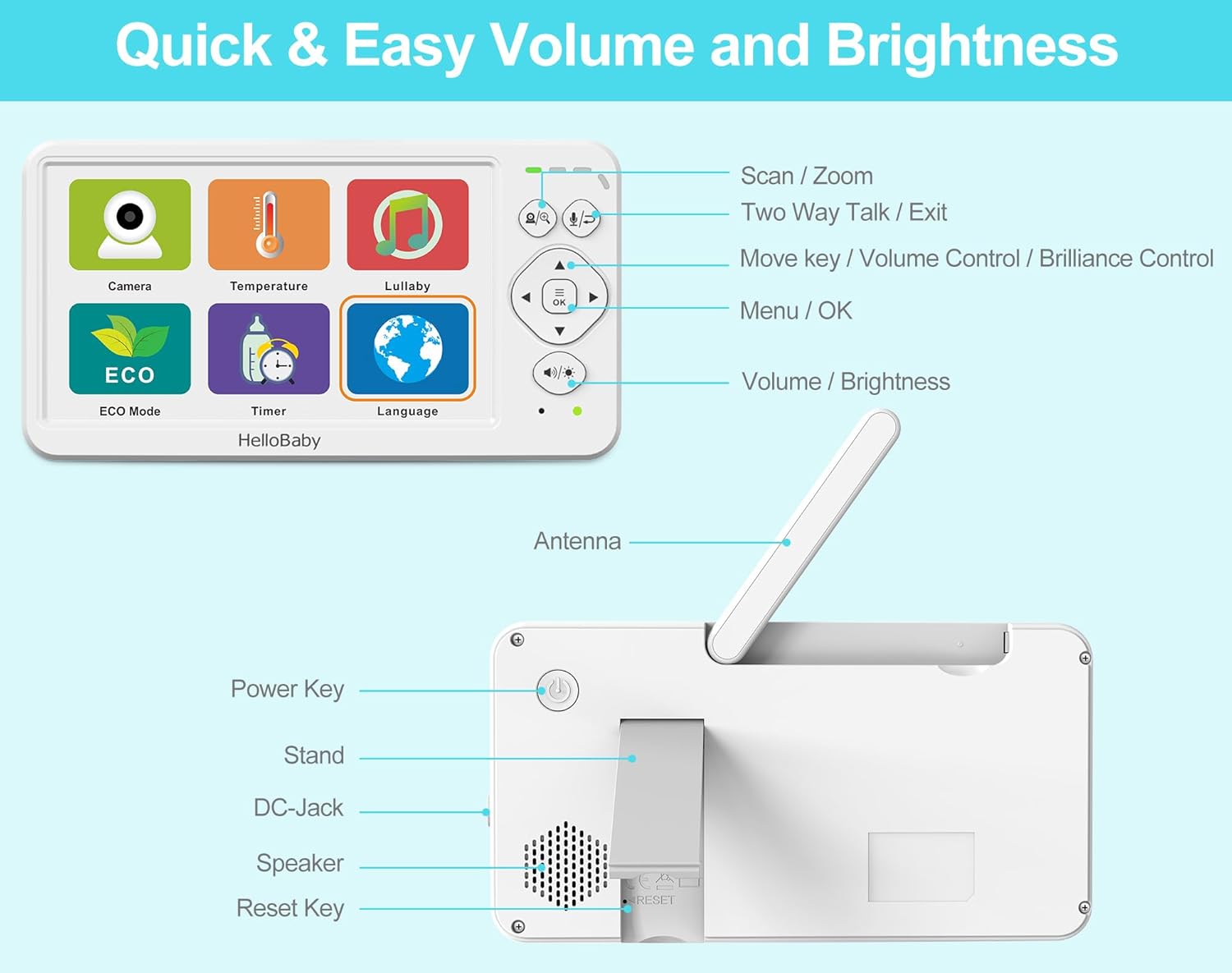

Image: A detailed diagram of the HelloBaby HB6363 monitor's controls, labeling buttons for scan/zoom, two-way talk, menu/OK, volume/brightness, and physical components like the antenna, power key, stand, DC-jack, speaker, and reset key.

4.7 Monitorització de la temperatura

The camera unit includes a built-in temperature sensor to monitor the room temperature.

• The temperature reading is displayed on the monitor screen.
• The system can trigger an alarm if the temperature goes above or below a set range (refer to menu settings for adjustment).

5. Manteniment

5.1 Neteja

• Wipe the monitor and camera units with a dry, soft cloth.
• No utilitzeu esprais de neteja ni netejadors líquids directament sobre les unitats.
• Avoid exposing the units to water or excessive moisture.

5.2 Cura de la bateria

• To prolong battery life, avoid fully discharging the monitor unit frequently.
• If storing the unit for an extended period, charge the battery to approximately 50% and store in a cool, dry place.
• Feu servir només els adaptadors de corrent proporcionats per carregar.

6. Solució De Problemes

6.1 No Signal / Connection Issues

• Ensure both the monitor and camera units are powered on and within range. The maximum outdoor range is 1000ft, and indoor is 165ft.
• Reduce the distance between the monitor and camera.
• Eviteu col·locar les unitats a prop d'altres dispositius electrònics que puguin causar interferències (per exemple, microones, encaminadors Wi-Fi).
• If connection is lost, try re-pairing the units. Refer to the manual's pairing section (if available) or contact support.

Image: An illustration demonstrating the secure and stable FHSS transmission of the HelloBaby HB6363 monitor, showing its range within a home environment without relying on Wi-Fi or apps.

6.2 Sense àudio o mala qualitat d'àudio

• Increase the volume on the monitor unit.
• Ensure the camera's microphone is not obstructed.
• Move the monitor closer to the camera to improve signal strength.

6.3 Screen is Black / No Video

• Check if the monitor is in ECO mode; sound will reactivate the screen.
• Ensure the camera unit is powered on and connected.
• Check the monitor's brightness settings.

7. Especificacions

Image: A diagram illustrating the dimensions of both the HelloBaby HB6363 monitor and camera units in centimeters and inches.

8. Garantia i Suport

The HelloBaby HB6363 Baby Monitor comes with a 1-year coverage from the date of purchase. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use.

For technical support, warranty claims, or any inquiries regarding your HelloBaby product, please contact our customer service team. Refer to the product packaging or the official HelloBaby weblloc web per obtenir la informació de contacte més actualitzada.

When contacting support, please have your product model number (HB6363) and proof of purchase readily available.
