Introducció
This manual provides comprehensive instructions for the BREND BR-2244 Emergency Radio. This device is designed to provide essential communication and utility functions in various situations, including emergencies, outdoor activities, and daily use. It features DAB/FM radio, Bluetooth connectivity, an SOS alarm, a power bank function, and an LED flashlight, with multiple charging options.
Image: The BREND BR-2244 Emergency Radio, a compact green device with a screen and buttons, shown charging a smartphone via its USB port.
Contingut del paquet
Si us plau, verifiqueu que tots els elements siguin presents al paquet:
- BREND BR-2244 Emergency Radio
- Cable de càrrega USB-C
- Guia d'inici ràpid

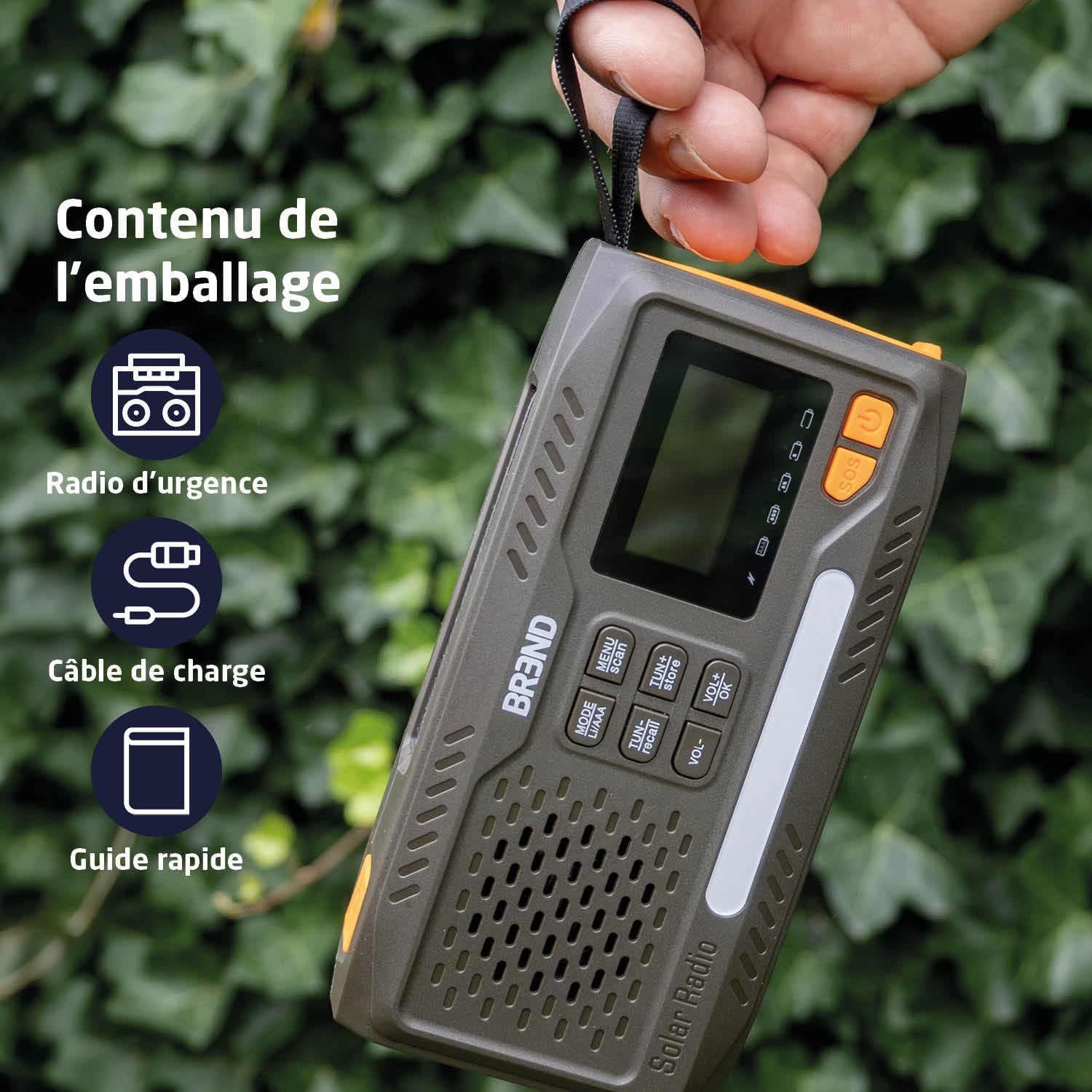

Imatge: Una imatge superior view showing the BREND BR-2244 Emergency Radio, a charging cable, and a quick guide, representing the package contents.
Configuració
Càrrega inicial
Before first use, fully charge the internal battery using the provided USB-C cable. Connect the USB-C end to the radio's input port and the other end to a standard USB power adapter (not included) or a computer USB port.
Optional AAA Battery Installation
For extended power or as a backup, you can install 3 AAA batteries (not included). Open the battery compartment cover on the back of the radio and insert the batteries according to the polarity markings.
Imatge: Una imatge detallada view of the BREND BR-2244 Emergency Radio's side and back, highlighting the USB-C port, the hand crank, the solar panel, and the open compartment for three AAA batteries.
Instruccions de funcionament
Encès/Apagat
Manteniu premut el botó Poder botó per encendre o apagar la ràdio.
Funcionament de ràdio (DAB/FM)
- Esteneu l'antena telescòpica per a una recepció òptima.
- Premeu el botó MODE button to switch between DAB and FM modes.
- En mode FM, premeu ESCANEAR to automatically search and store available stations.
- Ús TUN- i TUN + buttons to manually tune or navigate through stored stations.
- Ajusta el volum amb VOL- i VOL+ botons.
Image: The BREND BR-2244 Emergency Radio with its telescopic antenna fully extended, indicating FM radio frequency range (87.5-108 MHz) and DAB radio frequency range (170-240 MHz).
Funció d'altaveu Bluetooth
- Premeu el botó MODE button until "Bluetooth" or a similar indicator appears on the display.
- On your smartphone or other Bluetooth-enabled device, search for "BR-2244" and pair with it.
- Once connected, audio will play through the radio's 3W speaker.
LED Flashlight and Night Light
The radio features a multi-mode LED flashlight and a night light strip.
- Premeu el botó Llanterna button (usually located on the side or front) to cycle through flashlight modes (e.g., low, high, flashing).
- Premeu el botó Llum nocturna button (if separate) to activate the ambient night light.
Image: The BREND BR-2244 Emergency Radio with its three-mode LED flashlight illuminated, showing different brightness levels.
Funció d'alarma SOS
En cas d'emergència, activeu l'alarma SOS:
- Manteniu premut el botó SOS button (typically orange).
- The radio will emit a loud siren sound and flash a visible light signal.
- Premeu el botó SOS button again to deactivate the alarm.

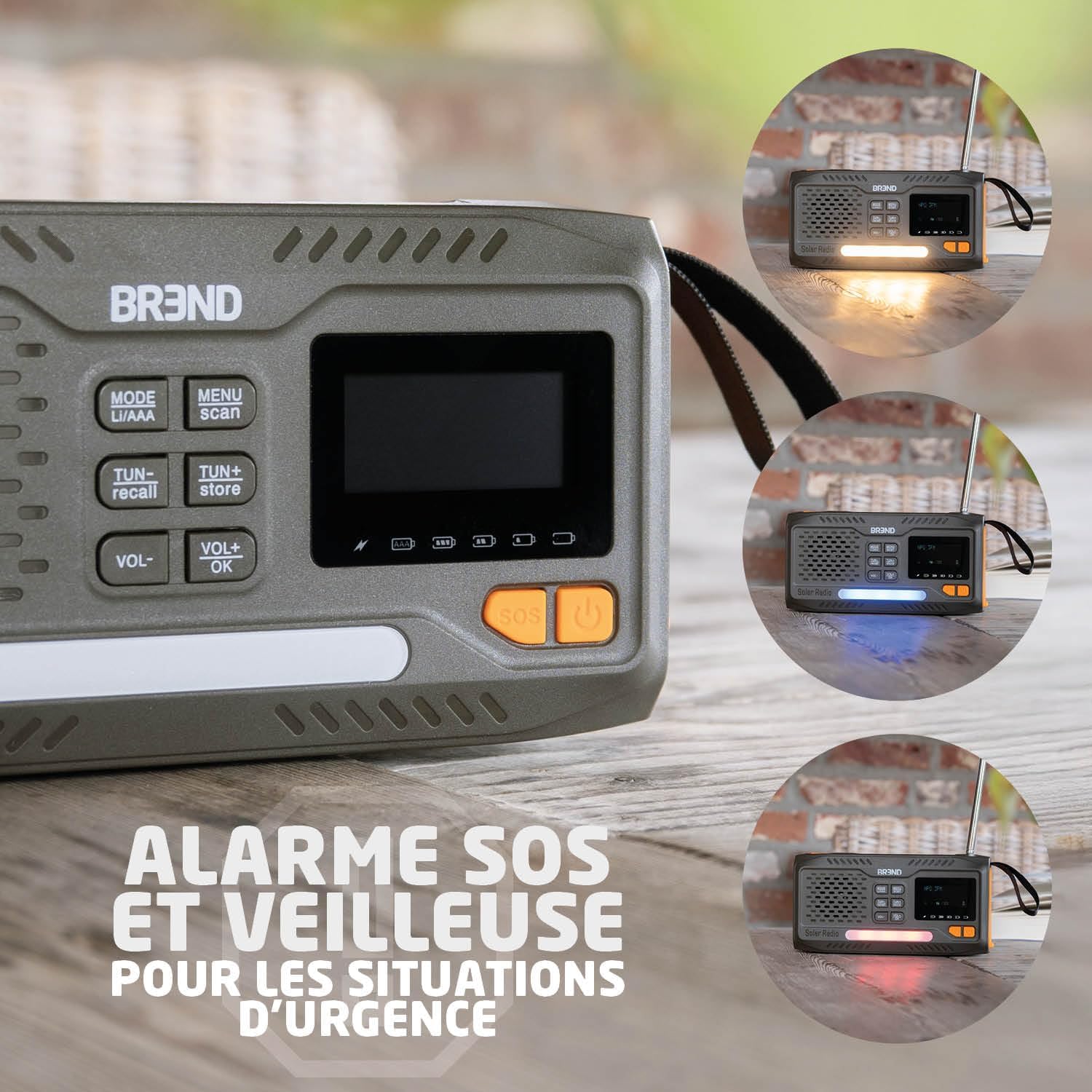

Image: A close-up of the BREND BR-2244 Emergency Radio's display and controls, showing the SOS button and the night light strip illuminated in different colors (white, blue, red) to indicate its function.
Funció Power Bank
The BR-2244 can charge external devices:
- Connect your smartphone or other USB-powered device to the radio's USB-A output port using your device's charging cable.
- The radio's internal battery will begin charging the connected device.
Image: The BREND BR-2244 Emergency Radio connected to a smartphone via a charging cable, demonstrating its power bank capability. Icons for Bluetooth speaker, LCD screen, and 3.5mm headphone jack are also visible.
Mètodes de càrrega
The BREND BR-2244 offers multiple ways to recharge its internal battery:
- Càrrega USB-C: Connect the provided USB-C cable to a 5V USB power source. This is the fastest charging method.
- Càrrega del panell solar: Place the radio with its solar panel facing direct sunlight. The charging indicator will illuminate. This method is ideal for maintaining charge or slow charging in outdoor environments.
- Dinamo de biela: Rotate the hand crank clockwise or counter-clockwise at a steady pace (approximately 120-150 RPM) for 3-5 minutes to generate enough power for short periods of use or to initiate charging.
- Piles AAA: As a backup, 3 AAA batteries can power the radio directly.
Manteniment
- Keep the radio clean by wiping it with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Assegureu-vos que tots els ports estiguin lliures de pols i deixalles.
- Guardeu la ràdio en un lloc fresc i sec quan no la feu servir.
- If storing for an extended period, fully charge the internal battery every 3 months to prolong its lifespan.
- The radio is IP44 splash-proof, meaning it is protected against splashing water from any direction. Do not submerge the device in water.
Image: The BREND BR-2244 Emergency Radio sitting outdoors with water droplets on its surface, illustrating its IP44 splash-proof rating.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La ràdio no s'encén. | Bateria baixa o sense energia. | Charge the radio via USB-C, solar, or hand crank. Check AAA batteries if installed. |
| Mala recepció de ràdio. | Antena no estesa o senyal feble. | Esteneu completament l'antena telescòpica. Intenteu reposicionar la ràdio. |
| El Bluetooth no es connecta. | La ràdio no està en mode Bluetooth o el dispositiu no es pot detectar. | Ensure radio is in Bluetooth mode. Make sure your device's Bluetooth is on and discoverable. Try restarting both devices. |
| La llanterna no funciona. | Low battery or flashlight button not pressed correctly. | Charge the radio. Press the flashlight button firmly. |
| El dispositiu extern no es carrega. | Radio battery too low or incorrect cable. | Ensure the radio has sufficient charge. Use a compatible USB-A to device cable. |
Especificacions
- Marca: BREND
- Model: BR-2244
- Connectivitat: Bluetooth 5.0
- Característiques especials: SOS Alarm, Power Bank, LED Flashlight, Night Light
- Sintonitzador de ràdio: DAB+, FM
- Font d'alimentació: Rechargeable Internal Battery, Solar Panel, Hand Crank, 3x AAA Batteries (not included)
- Entrada Voltage: 5 Volts (via USB-C)
- Sortida de l'altaveu: 3W
- Dimensions: 15 cm (L) x 8 cm (A) x 4 cm (Al)
- Pes: 300 grams
- Resistència a l'aigua: IP44 (a prova d'esquitxades)
Image: The BREND BR-2244 Emergency Radio displayed with its approximate dimensions: 15 cm in length and 7.5 cm in height, and a weight of 300g.
Informació de la garantia
The BREND BR-2244 Emergency Radio comes with a manufacturer's warranty of 2 years. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
For warranty service, please contact customer support with your purchase details.
Atenció al client
If you encounter any issues or have questions regarding your BREND BR-2244 Emergency Radio that are not covered in this manual, please contact BREND customer support.
For more information and support, you may visit the official BREND store on Amazon: BREND Amazon Store
