Producte acabatview
The Fanbulous 62-inch Oil Bronze ceiling fan combines modern design with advanced functionality, suitable for both indoor and outdoor spaces (avoiding direct rain exposure). It features a quiet DC motor, 8 dual-finish blades, and an integrated LED light with adjustable color temperatures, all controlled by a convenient remote.

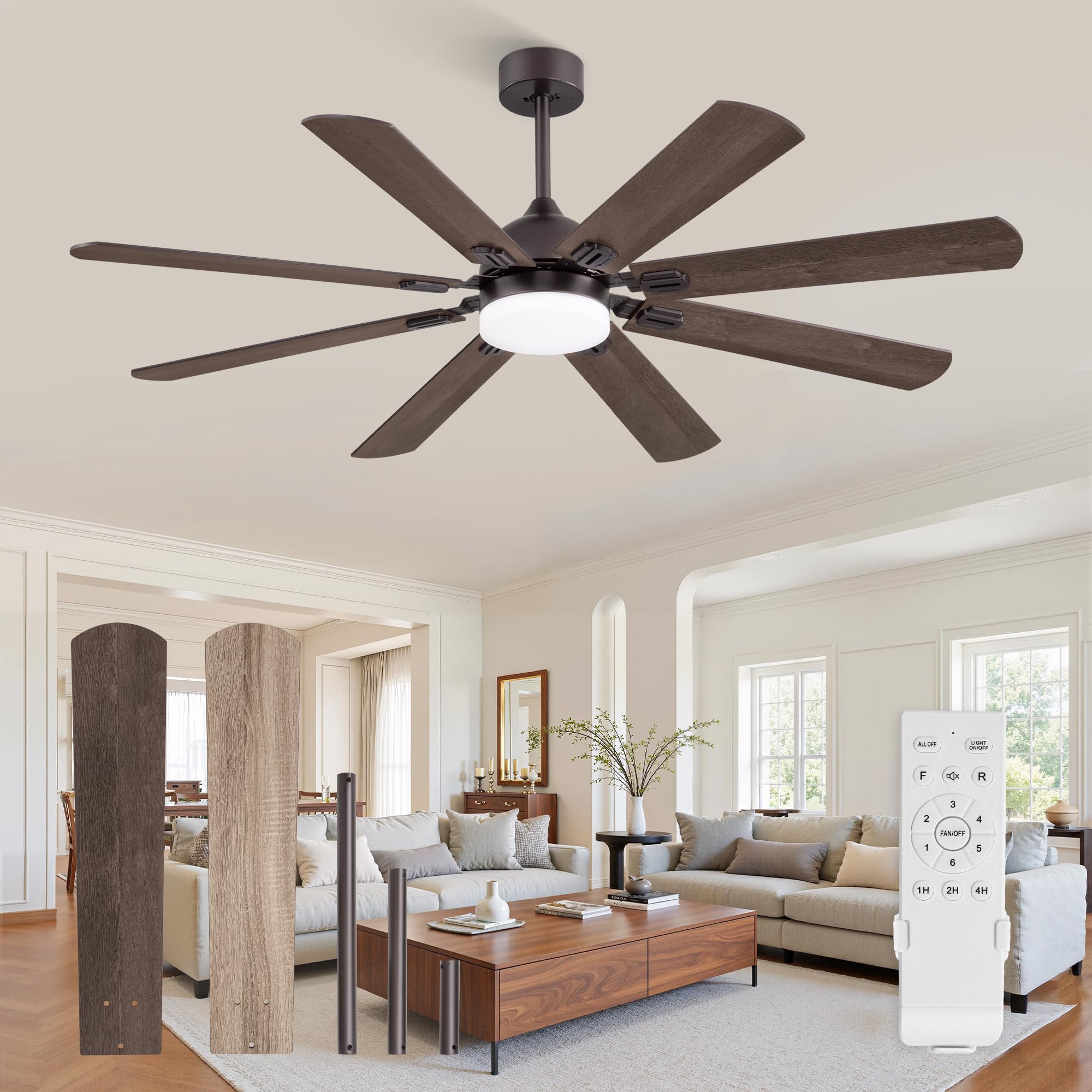

Image: Fanbulous 62-inch Oil Bronze Ceiling Fan. This image shows the complete Fanbulous 62-inch ceiling fan with its oil bronze finish and integrated LED light.
1. Informació de seguretat
Si us plau, llegiu i enteneu tot aquest manual abans d'intentar muntar, fer funcionar o instal·lar el producte. Si no seguiu aquestes instruccions, podríeu patir descàrregues elèctriques, incendis o lesions personals greus.
- Assegureu-vos que l'alimentació estigui apagada a l'interruptor automàtic abans de la instal·lació o el manteniment.
- Tot el cablejat ha de complir amb els codis elèctrics nacionals i locals.
- El ventilador s'ha de muntar a una biga de sostre o a una estructura de suport capaç de suportar un mínim de 35 lliures (15.9 kg).
- No doblegueu els porta-fulles durant la instal·lació o la neteja.
- Keep children away from the fan when it is operating.
- Do not use the fan with a solid-state speed control device.
2. Contingut del paquet
Carefully unpack your fan and check the contents. You should have the following items:
- Ceiling Fan Motor Assembly with Integrated LED Light
- 8 Fan Blades (Dual Finish: Oil Bronze and Light Walnut)
- Control remot (2 piles AAA incloses)
- Receiver/Module for Remote Control
- Downrods (5", 10", 15" options)
- Suport de muntatge
- Hardware Pack (screws, wire nuts, anchors)
- Manual d'usuari
Video: Fanbulous 62-inch Ceiling Fan with Lights controlled by Remote. This video demonstrates the fan's features, including the quiet DC motor, LED light, and remote control operation.
3. Especificacions
| Característica | Detall |
|---|---|
| Marca | Fanbulós |
| Nom del model | YW62 |
| Mida | 62 polzades |
| Color | Bronze a l'oli |
| Nombre de fulles | 8 (Dual Finish: Oil Bronze / Light Walnut) |
| Tipus de motor | Motor DC sense escombretes |
| Nivell de soroll | ≤ 35 Decibels |
| Capacitat de cabal d'aire | 4956 centímetres cúbics per minut |
| Llum Wattage | 24W LED (1800LM) |
| Temperatures de color | 3000K (Warm), 4000K (Neutral), 6000K (White) |
| Mètode de control | Control remot |
| Downrod Lengths | 5", 10", 15" (Included) |
| Sloped Ceiling Compatibility | Fins a 15° |
| Ús interior/exterior | Indoor, Outdoor (Avoid direct rain exposure) |
| Font d'alimentació | CA, 120 volts |
| Pes de l'article | 13 lliures |
4. Configuració i instal·lació
Professional installation is recommended. Ensure all power is disconnected at the circuit breaker before beginning installation.
4.1 Muntatge del ventilador
- Assegureu el suport de muntatge: Attach the mounting bracket to a ceiling joist or a suitable support structure. Ensure it can safely support the fan's weight.
- Choose Downrod Length: Select the appropriate downrod (5", 10", or 15") based on your ceiling height. The fan can be installed on sloped ceilings up to 15 degrees.
- Muntar la vareta de baixada i el motor: Feed the fan wires through the chosen downrod and attach the downrod to the fan motor assembly.
- Penja el ventilador: Aixequeu amb cura el conjunt del ventilador i pengeu-lo del suport de muntatge.
Image: Fanbulous Ceiling Fan Dimensions and Mounting Options. This image illustrates the fan's dimensions and shows examples of low ceiling, high ceiling, and slanted ceiling installations.
4.2 Cablejat
- Connecteu els cables elèctrics: Connect the fan's electrical wires to the household wiring according to local electrical codes. Ensure proper grounding.
- Instal·leu el receptor remot: Place the remote control receiver inside the canopy. Connect the receiver wires to the fan and household wiring as per the wiring diagram in the full manual.
- Dosser segur: Attach the canopy to the mounting bracket, covering the wiring connections.
4.3 Fixació de les aspes del ventilador
- Select Blade Finish: The blades are dual-sided. Choose either the Oil Bronze or Light Walnut finish to face downwards.
- Connectar les fulles: Securely attach each of the 8 fan blades to the motor housing using the provided screws. Ensure all screws are tightened to prevent wobbling.
Image: Fanbulous Ceiling Fan Dual-Sided Blades. This image highlights the two available finishes for the fan blades: Oil Bronze and Light Walnut.
4.4 Installing the LED Light
- Connect LED Wires: Connect the LED light module wires to the corresponding wires from the fan motor.
- Secure Light Kit: Attach the LED light kit to the bottom of the fan motor assembly.
5. Instruccions de funcionament
Your Fanbulous ceiling fan is operated using the included remote control. Ensure the 2 AAA batteries are correctly installed in the remote.
Image: Fanbulous Ceiling Fan Remote Control Features. This image displays the remote control and its various buttons for fan speed, light control, and timer settings.
5.1 Control de velocitat del ventilador
- Premeu botons 1 a través de 6 to select desired fan speed. 1 is the lowest speed, and 6 és el més alt.
- Premeu VENTILADOR/APAGAT per apagar el ventilador.
Image: Fanbulous Ceiling Fan Quiet Operation. This image highlights the fan's quiet operation, with a noise level below 35 dB, suitable for peaceful environments.
5.2 Control de llum LED
- Premeu LLUM ON/OFF per encendre o apagar la llum LED.
- Ajust de temperatura de color: The LED light offers three color temperatures (3000K Warm, 4000K Neutral, 6000K White).
- To change the color temperature, quickly toggle the light switch (wall switch or remote button).
- The light features a memory function: if the switch is toggled again after more than 10 seconds, the light color will not change from its last setting.
Image: Fanbulous Ceiling Fan 3-Color Temperature LED Light. This image demonstrates the three adjustable color temperatures of the integrated LED light: 3000K Warm Light, 4000K Natural Light, and 6000K Cold White Light.
5.3 Reversible DC Motor (Summer/Winter Modes)
- Premeu el botó R button on the remote to reverse the fan blade direction.
- Mode d'estiu (flux d'aire descendent): Blades rotate counter-clockwise, pushing cool air down to create a cooling effect.
- Mode hivern (flux d'aire ascendent): Blades rotate clockwise, drawing cool air up and pushing warm air down from the ceiling, optimizing heat distribution.
Image: Fanbulous Ceiling Fan Reversible DC Motor. This image visually explains the summer mode (downward airflow) and winter mode (upward airflow) functions of the fan.
5.4 Funció de temporitzador
- Premeu el botó 1H, 2H, o 4H buttons on the remote to set the fan to automatically turn off after 1, 2, or 4 hours, respectively.
6. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador de sostre.
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau iamp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Apretar els cargols: Check all screws and connections annually to ensure they are secure. Loose connections can cause noise or wobbling.
- Equilibri de la fulla: If the fan wobbles, ensure all blades are securely attached and consider using a blade balancing kit (not included) if necessary.
- Font de llum: The integrated LED light is designed for long life. If replacement is needed, contact Fanbulous customer service.
7. Solució De Problemes
Before attempting any repairs, ensure the power is turned off at the circuit breaker.
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Problemes amb el comandament a distància. | Check circuit breaker and wall switch. Ensure all wiring connections are secure. Replace remote batteries. Re-pair remote if necessary (refer to full manual). |
| La llum no funciona | Connexió de cable fluixa al kit de llum; Mòdul LED defectuós. | Check light kit wiring connections. If problem persists, contact customer service for LED module replacement. |
| El ventilador trontolla | Cargols de la fulla solts; Fulles desequilibrades; Suport de muntatge solt. | Tighten all blade screws. Ensure blades are installed correctly. Use a blade balancing kit. Verify mounting bracket is securely fastened to the ceiling. |
| Funcionament sorollós | Cargols solts; Brunzit del motor; Les pales xoquen contra un obstrucció. | Check and tighten all screws. Ensure no blades are hitting anything. A slight motor hum is normal for DC motors, but excessive noise may indicate an issue. |
| El comandament a distància no funciona | Piles gastades; Comandament a distància no emparellat; Obstrucció entre el comandament a distància i el receptor. | Replace batteries. Ensure remote is within range and not obstructed. Re-pair remote with receiver (refer to full manual for specific steps). |
8. Garantia i assistència
Fanbulous stands behind the quality of its products.
- Garantia del motor: 5-year warranty on the fan motor.
- Garantia d'altres peces: 2-year warranty on all other parts.
- Atenció al client: The dedicated Fanbulous team is available 24 hours online to assist you with any questions or issues, ensuring your satisfaction for a long time after purchase.
- For warranty claims or technical support, please contact Fanbulous customer service through their official channels.
