1. Introducció
Welcome to the user manual for your Cyrusher Kommoda 2.0 Electric Bike. This manual provides essential information for the safe and effective operation, maintenance, and care of your new e-bike. Please read this manual thoroughly before your first ride and keep it for future reference. The Kommoda 2.0 is designed for versatile terrain, featuring a powerful 1500W motor, long-range battery, advanced suspension, and robust braking system.
2. Informació de seguretat
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level. Be aware of your surroundings and obey all local traffic laws. The bike is rated IPX5 water-resistant, meaning it can withstand light rain and splashes, but should not be submerged or exposed to heavy water jets.
- Porteu sempre un casc homologat.
- Ensure brakes are functioning correctly before each ride.
- Comproveu la pressió i l'estat dels pneumàtics regularment.
- No conduïu sota els efectes de l'alcohol o les drogues.
- Be visible, especially at night, by using the integrated lights and reflectors.

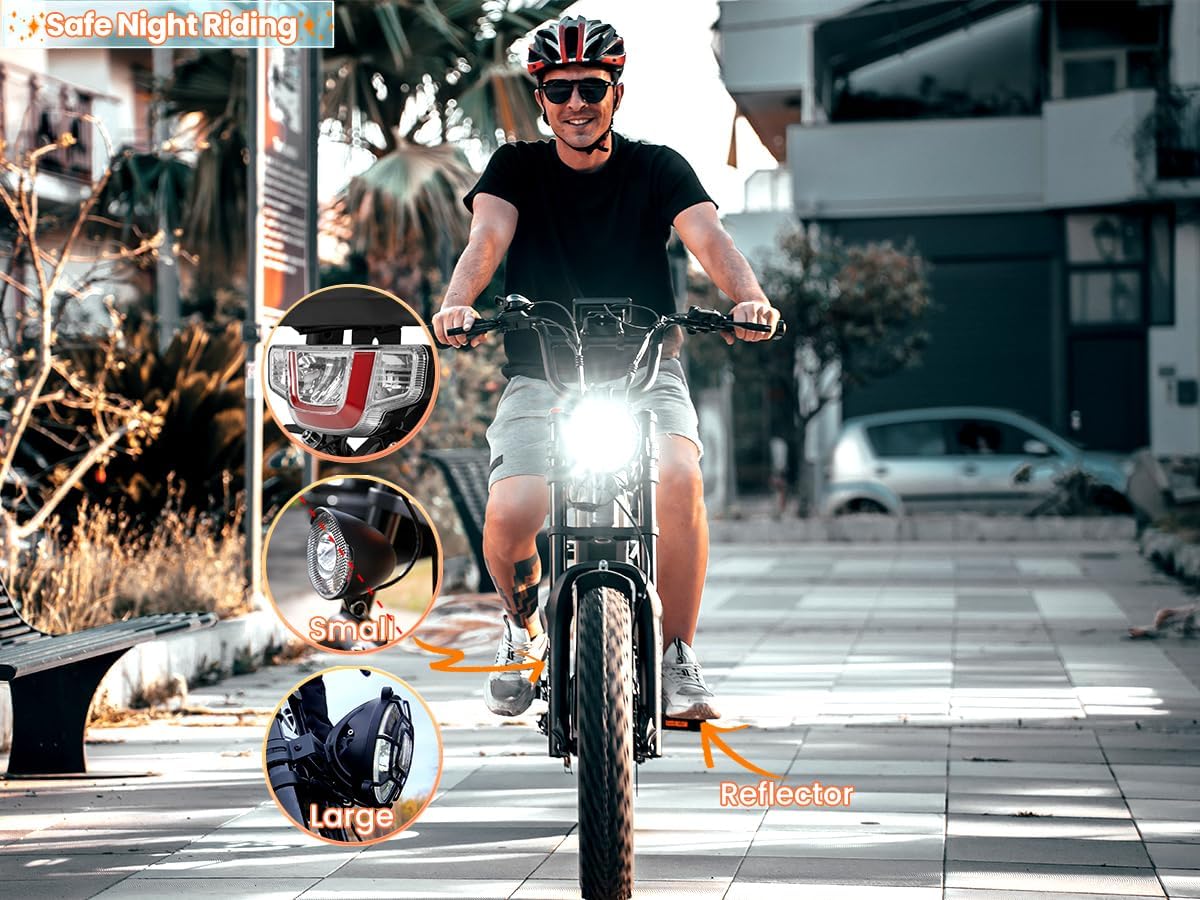

The Kommoda 2.0 features a bright headlight and rear reflector to enhance visibility and safety during night riding. Always ensure your lights are functional before riding in low-light conditions.
3. Contingut del paquet
En desempaquetar, comproveu que hi hagi tots els components següents:
- Cyrusher Kommoda 2.0 Electric Bike (partially assembled)
- Carregador de bateria
- Bomba de pneumàtics
- Eines d'instal·lació
- User Manuals (this document)
4. Muntatge i muntatge
Your Cyrusher Kommoda 2.0 Electric Bike comes 90% pre-assembled. Follow these steps to complete the assembly:
- Fixeu el manillar: Secure the handlebar to the stem using the provided tools. Ensure it is centered and tightened securely.
- Instal·leu la roda davantera: Mount the front wheel into the fork dropouts. Ensure the disc brake rotor aligns correctly with the caliper and tighten the quick-release or axle nuts.
- Instal·leu els pedals: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten them firmly.
- Ajustar l'alçada del seient: Adjust the seat post to a comfortable riding height, ensuring your feet can touch the ground when stopped.
The bike is 90% pre-assembled, allowing for quick setup. This diagram illustrates key dimensions and the recommended rider height range of 150-190 cm (5'1"-6'3").
Key components of the Kommoda 2.0, including the aluminum alloy frame, handlebar, front fork, rear rack, rim, pedals, crank, and kickstand, are highlighted for easy identification during assembly and maintenance.
5. Instruccions de funcionament
5.1 Engegada/Apagada i Visualització
To power on the bike, press and hold the power button on the display. The vivid LCD display will show your speed, battery level, ride time, distance, and assistance level. To power off, press and hold the power button again.
The vivid LCD display provides real-time ride data, including current speed, battery charge, trip distance, total distance traveled, power output, and selected pedal assistance level (1-5).
5.2 Pedal Assist and Throttle
The Kommoda 2.0 offers multiple levels of pedal assistance (PAS) and a full-throttle mode. Use the '+' and '-' buttons on the control panel to adjust the PAS level. Higher levels provide more motor assistance. The throttle can be engaged independently for power without pedaling.
The Kommoda 2.0 is equipped with a powerful 1500W Bafang motor, delivering 80Nm of torque for climbing gradients up to 35 degrees and achieving speeds over 25mph with throttle assistance.
5.3 Canviant de marxa
The bike features a Shi-mano 7-speed gear system. Use the gear shifter on the handlebar to change gears. Shift to a lower gear for easier pedaling on inclines and a higher gear for faster speeds on flat terrain. Always ease off the pedals slightly when shifting for smoother transitions.
The Shi-mano 7-speed gear system allows riders to adapt to various terrains and riding conditions, providing efficient power transfer and a comfortable pedaling experience.
5.4 Sistema de frenada
The Kommoda 2.0 is equipped with powerful hydraulic disc brakes for reliable stopping power in all conditions. Apply both front and rear brakes simultaneously for optimal control and shorter stopping distances. The brake levers include a motor cutoff switch for added safety.
The hydraulic disc braking system, featuring an aluminum alloy brake lever and powerful calipers, ensures precise control and superior stopping performance compared to other brake types.
5.5 Ajust de la suspensió
The bike features a motorcycle-style front suspension fork with adjustable shock absorbers and a rear air shock absorber. These can be adjusted to suit different terrains and rider preferences, providing a smoother and more comfortable ride. Refer to the suspension components for specific damping ON/OFF and hard/soft adjustments.
The high-performance suspension system, featuring a motorcycle-style front fork and a rear air shock absorber, is designed to absorb shocks effectively, ensuring a comfortable and less fatiguing ride even on rough roads.
5.6 Sensor de parell
The Kommoda 2.0 is equipped with a high-performance torque sensor. Unlike simpler speed sensors, the torque sensor accurately detects the force applied to the pedals, providing a more natural and responsive pedal assist experience. This results in smoother power delivery and a more intuitive ride.
The advanced torque sensor accurately measures the force applied to the pedals, providing a more natural and intuitive power assist compared to traditional speed sensors.
6. Gestió de la bateria
The Kommoda 2.0 features a 48V20Ah removable lithium battery. This allows for convenient charging both on and off the bike.
6.1 Càrrega de la bateria
To charge, connect the charger to the battery's charging port and then plug it into a standard wall outlet. The indicator light on the charger will change when charging is complete. A full charge can take several hours. Do not overcharge the battery.
6.2 Battery Range
When fully charged, the pedal assist mode offers a range of up to 75 miles, depending on terrain, rider weight, and assistance level used. Using the throttle exclusively will reduce the overall range.
The 48V20Ah removable lithium battery provides an impressive range of up to 75 miles with pedal assist, significantly outperforming lower capacity batteries.
7. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament segur de la teva bicicleta elèctrica.
- Neteja: Netegeu la bicicleta regularment amb anuncisamp cloth. Avoid high-pressure washers directly on electrical components.
- Frens: Periodically check brake pads for wear and ensure hydraulic fluid levels are adequate.
- Pneumàtics: Maintain recommended tire pressure (refer to tire sidewall). Inspect for cuts or punctures.
- Cadena: Mantingueu la cadena neta i lubricada per garantir un canvi suau i evitar el desgast.
- Elements de fixació: Regularly check all bolts and nuts for tightness, especially on critical components like the handlebars, wheels, and seat post.
8. Solució De Problemes
Aquí teniu solucions a problemes comuns que podeu trobar:
| Problema | Causa possible | Solució |
|---|---|---|
| La bicicleta no s'encén | Bateria no carregada o mal col·locada; connexió elèctrica fluixa. | Assegureu-vos que la bateria estigui completament carregada i ben inserida. Comproveu totes les connexions de cable visibles. |
| El motor no ajuda | Low battery; pedal assist level set to zero; brake lever engaged; motor connection issue. | Charge battery. Increase PAS level. Ensure brake levers are fully released. Check motor cable connection. |
| Els frens es senten esponjosos o febles | Air in hydraulic line; worn brake pads; low fluid. | Consult a bike mechanic for hydraulic brake bleeding or pad replacement. |
| Les marxes no canvien suaument | Derailleur out of adjustment; dirty or dry chain. | Clean and lubricate chain. Adjust derailleur limits and cable tension (refer to Shi-mano guide or professional). |
9. Especificacions
Detailed technical specifications for the Cyrusher Kommoda 2.0 Electric Bike:
| Característica | Especificació |
|---|---|
| Tipus de bicicleta | Bicicleta elèctrica |
| Nom del model | Kommoda 2.0 (Kommoda3.0) |
| Motor Wattage | 1500 watts |
| Bateria | 48V20Ah (960Wh) Removable Lithium Battery |
| Abast màxim (assistència al pedal) | Fins a 75 milles |
| Max Speed (Throttle) | 28 Mph |
| Material del marc | 6061 Aerospace-Grade Aluminum Alloy (4-linkage frame) |
| Mida de la roda | 20 Inches (4-inch fat tires) |
| Tipus de suspensió | Air Suspension (Adjustable moto-style front fork & rear air shock) |
| Estil de fre | Hydraulic Disc Brakes (with motor cutoff switch) |
| Nombre de velocitats | 7 (Shi-mano 7-speed) |
| Pes de l'article | 74 lliures |
| Recomanació de pes màxim | 330 lliures |
| Alçada mínima de l'usuari | 5.1 peus (155 cm) |
| Resistència a l'aigua | IPX5 |
10. Informació de la garantia
Cyrusher provides the following warranty for your Kommoda 2.0 Electric Bike:
- Marc: 2 any de garantia
- Parts and Battery: 1 any de garantia
This warranty covers manufacturing defects and ensures the quality and durability of your Cyrusher e-bike. Please retain your proof of purchase for warranty claims.
11. Atenció al client
For any questions, technical assistance, or warranty claims, please contact Cyrusher customer support. Refer to the official Cyrusher weblloc web o la documentació de compra per obtenir la informació de contacte més actualitzada.
