MOSEWORTH 48V 135Ah LiFePO4 Lithium Battery User Manual

1. Introducció

Thank you for choosing the MOSEWORTH 48V 135Ah LiFePO4 Lithium Battery. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your battery. The MOSEWORTH LiFePO4 battery is designed for various applications, offering a long cycle life, built-in Battery Management System (BMS), and low-temperature protection for reliable performance.

Please read this manual thoroughly before using the battery and retain it for future reference.

2. Informació de seguretat

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir incendis, descàrregues elèctriques, lesions greus o danys materials.

• No curtcircuits: Ensure positive and negative terminals do not come into contact with each other or with conductive materials.
• Polaritat correcta: Always connect the battery with correct polarity. Reverse polarity can cause severe damage to the battery and connected equipment.
• Avoid Puncture: Do not puncture, drop, crush, or disassemble the battery.
• Límits de temperatura: Do not expose the battery to extreme temperatures outside its operating range. Avoid direct sunlight or heat sources.
• Ventilació: Ensure adequate ventilation around the battery during operation and charging.
• Exposició a l'aigua: While the battery is IP65 rated for dust and water resistance, avoid submerging it in water.
• Nens i animals de companyia: Mantingueu la bateria fora de l'abast dels nens i les mascotes.
• Eliminació: Desfeu-vos de la bateria d'acord amb la normativa local. No la llenceu a les escombraries domèstiques.

3. Producte acabatview

The MOSEWORTH 48V 135Ah LiFePO4 Lithium Battery is a high-performance power solution featuring advanced technology for durability and safety.

Característiques principals:

• 48V 135Ah Capacity: Provides substantial power for demanding applications.
• LiFePO4 Chemistry: Offers superior safety, stability, and a longer cycle life compared to traditional lead-acid batteries.
• Built-in 200A BMS: Integrated Battery Management System protects against over-charge, over-discharge, over-current, short circuit, and high/low temperature.
• Protecció de baixa temperatura: Automatically stops charging below 32°F (0°C) and discharging below -4°F (-20°C) to prevent damage. Resumes charging at 41°F (5°C).
• Grade A Lithium Iron Phosphate Cells: Ensures high quality, stable chemistry, and enhanced thermal stability.
• Cicle de vida prolongat: Designed for 5000+ charge/discharge cycles, offering long-term value.
• IP65 Waterproof & Dust-proof: Proporciona protecció contra els elements ambientals.

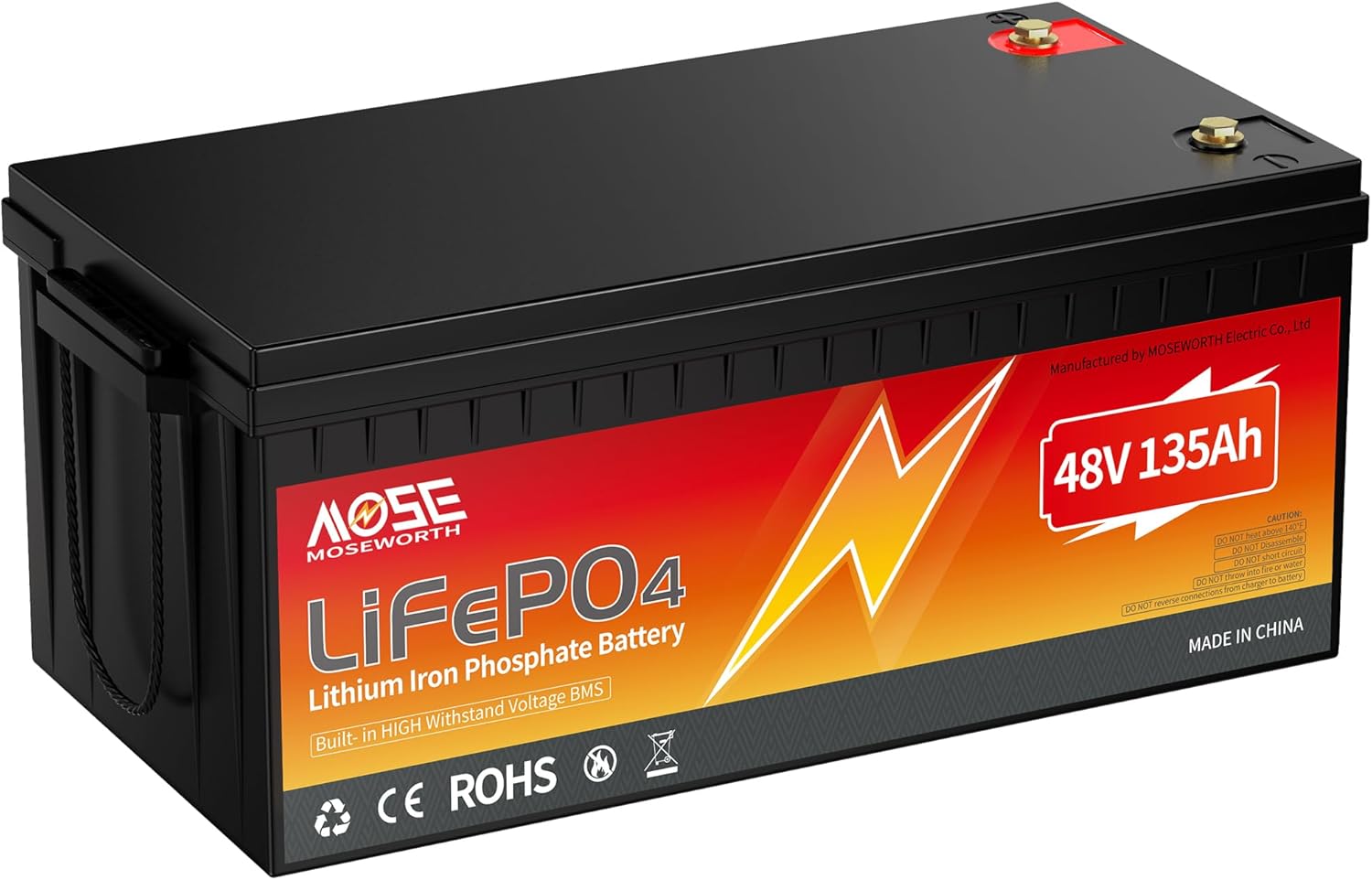

Figure 3.1: MOSEWORTH 48V 135Ah LiFePO4 Lithium Battery. This image displays the main product unit, showcasing el seu robust c negreasing and clear labeling of its 48V 135Ah capacity and LiFePO4 technology.

Figura 3.2: Intern view of the MOSEWORTH LiFePO4 battery, highlighting the integrated Battery Management System (BMS) and Grade A cells. This illustration provides insight into the internal construction and quality components.

Figure 3.3: Diagram illustrating the protective functions of the 200A Built-in BMS, including over-discharge, over-current, shunt circuit, over-charge, and high/low temperature protection. These features ensure the battery's longevity and safe operation.

Figure 3.4: Visual representation of the battery's low-temperature protection thresholds: stops discharging below -4°F (-20°C), stops charging below 32°F (0°C), and resumes charging at or above 41°F (5°C). This feature safeguards the battery in cold environments.

Dimensions and Components:

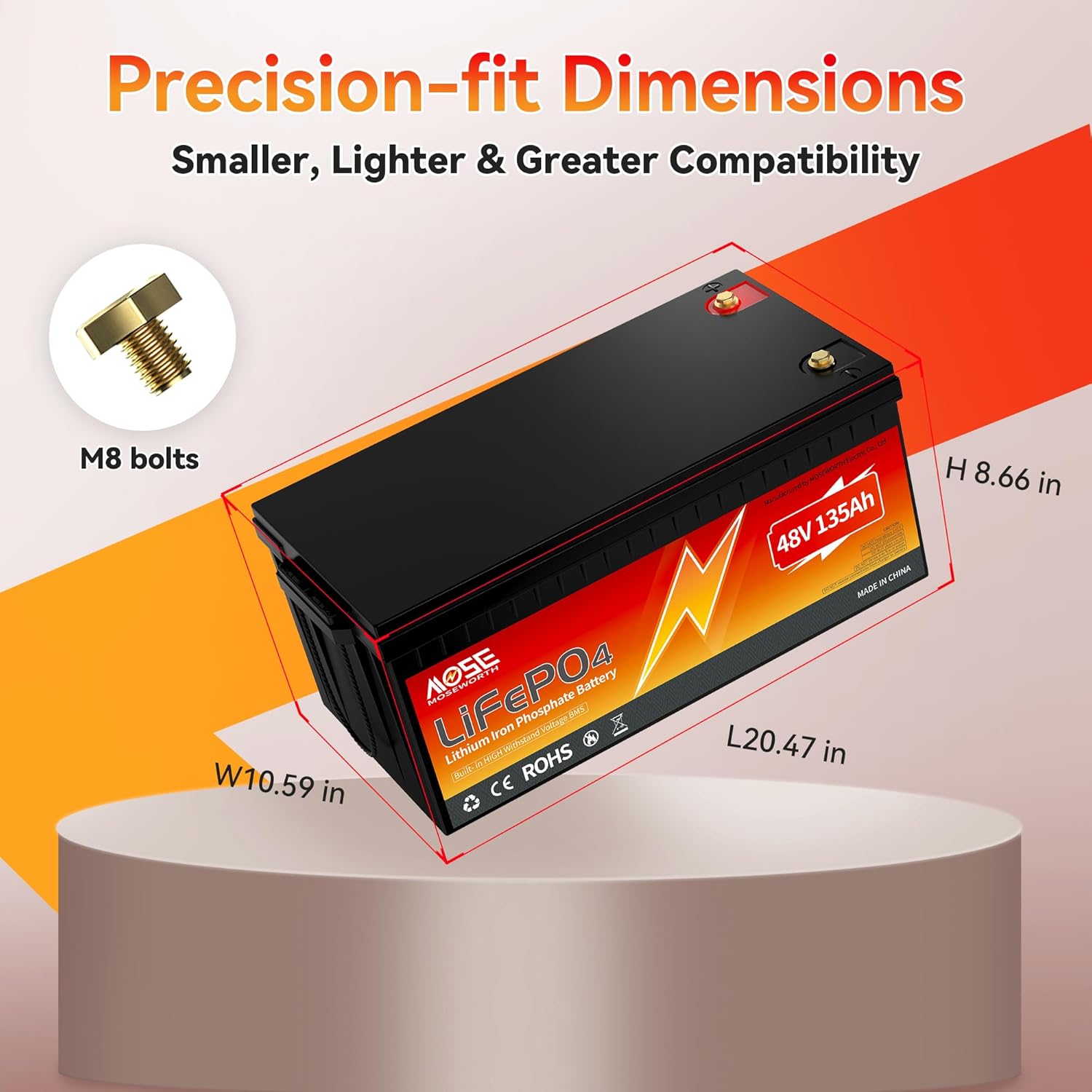

Figure 3.5: Diagram showing the precision-fit dimensions of the MOSEWORTH 48V 135Ah LiFePO4 battery: Length 20.47 inches, Width 10.59 inches, Height 8.66 inches, with M8 bolts for terminals. These dimensions are crucial for installation planning.

The battery features robust M8 bolt terminals for secure electrical connections.

4. Configuració i instal·lació

Desembalatge i inspecció:

1. Carefully remove the battery from its packaging.
2. Inspect the battery for any visible damage. If damage is found, do not use the battery and contact customer support.
3. Verify that all included accessories, such as M8 bolts for terminals, are present.

Directrius de connexió:

• Preparació: Ensure all connected equipment is turned off before making any connections.
• Polaritat: Connect the positive (+) terminal of the battery to the positive (+) input of your system, and the negative (-) terminal to the negative (-) input. Double-check polarity before tightening connections.
• Connexions segures: Use the provided M8 bolts to securely fasten all cable lugs to the battery terminals. Loose connections can cause overheating and damage.
• Mida del cable: Use appropriately sized cables for your application to handle the expected current draw.
• Ventilació: Install the battery in a well-ventilated area to prevent heat buildup.
• Medi ambient: Avoid installing the battery in direct sunlight, near heat sources, or in areas prone to excessive moisture or dust.

5. Instruccions de funcionament

Càrrega de la bateria:

The MOSEWORTH LiFePO4 battery can be charged using several methods. Always use a charger compatible with LiFePO4 batteries.

Figure 5.1: Illustration of three charging methods for the LiFePO4 battery: dedicated LiFePO4 charger (14.6V 20A, 5 hours), solar panel (≥400W, 1 sunny day), and generator (20A DC-DC charger, 5 hours). These options provide flexibility for various power setups.

• Carregador LiFePO4 dedicat: Use a 14.6V 20A charger for optimal charging. A full charge typically takes approximately 5 hours.
• Panell solar: Connect to a solar panel system with a compatible charge controller. A solar array of 400W or more can fully charge the battery in approximately one sunny day.
• Generador: Utilize a generator with a 20A DC-DC charger. Charging time is approximately 5 hours.

Important: Ensure your charging source and controller are specifically designed for LiFePO4 batteries to prevent damage and ensure safety.

Aplicacions típiques:

This battery is suitable for a wide range of applications due to its robust design and high performance.

Figura 5.2: Examples of common applications for the MOSEWORTH LiFePO4 battery, including RVs, boats/marine vessels, camping setups, and trolling motors. Its versatility makes it ideal for off-grid and mobile power needs.

• RV (Recreational Vehicle): Provides reliable power for onboard appliances and systems.
• Boat/Marine: Ideal for marine applications, including house banks and auxiliary power.
• Camping: Powers portable devices and lighting for extended outdoor adventures.
• Trolling Motor: Offers consistent and long-lasting power for electric trolling motors.
• Emmagatzematge d'energia solar: Functions as an efficient energy storage solution for off-grid solar systems.

6. Manteniment

Proper maintenance ensures the longevity and optimal performance of your MOSEWORTH LiFePO4 battery.

• Inspecció periòdica: Periodically check the battery for any signs of physical damage, swelling, or corrosion on the terminals.
• Neteja els terminals: Keep the battery terminals clean and free of dirt or corrosion. Use a dry cloth to wipe them if necessary. Ensure connections remain tight.
• Emmagatzematge: If storing the battery for an extended period, ensure it is charged to approximately 50-70% of its capacity. Store in a cool, dry place, away from direct sunlight and extreme temperatures.
• Eviteu la descàrrega profunda: While LiFePO4 batteries tolerate deep discharge well, it is recommended to avoid consistently discharging below 20% to maximize lifespan. The built-in BMS will protect against over-discharge.
• Freqüència de càrrega: For optimal health, avoid leaving the battery in a fully discharged state for prolonged periods. Recharge as soon as possible after use.

7. Solució De Problemes

This section addresses common issues you might encounter with your battery. For problems not listed here, please contact MOSEWORTH customer support.

8. Especificacions

Detailed technical specifications for the MOSEWORTH 48V 135Ah LiFePO4 Lithium Battery.

9. Garantia i Suport

MOSEWORTH is committed to providing high-quality products and customer satisfaction.

• Informació de la garantia: For specific warranty terms and conditions, please refer to the warranty card included with your product or contact MOSEWORTH customer support directly.
• Atenció al client: If you have any questions, concerns, or require technical assistance, please contact MOSEWORTH customer support through the official weblloc web o la vostra plataforma de compra.
