briidea HAPS-02DE-GYW Grid Priority Switchover Station User Manual

1. Introducció

Thank you for choosing the briidea HAPS-02DE-GYW Grid Priority Switchover Station. This device is designed to automatically manage power supply by prioritizing grid power over inverter power, ensuring a seamless and safe transition between power sources for your connected appliances. It is ideal for applications in RVs, caravans, cars, yachts, and boats, providing reliable power management.

This manual provides detailed instructions for the safe installation, operation, and maintenance of your switchover station. Please read it thoroughly before use and retain it for future reference.

2. Instruccions de seguretat

WARNING: Electrical shock hazard. Installation and servicing must be performed by qualified personnel only.

• Always disconnect all power sources before installing or servicing the unit.
• Assegureu-vos de posar a terra correctament el dispositiu.
• Do not operate the unit if it appears damaged.
• Keep the unit away from water and excessive moisture, despite its IP55 rating, to prevent damage and ensure safety.
• Assegureu-vos que totes les connexions estiguin segures i aïllades correctament.
• Observe all local and national electrical codes during installation.
• Aquest dispositiu està dissenyat per a un volum específictage and current ratings. Do not exceed these limits.

3. Producte acabatview

The briidea HAPS-02DE-GYW is a robust grid priority switchover station designed for reliable power management. It features high load capacity and intelligent switching capabilities.

Característiques principals:

• Alta capacitat: 30A current rating, supporting up to 6900 VA resistive load and 1500 VA inductive load.
• Canvi automàtic: Seamlessly switches between grid power and inverter power.
• Indicadors LED: Clear LED display for "Master" (grid) and "Slave" (inverter) power sources.
• Disseny durador: IP55 rated for protection against rust, corrosion, weather, and moisture.
• Certified Relays: Equipped with VDE, TUV, and CE certified relays for enhanced safety and reliability.
• Mida compacta: Designed for versatile installation in various mobile and stationary applications.

Dimensions:

The unit measures approximately 23.9 cm (length) x 12.1 cm (width) x 5.6 cm (height).

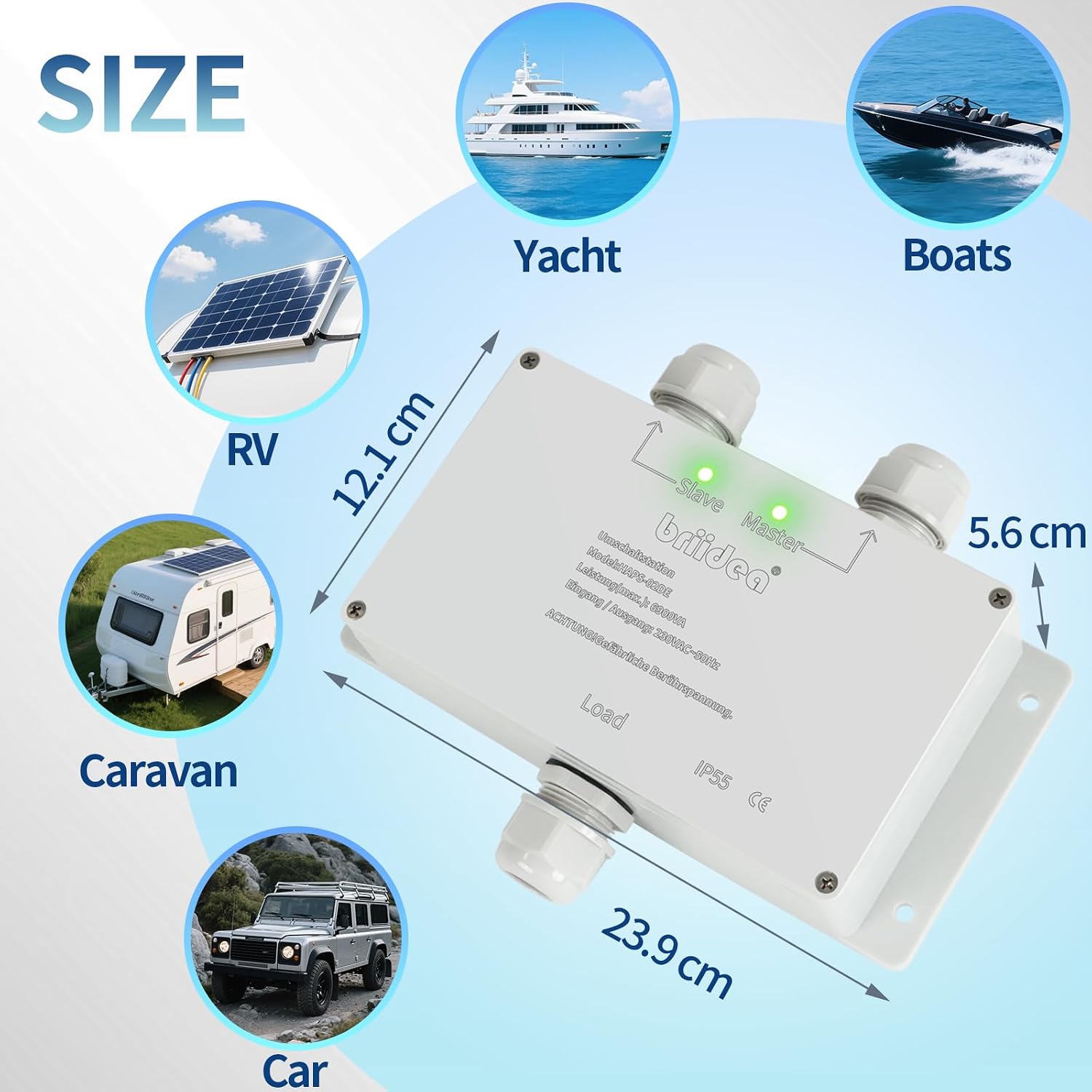

Figura 3.1: Dimensions del producte i aplicacions típiques.

Protection and Certifications:

Figure 3.2: IP55 All-round Protection against rust, corrosion, weather, and moisture.

Figure 3.3: Certified relays with VDE, TUV, and CE certifications.

4. Configuració i instal·lació

Proper installation is crucial for the safe and efficient operation of the switchover station. Refer to the wiring diagram below and follow these steps carefully.

Wiring Diagram and Connections:

Figura 4.1: Connexió acabadaview for grid, inverter, and load.

1. Muntatge: Choose a dry, well-ventilated location for mounting the switchover station. Ensure it is easily accessible for wiring and inspection.
2. Grid Power Input (Master): Connect the main grid power supply to the input labeled "Master". This is your primary power source.
3. Inverter Power Input (Slave): Connect the inverter output (e.g., from a solar system or battery inverter) to the input labeled "Slave". This is your secondary power source.
4. Sortida de càrrega: Connect your electrical load (appliances, distribution panel) to the output labeled "Load".
5. Posada a terra: Ensure all power sources and the switchover station itself are properly grounded according to local electrical codes.
6. Prensacables: Use the provided cable glands to secure and seal all incoming and outgoing cables, maintaining the IP55 protection rating.
7. Comprovació inicial: Before applying power, double-check all connections for tightness and correct polarity.

Note: The device is designed to prevent damage by securely switching between power sources. Always ensure the power sources are stable before connection.

5. Instruccions de funcionament

The briidea HAPS-02DE-GYW operates automatically to manage your power supply. Understanding its indicators will help you monitor its status.

Seqüència d'engegada:

1. After completing the installation and verifying all connections, apply power to the "Master" (grid) input first.
2. If grid power is present and stable, the "Master" LED indicator will illuminate. The unit will prioritize and supply grid power to the "Load".
3. Next, apply power to the "Slave" (inverter) input. The "Slave" LED indicator will illuminate.

Canvi automàtic:

The switchover station continuously monitors both power sources. Its primary function is to prioritize the "Master" (grid) power. If grid power is available and within acceptable parameters, it will be supplied to the load.

If the "Master" (grid) power fails or falls outside acceptable parameters, the unit will automatically switch to the "Slave" (inverter) power, provided the inverter power is available and stable. This transition is designed to be seamless to prevent interruption to your connected devices.

When "Master" (grid) power is restored, the unit will automatically switch back to grid power, again prioritizing the primary source.

Indicadors LED:

Figure 5.1: LED indicators for 'Slave' and 'Master' power sources.

• Master LED: Illuminates when grid power is detected and active.
• Slave LED: Illuminates when inverter power is detected and active.
• The currently active power source supplying the load will have its corresponding LED illuminated.

Figure 5.2: High load capacity and LED indicators for main/secondary power.

6. Manteniment

The briidea HAPS-02DE-GYW is designed for minimal maintenance. Regular checks can ensure its longevity and reliable performance.

• Inspecció periòdica: Annually, inspect the unit for any signs of physical damage, loose connections, or corrosion.
• Neteja: Si cal, netegeu suaument l'exterior de la unitat amb un drap sec i suau. No utilitzeu netejadors abrasius ni dissolvents.
• Ventilació: Ensure that the area around the unit remains clear to allow for proper ventilation, although the unit is sealed.
• Integritat del cable: Check all connected cables for wear, fraying, or damage. Replace any damaged cables immediately.
• Condicions ambientals: While the unit has IP55 protection, avoid exposing it to extreme temperatures or prolonged direct sunlight if possible, to extend its lifespan.

CAUTION: Always disconnect all power sources before performing any maintenance or cleaning.

7. Solució De Problemes

If you encounter issues with your briidea HAPS-02DE-GYW, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact briidea customer support.

8. Especificacions

9. Garantia i Suport

briidea products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official briidea weblloc.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact briidea customer service. Have your model number (br-077DE) and purchase date ready when contacting support.

Informació de contacte: Please refer to the packaging or the official briidea weblloc web per obtenir les dades de contacte més actualitzades.
