Uwant D500 Cordless Wet and Dry Vacuum Cleaner User Manual

1. Introducció

Thank you for choosing the Uwant D500 Cordless Wet and Dry Vacuum Cleaner. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before first use and keep it for future reference.

The Uwant D500 is designed for versatile cleaning, offering powerful suction for both wet and dry messes, advanced self-cleaning features, and hot air drying to maintain hygiene.

2. Instruccions de seguretat importants

ADVERTÈNCIA: Per reduir el risc d'incendi, descàrrega elèctrica o lesions, llegiu totes les instruccions abans de fer servir aquest aparell.

• This appliance is for household use only. Do not use outdoors or on wet surfaces other than those intended for wet cleaning.
• No permetre que s'utilitzi com a joguina. Cal prestar molta atenció quan l'utilitzen nens o a prop dels nens.
• Feu servir només tal com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
• No l'utilitzeu amb un cable o un endoll danyats. Si l'aparell no funciona com hauria, s'ha caigut, s'ha fet malbé, s'ha deixat a l'exterior o ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusa, cabells i qualsevol cosa que pugui reduir el flux d'aire.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No recolliu materials tòxics, com ara lleixiu amb clor, amoníac o netejadors de desguassos.
• No utilitzeu sense filtres al seu lloc.
• Apagueu tots els controls abans de desconnectar.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir objectes durs o punxeguts com ara vidre, claus, cargols, monedes, etc.
• Eviteu l'arrencada no intencionada. Assegureu-vos que l'interruptor estigui a la posició apagada abans de connectar-lo a la bateria, agafar o transportar l'aparell.
• Recarregueu només amb el carregador especificat pel fabricant.

3. Package Contents and Product Overview

3.1 Contingut del paquet

Assegureu-vos que tots els elements siguin presents al paquet:

• Uwant D500 Main Unit
• Muntatge del mànec
• Base de càrrega
• Adaptador d'alimentació
• Eina per esquerdes
• Raspall de pols
• Mop (Roller Brush)
• Deodorizing Stick (may be pre-installed or separate)
• Manual d'usuari (aquest document)

3.2 Característiques del producte

Figura 1: Mésview of the Uwant D500 Cordless Wet and Dry Vacuum Cleaner.

AI Self-Cleaning and 65°C Hot Air Drying

The D500 features an automatic self-cleaning cycle that activates when docked. Dual-brush electrolyzed water cleans the roller brush, followed by 65°C hot air drying to prevent bacterial growth and odors, ensuring the brush is ready for the next use.

Figure 2: Illustration of the AI Self-Cleaning process, showing water flow and brush rotation.

Figure 3: Visual representation of the 65°C hot air drying system for the roller brush and water tank.

Anti-Odour Deodorizing Stick

An integrated deodorizing stick helps neutralize odors and eliminate bacteria during and after cleaning, contributing to a fresh scent. This item may be sold separately.

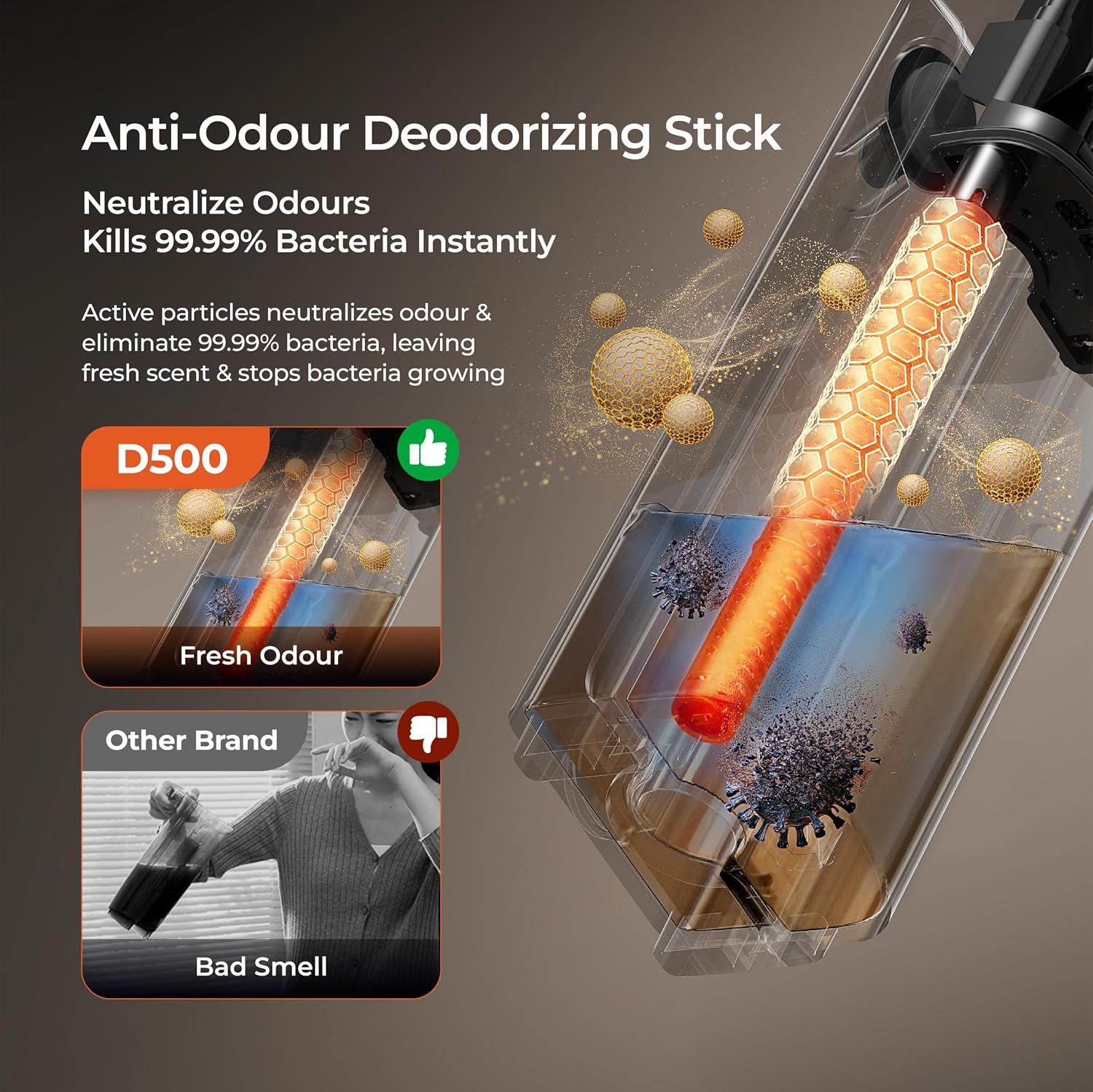

Figure 4: Diagram showing the deodorizing stick within the dirty water tank, neutralizing odors and bacteria.

180° Ultra Lie-Flat Design

The vacuum's flexible design allows it to lie completely flat, enabling easy cleaning under furniture like beds and sofas, and reaching tight corners.

Figure 5: The Uwant D500 vacuum cleaner positioned flat to clean under low furniture.

Anti-Tangle Brush and 17kPa Powerful Suction

The specially designed anti-tangle brush minimizes hair and debris entanglement, making it suitable for homes with pets. This is combined with a powerful 17kPa suction to effectively pick up dirt, debris, and spills.

Note: While a dedicated image specifically illustrating 17kPa suction is not available, the vacuum is engineered for strong cleaning performance.

IPX6 Washable Roller Brush

The brush head is IPX6 waterproof, allowing for direct rinsing with water for quick and thorough cleaning, preventing clogging and maintaining suction power.

Figure 6: The IPX6 waterproof roller brush being rinsed under water, highlighting its easy maintenance.

Triple-Edge Cleaning, All-in-One Water Tank, 3-Level Water Flow, and Cleaning Modes

The advanced triple-edge design ensures thorough cleaning along baseboards, corners, and edges. The convenient combined clean and dirty water tank system simplifies operation. The D500 offers three water flow settings (Low, Medium, High) to customize cleaning for different floor types and mess levels, and features Intelligent, Dry, and Boost cleaning modes.

Figure 7: Composite image illustrating various features including All-in-One Water Tank, Tri-Edge Cleaning, Water Level Control, and Three Cleaning Modes.

Real-Time Electrolyte Water Sterilization

A built-in electrolyte cube transforms normal water into powerful electrolyzed cleaning water, providing deeper sanitization without harsh chemicals. This process is instant and pollution-free.

Note: A dedicated image for real-time electrolyte water sterilization is not available.

4. Configuració i primer ús

4.1 Muntatge

1. Desembaleu tots els components i assegureu-vos que no estiguin danyats.
2. Introduïu el conjunt de la nansa a la unitat principal fins que encaixi fermament al seu lloc.
3. Col·loca la base de càrrega sobre una superfície plana i estable a prop d'una presa de corrent.
4. Connect the power adapter to the charging dock and plug it into the wall outlet.

4.2 Càrrega de la bateria

Before first use, fully charge the vacuum cleaner. Place the assembled D500 onto the charging dock. The indicator lights on the display will show the charging status. A full charge typically takes approximately 4-5 hours (refer to product specifications for exact time).

4.3 Omplir el dipòsit d'aigua neta

1. Press the release button to detach the clean water tank from the main unit.
2. Obriu el tap del dipòsit.
3. Fill the tank with clean tap water. Do not exceed the MAX fill line. For enhanced cleaning, ensure the electrolyte cube is present in the tank.
4. Close the cap securely and reattach the clean water tank to the main unit until it clicks.

5. Funcionament

5.1 Engegada/apagada

Press the Power button on the handle to turn the vacuum cleaner ON or OFF.

5.2 Selecció del mode de neteja

Press the Mode button on the handle to cycle through the available cleaning modes:

• Mode intel·ligent: Automatically adjusts suction and water flow based on detected mess.
• Mode sec: For vacuuming dry debris without dispensing water.
• Mode boost: Provides maximum suction and water flow for stubborn stains.

5.3 Adjusting Water Flow (in Wet Modes)

In Intelligent or Boost modes, you can adjust the water flow level (Low, Medium, High) using the dedicated button on the handle to suit different floor types and cleaning needs.

5.4 Procés de neteja

1. Assegureu-vos que el dipòsit d'aigua neta estigui ple i que el dipòsit d'aigua bruta estigui buit.
2. Select the desired cleaning mode and water flow.
3. Tilt the vacuum cleaner back and begin cleaning. Move the vacuum slowly over the area to be cleaned.
4. The display will provide real-time information on battery level, mode, and water tank status.

CAUTION: Do not use the vacuum to pick up large objects that may damage the roller brush or suction mechanism.

6. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your Uwant D500.

6.1 Cicle d'autoneteja

1. After each use, place the vacuum cleaner back on the charging dock.
2. Assegureu-vos que hi hagi prou aigua neta al dipòsit d'aigua neta.
3. Press the Self-Clean button (if available, or it may start automatically). The vacuum will perform a self-cleaning cycle for the roller brush and internal pipes.
4. Once the self-cleaning is complete, the hot air drying cycle will begin automatically.

6.2 Buidar i netejar el dipòsit d'aigua bruta

1. Premeu el botó d'alliberament per separar el dipòsit d'aigua bruta.
2. Carefully remove the lid and dispose of the dirty water and debris.
3. Rinse the dirty water tank and its components thoroughly with clean water.
4. Allow all parts to air dry completely before reassembling and reattaching to the main unit.

6.3 Neteja del raspall de rodets

Even with self-cleaning, periodic manual cleaning of the roller brush is recommended.

1. Turn off the vacuum and remove it from the charging dock.
2. Obriu la coberta del raspall i traieu el raspall de rodets.
3. Rinse the roller brush under running water to remove any tangled hair or debris. Use the provided cleaning tool if necessary.
4. Ensure the brush is completely dry before reinstalling it.

6.4 Neteja del filtre

The filter should be cleaned regularly to maintain suction performance.

1. Locate and remove the filter from the dirty water tank assembly.
2. Tap off any loose debris. Rinse the filter under running water.
3. Allow the filter to air dry completely for at least 24 hours before reinstalling. Do not use the vacuum with a wet filter.

7. Solució De Problemes

8. Especificacions

9. Garantia i atenció al client

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Uwant website. Please have your model number (D500) and purchase details ready when contacting support.

Conserveu el vostre comprovant de compra per a reclamacions de garantia.
