Glen SA-3074IR22 2200W Infrared Cooktop Stove Instruction Manual

1. Introducció

This manual provides essential instructions for the safe and efficient use of your Glen SA-3074IR22 2200W Infrared Cooktop Stove. Please read this manual thoroughly before operating the appliance and retain it for future reference. This infrared cooktop is designed for versatile cooking, featuring a polished crystal glass plate, touch controls, a digital display, and a steel grill rack.

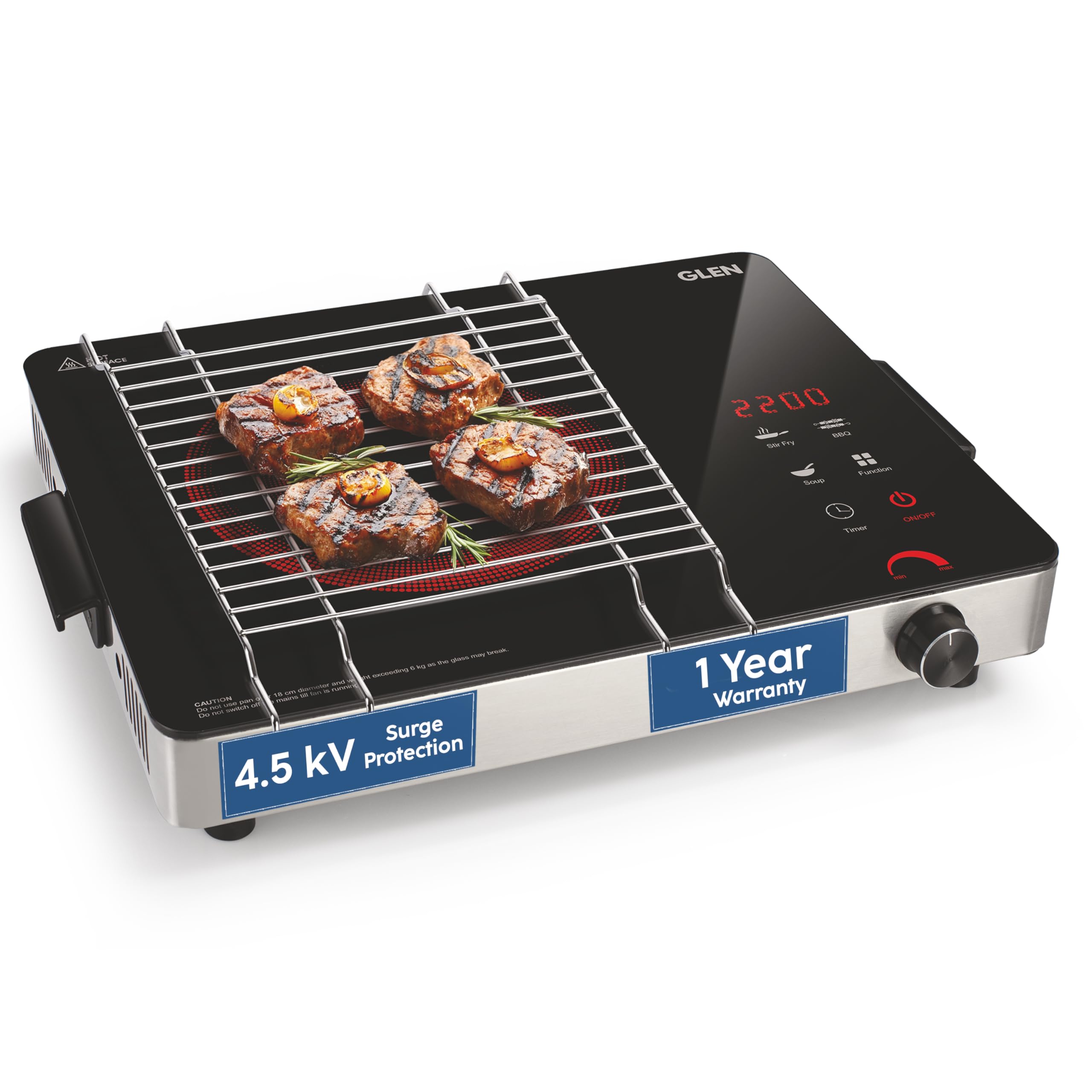

Image 1.1: Glen SA-3074IR22 Infrared Cooktop Stove with included grill rack.

2. Informació de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica, lesions o danys. Aquest aparell és només per a ús domèstic.

2.1 Precaucions generals de seguretat

• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-vos contra les descàrregues elèctriques, no submergiu el cable, els endolls ni l'aparell en aigua ni en altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot causar lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Cal extremar la precaució quan es mou un aparell que contingui oli calent o altres líquids calents.
• Connecteu sempre primer l'endoll a l'aparell i després connecteu el cable a la presa de corrent. Per desconnectar, gireu qualsevol control a "apagat" i després traieu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.

2.2 Specific Safety Features

• 4.5KV Surge Protection: This cooktop is equipped with a built-in 4.5KV surge protection system to safeguard the internal PCB and the appliance from sudden voltage fluctuations, ensuring long-term performance and reliability.
• Nanses Cool-Touch: The integrated cool-touch handles allow for safe movement and handling of the cooktop, reducing the risk of burns after use.
• Protecció contra el sobreescalfament: The appliance includes an overheat protection mechanism that automatically shuts down the unit if it detects excessively high temperatures, preventing damage and ensuring user safety.

Image 2.1: The cooktop features 4.5KV surge protection for enhanced safety.

3. Producte acabatview

The Glen SA-3074IR22 Infrared Cooktop is a high-performance cooking appliance designed for modern kitchens. It offers a wide range of features for convenient and efficient cooking.

3.1 Característiques clau

• Potència de 2200 W: Provides powerful and rapid heating for various cooking tasks.
• Polished Crystal Glass Plate: A premium 360x280 mm polished crystal glass surface ensures durability, heat resistance, and easy cleaning.
• Touch Control & Digital Display: Modern touch sensor control panel with an LED digital display for effortless operation and precise temperature adjustments.
• Steel Grill Rack: Includes a sturdy stainless steel grill rack for barbecue and tandoor-style cooking.
• Adjustable Power Range: Power can be adjusted from 100W to 2200W.
• 3 Pre-Set Cooking Functions: Dedicated modes for Stir Fry, BBQ, and Soup.
• Temporitzador de 240 minuts: Convenient timer function for precise cooking duration.
• Compatibilitat universal amb estris de cuina: Works with all flat-bottom pots and pans.

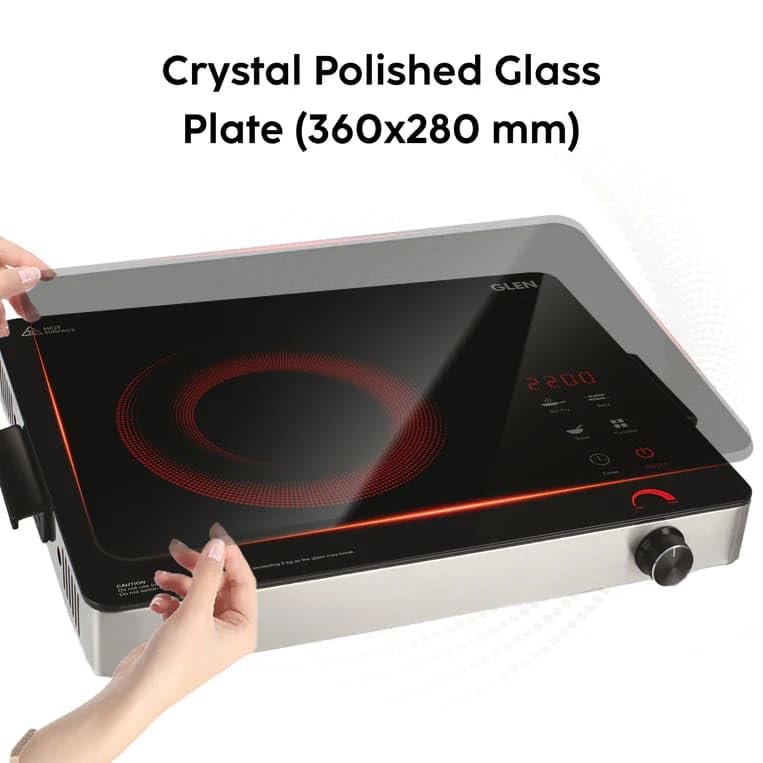

Image 3.1: The cooktop features a durable crystal polished glass plate.

Image 3.2: The cooktop with its stainless steel frame, grill rack, and precision temperature control.

3.2 Components

• Infrared Cooktop Unit
• Stainless Steel Grill Rack

4. Configuració

Follow these steps to set up your infrared cooktop for first use.

1. Desembalatge: Carefully remove the cooktop and all accessories from the packaging. Inspect for any damage.
2. Col·locació: Place the cooktop on a stable, flat, and heat-resistant surface. Ensure there is adequate ventilation around the unit (at least 10-15 cm clearance from walls or other appliances). Do not place it near water sources or flammable materials.
3. Connexió d'alimentació: Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtagCoincideix amb les especificacions de l'aparell.
4. Grill Rack Installation: If using the grill rack, position it securely over the heating surface as shown in the product images.

5. Instruccions de funcionament

The Glen SA-3074IR22 features intuitive touch controls and a digital display for easy operation.

5.1 Funcionament bàsic

1. Encès: Premeu el botó Poder button (usually indicated by a power symbol) to turn on the cooktop. The digital display will illuminate.
2. Select Function/Adjust Power: Use the touch controls to select a cooking function or adjust the power level. The power range is 100W to 2200W. You can typically adjust power using '+' and '-' symbols or a rotary knob if present.
3. Apagar: Premeu el botó Poder button again to turn off the cooktop. The surface will remain hot for some time after use.

Image 5.1: The cooktop's control panel with pre-set cooking functions.

5.2 Using Pre-Set Cooking Functions

The cooktop offers three pre-set modes for common cooking tasks:

• Sofregit: Optimized for high-heat, quick cooking.
• Barbacoa: Ideal for grilling, especially with the included grill rack.
• Sopa: Maintains a consistent temperature suitable for simmering and boiling soups.

To use a pre-set function, simply touch the corresponding icon on the control panel. The cooktop will automatically adjust to the optimal power and temperature settings for that mode.

5.3 Funció de temporitzador

The integrated timer can be set for up to 240 minutes. To use the timer:

1. Mentre la placa de cocció està en funcionament, premeu el botó Temporitzador botó.
2. Use the '+' and '-' buttons or the rotary knob to set the desired cooking time.
3. The cooktop will automatically switch off once the set time has elapsed.

5.4 Using the Steel Grill Rack

The included steel grill rack allows for direct grilling on the cooktop surface.

1. Place the grill rack securely over the heating element.
2. Seleccioneu el barbacoa pre-set function or manually adjust the power to a suitable grilling temperature.
3. Place food directly on the grill rack. Monitor cooking closely.

Image 5.2: The cooktop with food being grilled on the steel grill rack.

5.5 Compatibilitat dels estris de cuina

Unlike traditional induction cooktops, the Glen SA-3074IR22 infrared cooktop is compatible with all types of flat-bottom cookware. This includes:

• Acer inoxidable
• Alumini
• Vidre
• Ceràmica
• coure
• Anoditzat dur
• Antiadherent

Ensure the cookware has a flat bottom for optimal heat transfer and stability.

Image 5.3: The cooktop is compatible with a wide range of flat-bottom cookware.

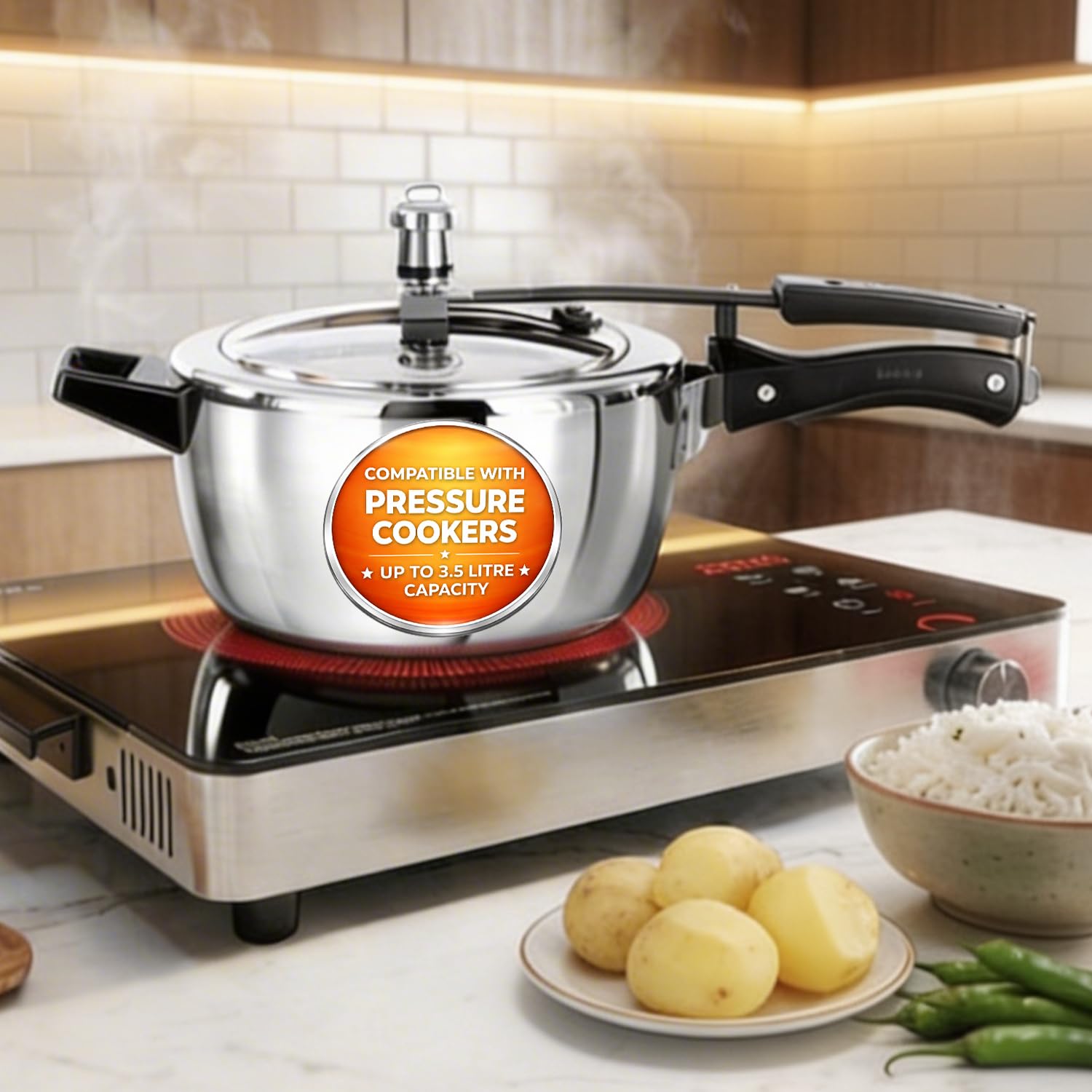

Image 5.4: The cooktop is compatible with pressure cookers up to 3.5 liters capacity.

6. Manteniment i Neteja

Una neteja i un manteniment regulars garantiran la longevitat i el rendiment òptim de la vostra placa de cocció.

6.1 Cleaning the Cooktop Surface

1. Assegureu-vos sempre que la placa de cocció estigui desendollada i completament freda abans de netejar-la.
2. Netegeu la superfície de cristall amb un drap suau iamp drap i un detergent suau.
3. Per a les taques persistents, utilitzeu un netejador no abrasiu dissenyat específicament per a plaques de cuina de vidre.
4. Dry thoroughly with a clean, soft cloth. Do not use abrasive pads, harsh chemicals, or steel wool.

6.2 Cleaning the Grill Rack

1. Remove the grill rack from the cooktop once it has cooled.
2. Wash the stainless steel grill rack with warm, soapy water.
3. Use a brush to remove any food residue.
4. Rinse thoroughly and dry completely before storing or re-using.

6.3 Atenció general

• Avoid dropping heavy objects on the glass surface, as this may cause cracks or breakage.
• No utilitzeu la placa de cuina com a superfície d'emmagatzematge.
• Mantingueu les obertures de ventilació lliures d'obstruccions.

7. Solució De Problemes

If you encounter issues with your cooktop, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact Glen customer support.

8. Especificacions

9. Garantia i Suport

9.1 Informació de la garantia

The Glen SA-3074IR22 Infrared Cooktop Stove comes with a 1 any de garantia from the date of purchase. This warranty covers manufacturing defects under normal household use. Please retain your purchase receipt as proof of purchase for warranty claims.

9.2 Atenció al client

For any service, repair, or warranty-related inquiries, please contact Glen Appliances Private Limited:

• Fabricant: Glen Appliances Private Limited
• Adreça: Plot No. 919, Sector 68, IMT, Faridabad, Haryana Pincode: 121004

Please have your model number (SA3074IR22) and purchase details ready when contacting support.

10. Guia de vídeo

Mireu aquest vídeo per obtenir una visió generalview of the Glen 2200W Infrared Cooktop Stove, demonstrating its features and operation.
