JUDAOLE Washer Drain Pump Instruction Manual

1. Introducció

This manual provides essential information for the installation, operation, and maintenance of your new JUDAOLE OEM Quality Washer Drain Pump. This replacement part is designed to restore optimal drainage function to your washing machine. Please read these instructions carefully before proceeding with installation to ensure safe and correct usage.

2. Compatibilitat

The JUDAOLE Washer Drain Pump is a direct replacement part compatible with the following Kenmore washer models:

• 110.27422600
• 110.27432600
• 110.27442600
• 110.27522600

Ensure your washer model number matches one of the listed compatible models before installation.

3. Característiques del producte

This drain pump is engineered for reliable performance and durability, featuring:

• Qualitat OEM: Manufactured to meet or exceed original equipment specifications.
• Construcció duradora: Made from premium materials for long-lasting service.
• Drenatge eficient: Designed to effectively remove water during wash and spin cycles.
• Disseny Plug-and-Play: Features quick-connect electrical terminals for straightforward replacement.
• Ajust exacte: Includes mounting bracket and drain port connections that match original pump dimensions.

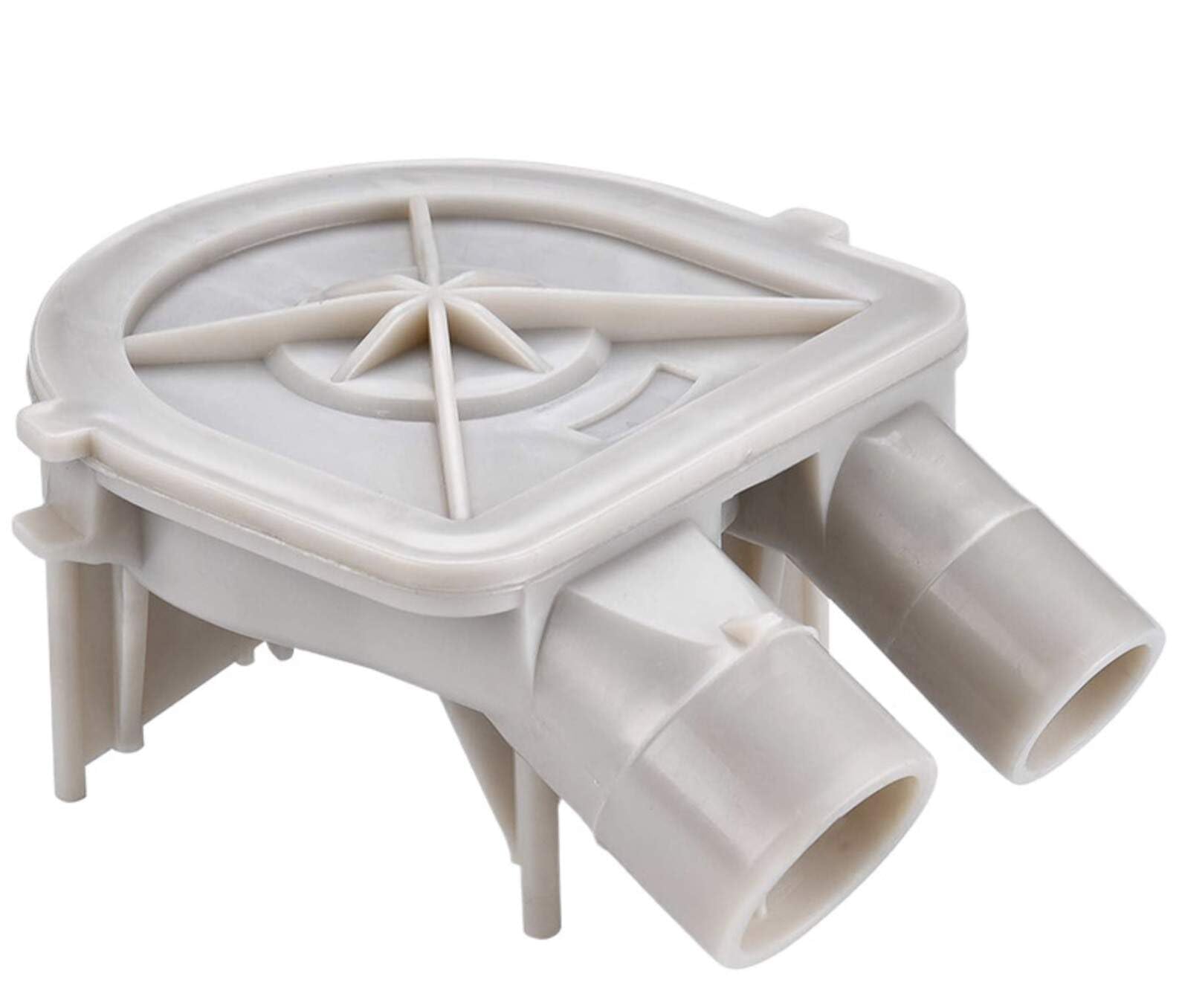

This image displays the JUDAOLE Washer Drain Pump, highlighting its compact design and connection points. The pump is typically located at the bottom of the washing machine, responsible for expelling water during drain cycles.

4. Configuració (Instal·lació)

La seguretat primer: Always disconnect power to the washing machine before attempting any repairs or installation. Turn off the circuit breaker or unplug the appliance from the wall outlet.

1. Prepareu la rentadora: Move the washing machine away from the wall to access the rear or bottom panel. Depending on your model, you may need to tilt the washer or lay it on its side.
2. Escorreu l'aigua residual: Place towels and a shallow pan under the pump area to catch any remaining water in the hoses.
3. Locate the Old Pump: Identify the existing drain pump. It is usually located near the bottom of the washer.
4. Desconnecteu les mànegues i el cablejat: Carefully disconnect the inlet and outlet hoses from the old pump. Use pliers if clamps are present. Disconnect the electrical wiring by detaching the quick-connect terminals.
5. Treure la bomba antiga: Unmount the old pump from its bracket. This may involve unscrewing it or releasinclips g.
6. Instal·lar una bomba nova: Position the new JUDAOLE drain pump onto the mounting bracket. Ensure it is securely fastened.
7. Torneu a connectar: Attach the inlet and outlet hoses to the new pump, securing them with clamps if necessary. Reconnect the electrical wiring to the quick-connect terminals.
8. Prova: Before reassembling the washer, perform a test cycle to check for leaks and proper drainage.
9. Torneu a muntar: Once confirmed operational, reattach any removed panels and return the washer to its original position.

Si no esteu segurs de cap pas, es recomana consultar un tècnic d'electrodomèstics qualificat.

5. Operating (Function)

The drain pump is an integral component of your washing machine's drainage system. During the wash and spin cycles, the pump activates to expel water from the wash tub through the drain hose. Its powerful motor ensures consistent draining capability, preventing water from accumulating in the machine and allowing for proper rinsing and spinning of laundry.

6. Manteniment

While the JUDAOLE drain pump is designed for durability, occasional maintenance can help prolong its lifespan and ensure efficient operation:

• Comproveu si hi ha obstruccions: Periodically inspect the pump's filter (if accessible on your washer model) and the drain hoses for lint, small objects, or debris that could impede water flow.
• Inspeccionar les mànegues: Ensure drain hoses are not kinked or clogged. A clear path for water is crucial for pump efficiency.
• Escolteu els sorolls inusuals: If the pump starts making excessive noise, it could indicate a foreign object inside or a worn component. Address such issues promptly.

7. Solució De Problemes

If your washing machine is experiencing drainage issues after pump installation, consider the following:

• Sense drenatge:
  • Ensure the washer is plugged in and receiving power.
  • Check if the drain hose is kinked or clogged.
  • Verify electrical connections to the pump are secure.
  • Inspect the pump impeller for obstructions.
• Drenatge lent:
  • Check for partial clogs in the drain hose or pump filter.
  • Ensure the drain hose is not inserted too far into the standpipe, creating a siphon effect.
• Fuga:
  • Verify all hose clamps are tight and hoses are properly seated on the pump connections.
  • Inspect hoses for cracks or damage.

For persistent issues, professional assistance may be required.

8. Especificacions

9. Garantia i Suport

For information regarding warranty coverage or technical support for your JUDAOLE Washer Drain Pump, please refer to the product packaging or contact the seller directly through your purchase platform. Keep your proof of purchase for warranty claims.
