VIKIO HOME VK-OW01-KONB
VIKIO HOME Electric Single Wall Oven 24 Inch
Model: VK-OW01-KONB
Introducció
This instruction manual provides important information for the safe and efficient operation of your new VIKIO HOME 24-inch Electric Single Wall Oven. Please read this manual thoroughly before installation and use, and keep it for future reference. Proper installation, use, and maintenance will ensure optimal performance and extend the life of your appliance.

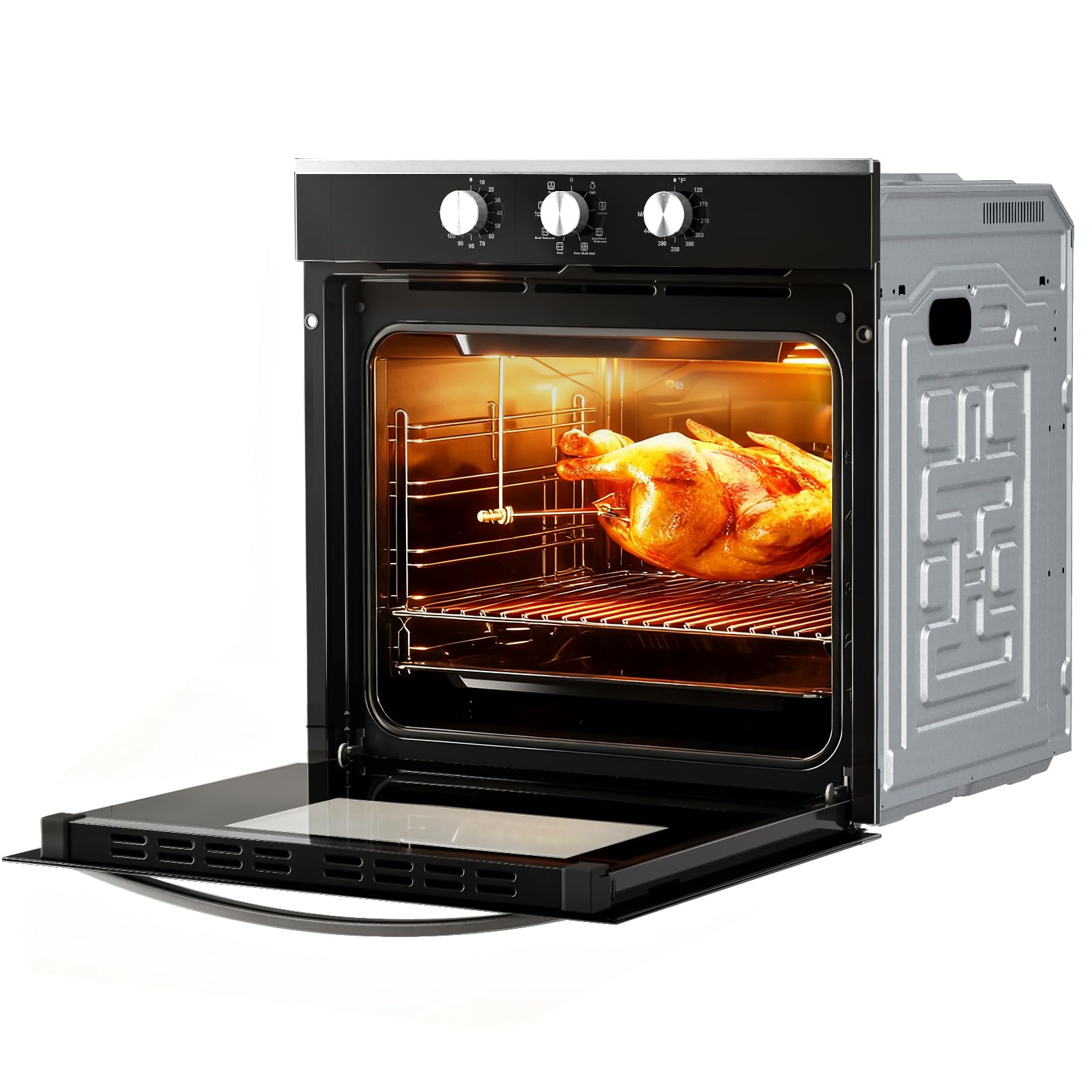

Image: VIKIO HOME Knob-Control Electric Oven in a kitchen setting.
Instruccions importants de seguretat
ADVERTIMENT: Per reduir el risc d'incendi, descàrrega elèctrica, lesions a persones o danys en utilitzar el forn, seguiu les precaucions bàsiques, incloent-hi les següents:
- Llegiu totes les instruccions abans d'utilitzar l'aparell.
- Ensure the oven is properly installed and grounded by a qualified technician in accordance with the installation instructions.
- Do not touch hot surfaces. Use oven mitts or potholders.
- No utilitzeu mai l'aparell per escalfar o escalfar l'habitació.
- Do not leave children unattended near the oven.
- No emmagatzemeu materials inflamables dins o prop del forn.
- Always turn off the oven and disconnect power before cleaning or servicing.
- Utilitzeu només agafadors secs. Humit o damp les aixetes a les superfícies calentes poden provocar cremades pel vapor.
- Do not repair or replace any part of the oven unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
Característiques del producte
- 2.83 Cu.Ft Extra-Large Capacity: The spacious interior provides ample cooking space, accommodating large items like turkeys or multiple baking trays, offering approximately 17% more capacity than standard 2.5 cu.ft ovens.
- Fast Heating with 3 Elements (2420W–3220W): Equipped with three high-efficiency heating elements and a true convection system with 360° hot air circulation, ensuring quick preheating and uniform cooking results.
- Knob Controls & 8 Cooking Functions: Features user-friendly ergonomic mechanical knobs for easy operation. Select from 8 cooking modes including convection bake, broil, rotisserie, fan grill, oven light, and more, suitable for various cooking needs.
- Complete Accessories & Heat Insulation: Includes a rotisserie kit, two stainless steel racks, one baking pan, and a pull-out handle. The triple-layer removable tempered glass door provides effective heat insulation, enhancing safety and preventing burns.
- Standard Size, Seamless Fit: Designed to fit standard 24-inch kitchen cabinetry. Oven Dimensions: 23.43"L × 21.5"D × 23.43"H; Cut-Out size: 22.05"L × 21.65"D × 23.19"H. Requires a 240V hardwired connection.
Image: Oven capacity diagram, showing 2.83 cu.ft interior space.
Image: Illustration of the three heating elements and convection fan for efficient cooking.
Instal·lació i Configuració
Proper installation is crucial for the safe and efficient operation of your oven. It is recommended that installation be performed by a qualified electrician or installer.
Dimensions and Cut-Out Requirements
Ensure your cabinetry meets the following dimensions for a seamless fit:
- Oven Dimensions (L x D x H): 23.43 polzades x polzades 21.5 x polzades 23.43
- Recommended Cut-Out Dimensions (L x D x H): 22.05 polzades x polzades 21.65 x polzades 23.19
Important: Leave at least a 2.76-inch opening at the bottom rear of the cabinet for proper ventilation.
Image: Oven dimensions and recommended cut-out size for installation.
Connexió elèctrica
The oven requires a 240V hardwired connection. Consult a qualified electrician to ensure your home's electrical system can support the oven's power requirements (2420W–3220W) and to perform the hardwired connection safely and correctly.
Instruccions de funcionament
Your VIKIO HOME oven features intuitive mechanical knob controls for selecting cooking functions, temperature, and time.
Tauler de control acabatview
Imatge: Detallada view of the mechanical control knobs.
The control panel consists of three main knobs:
- Left Knob (Timer): S'utilitza per configurar la durada de la cocció.
- Middle Knob (Cooking Functions): Selects one of the 8 available cooking modes.
- Right Knob (Temperature): Adjusts the oven temperature in Fahrenheit.
Funcions de cuina
Your oven offers 8 versatile cooking functions:
- Pizza: Ideal for baking pizzas with a crispy crust.
- Convection Broil + Rotisserie: Combines broiling with rotisserie for even browning and roasting.
- Broil + Rotisserie: For rotisserie cooking with direct top heat.
- A la brasa: Intense top heat for grilling and browning.
- Llum: Turns on the interior oven light for visibility.
- Descongelar: Descongela suaument els aliments congelats.
- Bake/Roast + Rotisserie: Combines baking/roasting with rotisserie for larger cuts of meat.
- Convection Multi-Rack: Utilizes the convection fan for even heat distribution, perfect for baking on multiple racks.
Imatge: Més deview of the 8 cooking functions on the control knob.
Interval de temperatura
The oven offers a wide temperature range from 50°F to 480°F, suitable for various cooking tasks:
- 100°F – 200°F: Ideal for proofing dough, thawing, or low and slow cooking (e.g., yogurt).
- 200°F – 350°F: Suitable for general baking (e.g., cakes, cookies, pizza).
- 350°F – 480°F: Perfect for roasting and broiling (e.g., ribs, turkey, casseroles).
Image: Temperature range guide for various cooking applications.
Cuina per convecció
The oven features true convection with a fan that circulates hot air throughout the cavity, ensuring even heat distribution and faster cooking. This 360° hot air circulation is particularly beneficial for roasting and multi-rack baking.
Image: Illustration of 360° hot air convection for even cooking.
Manteniment i Neteja
Regular cleaning and maintenance will keep your oven in optimal condition and ensure its longevity.
Neteja de l'interior del forn
The oven cavity features an enamel coating designed to prevent grease and residue buildup, making cleaning easier. For general cleaning:
- Deixeu que el forn es refredi completament abans de netejar.
- Wipe down the interior with a soft cloth and mild detergent or a specialized oven cleaner (follow product instructions).
- Avoid abrasive cleaners or scouring pads that can damage the enamel finish.
Image: Effortless maintenance with the enamel-coated cavity.
Removable Triple-Layer Glass Door
The oven door features a triple-layer tempered glass design for improved insulation and safety. The inner glass panels are removable for thorough cleaning. Refer to the full product manual for detailed instructions on how to safely remove and re-install the glass panels.
Imatge: Explosió view of the removable 3-layer glass door for cleaning.
Guia de resolució de problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| El forn no s'escalfa. | No power supply; incorrect function/temperature setting. | Check circuit breaker/fuse. Ensure oven is properly connected. Verify function and temperature knobs are correctly set. |
| Resultats de cocció desiguals. | Improper rack position; overcrowding; convection fan issue. | Use recommended rack positions. Avoid overcrowding the oven. Ensure convection fan is operating (if selected). Preheat oven fully. |
| El llum del forn no funciona. | Bombeta cremada. | Replace the oven light bulb. Ensure power is disconnected before replacement. |
| Excés de fum durant la cocció. | Food spills; grease buildup. | Clean the oven interior thoroughly. Use a baking pan to catch drips. Reduce cooking temperature if necessary. |
Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Marca | CASA VIKIO |
| Número de model | VK-OW01-KONB |
| Dimensions del producte (L x P x A) | 23.43" x 21.5" x 23.43" (Oven) / 27.01" x 29.72" x 26.38" (Package) |
| Cut-Out Dimensions (L x D x H) | 22.05" x 21.65" x 23.19" |
| Pes de l'article | 89 lliures |
| Capacitat | 2.83 peus cúbics |
| Potència nominal | 2420 W – 3220 W |
| Voltage | 240 V |
| Mètode de calefacció | Convecció |
| Tipus de control | Control de botó mecànic |
| Color | Acer inoxidable |
| Tipus d'acabat | Polit |
Accessoris inclosos
The following accessories are included with your VIKIO HOME Electric Single Wall Oven:
- 1 x Rotisserie Kit
- 2 x Stainless Steel Racks (Large and Small)
- 1 x Baking Pan
- 1 x Pull-Out Handle
- 1 x Manual d'instruccions (aquest document)
Image: Included accessories with the oven.
Producte acabatview Vídeo
Vídeo: Un overview of the VIKIO HOME Knob Control Electric Single Wall Oven 24 Inch, demonstrating its features and operation. This video is provided by BRILLIANCE LTD.
Garantia i assistència al client
For detailed warranty information, please refer to the warranty card included with your product packaging. Keep your purchase receipt as proof of purchase for warranty claims.
If you encounter any issues or have questions regarding your VIKIO HOME Electric Single Wall Oven, please contact our customer support team. Contact information can typically be found on the manufacturer's weblloc web o a la targeta de garantia.
Assistència en línia: Visita el VIKIO HOME Store on Amazon per obtenir informació sobre el producte i recursos d'assistència.
