Philips 3000K Solar Outdoor Projector (Set of 4) Instruction Manual

1. Introducció

Gràcies per la compraasing the Philips 3000K Solar Outdoor Projector set. This manual provides essential information for the safe and efficient use of your solar-powered outdoor lights. Please read these instructions carefully before installation and retain them for future reference.

2. Informació de seguretat

• Ensure the solar panel is positioned to receive maximum direct sunlight for optimal charging.
• No intenteu obrir ni modificar el producte. Això pot anul·lar la garantia i suposar un risc per a la seguretat.
• Mantingueu el producte allunyat de flames obertes o fonts de calor extrema.
• Elimineu les piles d'acord amb la normativa local. No llenceu les piles al foc.
• This product is designed for outdoor use and is water-resistant. However, avoid submerging it in water.
• Netegeu el panell solar regularment per garantir una càrrega eficient.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al paquet:

• 4 x Philips 3000K Solar Outdoor Projectors
• 4 x estaques de terra
• 4 x Wall Mounting Hardware (screws and anchors)
• 1 x manual d'instruccions

4. Característiques del producte

The Philips Solar Outdoor Projector offers a range of features for effective and convenient outdoor lighting:

• High-Quality Solar Panel: Efficiently converts sunlight into electrical energy.
• 270° Adjustable Heads: Allows for precise light direction.
• Dos mètodes d'instal·lació: Can be installed using a ground stake or wall-mounted.
• No es requereix cablejat: Simplifies installation and placement.
• Disseny resistent a l'aigua: Suitable for various outdoor weather conditions.
• Operació de la posta de sol a l'alba: S'encén automàticament al capvespre i s'apaga a l'alba.
• Autonomia llarga: Up to 32 hours of illumination on a full charge.
• Bateria d'alta capacitat: Equipped with a 1200 mAh battery for extended performance.

Figure 4.1: Key features of the Philips Solar Outdoor Projector.

Figure 4.2: Product dimensions and components.

Figure 4.3: Solar panel and battery specifications.

5. Configuració i instal·lació

5.1 Triar una ubicació d'instal·lació

Select a location where the solar panel can receive at least 6-8 hours of direct sunlight daily. Avoid areas shaded by trees, buildings, or other obstructions, as this will reduce charging efficiency and illumination time.

5.2 Càrrec inicial

Before first use, ensure the projector is placed in direct sunlight for a full day (approximately 8 hours) to allow the battery to charge completely. The light will automatically activate at dusk once charged.

5.3 Mètodes d'instal·lació

Your Philips Solar Outdoor Projector can be installed in two ways:

5.3.1 Ground Stake Installation

1. Attach the ground stake to the bottom of the projector unit.
2. Push the assembled unit firmly into soft ground in your desired location. Ensure the solar panel faces upwards towards the sun.
3. Adjust the angle of the light head to illuminate the desired area.

5.3.2 Instal·lació de muntatge a la paret

1. Mark the desired mounting position on a wall or fence.
2. Perforar forats pilot als punts marcats.
3. Insert the provided anchors into the pilot holes (if necessary for your wall material).
4. Align the mounting bracket on the projector with the holes and secure it with the provided screws.
5. Adjust the angle of the light head and solar panel for optimal light direction and sun exposure.

Figure 5.1: Two available mounting methods.

6. Instruccions de funcionament

6.1 Funcionament automàtic

The Philips Solar Outdoor Projector is designed for automatic operation. Once fully charged and placed in a suitable location, it will:

• Automatically turn on at dusk.
• Provide illumination for up to 32 hours on a full charge.
• Automatically turn off at dawn to begin recharging.

6.2 Càrrega

The integrated solar panel charges the internal battery during daylight hours. For optimal performance, ensure the solar panel is clean and unobstructed. A full charge typically requires 8 hours of direct sunlight on a sunny day.

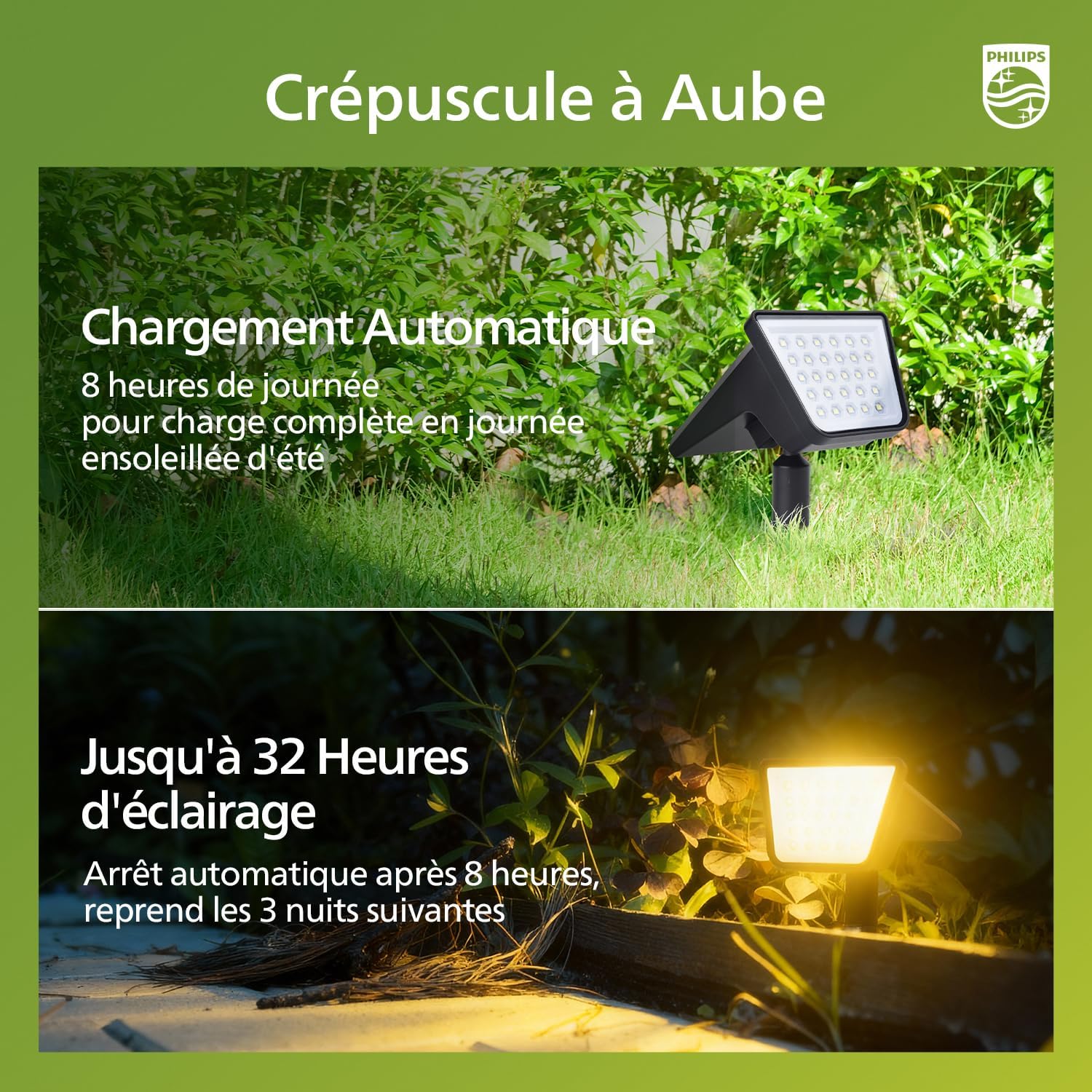

Figure 6.1: Dusk-to-dawn functionality and charging cycle.

7. Manteniment

To ensure the longevity and optimal performance of your solar projector, follow these maintenance guidelines:

• Netegeu el panell solar: Netegeu regularment el panell solar amb un drap suau iamp drap per eliminar la pols, la brutícia, les fulles o la neu. Un panell net garanteix la màxima absorció de la llum solar i l'eficiència de càrrega.
• Inspeccionar per danys: Periodically check the unit for any physical damage, especially after severe weather conditions.
• Cura de la bateria: The integrated battery is designed for long-term use. Avoid storing the unit in a completely discharged state for extended periods. If storing for a long time, ensure it receives a full charge periodically.

Figure 7.1: The projector is designed for humid outdoor conditions.

8. Solució De Problemes

If you encounter issues with your solar projector, refer to the following troubleshooting steps:

• El llum no s'encén a la nit:
  • Ensure the solar panel is receiving sufficient direct sunlight during the day. Relocate if necessary.
  • Comproveu si el panell solar està net i lliure d'obstruccions.
  • Verify that it is dark enough for the light sensor to activate.
• La durada de la llum és curta:
  • The battery may not be fully charged. Ensure the solar panel receives maximum sunlight for a full day.
  • Weather conditions (e.g., cloudy days) can affect charging efficiency.
  • The ambient temperature can impact battery performance.
• La llum parpelleja o és tènue:
  • This usually indicates a low battery charge. Allow the unit to charge for a full day in direct sunlight.
  • Ensure the LED lens is clean.

9. Especificacions

10. Garantia i Suport

Specific warranty information and customer support details were not provided in the product data. Please refer to the product packaging or contact your retailer for warranty terms and support options.

11. Aplicació Examples

The Philips Solar Outdoor Projectors are versatile and can be used to enhance various outdoor spaces:

• Il·luminació del camí: Illuminate garden paths and walkways for safety and ambiance.
• Landscape Accent Lighting: Highlight trees, shrubs, or architectural features.
• Wall Washing: Mount on walls to create a soft glow along facades.

Figura 11.1: Examples of projector applications in outdoor environments.
