Instruction Manual for Generic KWC Z.535.950 Luna Sliding O-Ring Kit

1. Introducció

This manual provides detailed instructions for the proper installation and maintenance of the Generic KWC Z.535.950 Luna Sliding O-Ring Kit. This kit is designed to replace worn or damaged O-rings in compatible KWC Luna sliding mechanisms, restoring optimal function and preventing leaks. Please read all instructions carefully before proceeding with installation.

2. Informació de seguretat

• Always turn off the main water supply to the fixture before beginning any work to prevent water damage.
• Wear appropriate personal protective equipment, such as gloves and eye protection, when handling tools and plumbing components.
• Ensure all connections are secure but do not overtighten, as this can damage components.
• Keep small parts, such as O-rings, out of reach of children and pets to prevent choking hazards.
• Si no esteu segurs de cap pas, consulteu un lampista qualificat.

3. Contingut del paquet

Verify that all components are present in your kit before starting the installation.

• Specific O-rings for KWC Z.535.950 Luna sliding mechanism (quantity may vary by kit)
• (Optional) Small packet of silicone grease or plumber's lubricant

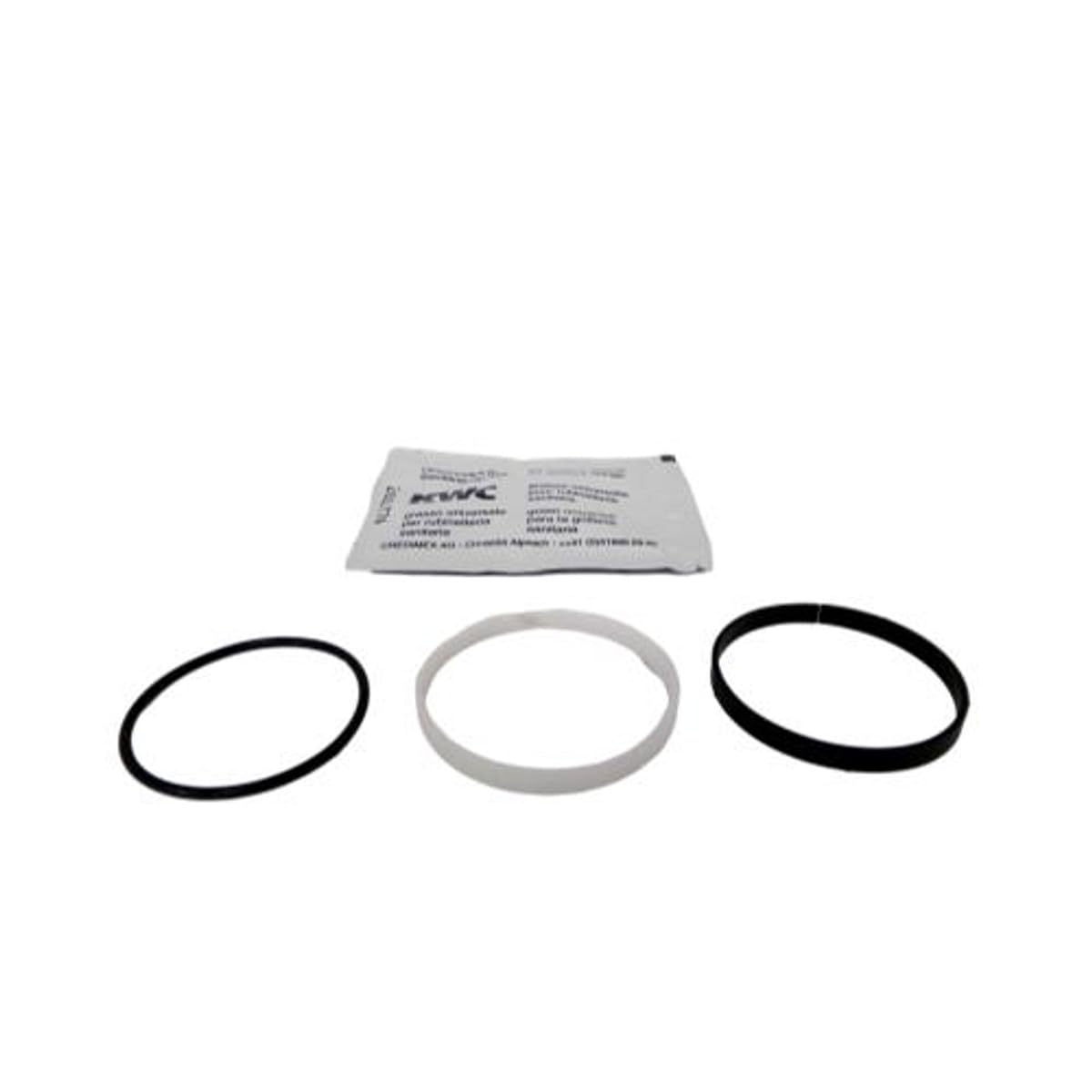

Figure 3.1: Contents of the KWC Z.535.950 Luna Sliding O-Ring Kit. This image displays the various O-rings included in the kit, essential for maintaining a watertight seal in the faucet's sliding mechanism.

4. Configuració i instal·lació

Follow these steps carefully to replace the O-rings in your KWC Z.535.950 Luna sliding mechanism.

1. Tanqueu el subministrament d'aigua: Locate the water shut-off valves for your faucet (usually under the sink) and turn them off completely. Open the faucet to drain any remaining water pressure.
2. Disassemble the Faucet/Mechanism: Carefully disassemble the KWC Luna sliding mechanism according to the specific instructions for your faucet model. This typically involves removing handles, decorative caps, and securing nuts or screws to access the internal components where the O-rings are located. Refer to your faucet's original manual if available.
3. Remove Old O-Rings: Using a small pick or screwdriver, carefully remove the old, worn, or damaged O-rings from their grooves. Note their original positions and sizes to ensure correct replacement.
4. Clean Grooves: Thoroughly clean the O-ring grooves and surrounding areas of any debris, mineral deposits, or old lubricant. A soft brush and mild cleaner can be used, followed by rinsing and drying.
5. Lubricate New O-Rings: Apply a thin, even coat of silicone grease or plumber's lubricant (if included or purchased separately) to each new O-ring. This lubrication aids in installation and helps create a better seal.
6. Install New O-Rings: Carefully place the new, lubricated O-rings into their respective grooves. Ensure they are seated properly and not twisted or pinched.
7. Reassemble the Mechanism: Reassemble the faucet's sliding mechanism in reverse order of disassembly. Ensure all parts are correctly aligned and secured. Do not overtighten.
8. Restore Water Supply and Test: Slowly turn the water shut-off valves back on. Check for any leaks around the newly installed O-rings and connections. Operate the faucet to ensure smooth sliding action and proper water flow.

5. Function and Post-Installation Check

After installation, perform the following checks to ensure proper function:

• Detecció de fuites: Visually inspect all connections and the sliding mechanism area for any signs of water leakage. Run the faucet for a few minutes and check again.
• Funcionament suau: Test the sliding action of the KWC Luna mechanism. It should move smoothly and without excessive resistance.
• Flux d'aigua: Confirm that water flows freely and that there are no unexpected changes in water pressure or temperature control.

6. Manteniment

Regular maintenance can extend the life of your O-rings and prevent future issues.

• Inspecció periòdica: Periodically check the faucet for any signs of leaks or stiffness in the sliding mechanism.
• Lubricació: If the sliding action becomes stiff over time, the O-rings may require re-lubrication. Follow the disassembly steps in Section 4 to access and re-lubricate the O-rings.
• Substitució: O-rings are wear-and-tear components. Replace them as needed if leaks persist or if the material shows signs of degradation (cracking, hardening).

7. Solució De Problemes

If you encounter issues after installing the O-ring kit, refer to the following common problems and solutions:

• Leakage After Installation:
  • Ensure all O-rings are correctly seated in their grooves and not twisted or pinched.
  • Verify that all connections are tightened appropriately (not overtightened).
  • Check for any nicks or damage on the new O-rings that might have occurred during installation.
  • Confirm that the correct size and type of O-rings were used for your specific KWC Z.535.950 Luna model.
• Stiff or Difficult Sliding Mechanism:
  • Ensure O-rings were adequately lubricated with silicone grease or plumber's lubricant.
  • Check for any misalignment of internal components during reassembly.
  • Verify that no debris or foreign objects are obstructing the sliding path.

8. Especificacions

9. Garantia i Suport

This Generic O-Ring Kit is intended as a replacement part. For specific warranty information regarding the original KWC faucet, please refer to the manufacturer's documentation. For support concerning this O-ring kit, please contact your retailer or the manufacturer, WorChess, directly. Keep your purchase receipt for any warranty claims.
