Introducció
This manual provides essential instructions for the safe and efficient operation of your JeeFly Skydroid G20 16CH RC Transmitter, GR01 Receiver, and C12 3-Axis Gimbal Camera. Please read this manual thoroughly before use and retain it for future reference.
Figura 1: Mésview of the G20 Remote Controller, GR01 Receiver, and C12 Camera components.
Configuració
1. Desembalatge i identificació de components
Carefully unpack all components from the product packaging. Verify that all items listed in the 'What's in the Box' section are present.
Figure 2: All components included in the JeeFly Skydroid G20 package.
- G20 RC Transmitter with 7-inch 4K Screen
- GR01 Receptor
- C12 3-Axis Gimbal Camera
- Charging cables and accessories
2. Càrrega inicial
Ensure the G20 Transmitter and C12 Gimbal Camera are fully charged before first use. The G20 Remote Control features a Type-C charging interface.
- G20 Remote Control Battery: 20000mAh, providing 6-8 hours of endurance.
- Interfície de càrrega: Tipus C.
En funcionamentview
1. G20 RC Transmitter
The G20 Transmitter is a 16-channel remote controller equipped with a 7-inch 4K display. It utilizes dual-band 2.4G/5.8G technology with Lora modulation for stable connections up to 30KM (ground-to-air, visual).
- Visualització: High-brightness 1200nit screen for clear visibility in direct sunlight with real-time telemetry overlay.
- Connectivitat: Dual-band 2.4G/5.8G with Lora modulation for extended range.
- Canals: 16 channels for comprehensive control.
2. GR01 Receiver
The GR01 is a long-range receiver designed to work seamlessly with the G20 transmitter, ensuring reliable data transmission.
3. C12 3-Axis Gimbal Camera
The C12 camera provides advanced imaging capabilities with its 3-axis gimbal stabilization.
Figure 3: Close-up of the C12 3-Axis Gimbal Camera.
- Estabilització: 3-axis gimbal for smooth and stable footage.
- Imatge tèrmica: Integrated 384×288 thermal sensor for night operations.
- Càmera visual: 2K visual camera for high-quality daytime recording.
- Funcions intel·ligents: Supports AI tracking, waypoint navigation, and automatic subject follow.
Manteniment
- Neteja: Regularly clean the components with a soft, dry cloth. Avoid using harsh chemicals.
- Cura de la bateria:
- Guardeu les piles en un lloc fresc i sec.
- No sobrecarregueu ni descarregueu excessivament les bateries.
- If storing for extended periods, charge batteries to approximately 50-60%.
- Protecció del cardan: Always use the gimbal protector when transporting or storing the drone to prevent damage to the C12 camera.
Resolució de problemes
- Problemes d'alimentació: Ensure all batteries are fully charged and correctly connected.
- Problemes de connexió: Verify the transmitter and receiver are powered on and within range. Check app connectivity to the drone's Wi-Fi.
- Inestabilitat de vol: Ensure the drone is calibrated correctly. Check for any physical damage to propellers or the frame.
- Mal funcionament de la càmera: Check cable connections to the camera and ensure sufficient storage space on the SD card or connected device.
Especificacions
G20 Remote Control Parameters
Figure 4: Detailed specifications for the G20 Remote Control.
| Característica | Especificació | Característica | Especificació |
|---|---|---|---|
| Mostra | 7 inch industrial touch screen + vision viewpantalla capaç | Resolució | 1920*1200 |
| Processador | Processador Qualcomm de 6 nm | Tipus d'ordinador | Android 13 |
| Mida | 277 (L) × 138 (A) × 96 (Al) mm | Pes | 1.2 kg |
| Bateria | 20000 mA/H | Resistència | 6-8 hores |
| Operating Memory | 8G | Memòria d'emmagatzematge del sistema | 128G |
| Banda de freqüència de funcionament | 2.4G/5.8G | Número de canals | 16 |
| FM dinàmica | Salt de freqüència automàtic | Potència de RF | 23dBm@CE/FCC |
| Distància de control remot | 5-30KM(ground-to-air, visual) | Temperatura de funcionament | -10 ℃ ~ 55 ℃ |
| Interfície de càrrega | TIPUS-C | Interfície externa | USB port, SIM card slot, TYPE-C |
GR01 Receiver Parameters
Figure 5: Detailed specifications for the GR01 Receiver.
| Característica | Especificació | Característica | Especificació |
|---|---|---|---|
| Banda de freqüència | 2.4G/5.8G | Taxa de transmissions en sèrie | 57600/115200/921600 |
| Subministrament Voltage | 7.2-72V (XT30) | Corrent de funcionament | 12V/300mA |
| Port de transmissió de dades | 1 canal | Taxa de port buit | 200Kbps ~ 160Mbps |
| Port de xarxa | 1 canal | Dimensió | 45.5 (L) × 60 (A) × 21.5 (Al) mm |
| Sortida SBUS | 1 canal | Pes | 37 g |
| Interfície PWM | 3 canals | Temperatura de funcionament | -10 ℃ ~ 60 ℃ |
| Potència de RF | 23dBm@CE/FCC | Ample de banda del canal | 1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz |
C12 3-Axis Gimbal Camera Parameters

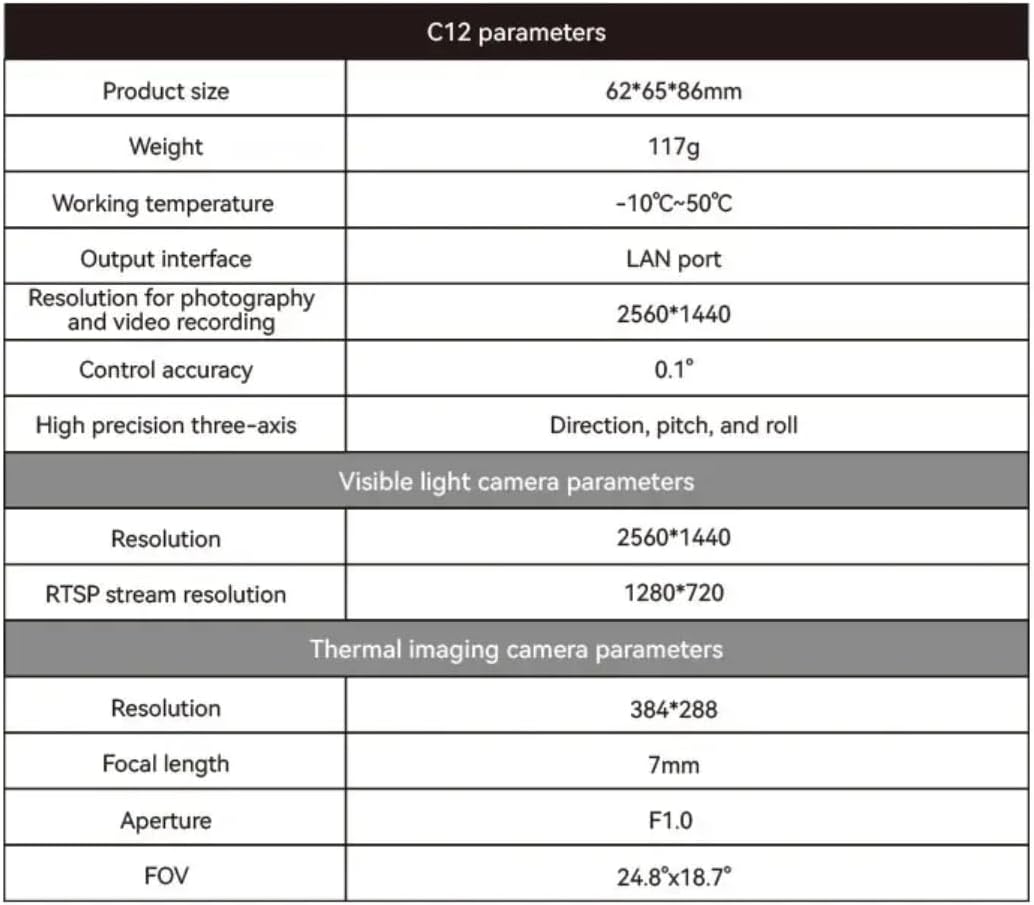

Figure 6: Detailed specifications for the C12 3-Axis Gimbal Camera.
| Característica | Especificació | ||
|---|---|---|---|
| Mida del producte | 62 * 65 * 86 mm | ||
| Pes | 117 g | ||
| Temperatura de treball | -10 ℃ ~ 50 ℃ | ||
| Interfície de sortida | Port LAN | ||
| Resolution for photography and video recording | 2560*1440 | ||
| Control de precisió | 0.1° | ||
| High precision three-axis | Direction, pitch, and roll | ||
| Visible light camera parameters | |||
| Resolució | 2560*1440 | ||
| RTSP stream resolution | 1280*720 | ||
| Thermal imaging camera parameters | |||
| Resolució | 384*288 | ||
| Distància focal | 7 mm | ||
| Abertura | F1.0 | ||
| FOV | 24.8°x18.7° | ||
Garantia i Suport
Specific warranty information for the JeeFly Skydroid G20 16CH RC Transmitter, GR01 Receiver, and C12 3-Axis Gimbal Camera is not provided in the product details. Please refer to the manufacturer's official website or contact your retailer for detailed warranty terms and customer support information.
