Bellemave Queen Over Twin Over Twin Triple Bunk Bed Instruction Manual

1. Introducció

Thank you for choosing the Bellemave Queen Over Twin Over Twin Triple Bunk Bed. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read these instructions carefully before beginning assembly and retain them for future reference.

Informació important de seguretat

• Aneu amb compte amb les vores afilades durant el muntatge i l'ús.
• Always follow the assembly instructions precisely to prevent instability or collapse.
• Assegureu-vos que totes les connexions estiguin ben ajustades abans d'utilitzar-les.
• No permeteu que els nens menors de 6 anys s'ocupin de la llitera superior.
• Periodically check and ensure that the guardrail, ladder, and other components are in their proper position and free from damage.

2. Contingut del paquet

Before assembly, verify that all parts listed in the included detailed assembly manual are present and undamaged. The package typically includes:

• Metal frame components for Queen upper bunk.
• Metal frame components for two Twin lower bunks.
• Metal slats for all three bunks.
• Integrated ladder.
• Guardrails for the upper bunk.
• Assembly hardware (screws, bolts, washers, Allen wrench).
• Detailed assembly instruction manual.

3. Muntatge i muntatge

Assembly of the Bellemave Triple Bunk Bed requires careful attention to detail. It is recommended that two adults perform the assembly. Please refer to the separate, detailed assembly manual provided in your package for step-by-step instructions and diagrams.

Passos de l'Assemblea General:

1. Desempaquetar i identificar les peces: Lay out all components on a soft, clean surface to prevent scratches. Compare each part with the parts list in your manual.
2. Assemble Lower Twin Bunks: Begin by assembling the two twin-size lower bed frames according to the manual's instructions.
3. Assemble Upper Queen Bunk: Construct the queen-size upper bunk frame.
4. Fixeu les estructures de suport: Connect the vertical support posts and crossbeams that will hold the upper bunk above the lower bunks.
5. Instal·lar llistons: Securely attach the metal slats to all three bunk frames.
6. Instal·leu baranes i escala: Mount the guardrails around the upper bunk and attach the integrated ladder.
7. Ajustament final: Once all components are in place, systematically tighten all bolts and screws. Do not overtighten.

This image displays the overall dimensions of the Bellemave Queen Over Twin Over Twin Triple Bunk Bed. Key measurements include a total length of 92.5 inches, a width of 77.8 inches, and a height of 67.1 inches. Individual bunk dimensions are also shown, indicating the queen size upper bunk and two twin size lower bunks.

Un angle frontal view of the assembled Bellemave Triple Bunk Bed, showcasing the black metal frame. The queen-size upper bunk is visible with its guardrails, positioned above two twin-size lower bunks. A ladder is integrated on the right side for access to the upper bunk.

4. Instruccions de funcionament

This triple bunk bed is designed for safe and comfortable use when proper guidelines are followed.

Capacitat de pes:

• Upper Bunk (Queen): Maximum recommended weight is 250 pounds.
• Lower Bunks (Twin): Maximum recommended weight for each twin bunk is 250 pounds.

Do not exceed the recommended weight limits to ensure structural integrity and user safety.

Recomanacions sobre matalàs:

• Llitera superior: Use a standard Queen size mattress. The mattress thickness should not exceed 6 inches to ensure the effectiveness of the guardrails.
• Lower Bunks: Use standard Twin size mattresses.
• No box spring is needed as the bed features metal slats for mattress support.

Ús segur:

• Always use the ladder for accessing the upper bunk. Do not climb on the frame.
• Ensure guardrails are always in place on the upper bunk.
• Prohibit jumping on the bed.
• Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed.

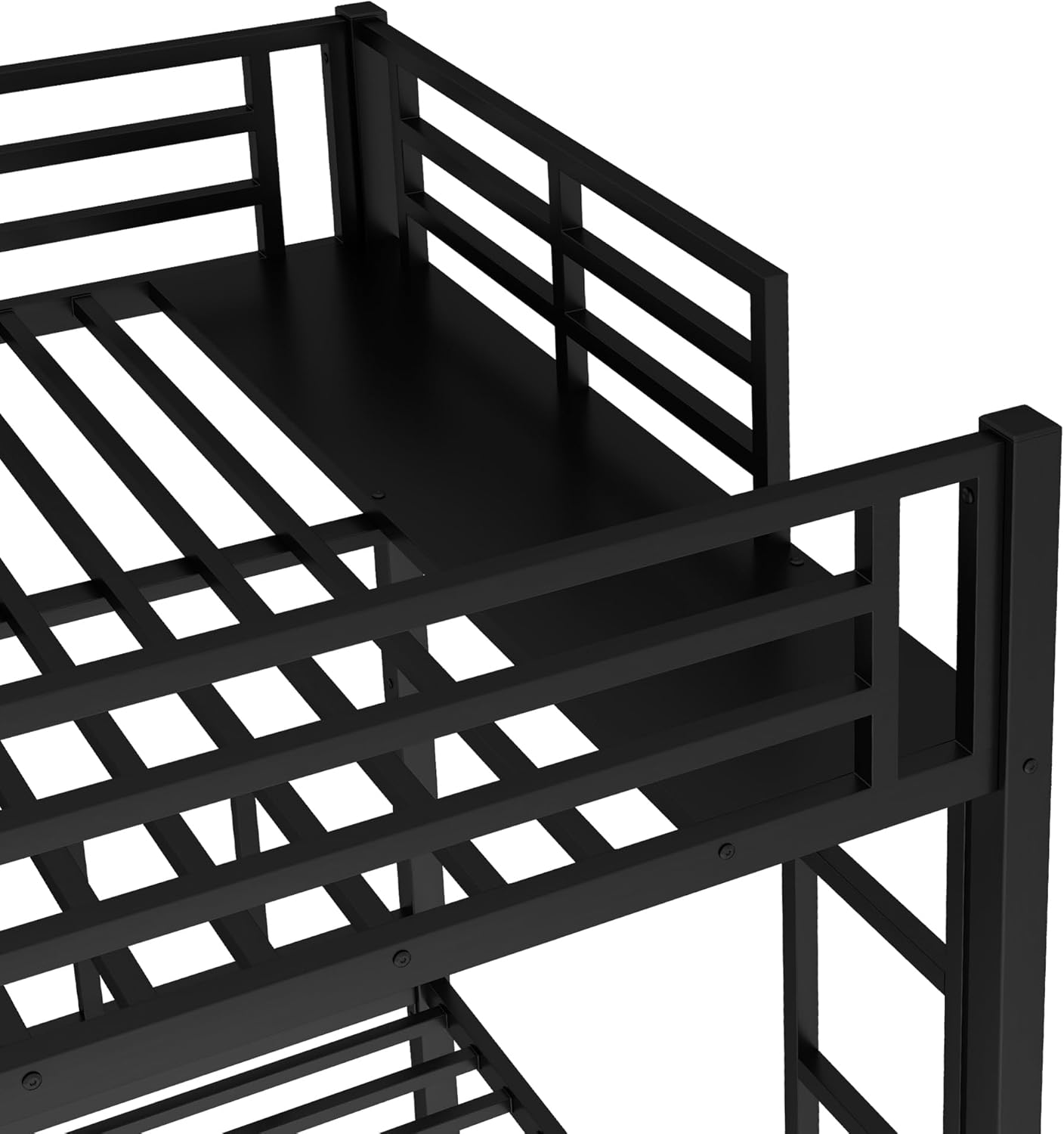

This close-up image highlights the sturdy metal slats and guardrails of the queen-size upper bunk. The black finish and robust construction of the bed frame are clearly visible, emphasizing safety features.

Un detallat view showing the central support structure and the connection point between the two twin-size lower bunks. This illustrates how the two twin beds are positioned side-by-side beneath the upper queen bunk, supported by the metal frame.

5. Manteniment

Un manteniment regular ajudarà a allargar la vida útil i garantirà la seguretat del vostre llit de llitera.

• Neteja: Netegeu el marc metàl·lic amb un drap suauamp drap. Eviteu utilitzar productes químics agressius o netejadors abrasius, ja que poden danyar l'acabat.
• Comprovació de fixació: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections to ensure they are tight. Retighten as necessary, but do not overtighten.
• Integritat estructural: Check for any signs of wear, damage, or loose parts. If any damage is found, discontinue use and contact customer support for assistance.

6. Solució De Problemes

If you encounter issues with your bunk bed, refer to the following common solutions:

• El llit es veu inestable o inestable: Ensure all assembly hardware is fully tightened. Re-check the assembly steps in the manual to confirm correct installation of all components.
• Sorolls de grinyols: Squeaking often indicates loose connections. Identify the source of the squeak and tighten the corresponding bolts. A small amount of lubricant (e.g., silicone spray) can be applied to metal-on-metal contact points if tightening does not resolve the issue.
• Peces que falten: If you find any parts missing during assembly, do not proceed. Contact Bellemave customer support immediately for replacement parts.
• Dificultat amb el muntatge: Review the detailed assembly manual carefully. Ensure you are using the correct hardware for each step. If problems persist, consider seeking assistance from another person or contacting customer support.

7. Especificacions

8. Garantia i Suport

Bellemave products are manufactured with quality and care. This product is covered by the manufacturer's standard warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact Bellemave customer service for specific warranty terms and conditions.

Atenció al client:

For assistance with assembly, missing parts, or any other inquiries regarding your Bellemave Triple Bunk Bed, please contact Bellemave customer service. Contact information can typically be found on the packaging or the Bellemave official weblloc.
