1. Introducció
Thank you for choosing the Rowenta Force Pro 500 Steam Generator Iron. This manual provides essential information for the safe and efficient use of your appliance. Please read all instructions carefully before first use and keep them for future reference.
2. Instruccions de seguretat importants
- Assegureu-vos sempre que el voltagEl volum indicat a l'aparell correspon al volum de la xarxa elèctricatage.
- No deixeu la planxa sense vigilància mentre estigui encesa o connectada a la xarxa elèctrica.
- Mantingueu l'aparell fora de l'abast dels nens i de les persones amb capacitats físiques, sensorials o mentals reduïdes.
- No submergiu mai l'aparell, el cable d'alimentació o l'endoll en aigua o cap altre líquid.
- Do not operate the appliance if it has been dropped, if there are visible signs of damage, or if it is leaking.
- Always place the iron on a stable, flat, and heat-resistant surface.
- Unplug the appliance from the mains socket before filling the water tank, cleaning, or performing any maintenance.
- La sola i el vapor estan extremadament calents i poden causar cremades. Manipuleu-ho amb cura.
3. Components del producte
Familiarize yourself with the main parts of your Rowenta Force Pro 500 steam generator iron:
- Unitat de ferro: La part de mà amb la sola.
- Base del generador de vapor: Houses the water tank and control panel.
- Dipòsit d'aigua: Dipòsit extraïble per omplir-lo d'aigua.
- Tauler de control: Buttons for power, Eco mode, Max mode, and Anti-calc.
- Mànega de vapor: Connecta la unitat de planxa a la base del generador de vapor.
- Col·lector de càlculs: Removable part for collecting limescale.
- Sistema de bloqueig: Secures the iron unit to the base for transport and storage.

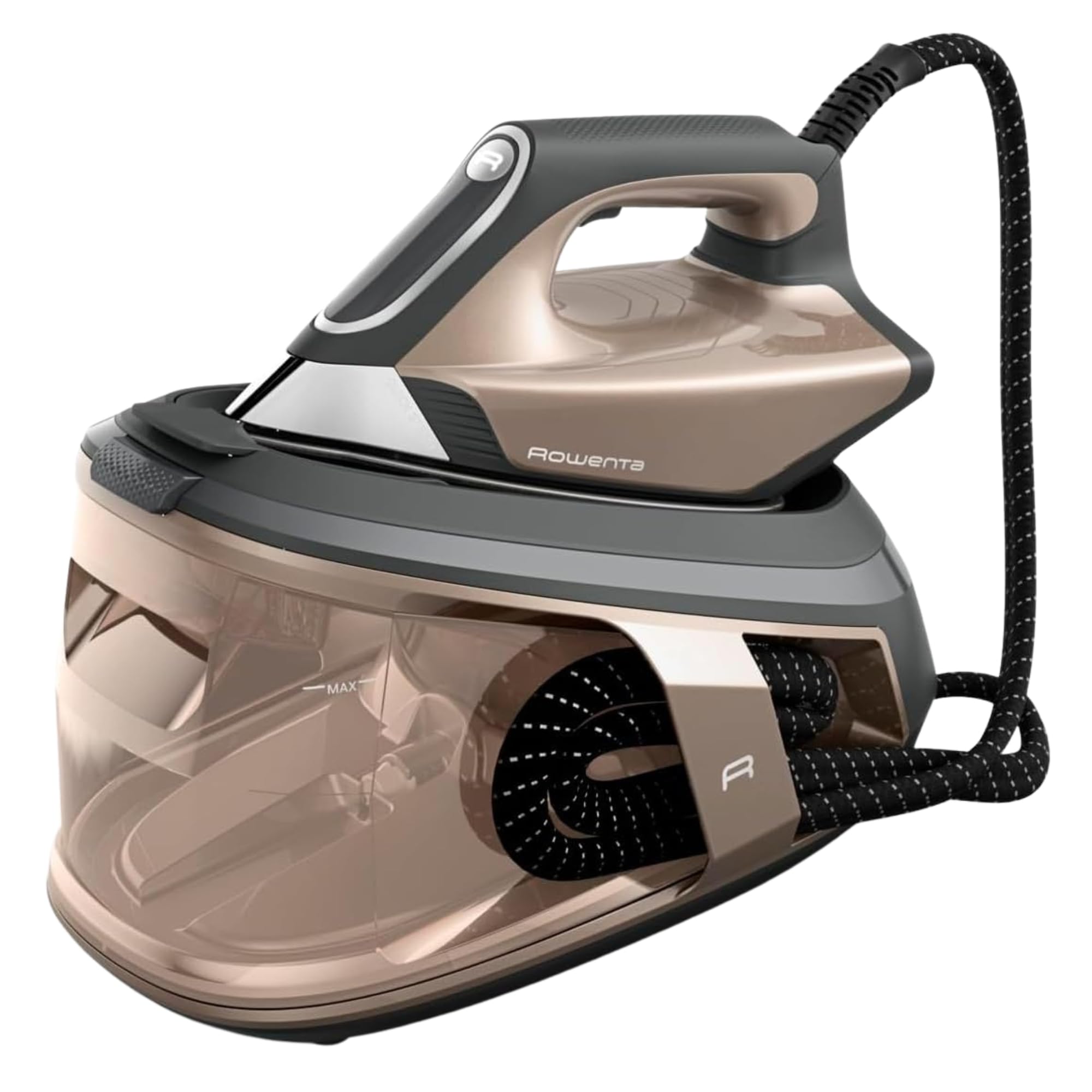

Figura 1: Mésview of the Rowenta Force Pro 500 Steam Generator Iron.
Figure 2: Illustration of the removable water tank.
4. Configuració i primer ús
- Desembalatge: Traieu amb cura tots els materials d'embalatge i assegureu-vos que hi hagi tots els components.
- Posicionament: Place the steam generator base on a stable, flat, and heat-resistant surface.
- Omplir el dipòsit d'aigua:
- Traieu el dipòsit d'aigua de la base.
- Fill the tank with tap water up to the 'MAX' level indicator. Do not use distilled or demineralized water exclusively, as it can affect steam performance.
- Reinsert the water tank firmly into the base until it clicks into place.
- Connexió a l'alimentació: Connecteu el cable d'alimentació a una presa elèctrica amb connexió a terra.
- Preparació per al primer ús: Before ironing garments, allow the iron to heat up completely. Press the steam trigger a few times to prime the system and release any initial impurities.
5. Instruccions de funcionament
5.1 Engegada i escalfament
Press the power button on the control panel. The indicator light will flash while the appliance heats up. Once the light becomes steady, the iron is ready for use.
5.2 Selecting Ironing Modes
The Rowenta Force Pro 500 features two primary ironing modes:
- Mode ECO: For energy-efficient ironing of most fabrics. This mode saves up to 50% energy while still providing effective steam.
- Mode MAX: For stubborn creases and thicker fabrics, providing maximum steam output (550 g/minute steam boost).
Select your desired mode directly from the control panel. The iron automatically adjusts the temperature, eliminating the need for manual temperature settings.
Figure 3: Eco mode for energy saving.
Figure 4: Control panel showing Eco and Max mode selection.
5.3 Steam Generation (Quicksteam Technology)
The Quicksteam technology provides instant steam on demand. Press the steam trigger located under the iron handle to activate continuous steam. For a powerful steam boost, press the trigger firmly.
Figure 5: Iron in use, demonstrating powerful steam output.
Figure 6: Visual representation of instant steam on demand.
5.4 Optimal Steam Distribution
The soleplate features 400 active micro-holes designed for maximum and even steam distribution, ensuring efficient wrinkle removal.
Figure 7: Close-up of the soleplate demonstrating steam distribution.
5.5 Vaporització vertical
The powerful steam output allows for vertical steaming of hanging garments, curtains, and delicate fabrics. Hold the iron a few centimeters away from the fabric and press the steam trigger.
5.6 Emmagatzematge i transport
After use, allow the iron to cool down completely. Secure the iron unit to the base using the locking system. The integrated cable management system allows for easy storage of the power cord and steam hose.
6. Manteniment i Neteja
6.1 Descalcificació (Col·lector de calc.)
The integrated Calc Collector ensures long-lasting steam performance by capturing limescale. Regularly clean the Calc Collector:
- Assegureu-vos que l'aparell estigui desendollat i completament fred.
- Locate the Calc Collector on the steam generator base.
- Twist and pull out the collector.
- Rinse the collector under running water to remove any limescale deposits.
- Reinsert the clean Calc Collector firmly until it locks into place.
Figure 8: Location of the Calc Collector on the control panel.
6.2 Neteja de la sola
To maintain optimal glide and performance, clean the soleplate regularly:
- Assegureu-vos que la planxa estigui desendollada i que s'hagi refredat.
- Netegeu la sola amb l'anunciamp cloth. For stubborn marks, use a specialized soleplate cleaning stick (available separately) according to its instructions.
- Do not use abrasive cleaners or metallic scouring pads, as these can damage the soleplate.
Figura 9: Example of cleaning the iron's soleplate.
6.3 Buidatge del dipòsit d'aigua
It is recommended to empty the water tank after each use to prevent limescale buildup and ensure hygiene.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No es produeix vapor. | Water tank is empty. Appliance is not heated up. Steam trigger not pressed. | Fill the water tank. Wait for the indicator light to become steady. Press the steam trigger. |
| Water droplets or brown stains appear on fabric. | Limescale buildup. Iron not hot enough. | Clean the Calc Collector. Allow the iron to heat up completely before use. |
| Iron is not heating. | No està connectat. No s'ha premut el botó d'engegada. | Comproveu la connexió d'alimentació. Premeu el botó d'engegada. |
| Reducció de la producció de vapor. | Limescale buildup. Water tank low. | Clean the Calc Collector. Refill the water tank. |
Si el problema persisteix després de provar aquestes solucions, poseu-vos en contacte amb l'atenció al client.
8. Especificacions tècniques
- Model: VR9033F0
- Pressió: 7.5 barres
- Steam Boost: Fins a 550 g/minut
- Sortida de vapor contínua: Approx. 120-140 g/minute
- Potència (Wattage): 2800 watts
- Capacitat del dipòsit d'aigua: Approx. 1.5-1.8 Liters
- Material de la sola: Acer inoxidable
- Dimensions del producte (L x A x A): 38.5 x 29 x 34 cm
- Pes del producte: 3.4 kg
- Voltage: 220 V
- Característiques especials: Quicksteam Technology, Eco Mode, Max Mode, Calc Collector.
Figura 10: Dimensions del producte.
9. Garantia i atenció al client
Rowenta is committed to product quality and durability. This product is designed for long-term use, with a focus on reparability.
- Reparabilitat: Rowenta offers 15 years of reparability at a fair price, supported by a network of 6200 repair centers worldwide. This commitment aims to extend the product's lifespan and reduce waste.
- Atenció al client: For any questions, technical assistance, or warranty claims, please refer to the official Rowenta weblloc web o poseu-vos en contacte amb el centre d'atenció al client local.
- Recursos en línia: Visita l'oficial Rowenta Brand Store per obtenir informació i suport addicionals sobre el producte.
