1. Introducció
This manual provides essential information for the safe installation, operation, and maintenance of your Fanbulous 72 Inch Ceiling Fan with Lights and Remote, Model MN60. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.

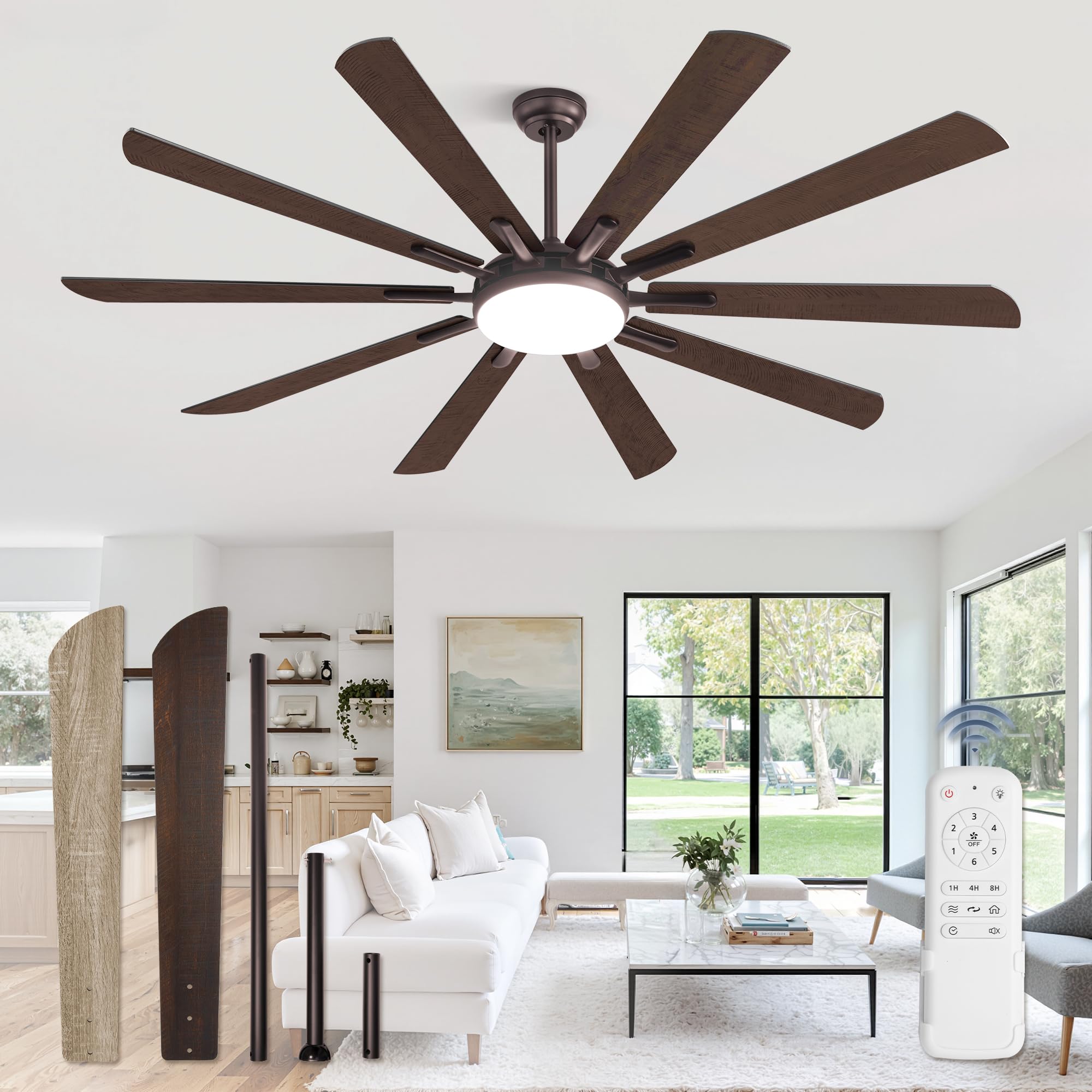

Image 1.1: Fanbulous 72 Inch Ceiling Fan, Oil Bronze finish.
2. Informació de seguretat
ADVERTIMENT: Per reduir el risc d'incendi, descàrrega elèctrica o lesions personals, seguiu sempre aquestes precaucions bàsiques:
- Llegiu totes les instruccions i la informació de seguretat abans d'instal·lar el ventilador i guardeu-les.
- Before servicing or cleaning, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
- Tot el cablejat ha de complir amb els codis elèctrics nacionals i locals. Si no esteu familiaritzat amb el cablejat, consulteu un electricista qualificat.
- El ventilador s'ha de muntar amb una distància mínima de 2.1 metres (7 peus) des de la vora posterior de les pales fins al terra.
- Assegureu-vos que el lloc d'instal·lació permeti que les pales del ventilador girin sense obstruccions.
- Do not operate the fan with damaged wiring or if the fan is not functioning correctly.
- No introduïu objectes a les aspes del ventilador mentre el ventilador estigui en funcionament.
- This fan is suitable for indoor and outdoor (covered patio) use. Do not expose to direct water spray.
3. Contingut del paquet
Verify that all components listed below are included in your package. If any parts are missing or damaged, contact customer support before proceeding with installation.
- Carcassa del motor del ventilador
- Fan Blades (10 count, dual-finish: dark wood brown and light oak wood)
- LED Light Kit (36W, 3CCT)
- Comandament a distància amb suport de paret
- Downrods (6-inch, 12-inch, 24-inch)
- Suport de muntatge i maquinari
- Dosser
- Manual d'instruccions
Image 3.1: Illustration of the dual-finish fan blades (dark wood brown and light oak wood).
4. Especificacions
| Característica | Detall |
|---|---|
| Marca | Fanbulós |
| Nom del model | MN60 |
| Mida | 72 polzades |
| Color | Bronze a l'oli |
| Nombre de fulles | 10 |
| Tipus de motor | DC Motor, Reversible |
| Nombre de velocitats | 6 |
| Nivell de soroll | 35 decibels |
| Tipus de llum | Integrated 36W LED |
| Temperatura de color (CCT) | 3000K (càlid), 4500K (natural), 6000K (fred) |
| Mètode de control | Control remot |
| Configuració del temporitzador | 1H, 4H, 8H |
| Ús interior/exterior | Interior, Exterior (Cobert) |
| Dimensions del producte (P x A x A) | 29.9"D x 16.5"W x 6.8"H (Motor Housing) |
| Tipus de muntatge | Muntatge al sostre |
Image 4.1: Product dimensions and available downrod lengths (6", 12", 24").
5. Instal·lació
This ceiling fan is designed for easy installation. It is recommended to have two people for installation. Ensure power is OFF at the circuit breaker before starting.
5.1 Comprovacions prèvies a la instal·lació
- Ensure the ceiling structure can support the weight of the fan (approximately 20 lbs).
- Confirm the electrical box is securely mounted and rated for ceiling fan support.
- Select the appropriate downrod length (6, 12, or 24 inches) based on your ceiling height. The fan can be installed on ceilings with an inclination of no more than 15 degrees.
5.2 Muntatge del ventilador
- Fixeu el suport de muntatge a la caixa elèctrica amb els cargols proporcionats.
- Assemble the downrod with the canopy and motor housing. Carefully feed the electrical wires through the downrod.
- Pengeu el conjunt del ventilador al suport de muntatge.
- Connect the electrical wires according to the wiring diagram in the full instruction manual (Live, Neutral, Ground).
- Fixeu la capota al suport de muntatge.
- Attach the 10 fan blades to the motor housing. Ensure they are securely fastened.
- Install the LED light kit to the bottom of the fan.
Image 5.1: Visual guide for selecting downrod length based on ceiling height.
6. Instruccions de funcionament
Your Fanbulous ceiling fan is operated using the included remote control. Ensure the remote has fresh batteries installed.
6.1 Funcions de control remot
Image 6.1: Diagram of the remote control and its functions.
- Encès/apagat: Premeu el botó d'engegada per encendre o apagar el ventilador i la llum.
- Velocitat del ventilador: Use buttons 1-6 to select desired fan speed. 1 is the lowest, 6 is the highest.
- Llum encès/apagat: Press the light button to toggle the light.
- Interruptor CCT: Cycle through 3000K (Warm), 4500K (Natural), and 6000K (Cool) color temperatures.
- Temporitzador: Set the fan to turn off automatically after 1 hour (1H), 4 hours (4H), or 8 hours (8H).
- Motor reversible: Press the reverse button to change the direction of blade rotation.
- Vent natural: Activates a mode that simulates natural breeze by varying fan speed.
- Silenciar: Mutes remote control beeps.
- Mode antirobatori: (Refer to full manual for detailed use)
- Retard desactivació: Turns off the fan after 5 minutes.
6.2 Reversible DC Motor
The fan features a reversible DC motor for year-round comfort:
- Summer Mode (Forward Rotation): Blades rotate counter-clockwise to push air downward, creating a cooling breeze.
- Winter Mode (Reverse Rotation): Blades rotate clockwise to draw air upward, circulating warm air trapped near the ceiling.
Image 6.2: Illustration of fan direction for summer cooling and winter heat circulation.
6.3 Funció de memòria
The fan's light setting retains the last selected color temperature (3000K, 4500K, or 6000K) after being turned off and then back on (after waiting 5 seconds).
Image 6.3: Demonstration of the light's memory function, retaining the last color temperature setting.
6.4 Vídeo oficial del producte
Vídeo 6.1: Un overview of the Fanbulous 72 inch Large Ceiling Fan with Lights and Remote, demonstrating its features and operation.
7. Manteniment
Un manteniment regular garanteix un rendiment òptim i una llarga vida útil del ventilador de sostre.
- Neteja: Netegeu periòdicament les aspes del ventilador i la carcassa del motor amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Cargols de la fulla: Check all blade screws for tightness at least twice a year. Loose screws can cause wobbling and noise.
- Coberta de llum: The LED light cover can be removed for cleaning if necessary. Ensure it is securely reattached.
- No Lubrication: El motor de corrent continu està lubricat permanentment i no requereix lubricació.
8. Solució De Problemes
Si teniu problemes amb el ventilador, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no arrenca | No hi ha alimentació al ventilador; Connexions de cables soltes; Pila del comandament a distància descarregada. | Comproveu l'interruptor; Verifiqueu que totes les connexions dels cables estiguin ben fixades; Substituïu les piles del comandament a distància. |
| El ventilador trontolla | Cargols de la fulla solts; Fulles desequilibrades; Suport de muntatge solt. | Tighten all blade screws; Ensure blades are installed correctly; Check mounting bracket for secure attachment. |
| La llum no funciona | Loose wire connection to light kit; LED driver failure. | Check light kit wiring; Contact customer support if LED driver is suspected. |
| El comandament a distància no funciona | Dead batteries; Remote not paired (if applicable); Obstruction between remote and receiver. | Replace batteries; Refer to full manual for pairing instructions; Ensure clear line of sight. |
For more detailed troubleshooting or issues not listed here, please refer to the comprehensive manual or contact customer support.
9. Garantia i atenció al client
Fanbulous is committed to your satisfaction. This LED ceiling fan comes with the following warranty:
- Motor: 5 any de garantia
- Altres components: 2 any de garantia
Additionally, 2-year customer support is provided. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact Fanbulous customer support. Refer to your purchase documentation for contact details.
