Introducció
This manual provides detailed instructions for the proper use and maintenance of your Generic KKG7B-C1 A/C Remote Control. This remote is designed for use with compatible CHIQ Air Conditioners, offering convenient control over heating and cooling functions. Please read this manual thoroughly before operating the remote control.
Producte acabatview
The KKG7B-C1 remote control is a direct replacement, requiring no programming. It features a clear LCD display and intuitively labeled buttons for various air conditioner functions.

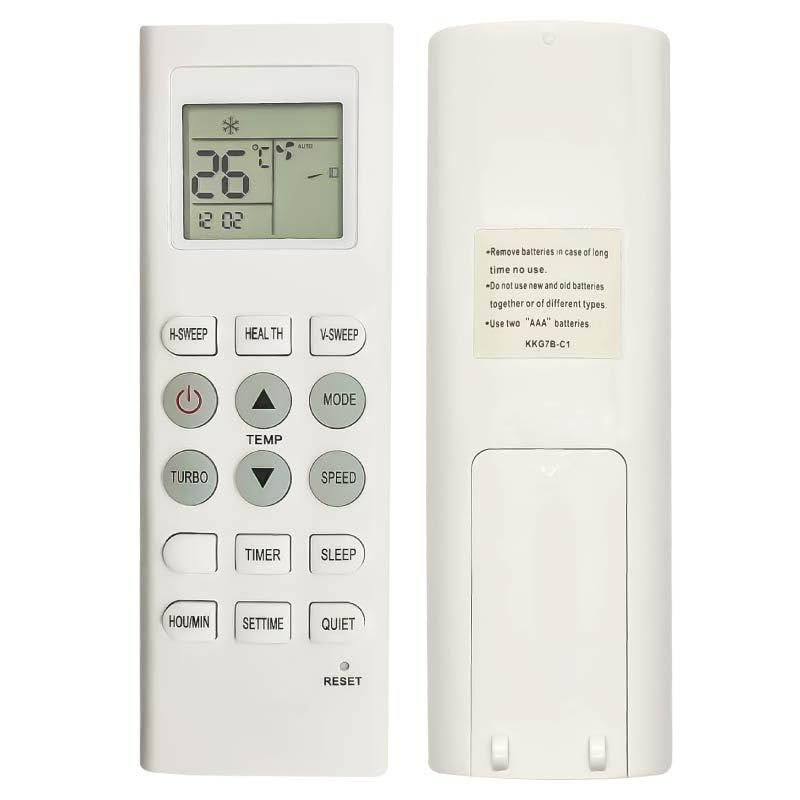

Figura 1: Davant view of the KKG7B-C1 A/C Remote Control. This image displays the remote's LCD screen and all control buttons, including power, mode, temperature adjustment, fan speed, and timer functions.
Configuració: Instal·lació de la bateria
Your remote control requires two AAA batteries (not included) for operation. No pairing or setup is needed; simply install the batteries, and the remote is ready to use.
- Localitzeu la tapa del compartiment de la bateria a la part posterior del comandament a distància.
- Feu lliscar la tapa cap avall o premeu el pestell i aixequeu-la per obrir el compartiment.
- Introduïu dues piles AAA noves, assegurant-vos que els terminals positiu (+) i negatiu (-) coincideixin amb els diagrames de l'interior del compartiment.
- Torneu a col·locar la tapa del compartiment de la bateria, fent-la lliscar fins que faci clic de manera segura.
Nota: Traieu les piles si no heu d'utilitzar el comandament a distància durant un període prolongat per evitar fuites i danys.
Instruccions de funcionament
This section details the functions of each button on your KKG7B-C1 remote control.
- POTÈNCIA: Premeu per encendre o apagar l'aire condicionat.
- Mode: Cycles through operating modes such as Auto, Cool, Dry, Fan, and Heat.
- TEMP ▲ / ▼: Adjusts the desired temperature setting. Press ▲ augmentar i ▼ per disminuir.
- VELOCITAT: Ajusta la velocitat del ventilador (per exemple, Baixa, Mitjana, Alta, Automàtica).
- H-SWEEP: Activates or deactivates horizontal louver swing.
- V-SWEEP: Activates or deactivates vertical louver swing.
- TURBO: Engages maximum fan speed for rapid cooling or heating.
- TEMPORIZADOR: Configura el temporitzador d'encesa/apagada de l'aire condicionat.
- DORMIR: Activates the sleep mode, which adjusts temperature and fan speed for comfortable sleep and energy saving.
- HOU/MIN: Used in conjunction with the TIMER button to set hours and minutes.
- SETTIME: Confirms time settings for the timer function.
- SALUT: Activates or deactivates health-related functions (e.g., air purification, ionizer), if available on your A/C unit.
- TRANQUIL: Reduces fan speed to minimize noise for quieter operation.
- RESET: Resets the remote control settings. Typically a small recessed button requiring a pointed object to press.
Figura 2: Detallada view of the KKG7B-C1 remote control buttons. This image highlights the layout and labels of all functional buttons for easy identification.
Especificacions
| Característica | Detall |
|---|---|
| Número de model | KKG7B-C1 |
| Dispositius compatibles | CHIQ Air Conditioners |
| Font d'alimentació | 2 piles AAA (no incloses) |
| Característica especial | No es requereix programació |
| Color | Blanc |
| Pes de l'article | 8 unces (aprox.) |
Resolució de problemes
If you encounter issues with your remote control, please refer to the following common solutions:
- El comandament a distància no respon:
- Assegureu-vos que les piles estiguin inserides correctament amb la polaritat correcta.
- Substitueix les piles velles per piles AAA noves.
- Check for any obstructions between the remote and the air conditioner's receiver.
- Ensure you are within the effective range of the air conditioner's receiver.
- L'aire condicionat no respon a ordres específiques:
- Verify that the air conditioner unit is powered on and functioning correctly.
- Confirm that the remote control model KKG7B-C1 is indeed compatible with your specific CHIQ Air Conditioner model.
- La pantalla està tènue o en blanc:
- Substituïu les piles immediatament.
Manteniment
To ensure the longevity and optimal performance of your remote control:
- Keep the remote control dry and away from direct sunlight or extreme temperatures.
- Clean the remote with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Eviteu deixar caure el comandament a distància ni sotmetre'l a impactes forts.
- Remove batteries if the remote is not used for extended periods to prevent corrosion.
Garantia i Suport
This product is a replacement remote control. For specific warranty information, please refer to the seller's policy at the time of purchase. If you have any questions or require further assistance, please contact the seller directly through the platform where the purchase was made.
Fabricant: Genèric
