Introducció
This manual provides essential information for the safe and efficient operation, maintenance, and care of your KXD 703A 49cc 2-Stroke Dirt Bike. Please read it thoroughly before assembly and use to ensure a safe and enjoyable experience.
Característiques clau
- Ergonomic seat for enhanced rider comfort and quick maneuverability.
- Powerful 49cc, single-cylinder, 2-stroke, air-cooled engine.
- Robust suspension system and reliable disc brakes for stable and safe riding on varied terrains.
- Durable 2.5-10 tires providing optimal grip on firm ground and grass.
- Adjustable speed modes to suit different skill levels and confidence.
- Sturdy construction with high-tech components for durability and performance.
Què hi ha a la caixa
En obrir el paquet, comproveu que tots els components hi són i que no estan danyats.
Image: The KXD Dirt Bike packaging box. Note: The box may display model KXD-703B, but the product inside is the KXD 703A.
- 1 x KXD 703A 49cc 2-Stroke Dirt Bike
- Manual d'usuari (aquest document)
- Eines de muntatge (si escau, no llistades explícitament però comunes)
Muntatge i muntatge
Follow these steps carefully to assemble your KXD 703A Dirt Bike. It is recommended to have an adult perform the assembly.
- Desembalatge: Carefully remove all components from the packaging. Place them on a clean, flat surface.
- Instal·lació del manillar: Attach the handlebar to the steering column. Ensure it is centered and securely tightened using the provided tools.
Imatge: Frontal view of the KXD 703A Dirt Bike, showing the handlebar and front wheel.
- Wheel and Tire Check: Verify that the tires are properly inflated and the wheels are securely attached. The tires are 2.5-10.
Imatge: Detallada view of the KXD 703A Dirt Bike's knobby tire, designed for off-road grip.
- Footrest Attachment: If not pre-installed, attach the footrests to the designated points on the frame.
Imatge: View of the rear suspension and footrest on the KXD 703A Dirt Bike.
- Mescla de combustible: Prepare the fuel mixture at a ratio of 1:25 (oil to gasoline). The fuel tank capacity is 1.9 L.
Image: Close-up of the KXD 703A Dirt Bike's 49cc 2-stroke engine.
- Ajust del fre: Check and adjust the disc brakes to ensure proper function. The braking system is 3-level adjustable.
Instruccions de funcionament
Before each ride, ensure the bike is in good working condition. Always wear appropriate safety gear, including a helmet, gloves, and protective clothing.
- Arrencada del motor: The KXD 703A features a pull-start system. Follow the manufacturer's instructions for starting the 2-stroke engine.
- Control de l'accelerador: Gently apply the throttle to accelerate. Familiarize yourself with the bike's response in a safe, open area.

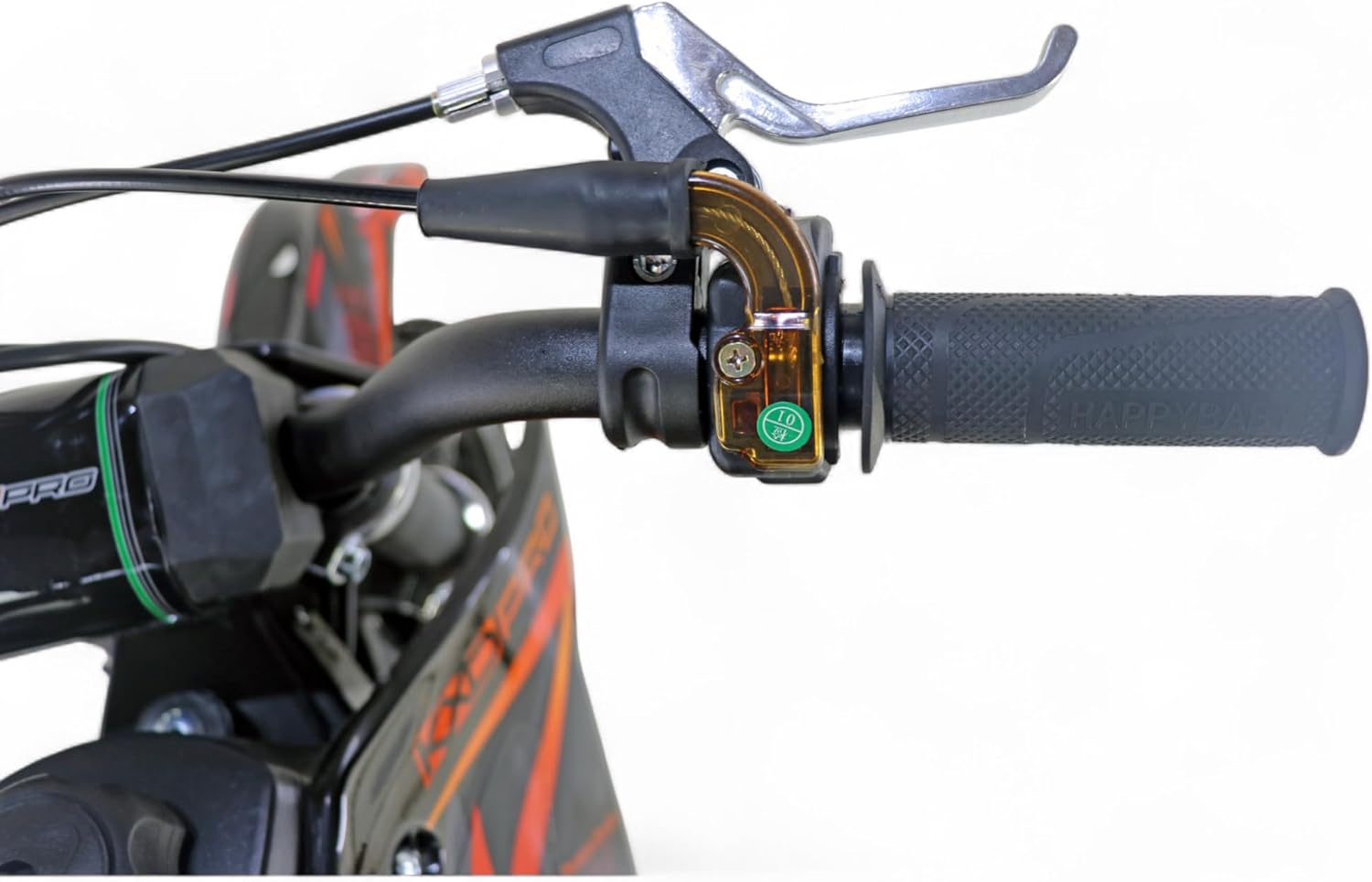

Image: Detail of the KXD 703A Dirt Bike's handlebar, showing the throttle grip and brake lever.
- Frenatge: Use the disc brakes smoothly to slow down and stop. Practice braking at different speeds.
- Ajust de velocitat: The bike's speed can be adjusted to match the rider's skill level. Consult the specific controls on the bike for speed settings. The maximum speed is 45 km/h.
- Girar i maniobrar: Practice turning at low speeds to get a feel for the bike's handling. The bike is designed for good maneuverability.
Manteniment
Regular maintenance ensures the longevity and safe operation of your KXD 703A Dirt Bike.
- Motor: Regularly check the 2-stroke engine for any leaks or unusual noises. Ensure proper oil/gasoline mixture is used.
- Cadena: Inspect the chain drive for proper tension and lubrication. Lubricate as needed.
- Frens: Periodically check the disc brakes for wear and proper function. Adjust or replace pads as necessary.
- Pneumàtics: Comproveu la pressió dels pneumàtics abans de cada trajecte. Inspeccioneu-los per detectar desgast, punxades o danys.
- Suspensió: Inspect the mono aluminum shock absorbers for any signs of damage or leaks.
- Neteja general: Keep the bike clean from dirt and debris, especially after off-road use.
Resolució de problemes
This section addresses common issues you might encounter with your KXD 703A Dirt Bike.
| Problema | Causa possible | Solució |
|---|---|---|
| El motor no arrenca | Incorrect fuel mixture, empty fuel tank, faulty pull starter. | Check fuel level and mixture (1:25 oil/gasoline). Inspect pull starter for damage. |
| Pèrdua de potència durant el funcionament | Low fuel, engine issues, clogged air filter. | Refuel. Check engine for proper function. Clean or replace air filter. |
| Els frens no són efectius | Worn brake pads, loose brake cable, improper adjustment. | Inspect brake pads and replace if worn. Adjust brake cable tension. Ensure 3-level adjustment is correct. |
| Unusual noises from engine/chain | Lack of lubrication, loose components, worn parts. | Lubricate chain. Check all bolts and fasteners for tightness. Consult a professional if noise persists. |
Si trobeu problemes que no figuren aquí o si les solucions no resolen el problema, poseu-vos en contacte amb l'atenció al client.
Especificacions
| Característica | Detall |
|---|---|
| Model | KXD 703A |
| Motor | 49 cm³ (49cc), Single-cylinder, 2-stroke, Air-cooled |
| Tipus de combustible | 1:25 (Oil/Gasoline mix) |
| Capacitat del dipòsit de combustible | 1.9 L |
| Transmissió | Transmissió de cadena |
| Amortidors | Mono aluminum |
| Tires (Front/Rear) | 2.5-10 |
| Velocitat màxima | 45 km/h |
| Sistema d'arrencada | Pull starter (plastic) |
| Sistema de frenada | Disc brake, 3-level adjustable |
| Pes buit | 22 kg |
| Càrrega màxima | 60 kg |
| Alçada del seient (des del terra) | 60 cm |
| Vehicle Dimensions (L x W x H) | 128 x 56 x 85 cm |
| Referència del fabricant | 172651924 |
| ASIN | B0FTZF48SX |
Informació de seguretat
Your safety and the safety of others are paramount. Always adhere to the following safety guidelines:
- Always wear a helmet, eye protection, gloves, and appropriate protective clothing (long sleeves, long pants, sturdy shoes) when operating the dirt bike.
- Ensure the rider meets the age and weight requirements for this product (Max load: 60 kg).
- Operate the dirt bike only in designated, safe areas away from public roads, traffic, and pedestrians.
- Never operate the dirt bike under the influence of alcohol or drugs.
- Perform a pre-ride inspection before each use, checking brakes, tires, chain, and all fasteners.
- Superviseu els joves genets en tot moment.
- Do not modify the dirt bike in any way, as this may compromise safety and void the warranty.
- Sigues conscient del teu entorn i dels possibles perills.
Garantia i Suport
Your KXD 703A Dirt Bike comes with legal guarantees and a 30-day return policy. For any questions, technical assistance, or warranty claims, please contact our specialized customer support team.
Refer to your purchase documentation for specific contact details or visit the retailer's weblloc per obtenir més informació.
