Haier X Series 5 8 Kg Front-Load Washing Machine

1. Introducció

Thank you for choosing the Haier X Series 5 8 Kg Front-Load Washing Machine. This appliance combines compact design with high performance for precise and sustainable laundry care. Featuring the Smart AI Cycle, AI PowerDrive Motor, and hOn App connectivity, it offers advanced solutions for your daily washing needs. This manual provides essential information for safe installation, efficient operation, and proper maintenance of your new washing machine.

2. Informació de seguretat

Please read all safety instructions carefully before using the appliance to prevent risks of fire, electric shock, injury, or damage to the product. Keep this manual for future reference.

• Assegureu-vos que la rentadora estigui correctament connectada a terra abans d'utilitzar-la.
• No feu servir l'aparell si el cable d'alimentació està danyat.
• Mantingueu els nens i les mascotes lluny de l'aparell durant el funcionament.
• No toqueu l'aparell amb les mans mullades.
• Desendolleu sempre la rentadora abans de netejar-la o fer-ne cap manteniment.
• No renteu articles que s'hagin netejat, rentat, remullat o tacats amb substàncies combustibles o explosives.

3. Configuració i instal·lació

Desembalatge i col·locació

Carefully unpack the washing machine and remove all packaging materials. This is a free-standing appliance. Ensure it is placed on a firm, level surface to minimize vibration and noise during operation. Adjust the leveling feet if necessary.

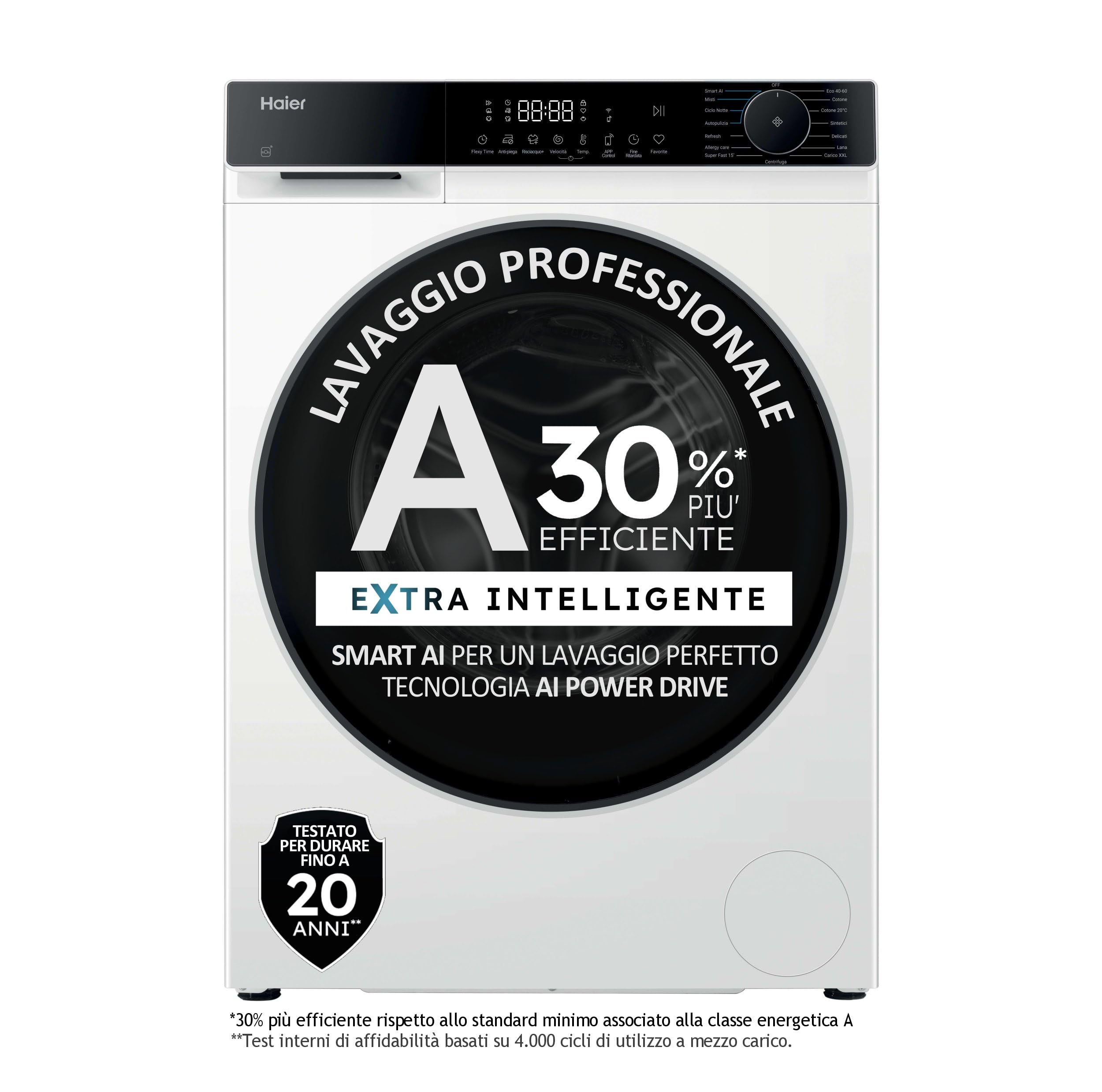

Figura 3.1: Frontal view of the Haier X Series 5 Washing Machine.

Water and Power Connections

Connect the included fill hose to a cold water tap and the appliance's water inlet. Ensure all connections are tight to prevent leaks. Plug the power cord into a properly grounded electrical outlet. Refer to local regulations for electrical and plumbing requirements.

Ús inicial

Before the first wash, run an empty cycle with a small amount of detergent to clean the drum and internal components.

4. Instruccions de funcionament

Carregant la bugaderia

Open the front-load door and load up to 8 kg of dry laundry. Do not overload the machine. Ensure no items are caught in the door seal before closing.

Figura 4.1: lateral view of the washing machine with the door open, showing the drum.

Afegint detergent i suavitzant

This model features an automatic detergent dispenser. Add liquid or powder detergent and fabric softener to the designated compartments. The machine will dispense the correct amount based on the selected program and load.

Selecció d'un programa de rentat

Use the touch controls to select one of the 60 standard wash programs. The Smart AI Cycle automatically recognizes fabric type and load size, adjusting parameters, temperature, and water consumption for optimal results and efficiency.

Característiques especials

• AI PowerDrive Motor: Ensures powerful and quiet washing with reduced vibration and wear.
• hOn App (Wi-Fi Connectivity): Manage and customize washes directly from your smartphone. Choose from over 60 dedicated programs and adjust cycle duration with Flexy Time.
• Refresh Cycle (Steam): Freshens clothes in 20 minutes without detergent, reducing odors and wrinkles.
• 6 Stains Treatment: A dedicated function to remove stubborn stains, ensuring impeccable results even on delicate fabrics.

Inici i aturada d'un cicle

Press the Start/Pause button to begin the selected cycle. To pause a cycle, press the button again. To cancel a cycle, press and hold the Start/Pause button for a few seconds.

5. Manteniment

Cleaning the Drum and Gasket

The Smart Dual Spray system automatically cleans the drum and gasket after each wash, preventing mold and odors. For additional cleaning, run a maintenance wash cycle at a high temperature with a washing machine cleaner.

ABT (Anti-Bacterial Treatment)

The ABT treatment on the gasket and detergent drawer helps prevent bacteria and unpleasant odors, keeping your washing machine hygienic over time.

Neteja del dispensador de detergent

Traieu i netegeu regularment el calaix del dispensador de detergent per evitar l'acumulació de residus.

Neteja del filtre

Periodically check and clean the drain pump filter to ensure proper drainage and prevent blockages.

6. Solució De Problemes

If you encounter any issues with your washing machine, refer to the following common problems and solutions before contacting service.

• La màquina no arrenca: Check if the power cord is properly plugged in, the door is closed securely, and the water supply is turned on.
• Sense omplir d'aigua: Ensure the water tap is open and the fill hose is not kinked or blocked.
• L'aigua no s'escorre: Check the drain hose for kinks and clean the drain pump filter.
• Vibració/soroll excessiu: Ensure the machine is level and all transit bolts have been removed. Distribute laundry evenly in the drum.
• Codis d'error que es mostren: Consult the full user manual (available online or with purchase) for specific error code meanings and solutions.

7. Especificacions

Below are the technical specifications for the Haier X Series 5 Washing Machine, Model HW80-BP14357U-IT.

Informació energètica

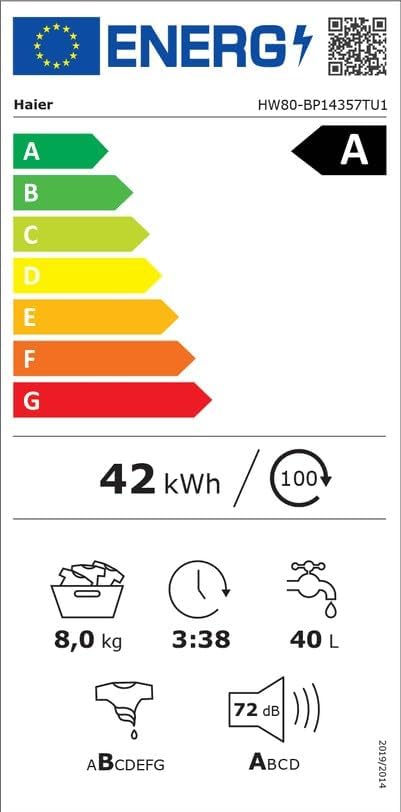

Figure 7.1: Energy Label for Haier X Series 5 Washing Machine.

For detailed product information and the official product data sheet, please refer to the following resources:

Figure 7.2: Product Data Sheet for Haier X Series 5 Washing Machine.

Official EPREL Product Information: https://eprel.ec.europa.eu/qr/2275160

8. Garantia i Suport

Garantia del producte

This Haier washing machine comes with a 2 anys de garantia del producte des de la data de compra. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia. La garantia cobreix defectes de fabricació i avaries en condicions d'ús normals.

Atenció al client

For technical assistance, spare parts, or warranty service, please contact Haier customer support. You can find contact information on the official Haier website or in the documentation provided with your appliance. When contacting support, please have your model number (HW80-BP14357U-IT) and serial number ready.
