Introducció
Welcome to the user manual for your new Haier X Series 9 10 Kg front-load washing machine, model HW100-B14387U-IT. This appliance is designed to provide superior laundry care with advanced features and energy efficiency. Please read this manual carefully before using the washing machine to ensure safe and correct operation, and to achieve the best washing results.
Les característiques clau inclouen:
- Motor de moviment directe: Reduces vibrations and noise for stable, precise, and powerful washing.
- A-30% Energy Class & AI Technology: 30% more efficient than standard Class A, with automatic optimization of washing parameters.
- Aire ultrafresc: Keeps clothes fresh for up to 12 hours after the wash cycle.
- ABT (Anti-Bacterial Treatment) & Smart Dual Spray: Protects the gasket and detergent drawer from mold and bacteria, and cleans the drum and porthole.
- hOn App Connectivity & 6 Stains Treatment: Manage cycles remotely and effectively remove tough stains.
Imatge: Frontal view of the Haier X Series 9 Washing Machine, showcasinel seu disseny modern i el seu panell de control.
1. Configuració i instal·lació
Proper installation is crucial for the performance and safety of your washing machine. Ensure the appliance is installed by a qualified technician.
1.1 Desembalatge
- Traieu tots els materials d'embalatge, inclosa la base de poliestirè i les pel·lícules protectores.
- Traieu els cargols de transport de la part posterior de la màquina. Guardeu-los per a futurs transports.
1.2 Posicionament
- Col·loqueu la rentadora sobre un terra ferm i anivellat.
- Assegureu-vos que hi hagi prou espai al voltant de la màquina per a la ventilació i l'accés.
- Dimensions: 62P x 60l x 85H cm (Depth x Width x Height).
Image: Diagram showing the dimensions of the Haier X Series 9 Washing Machine: 850mm height, 595mm width, and 593mm depth.
1.3 Anivellació
- Adjust the feet of the washing machine to ensure it is perfectly level. This prevents vibrations and excessive noise during operation.
1.4 Connexió d'aigua
- Connect the water inlet hose (included) to a cold water tap. Ensure connections are tight to prevent leaks.
- The washing machine is supplied with a fill hose.
1.5 Connexió de desguàs
- Col·loqueu la mànega de desguàs correctament en una canonada vertical o sobre la vora d'una pica, assegurant-vos que estigui ben fixada per evitar que es desplaci durant el desguàs.
1.6 Connexió elèctrica
- Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra. Assegureu-vos que el volumtage i la freqüència coincideixen amb les especificacions de l'aparell.
2. Instruccions de funcionament
Your Haier X Series 9 washing machine offers a range of programs and features for optimal laundry care.
2.1 Tauler de control acabatview
The washing machine features a touch control panel for easy program selection and setting adjustments.
Imatge: Més deview of the Haier X Series 9 Washing Machine's control panel, highlighting features like Ultra Fresh Air, AI DBS, and 6 anti-stain functions.
2.2 Càrrega de la roba
- Obriu la porta i carregueu la roba al tambor. No sobrecarregueu la màquina; la capacitat màxima és de 10 kg.
- The large 63L XL drum is designed for efficient washing of larger loads.
- The Pillow Drum XL design ensures extra care for delicate garments, preserving fabric quality.

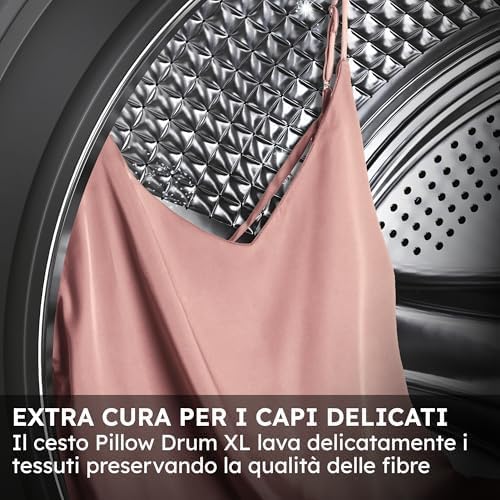

Image: Close-up of the Haier X Series 9 Washing Machine's Pillow Drum XL, showing a delicate garment inside, emphasizing gentle fabric care.
2.3 Afegir detergent i suavitzant
- Traieu el calaix del detergent.
- Add appropriate amounts of detergent and softener to their respective compartments.
- The machine features an automatic dispenser option for convenience.
2.4 Selecció de programes
- Turn the program selector or use the touch controls to choose the desired wash program.
- Available cycle options include: Allergens, Active Steam, Delicates.
- El 6 Stains Treatment function helps remove difficult stains without pre-treatment.
Image: A person interacting with the washing machine's control panel, demonstrating the professional anti-stain cycles and pre-wash function for enhanced effectiveness.
2.5 Ajustar la configuració
- Adjust temperature, spin speed (up to 1400 rpm), and other options as needed.
- AI Technology: Smart AI sensors automatically adapt each cycle for impeccable washing results.
Image: Inside the washing machine drum, showing clothes with an overlay of glowing dots and lines, representing AI sensors adapting the wash cycle for precision.
2.6 Inici d'un cicle
- Premeu el botó Inici/Pausa per iniciar el cicle de rentat.
2.7 Característiques especials
Aire ultra fresc
This system activates at the end of the wash cycle, circulating clean air to keep garments fresh and odor-free for up to 12 hours, preventing creases and stagnació.
Image: Inside the washing machine drum, showing clothes being treated with a stream of micro-steam, illustrating the Ultra Fresh Air feature for freshness and wrinkle reduction.
Refresh Steam Cycle
Utilizes micro-steam technology to reduce creases and allergens, preserving the quality of delicate fabrics.
hOn App Connectivity
Connect your washing machine to the hOn App via Wi-Fi to manage cycles remotely, monitor energy consumption, and access over 60 dedicated programs.
Direct Motion Motor
The motor is directly connected to the drum, eliminating belts and intermediate components. This design reduces vibrations and noise (70 dB), ensuring stable, precise, and high-performance washing with superior energy efficiency and durability.
Imatge: Frontal view of the Haier X Series 9 Washing Machine with an AI circuit overlay on the drum, representing the AI DBS (Direct Motion System) for silent and precise washing.
Eficiència energètica
The washing machine is 30% more efficient than a standard Class A appliance, with optimized energy consumption (36 kWh/100 cycles).
Image: Graphic illustrating "Optimized Energy Efficiency" within a washing machine drum, highlighting that the appliance is 30% more efficient than a standard Class A.
3. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva rentadora.
3.1 Neteja del calaix de detergent
- Remove and clean the detergent drawer regularly to prevent residue buildup.
- El ABT (Anti-Bacterial Treatment) protects the detergent drawer from mold and bacteria.
3.2 Cleaning the Drum and Gasket
- Wipe the drum and door gasket after each wash to remove moisture and lint.
- El Spray dual intel·ligent system automatically cleans the drum and porthole after each wash, ensuring maximum hygiene.
- El ABT (Anti-Bacterial Treatment) also protects the door gasket from mold and bacteria.
3.3 Neteja del filtre
- Locate and clean the drain pump filter periodically to remove any foreign objects or lint. Refer to the full user manual for specific instructions on accessing the filter.
3.4 Descalcificació
- Perform a descaling cycle periodically, especially in areas with hard water, using a suitable descaling agent.
4. Solució De Problemes
Abans de contactar amb el servei d'atenció al client, consulteu els següents problemes i solucions habituals.
| Problema | Causa possible | Solució |
|---|---|---|
| La rentadora no s'engega | Cable d'alimentació no connectat; Porta no tancada correctament; Programa no seleccionat; Botó d'inici/pausa no premut. | Check power connection; Ensure door is securely closed; Select a program; Press Start/Pause. |
| Sense farciment d'aigua | Aixeta d'aigua tancada; mànega d'entrada d'aigua doblegada o bloquejada; pressió de l'aigua massa baixa. | Obriu l'aixeta de l'aigua; Redreceu la mànega; Comproveu el subministrament d'aigua. |
| L'aigua no drena | Mànega de desguàs doblegada o bloquejada; filtre de la bomba de desguàs obstruït. | Straighten hose; Clean drain pump filter. |
| Vibracions o sorolls excessius | Màquina no anivellada; Cargols de transport no retirats; Tambor sobrecarregat. | Adjust leveling feet; Remove transport bolts; Reduce laundry load. |
| Olors desagradables | Residue buildup in drum or gasket; Infrequent use of hot cycles. | Clean drum and gasket; Run a maintenance wash with hot water and detergent. |
5. Especificacions
Detailed technical specifications for the Haier X Series 9 Washing Machine, model HW100-B14387U-IT.
- Marca: Haier
- Nom del model: Haier X Series 9 Washing Machine 10 Kg
- Número de model: HW100-B14387U-IT
- Dimensions del producte (PxAxA): 62P x 60l x 85H cm (62 cm Depth x 60 cm Width x 85 cm Height)
- Capacitat: 10 kg
- Tipus d'instal·lació: Autònom
- Posició de càrrega: Càrrega frontal
- Color: Blanc
- Pes de l'article: 70 quilos
- Tipus de control: Toca
- Velocitat màxima de gir: 1400 revolucions per minut
- Nivell de soroll: 70 decibels
- Eficiència energètica: A-30% (30% more efficient than standard Class A)
- Material del tambor: Acer inoxidable
- Característiques especials: High efficiency, Smart connectivity, Temperature control, Automatic dose, Hygienic steam
- Components inclosos: Ompliu la mànega
- País d'origen: Xina
6. Informació de la garantia
Your Haier X Series 9 Washing Machine, model HW100-B14387U-IT, comes with a 2 anys de garantia del producte from the date of purchase. This warranty covers manufacturing defects and material faults under normal use conditions.
Please retain your proof of purchase for any warranty claims. For detailed terms and conditions, refer to the official warranty document provided with your appliance or visit the Haier official weblloc.
7. Suport i contacte
For further assistance, technical support, or service requests, please contact Haier customer service.
- Manual d'usuari oficial: Hi ha disponible per descarregar un manual d'usuari complet en format PDF aquí.
- Haier Store: Visit the official Haier Store for more products and information: Haier Store on Amazon.
- Atenció al client: Refer to your local Haier contact information for service and support.
