DEWINNER Cordless Circular Saw DE-335DYJ-2 Instruction Manual

Introducció

This manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of your DEWINNER DE-335DYJ-2 Cordless Circular Saw. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage. Keep this manual for future reference.

Instruccions de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Si no seguiu aquestes instruccions, podeu patir lesions greus o danys materials.

• Llegeix totes les instruccions: Familiarize yourself with the tool's functions and safety warnings before use.
• Seguretat de l'àrea de treball: Mantingueu la vostra zona de treball neta, ben il·luminada i lliure de trastos. No opereu en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Ensure batteries are charged using the provided charger. Do not expose the tool to rain or wet conditions.
• Seguretat personal: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves. Secure loose clothing and tie back long hair.
• Funcionament de l'eina: To activate the saw, the power switch and safety trigger must be engaged simultaneously. This dual safety mechanism prevents accidental startup.
• Electric Brake System: The integrated electric braking system automatically stops the blade when the trigger is released, enhancing user safety.
• Peça de treball segura: Sempre clamp o fixar la peça de treball d'una altra manera per evitar que es mogui durant el tall.
• Mantenir el control: Keep a firm grip on the tool with both hands. Do not overreach. Maintain proper footing and balance at all times.
• Seguretat de la fulla: Ensure the blade guard is functioning correctly and never bypass it. Use only sharp, undamaged blades appropriate for the material being cut.
• Manipulació de la bateria: Use only DEWINNER 4.0 Ah lithium-ion batteries with this tool. Protect batteries from extreme temperatures and physical damage.

Contingut del paquet

En desembalar, comproveu que tots els elements que s'enumeren a continuació siguin presents i no estiguin danyats:

• 1 x DEWINNER Cordless Circular Saw
• 2 x Lithium-ion 4.0 Ah Batteries
• 1 carregador ràpid
• 3 x 165 mm Saw Blades (24-tooth carbide)
• 1 x Hex Key (pre-installed on the machine)
• 1 x Canvas Carrying Bag
• 1 x Manual d'usuari (aquest document)

Figura 1: Contents of the DEWINNER Cordless Circular Saw package, including the saw, two batteries, charger, three blades, hex key, and carrying bag.

Característiques i components del producte

The DEWINNER DE-335DYJ-2 Cordless Circular Saw is designed for efficient woodworking tasks. Key features include:

• Profunditat de tall ajustable: Steel base allows precise depth adjustment up to 54 mm at 90 degrees.
• Adjustable Bevel Angle: Angle adjustment from 0° to 45°, with a maximum cutting depth of 38 mm at 45 degrees.
• Motor potent: High-torque motor delivers 4,000 RPM for demanding cuts.
• High-Performance Blade: 165 mm, 24-tooth carbide blade for smooth and wear-resistant cutting.
• Disseny ergonòmic: Non-slip handle reduces vibration and fatigue during extended use.
• Dual Safety Switch: Evita l'activació accidental.
• Fre elèctric: Stops the blade quickly upon trigger release.

Figura 2: Key components of the circular saw, including the spindle lock button, on/off button, support handle, protective cover, cutting depth adjustment, blade guard, saw blade, and battery slot.

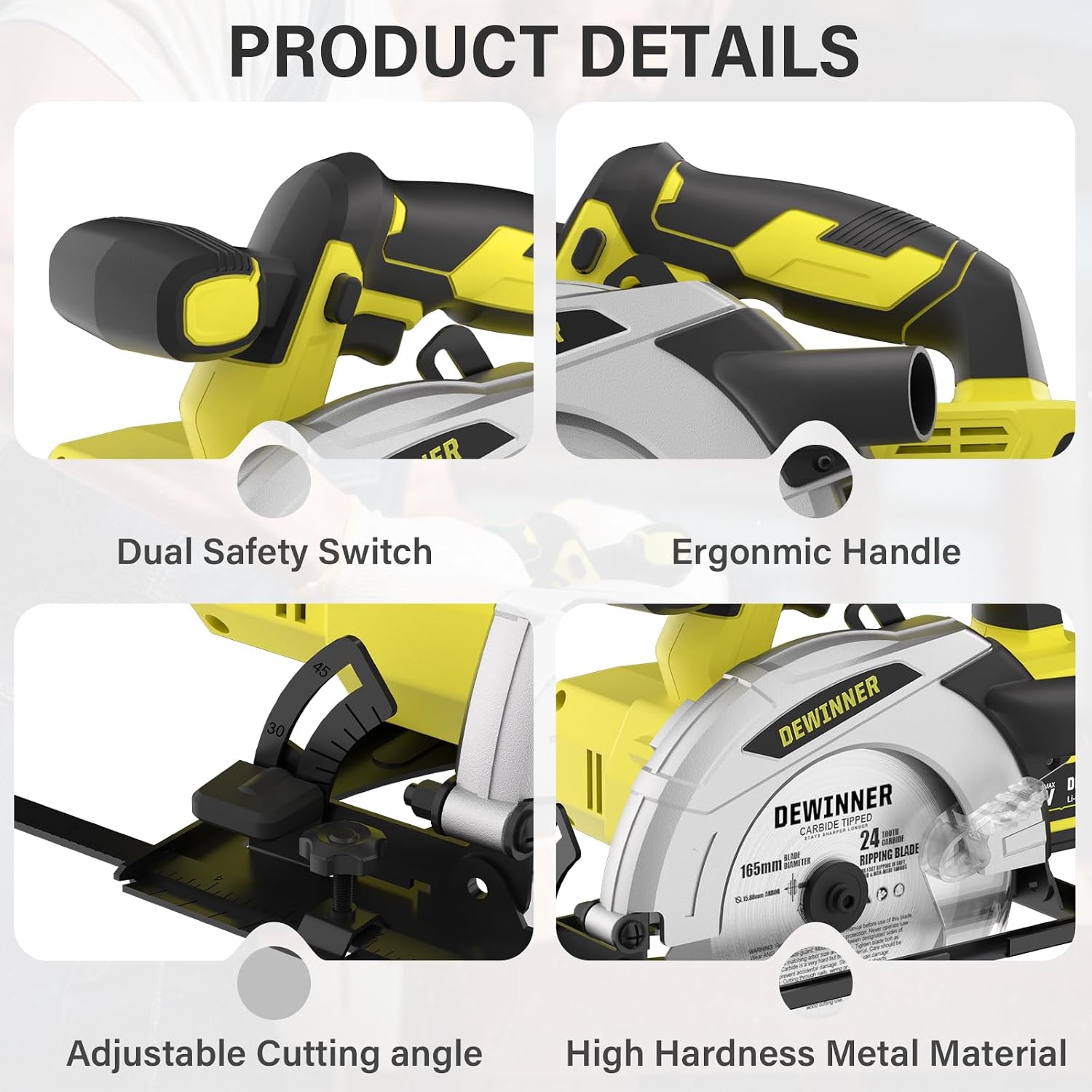

Figura 3: Primer pla views highlighting the dual safety switch, ergonomic handle, adjustable cutting angle mechanism, and the high-hardness metal material of the saw blade.

Configuració

1. Càrrega i instal·lació de la bateria

1. Càrrega de bateries: Before first use, fully charge both 4.0 Ah lithium-ion batteries using the provided fast charger. The charger has protection against overcharge/discharge.
2. Instal·la la bateria: Align the battery with the battery slot on the saw and slide it in until it clicks securely into place. Ensure it is fully seated.
3. Traieu la bateria: Press the battery release button and slide the battery out.

2. Instal·lació i extracció de la fulla

Avís: Desconnecteu sempre la bateria abans de canviar la fulla.

1. Fulla d'accés: Lift the lower blade guard.
2. Lock Spindle: Premeu i manteniu premut el botó de bloqueig del fus per evitar que la fulla giri.
3. Afluixar la femella de l'arbre: Use the included hex key to loosen the arbor nut by turning it counter-clockwise.
4. Treure la fulla: Traieu amb cura la brida exterior i la fulla antiga.
5. Instal·leu la nova fulla: Place the new 165 mm blade onto the arbor, ensuring the teeth are pointing in the direction of rotation indicated on the saw. Replace the outer flange and arbor nut.
6. Tighten Arbor Nut: While holding the spindle lock button, tighten the arbor nut clockwise with the hex key until secure. Do not overtighten.

3. Adjusting Cutting Depth and Angle

Figura 4: Illustration of the depth adjustment mechanism and the beveling shoe pivoting up to 50 degrees for angled cuts. Maximum cutting depth at 90 degrees is 54mm, and at 50 degrees is 43mm.

Figura 5: Demonstrates the angle adjustment from 0-45 degrees for a maximum cutting depth of 38mm, and the depth adjustment for a maximum cutting depth of 54mm at 90 degrees.

1. Ajust de la profunditat de tall: Loosen the depth adjustment lever. Move the saw base up or down to achieve the desired cutting depth. Ensure the blade extends only slightly below the workpiece. Tighten the lever securely.
2. Ajust de l'angle del bisell: Loosen the bevel adjustment lever. Tilt the saw base to the desired angle (0° to 45°). Use the angle scale for precision. Tighten the lever securely.

Instruccions de funcionament

Always ensure the workpiece is stable and secured before making any cuts.

1. Inici de la serra: With the battery installed, firmly grasp the saw with both hands. Simultaneously press the safety switch and then the trigger switch to start the motor.
2. Fent un tall: Allow the blade to reach full speed before contacting the workpiece. Guide the saw smoothly along the cutting line, applying steady, even pressure. Do not force the saw.
3. Aturar la serra: Release the trigger switch. The electric brake will quickly stop the blade. Wait for the blade to come to a complete stop before setting the saw down.
4. Prevenció de contracops: Avoid situations that can cause kickback, such as binding the blade, cutting wet wood, or making plunge cuts without proper technique.

Figura 6: An individual demonstrating the use of the DEWINNER circular saw for cutting wood, highlighting its application for various materials like wood, bamboo plywood, solid wood, fiberboard, and plywood.

Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur de la serra circular.

• Neteja: After each use, disconnect the battery and use a brush or compressed air to remove sawdust and debris from the motor vents, blade guard, and base plate. Do not use solvents.
• Inspecció de la fulla: Inspeccioneu regularment la fulla de la serra per detectar si està afilada, esquerdes o si li falten dents. Substituïu immediatament les fulles desafilades o danyades.
• Guard Functionality: Assegureu-vos que el protector inferior de la fulla es mogui lliurement i es retragui correctament. Lubriqueu els punts de pivot si cal.
• Cura de la bateria: Guardeu les piles en un lloc fresc i sec. No emmagatzemeu les piles completament descarregades durant períodes prolongats. Carregueu-les periòdicament si no les feu servir.
• Emmagatzematge: Store the saw and accessories in the provided canvas carrying bag in a dry, secure location, out of reach of children.

Resolució de problemes

If you encounter issues with your DEWINNER circular saw, refer to the following common problems and solutions:

• La serra no arrenca:
  • Assegureu-vos que la bateria estigui completament carregada i instal·lada correctament.
  • Verify that both the safety switch and trigger switch are engaged simultaneously.
• Blade Not Cutting Smoothly / Overheating:
  • The blade may be dull or damaged; replace it.
  • Ensure the blade is appropriate for the material being cut.
  • Check if the cutting depth is set correctly.
  • Do not force the saw; allow the blade to do the work.
• Vibració excessiva:
  • Check if the blade is securely installed and not bent or damaged.
  • Ensure the workpiece is firmly secured.

For issues not covered here, please consult the manufacturer's support resources.

Especificacions

Garantia i Suport

For warranty information, please refer to the specific warranty card included with your product or contact DEWINNER customer support directly. Information regarding the availability of spare parts is not provided in this manual. For technical assistance or spare parts inquiries, please reach out to the manufacturer or your retailer.
