CTEK NXT 5 Smart Charger 12V, 5A User Manual

Introducció

This manual provides essential information for the safe and efficient operation of your CTEK NXT 5 Smart Charger. The NXT 5 is a new generation 5A charger designed for advanced compatibility with 12V lead-acid and lithium (LiFePO4) batteries. It is built on the reliable CTEK MXS 5.0 platform, featuring a more durable design and award-winning Swedish technology.

Please read this manual carefully before using the charger to ensure proper function and to prevent damage to the unit or your battery.

Informació de seguretat

Always prioritize safety when working with electrical equipment and batteries. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure the charger is disconnected from the mains power before connecting or disconnecting the battery.
• Use the charger only for 12V lead-acid and lithium (LiFePO4) batteries. Do not attempt to charge other battery types.
• Avoid charging a frozen battery. Allow it to thaw before charging.
• Ensure adequate ventilation when charging, especially for lead-acid batteries, as they can emit explosive gases.
• Keep the charger away from water, moisture, and flammable materials. The unit is splash and dust-resistant but not submersible.
• Do not operate the charger if it has been damaged or dropped. Contact support for assistance.
• The charger is spark-free and protected against reverse polarity, enhancing safety during connection.
• Mantenir fora de l'abast dels nens.

Característiques del producte

The CTEK NXT 5 charger incorporates several advanced features for optimal battery care:

• Advanced Compatibility: Charges 12V lead-acid (WET, MF, Ca/Ca, AGM, EFB, GEL) and lithium (LiFePO4) batteries from 1.2 Ah to 160 Ah.
• Reconditioning Mode: Patented desulphation and reconditioning modes help restore the capacity of discharged or deeply discharged batteries, extending their lifespan.
• AGM Optimization: Maximizes charging efficiency for Start/Stop and AGM batteries, providing faster charging and maximizing lifespan.
• Compensació automàtica de temperatura: Adapts charging parameters to ambient temperature, ensuring optimal performance in both hot and cold climates.
• Float/Pulse Maintenance: Keeps batteries in optimal condition for safe, long-term storage and readiness.
• Disseny robust: Features durable rubber cables and a splash-proof, dust-resistant casing for longevity and intensive use.
• Característiques de seguretat: Spark-free operation and reverse polarity protection ensure safety for sensitive vehicle electronics and the user.

Image: The CTEK NXT 5 Smart Charger displaying its mode indicators for different battery types and charging stages. This charger offers simple 'connect and forget' operation.

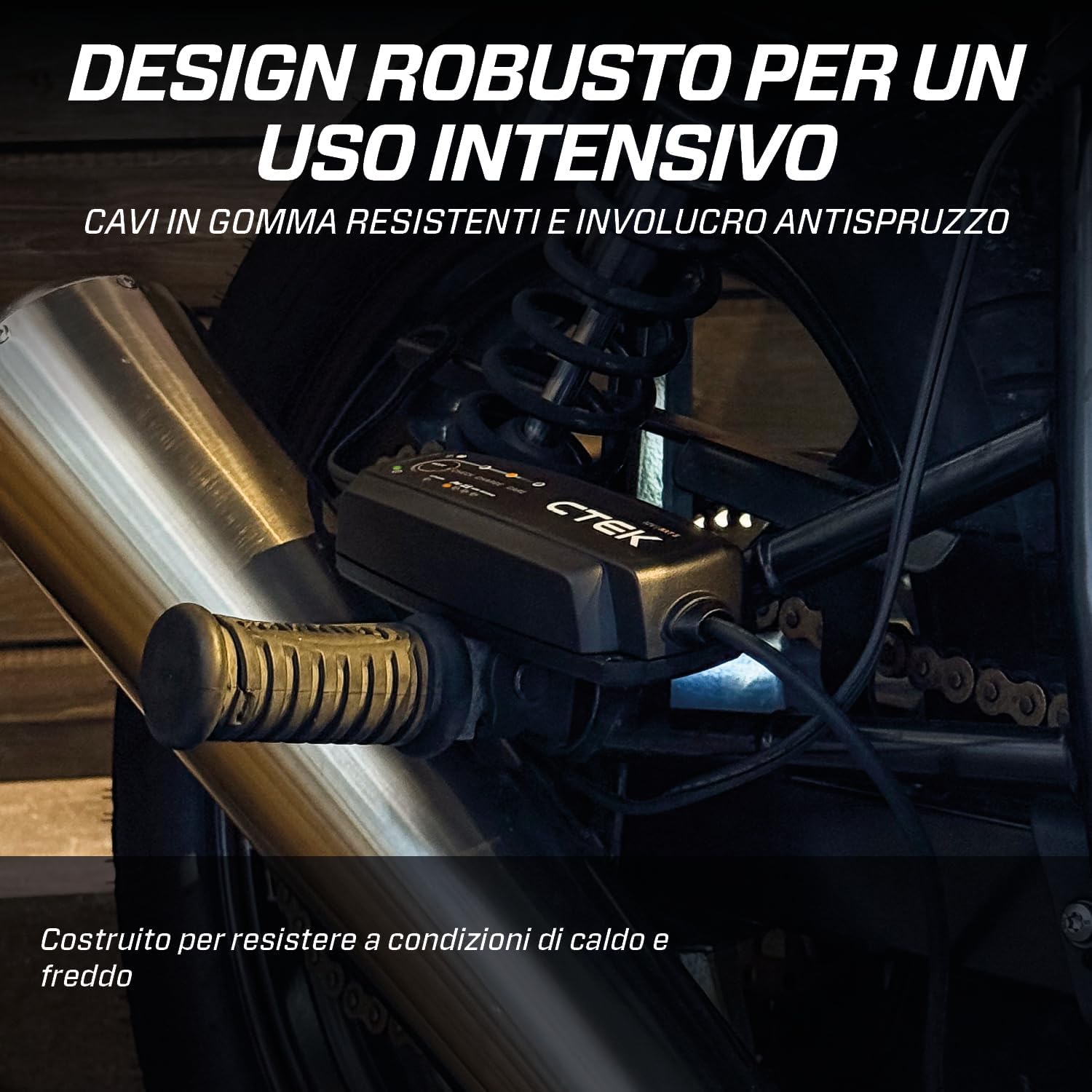

Image: The CTEK NXT 5 charger connected to a motorcycle battery, showcasing its robust design with durable rubber cables and splash-proof casing, built for intensive use and various conditions.

Configuració

1. Desembaleu el carregador: Remove the CTEK NXT 5 charger and all accessories from the packaging.
2. Trieu una ubicació: Place the charger on a stable, flat surface in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials.
3. Identifica el tipus de bateria: Determine if your battery is a 12V lead-acid (WET, MF, Ca/Ca, AGM, EFB, GEL) or lithium (LiFePO4) type. This will influence the mode selection.
4. Connectar a la bateria:
   • Connecteu el cl vermellamp al terminal positiu (+) de la bateria.
   • Connecteu el cl negreamp to the negative (-) terminal of the battery. If charging a battery installed in a vehicle, connect the black clamp al xassís del vehicle lluny de la bateria i la línia de combustible.
   • Ensure connections are secure. The charger is protected against reverse polarity, but correct connection is always recommended.
5. Connexió a la xarxa elèctrica: Plug the charger's power cord into a suitable 12V AC wall outlet.

Image: The CTEK NXT 5 charger connected to a 12V battery, demonstrating its compatibility with both lead-acid and lithium (LiFePO4) battery types.

Instruccions de funcionament

The CTEK NXT 5 operates with a simple "connect and forget" principle, but proper mode selection is crucial.

1. Encès: Once connected to the battery and mains power, the charger will automatically start.
2. Seleccioneu el mode de càrrega: Press the "MODE" button to cycle through the available charging programs. The selected mode will be indicated by an illuminated LED.
   • Normal (Car/Motorcycle icon): For most lead-acid batteries (WET, MF, Ca/Ca, GEL).
   • AGM (AGM icon): For AGM and Start/Stop batteries.
   • Recond (Recond icon): For reconditioning deeply discharged lead-acid batteries. Use this mode sparingly.
   • Lithium (Lithium icon): For 12V LiFePO4 batteries.

   Note: The charger automatically compensates for temperature, adjusting charging parameters for optimal performance in hot or cold conditions.

3. Càrrega del monitor: The charger's display will show the current charging stage (CHECK, CHARGE, CARE).
   • COMPROVAR: Initial analysis of battery condition.
   • CÀRREGA: Main charging phase.
   • ATENCIÓ: Float/pulse maintenance charging, keeping the battery at optimal charge.
4. Càrrega completa: The "CARE" LED will illuminate when the battery is fully charged and in maintenance mode. The charger can remain connected for extended periods for long-term maintenance.
5. Desconnexió:
   • First, disconnect the charger from the mains power outlet.
   • Then, disconnect the black clamp from the negative (-) terminal or chassis.
   • Finally, disconnect the red clamp des del terminal positiu (+).

Image: The CTEK NXT 5 charger connected to a car battery, illustrating its reconditioning capabilities to revive discharged or deeply discharged batteries and prolong their lifespan.

Image: The CTEK NXT 5 charger in use, demonstrating its automatic temperature compensation feature which adjusts charging for optimal battery performance in extreme hot or cold conditions.

Manteniment

The CTEK NXT 5 charger is designed for durability and requires minimal maintenance.

• Neteja: Netegeu el carregador casing with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the charger is disconnected from both mains and battery before cleaning.
• Inspecció del cable: Regularly inspect the charging cables and connectors for any signs of damage, fraying, or corrosion. Replace damaged cables immediately.
• Emmagatzematge: Guardeu el carregador en un lloc fresc i sec quan no l'utilitzeu. Eviteu temperatures extremes.

Resolució de problemes

If you encounter issues with your CTEK NXT 5 charger, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact CTEK customer support.

Image: The CTEK NXT 5 charger connected to a battery, highlighting its safety features such as spark-free operation and reverse polarity protection, ensuring safety for sensitive vehicle electronics.

Especificacions

Garantia

The CTEK NXT 5 Smart Charger comes with a 5 any de garantia from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage caused by misuse, neglect, improper installation, unauthorized modifications, or normal wear and tear.

Suport

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact CTEK customer support through their official weblloc o distribuïdors autoritzats.

Visit the official CTEK website for the latest information and support resources: www.ctek.com
