1. Introducció
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of the Generic N.H352.818 Quad-core WiFi TV Motherboard. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety. Keep this manual for future reference.
2. Informació de seguretat
Observeu sempre les següents precaucions de seguretat per evitar danys a la placa base o lesions personals:
- Electricitat estàtica: Electronic components are sensitive to electrostatic discharge (ESD). Always wear an anti-static wrist strap or discharge static electricity by touching a grounded metal object before handling the motherboard.
- Desconnexió d'alimentació: Ensure all power sources are disconnected from the TV and motherboard before installation, removal, or maintenance.
- Instal·lació professional: Installation of TV motherboards often requires technical expertise. If you are unsure about any step, consult a qualified technician.
- Ventilació: Ensure adequate ventilation around the motherboard once installed to prevent overheating.
- Líquid i humitat: Mantingueu la placa base allunyada de líquids i d'humitat excessiva.
- Voltage i actual: This motherboard operates at 33-93V and 600mA, with a maximum power consumption of 48W. Ensure your power supply meets these specifications.
3. Contingut del paquet
Verifiqueu que tots els elements estiguin presents i en bon estat en obrir el paquet:
- N.H352.818 Quad-core WiFi TV Motherboard
- (Optional, depending on retailer) Antena WiFi
- (Optional, depending on retailer) Cargols de muntatge
- Manual d'usuari (aquest document)
4. Configuració
4.1 Instal·lació física
Follow these steps for the physical installation of the motherboard:
- Prepara la televisió: Disconnect the TV from all power sources. Carefully open the TV casing according to its service manual.
- Treure la placa base antiga: Disconnect all cables (power, display, speakers, control panel, etc.) from the existing motherboard. Carefully unmount the old motherboard.
- Instal·leu la nova placa base: Align the N.H352.818 motherboard with the mounting holes in the TV chassis. Secure it with appropriate screws. Ensure no components are touching the metal chassis directly without insulation.
- Connectar els cables: Reconnect all necessary cables to the new motherboard. This typically includes the power supply, LVDS cable (for display), backlight cable, speaker cables, and control panel cables. Ensure all connections are firm and correctly oriented.
- Install WiFi Antenna: If applicable, connect the WiFi antenna to the designated connector on the motherboard.

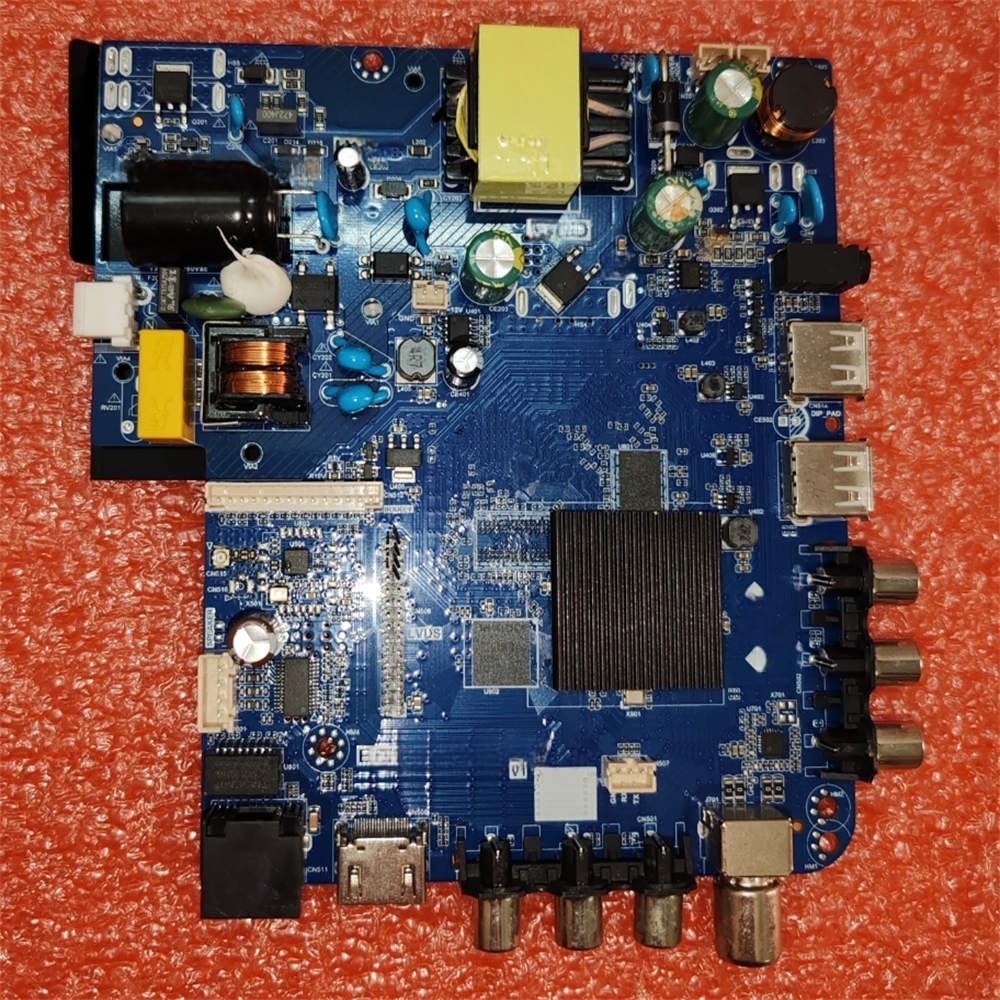

Image 1: The N.H352.818 Quad-core WiFi TV Motherboard, showing its various ports and integrated components. This image illustrates the general layout for connection reference.
4.2 Engegada inicial
Després de la instal·lació física:
- Close TV Casing: Carefully close the TV casing, assegurant-se que no hi hagi cables pinçats.
- Connectar l'alimentació: Plug the TV's power cord into an electrical outlet.
- Encès: Turn on the TV using the power button on the TV or remote control.
- Configuració inicial: The TV may boot into an initial setup wizard. Follow the on-screen prompts to configure language, region, and other basic settings.
5. Funcionament
5.1 Operating System and Features
The N.H352.818 motherboard is designed for smart TV applications, featuring a quad-core processor and integrated WiFi. The specific operating system (e.g., Android TV, Linux-based OS) will depend on the firmware loaded onto the motherboard. Refer to your TV's specific user interface guide for detailed operation of the installed OS.
5.2 Network Connectivity (WiFi)
Per connectar-se a una xarxa sense fils:
- Navegueu fins al menú de configuració del televisor.
- Select 'Network' or 'WiFi Settings'.
- Enable WiFi and select your desired network from the list of available networks.
- Introduïu la contrasenya de xarxa si se us demana.
5.3 Instal·lació del controlador
In most TV applications, drivers are pre-installed with the firmware. However, if you are using a custom firmware or experiencing issues, ensure all necessary drivers for the motherboard's components (e.g., display, audio, WiFi) are correctly installed. Consult the firmware provider's documentation for driver management.
6. Manteniment
Un manteniment adequat garanteix la longevitat i el rendiment òptim de la placa base:
- Neteja: Periodically clean the TV's interior (with power disconnected) to remove dust buildup from the motherboard and cooling components. Use compressed air or a soft brush.
- Actualitzacions de firmware: Check for and install official firmware updates for your TV model. Firmware updates can improve performance, add features, and fix bugs.
- Condicions ambientals: Operate the TV within recommended temperature and humidity ranges to prevent component degradation.
7. Solució De Problemes
Aquesta secció tracta els problemes habituals que podeu trobar:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense pantalla | Loose LVDS cable, incorrect backlight connection, faulty panel. | Check LVDS cable connection. Verify backlight cable is secure. Test with a known good panel if possible. |
| Sense poder | Power cable disconnected, faulty power supply, motherboard issue. | Ensure power cable is fully inserted. Test power supply output. Verify motherboard connections. |
| WiFi Not Working | Antenna not connected, WiFi module disabled, driver issue. | Check WiFi antenna connection. Ensure WiFi is enabled in settings. Update or reinstall WiFi drivers if necessary. |
| TV Freezes/Crashes | Overheating, software bug, faulty RAM. | Ensure adequate ventilation. Check for firmware updates. Perform a factory reset if software related. |
8. Especificacions
Key technical specifications for the N.H352.818 Quad-core WiFi TV Motherboard:
- Model: N.H352.818 (Item model number: 9524286415057)
- Processador: Quad-core
- Connectivitat: WiFi integrat
- Entrada Voltage: 33-93V
- Actual: 600 mA
- Consum d'energia: 48 W (màxim)
- ASIN: B0FXZKJ4B1
9. Garantia i Suport
This product is covered by a limited warranty provided by the manufacturer. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions. For technical support or further assistance, please contact the vendor or manufacturer through their official support channels.
