IBKINXX Automatic Solar Powered Chicken Coop Door

1. Producte acabatview

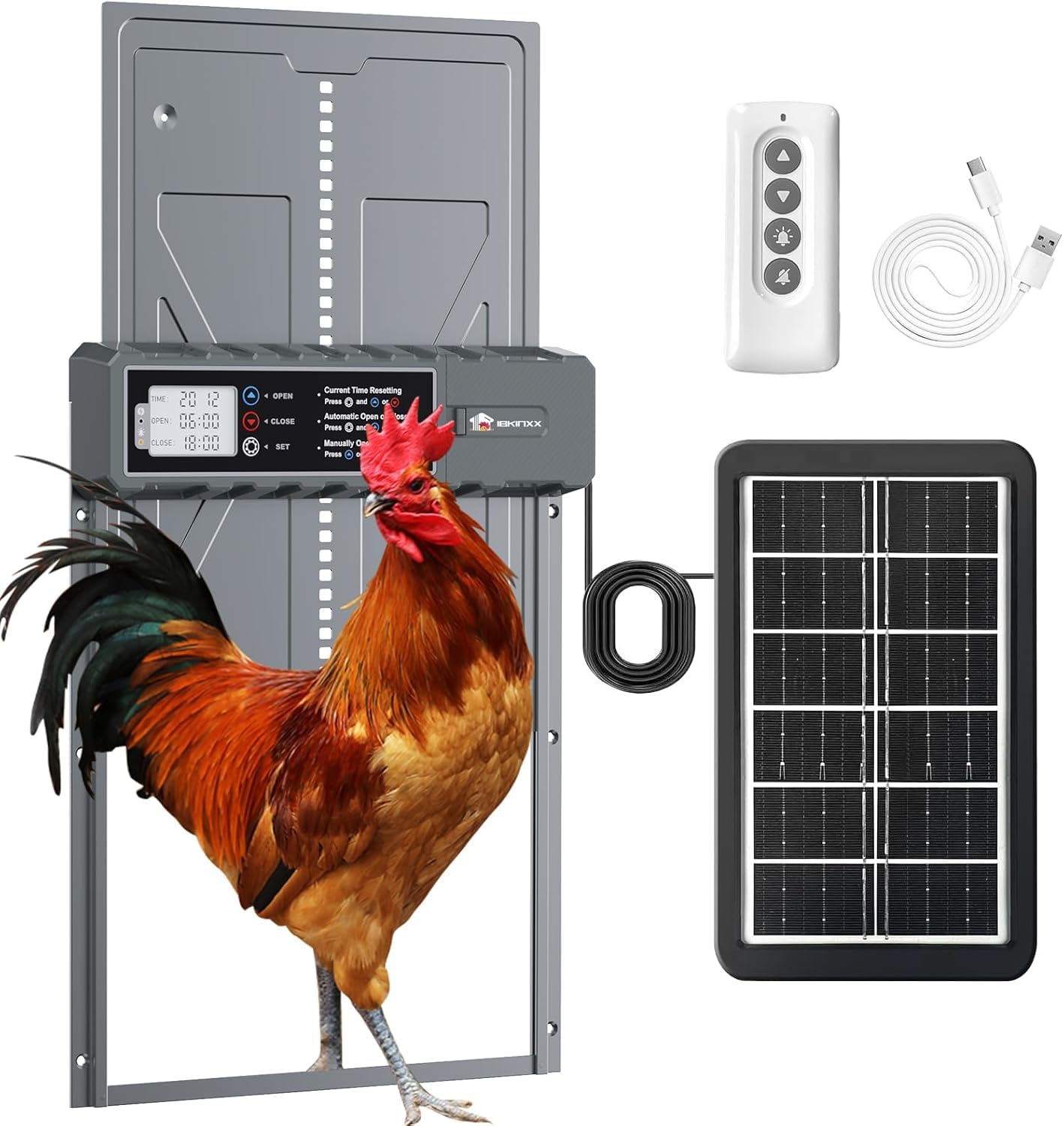

The IBKINXX Automatic Solar Powered Chicken Coop Door, model PFS-172C1, is designed to provide a convenient and secure solution for managing poultry access to their coop. This door features solar power for continuous operation, an anti-pinch safety mechanism, and a durable aluminum construction. It simplifies daily routines by automatically opening and closing at set times, ensuring the safety and well-being of your flock.

Característiques principals:

• Energia solar: Ensures continuous operation without external power sources.
• Temporitzador automàtic: Programmable for scheduled opening and closing.
• Anti-Pinch Design: Intelligent sensor system prevents injury to poultry.
• Construcció duradora: Made from aluminum for enhanced protection and longevity.
• Resistent a la intempèrie: Designed to withstand various weather conditions including rain, sun, and snow.
• Càrrega de seguretat: Includes a Type-C port for alternative charging.
• Anulació manual: Allows for manual operation when needed.

Components inclosos:

• Chicken Coop Door x1
• Tornavís x1
• Cargols x8
• Panell solar x1
• Cable de càrrega tipus C x1

2. Informació de seguretat

Please read and understand all safety instructions before installing and operating the chicken coop door. Failure to follow these instructions may result in injury or damage to the product.

• Anti-Pinch Mechanism: The door is equipped with an intelligent sensor system to prevent injury. However, always ensure the path of the door is clear before and during operation.
• Cable de càrrega: The charging cable is designed to be concealed. Ensure it remains hidden and protected from curious animals to prevent damage and ensure longevity.
• Seguretat de la bateria: The product contains a Lithium Ion battery. Do not expose to extreme temperatures or puncture.
• Instal·lació: Ensure the door is securely mounted to prevent it from falling and causing injury.

3. Configuració i instal·lació

Follow these steps for proper installation of your IBKINXX Automatic Chicken Coop Door.

Initial Battery Check and Charging:

Before initial use, observe the display screen to check the battery level. If the battery icon in the upper right corner of the screen flashes, the battery is low. Fully charge the unit using the provided Type-C charging cable or by exposing the solar panel to direct sunlight before proceeding with installation.

Passos d'instal·lació:

1. Prepara l'obertura: Outline the area to be cut on your chicken coop wall. The recommended opening dimensions are approximately 9.45 inches (width) by 11.42 inches (height).
2. Talla l'obertura: Carefully cut out the outlined area using appropriate tools. Ensure the edges are smooth to prevent injury to poultry.
3. Mount the Door: Position the chicken coop door over the prepared opening. Use the provided screws (x8) and screwdriver to securely fasten the door to the coop wall. Ensure the door is level and operates smoothly.
4. Instal·lació del panell solar: Mount the solar panel in a location that receives maximum direct sunlight throughout the day. Connect the solar panel cable to the designated port on the chicken coop door.

Image: Step-by-step guide for installing the chicken coop door, showing cutting the opening and securing the door.

Image: Diagram illustrating the dimensions of the chicken coop door, including the opening size of 10.86 inches wide and 14.25 inches high for the door unit, with a 9.4 inch opening.

4. Instruccions de funcionament

The IBKINXX Automatic Chicken Coop Door offers both automatic timer-based operation and manual control.

Configuració del temporitzador:

The control panel allows you to set specific times for the door to open and close automatically.

1. Estableix l'hora actual: Press the 'SET' button to enter time setting mode. Use the 'UP' and 'DOWN' arrows to adjust the current time. Press 'SET' to confirm.
2. Set Open Time: After setting the current time, the display will show 'OPEN'. Use the 'UP' and 'DOWN' arrows to set the desired opening time. Press 'SET' to confirm.
3. Set Close Time: The display will then show 'CLOSE'. Use the 'UP' and 'DOWN' arrows to set the desired closing time. Press 'SET' to confirm.

Once set, the door will operate automatically according to your programmed schedule. Manual and remote controls will not affect the timer settings.

Imatge: Detallada view of the easy-to-use timer interface on the control panel, showing current time, open time, and close time settings.

Funcionament manual:

You can manually open or close the door at any time, overriding the automatic timer for immediate control.

• To Open Manually: Press the 'UP' arrow button once.
• To Close Manually: Press the 'DOWN' arrow button once.

Image: Depiction of the automated poultry door in operation, showing it open during the day with a solar panel charging, and closed at night.

Alimentació i càrrega:

• Càrrega solar: The integrated solar panel continuously charges the internal battery during daylight hours.
• Backup Type-C Charging: For periods of low sunlight or if additional charging is required, connect the provided Type-C cable to the charging port and a suitable power adapter (not included).

Imatge: Primer pla view of the control panel, highlighting the charging indicator, Type-C charging port, and solar panel charging port, all protected by a cover lock.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your chicken coop door.

• Neteja: Periodically clean the door and solar panel with a soft, damp cloth to remove dirt, dust, or debris. Avoid abrasive cleaners.
• Inspecció de la via: Ensure the door tracks are free from obstructions that could impede smooth operation.
• Protecció del cable: Verify that the charging cable remains concealed and undamaged.
• Resistència a la intempèrie: The aluminum construction and weatherproof design ensure reliable operation in various conditions. However, extreme weather may require additional checks.

Image: The chicken coop door shown operating effectively in rainy and snowy conditions, demonstrating its weatherproof capabilities.

Image: Visual representation of the door's consistent performance across different environmental conditions: sun, rain, snow, and night.

6. Solució De Problemes

If you encounter issues with your IBKINXX Automatic Chicken Coop Door, refer to the following common problems and solutions.

• Door Not Opening/Closing:
  • Check battery level on the display. If low, charge the unit via solar panel or Type-C cable.
  • Ensure no obstructions are in the door's path.
  • Verify timer settings are correct.
  • Check for any abnormal warning indicators on the control panel (alarm sound and flashing light).
• Anti-Pinch Sensor Not Functioning:
  • Inspect the sensor area for dirt or debris that might be blocking it.
  • Ensure the door tracks are clean and clear.
• Solar Panel Not Charging:
  • Ensure the solar panel is positioned in direct sunlight and not shaded.
  • Clean the surface of the solar panel to remove any dirt or dust.
  • Check the connection cable between the solar panel and the door unit.

Image: Illustration of the anti-pinch design, showing the intelligent sensor system preventing the door from closing on a chicken.

7. Especificacions

8. Garantia i Suport

Warranty information for the IBKINXX Automatic Solar Powered Chicken Coop Door (PFS-172C1) is not explicitly provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact IBKINXX customer support directly.

Atenció al client:

If you require further assistance, have questions about your product, or need to report an issue, please contact IBKINXX customer service. You may also visit the official IBKINXX store on Amazon for additional product information and support resources: IBKINXX Amazon Store.
