1. Introducció
This manual provides essential information for the safe and effective operation and maintenance of your VEVOR 3-Ton Triple Bag Air Jack. Please read these instructions thoroughly before initial use to ensure proper function and to prevent injury or damage.
The VEVOR Air Jack is designed for lifting vehicles up to 3 tons (6613 lbs) quickly and efficiently. It features a triple-layer airbag design with internal steel pipes for stable lifting and controlled lowering. The adjustable handle and rubber wheels enhance maneuverability and ease of positioning under various vehicles.
2. Informació de seguretat
AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions greus o danys materials.
- Always operate the air jack on a firm, level surface.
- Never exceed the rated load capacity of 3 tons (6613 lbs).
- Always use appropriate jack stands to support the vehicle after lifting. The air jack is a lifting device only, not a vehicle support device.
- Assegureu-vos que el fre d'estacionament del vehicle estigui accionat i que les rodes estiguin bloquejades abans d'aixecar-lo.
- Do not work under a vehicle supported only by the air jack.
- Keep hands, feet, and other body parts clear of the jack and vehicle during lifting and lowering operations.
- Ensure the air compressor is compatible with the jack's pressure requirements (0.8-1.0 MPa).
- Inspect the jack for damage or wear before each use. Do not use if damaged.
- Utilitzeu equips de protecció personal adequats, com ara ulleres de seguretat i guants.
3. Components del producte
The VEVOR 3-Ton Triple Bag Air Jack includes the following components:
- 1 x Air Jack unit with adjustable handle and rubber wheels
- 1 x 1/4-Inch American Coupler
- 1 x 1/4-Inch European Coupler
- 1 x Manual d'usuari (aquest document)
Image: The VEVOR Air Jack showing its overall dimensions and the included American and European couplers.
4. Muntatge i muntatge
The VEVOR Air Jack is largely pre-assembled. Minor assembly of the handle may be required.
Muntatge de 4.1 nanses
- Desembaleu tots els components i assegureu-vos que no estiguin danyats.
- Attach the adjustable handle to the main jack body using the provided fasteners. Ensure all connections are secure.
4.2 Connexió al compressor d'aire
- Select the appropriate 1/4-inch coupler (American or European) for your air compressor hose.
- Connect the coupler to the air inlet valve on the jack's handle.
- Connect your air compressor hose to the coupler. Ensure a secure, leak-free connection.
- Verify your air compressor can supply air pressure between 0.8-1.0 MPa (116-145 PSI).
Image: Step-by-step diagram illustrating how to connect the air compressor and operate the jack for lifting and lowering.
5. Instruccions de funcionament
Follow these steps for safe and effective vehicle lifting and lowering.
5.1 Preparing the Vehicle
- Aparqueu el vehicle sobre una superfície dura i plana.
- Enganxeu el fre d'estacionament.
- Place wheel chocks on the wheels that will remain on the ground.
- Locate the vehicle's designated lifting points (refer to your vehicle's owner's manual).
5.2 Aixecament del vehicle
- Position the air jack under the designated lifting point of the vehicle. The adjustable handle allows for positioning at 45° or 180° angles. The rubber pad on top of the jack should make firm contact with the vehicle's chassis.
- Ensure the red air outlet valve on the handle is TANCAT and the green air inlet valve is OBERT.
- Turn on your air compressor. The jack will begin to inflate and lift the vehicle. The jack can lift from 5.5 inches (140 mm) to 17.7 inches (450 mm) in 1-6 seconds under no load.
- Once the desired height is reached, close the green air inlet valve.
- Col·loqueu immediatament els suports de gat amb la capacitat adequada sota els punts de suport designats del vehicle.
- Slowly open the red air outlet valve to lower the vehicle onto the jack stands.
Image: The VEVOR Air Jack positioned under a vehicle, demonstrating its lifting capability for sedans, SUVs, pickups, and light trucks.

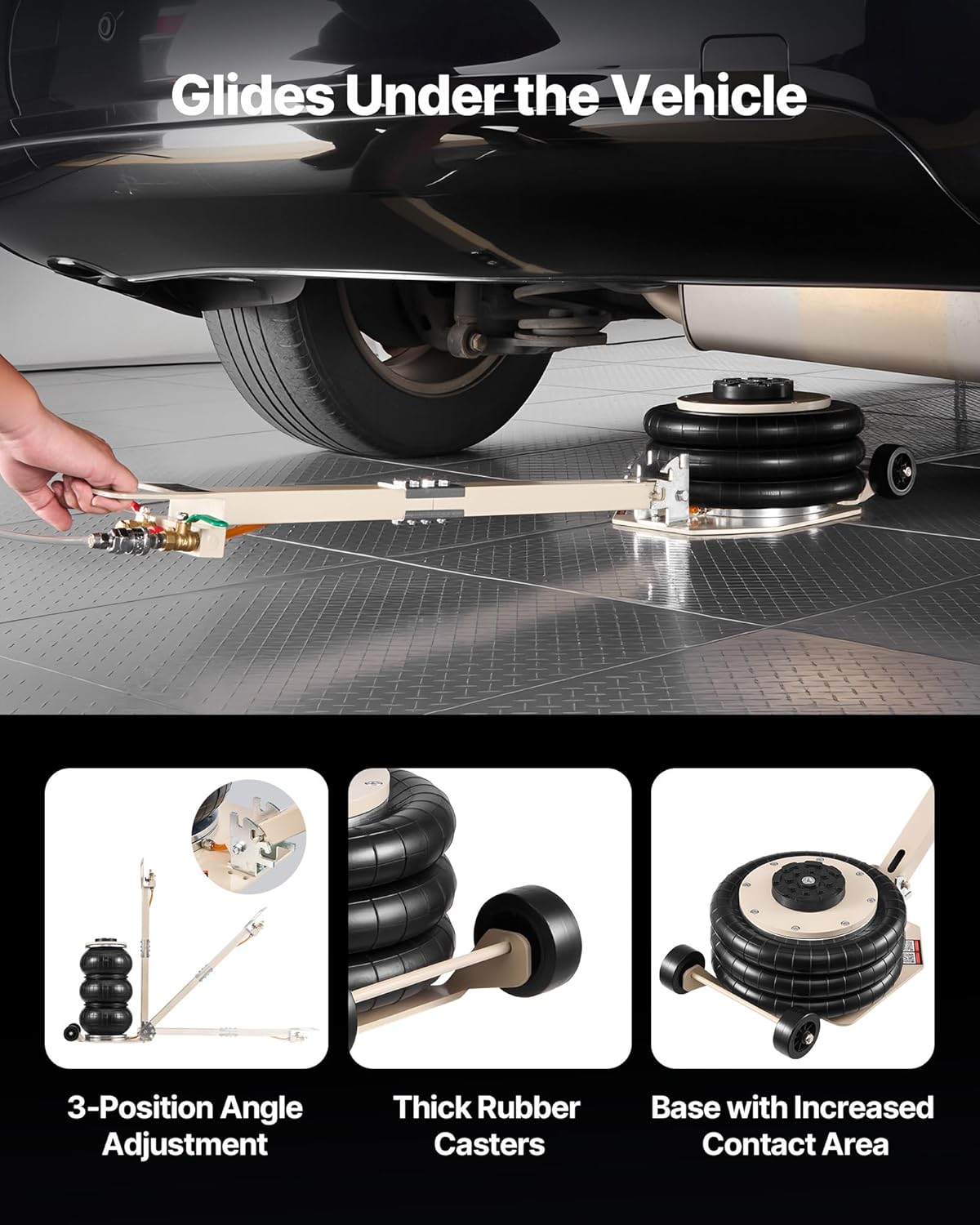

Image: A user positioning the VEVOR Air Jack under a vehicle, highlighting the adjustable handle and rubber casters for easy maneuverability.
Imatge: Una imatge detallada view of the air inlet valve, air outlet valve, and protection valve on the jack's handle, with an internal air pipeline shown.
5.3 Baixada del vehicle
- Assegureu-vos que la zona al voltant del vehicle estigui buida.
- If the vehicle is on jack stands, lift the vehicle slightly with the air jack to relieve pressure on the jack stands.
- Traieu els suports del gat.
- Ensure the green air inlet valve is TANCAT.
- Slowly open the red air outlet valve to gradually release air pressure and lower the vehicle. The internal steel pipes ensure a smooth and controlled descent.
- Once the vehicle is fully lowered, remove the air jack.
6. Manteniment
Proper maintenance ensures the longevity and safe operation of your VEVOR Air Jack.
- Neteja: After each use, wipe down the jack with a clean cloth to remove dirt, grease, and debris.
- Inspecció: Regularly inspect the airbag for any signs of wear, cracks, or punctures. Check all hose connections and valves for leaks. Ensure the handle and wheels are securely attached and functioning correctly.
- Emmagatzematge: Store the air jack in a clean, dry place. The handle can be adjusted to a 90° position for compact storage.
- Compressor d'aire: Ensure your air compressor is regularly maintained according to its manufacturer's instructions.
This pneumatic jack is designed for low maintenance, unlike hydraulic jacks that require periodic oil changes.
Image: The VEVOR Air Jack in an upright storage position, demonstrating its compact design when the handle is adjusted.
7. Solució De Problemes
If you encounter issues with your VEVOR Air Jack, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| En Jack no aixeca o aixeca lentament. | Insufficient air pressure from compressor. Air inlet valve not fully open. Air leaks in connections or airbag. | Ensure compressor provides 0.8-1.0 MPa (116-145 PSI). Fully open the green air inlet valve. Check all connections for leaks; inspect airbag for damage. |
| Jack lowers too quickly or uncontrollably. | Air outlet valve opened too quickly. Internal damage to steel pipes. | Open the red air outlet valve slowly and gradually. Discontinue use and contact customer support if internal damage is suspected. |
| Jack wobbles or shifts during lifting. | Uneven or soft ground surface. Jack not centered on lifting point. Exceeding load capacity. | Move to a firm, level surface. Use a stable base if necessary. Reposition the jack to be centered and stable. Ensure vehicle weight is within 3-ton limit. Always use jack stands. |
| Fuites d'aire per les connexions. | Connexions fluixes. Damaged couplers or hose. | Tighten all air connections. Use thread sealant if needed. Replace damaged couplers or hose. |
8. Especificacions
| Característica | Especificació |
|---|---|
| Número de model | HRQD-3CF-A |
| Capacitat màxima | 3 Tons (6613 lbs) |
| Altura mínima | 5.5 polzades (140 mm) |
| Altura màxima | 17.7 polzades (450 mm) |
| Dimensions del producte (L x A x A) | 43.31 x 10.55 x 5.5-17.7 inches (1100 x 268 x 140-450 mm) |
| Pes net | 35.94 lliures (16.3 kg) |
| Material | Acer d'aliatge |
| Pressió d'aire de treball | 0.8-1.0 MPa (116-145 PSI) |
| Couplers Included | 1/4-Inch American, 1/4-Inch European |
Image: A visual representation of the VEVOR Air Jack with key dimensions and specifications, including model number, weight, capacity, and accessories.
9. Garantia i Suport
This product does not come with an explicit manufacturer's warranty description as per available information. For any product-related inquiries, technical assistance, or support, please contact VEVOR customer service through their official weblloc web o el venedor on es va comprar el producte.
Always retain your purchase receipt for any potential support claims.
