1. Producte acabatview
The Amico 8-inch Exhaust Fan is designed for efficient air circulation and ventilation in various indoor and outdoor environments. Featuring a 29W EC motor, it provides 686 CFM airflow with low noise operation (50dB). The fan includes a wireless remote control for 9-speed settings and an 8-hour timer function. Its durable stainless steel construction ensures longevity in diverse conditions.

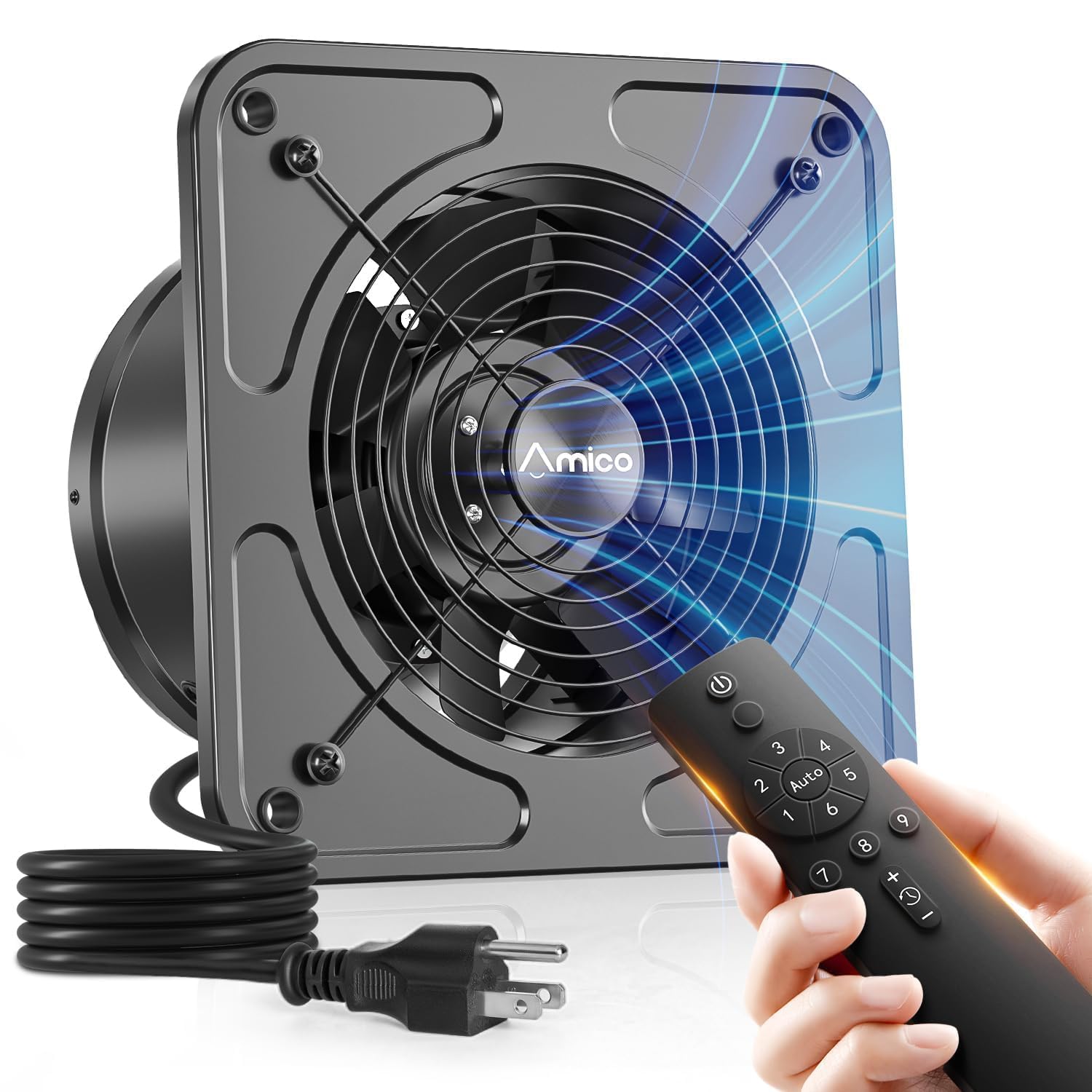

Figure 1: Amico 8-inch Exhaust Fan.
2. Instruccions de seguretat
Llegiu atentament totes les instruccions de seguretat abans de la instal·lació i el funcionament. Si no seguiu aquestes instruccions, podeu patir descàrregues elèctriques, incendis o lesions greus.
- Assegureu-vos que el subministrament elèctric estigui desconnectat abans de la instal·lació, el manteniment o la neteja.
- Aquest aparell no està pensat per ser utilitzat per persones (inclosos nens) amb capacitats físiques, sensorials o mentals reduïdes, o amb manca d'experiència i coneixements, tret que hagin rebut la supervisió o instruccions sobre l'ús de l'aparell per una persona responsable de la seva seguretat. .
- No feu funcionar el ventilador amb un cable o endoll danyats. Si el cable està danyat, l'ha de substituir el fabricant, el seu agent de servei o persones similarment qualificades per evitar un perill.
- Avoid inserting fingers or foreign objects into the fan grille during operation.
- Install the fan in a location where it is protected from direct water spray and excessive moisture.
- Assegureu-vos una correcta connexió a terra per evitar riscos elèctrics.
- This fan is designed for wall-mounted installation. Ensure the mounting surface is structurally sound.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Amico 8-inch Exhaust Fan
- Comandament a distància sense fil
- Cargols i ancoratges de muntatge
- Manual d'usuari (aquest document)
4. Instal·lació i configuració
This fan is designed for standard hole-mounted wall installation. The nominal 8-inch fan features an actual cylinder diameter of 7.12 inches, designed to fit seamlessly into standard 8-inch ducts or wall openings while allowing clearance for electrical wiring.
4.1 Eines necessàries (no incloses)
- Cinta mètrica
- Trepant
- Hole Saw (appropriate size for 7.5" to 8" diameter)
- Tornavís
- Llapis/Rotulador
4.2 Passos d'instal·lació
- Measure and Cut the Hole: Identify the desired installation location. Measure and cut an 8-inch diameter hole (7.5" to 8" is ideal) in the wall. Ensure there is sufficient space for the fan and wiring.
- Insert and Align: Carefully insert the fan into the mounting hole. Ensure the damper mechanism (if present) is vertical to allow proper airflow.
- Assegureu-vos amb cargols: Use the provided mounting screws and anchors to secure the fan firmly to the wall. Tighten the screws on all four corners.
- Connecteu-vos a la presa de corrent: Once secured, plug the fan's power cord into a standard 120V AC electrical outlet.
Figura 2: Guia d'instal·lació pas a pas.
Figure 3: Fan dimensions and key specifications. Note the 7.12" cylinder diameter for an 8" wall opening.
4.3 Vídeo d'instal·lació
For a visual guide on installation, please refer to the official installation video below:
Video 1: Installation Guide for Amico Kitchen Exhaust Fan. This video demonstrates the process of mounting the fan into a wall opening and connecting it to power.
5. Instruccions de funcionament
The Amico Exhaust Fan is controlled using the included wireless remote. Ensure batteries are correctly inserted into the remote control.
5.1 Funcions de control remot
- Botó d'encesa: Encén o apaga el ventilador.
- Speed Settings (1-9): Ajusta la velocitat del ventilador d'1 (la més baixa) a 9 (la més alta).
- Botó del temporitzador: Activates the 8-hour timer for automatic shutoff. Press once to activate.
Figure 4: Operating the fan with the wireless remote control.
5.2 Airflow and Ventilation
The fan provides 686 CFM of airflow, effectively removing heat, moisture, smoke, and odors from your environment. Adjust the speed according to your ventilation needs.
Figure 5: Illustration of the fan's airflow effectively clearing air in a room.
6. Manteniment
Regular maintenance ensures optimal performance and extends the lifespan of your Amico Exhaust Fan.
- Cleaning the Fan Blades and Grille:
- Disconnect the fan from the power supply before cleaning.
- Utilitzeu un drap suau dampened with mild soap and water to wipe down the fan blades and grille.
- No utilitzeu netejadors abrasius ni dissolvents, ja que poden danyar l'acabat.
- Assegureu-vos que totes les peces estiguin completament seques abans de tornar a connectar l'alimentació.
- Inspecting the Damper: Periodically check the weatherproof damper for any obstructions or damage to ensure it opens and closes freely.
- Manteniment del motor: The EC motor is designed for long-term, maintenance-free operation. No lubrication is required.
7. Solució De Problemes
If you encounter issues with your Amico Exhaust Fan, refer to the following troubleshooting guide:
| Problema | Causa possible | Solució |
|---|---|---|
| El ventilador no s'encén. | Sense font d'alimentació. Les piles del comandament a distància estan gastades o col·locades incorrectament. Comandament a distància no emparellat. |
Check if the fan is properly plugged into a live outlet. Replace remote batteries or ensure correct polarity. Refer to remote pairing instructions (if applicable, usually automatic). |
| El ventilador funciona però el flux d'aire és feble. | Velocitat del ventilador massa baixa. Obstruction in the fan or duct. Damper not opening fully. |
Increase fan speed using the remote control. Disconnect power and check for debris in the fan blades or ductwork. Inspeccioneu el damper for obstructions and ensure it moves freely. |
| Soroll excessiu durant el funcionament. | Muntatge fluix. Debris hitting fan blades. Problema motor. |
Assegureu-vos que el ventilador estigui ben fixat a la paret. Disconnect power and check for any foreign objects in the fan. Si el soroll persisteix, contacteu amb l'atenció al client. |
| El comandament a distància no respon. | Bateries esgotades. Fora de rang. Interferència. |
Substituïu les piles. Ensure you are within the effective range of the fan. Minimitzar les possibles interferències d'altres dispositius electrònics. |
If the problem persists after attempting these solutions, please contact Amico customer support.
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Amic |
| Número de model | DLT-D175032E8INCH |
| Mida | 8 inch (nominal), 7.12 inch cylinder diameter |
| Capacitat de cabal d'aire | 686 CFM |
| Tipus de motor | Motor EC |
| Wattage | 29 watts |
| Velocitat | 2873 RPM |
| Nombre de velocitats | 9 |
| Nivell de soroll | 50 decibels |
| Voltage | 120 Volts |
| Mètode de control | Control remot |
| Característiques especials | Adjustable Speed, Dust Resistant, Energy Efficient, Programmable Timer, Remote Controlled |
| Material | Metall, acer inoxidable |
| Dimensions del producte | 9.72 "P x 6.42" W x 9.72" H |
| Pes de l'article | 4.78 lliures |
| Certificació | Conforme a la FCC |
9. Garantia i Suport
Amico provides a 3 anys de garantia del producte for this exhaust fan, ensuring reliable performance. For any installation assistance, replacement needs, or general inquiries, our Atenció al client 24/7 team is available to help.
Conserveu el vostre comprovant de compra per a reclamacions de garantia.
Per obtenir suport, visiteu el Amico Store on Amazon or contact our customer service directly.
