KING LPWV2715-CT24 Vandal Resistant Heater Instruction Manual

1. Producte acabatview

The KING LPWV2715-CT24 is a robust, vandal-resistant electric heater designed for high-traffic and public areas such as detention facilities, public restrooms, and rest areas. Its heavy-duty construction, including a 3/16-inch solid steel frame and grill, provides exceptional durability against impact and abuse. Tamper-resistant screws secure the grill, and controls are recessed to prevent unauthorized access. This unit offers moderate wattage and high airflow to effectively heat entryways and hallways, preventing drafts from affecting the building's core temperature.

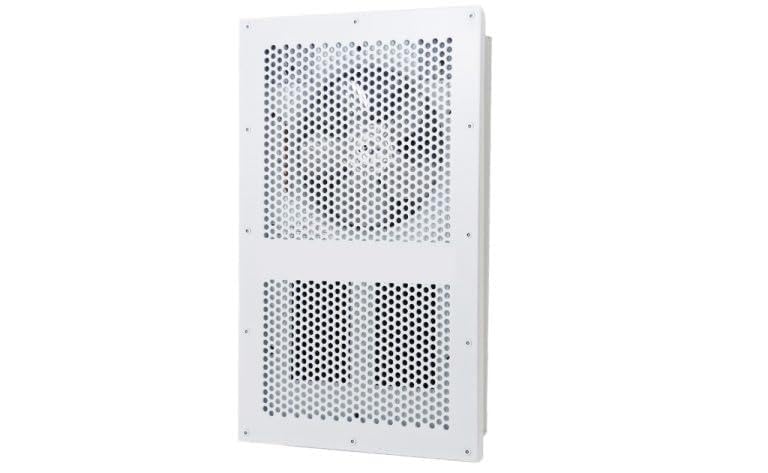

Imatge 1: Frontal view of the KING LPWV2715-CT24 Vandal Resistant Heater, showcasing its robust metal casing and grill.

Característiques principals:

• Impact/Vandal Resistant: Constructed with a heavy grill and 3/16-inch solid steel frame.
• Pic-A-Watt Elements: Allows for multiple wattage options to suit specific heating requirements.
• Tamper Resistant 3 Position Switch: Offers Fan, Heat, and Off settings, designed to prevent unauthorized adjustments.
• Protecció contra el sobreescalfament: Integrated safety feature to prevent overheating.

2. Informació de seguretat

Read all instructions carefully before installing or using this heater. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• Instal·lació elèctrica: This heater operates on 277 Volts and requires hardwiring. Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
• Posada a terra: This heater must be properly grounded to reduce the risk of electric shock.
• Ubicació: Do not install the heater in areas where gasoline, paint, or other flammable liquids are stored or used. Maintain proper clearances from combustible materials as specified in the installation section.
• Protecció contra el sobreescalfament: The heater is equipped with a thermal cut-out to prevent overheating. If the heater shuts off due to overheating, allow it to cool down before attempting to restart. Investigate and correct the cause of overheating.
• No cobrir: Never cover the heater or block its air inlets/outlets. This can cause overheating and fire.
• Manteniment: Desconnecteu l'alimentació abans de realitzar qualsevol manteniment o neteja.

3. Contingut del paquet

Verifiqueu que tots els components estiguin presents i no estiguin danyats en obrir l'envàs:

• KING LPWV2715-CT24 Vandal Resistant Heater Unit
• Mounting Hardware (typically included)
• Manual d'instruccions (aquest document)

Si falta algun article o està malmès, contacteu immediatament amb el vostre proveïdor.

4. Instal·lació

ADVERTIMENT: Installation must be performed by a qualified electrician. Disconnect all power to the circuit at the main service panel before attempting any wiring.

4.1 Ubicació de muntatge

• This heater is designed for indoor, wall-mount installation.
• Choose a location that allows for proper air circulation and maintains required clearances from walls, ceilings, and floors. Refer to local codes for specific clearance requirements.
• Ensure the mounting surface is structurally sound to support the heater's weight (approximately 36 pounds).

4.2 Connexió elèctrica

• The LPWV2715-CT24 heater requires a dedicated 277 Volt, 60 Hz, single-phase circuit.
• L'escalfador consumeix 5.4 Amps at 277V, providing 1500 Watts of heat. Ensure the circuit breaker and wiring are appropriately sized for this load.
• Connect the heater directly to the electrical supply using appropriate hardwiring methods and connectors, following the wiring diagram provided inside the heater's access panel.
• Assegureu-vos que totes les connexions estiguin estretes i segures.

5. Funcionament

Once properly installed and powered, the heater can be operated using its tamper-resistant 3-position switch.

5.1 Power Switch Settings

• DESACTIVAT: The heater is completely off, and no heat or fan operation will occur.
• VENTILADOR: The fan operates continuously without engaging the heating elements. This can be used for air circulation.
• CALOR: The heating elements and fan operate to provide warmth. The heater will cycle on and off to maintain the desired temperature if connected to an external thermostat (not included).

5.2 Wattage Selection (Pic-A-Watt)

The LPWV series heaters feature Pic-A-Watt elements, allowing for field-adjustable wattage settings. Refer to the wiring diagram inside the heater for instructions on how to adjust the wattage to suit specific room requirements. This adjustment should only be performed by a qualified technician with power disconnected.

6. Manteniment

Regular maintenance ensures optimal performance and longevity of your heater. Always disconnect power at the circuit breaker before performing any maintenance.

• Neteja: Netegeu periòdicament l'exterior de l'escalfador amb un drap suau i sec.amp tela. No utilitzeu netejadors abrasius ni dissolvents.
• Air Inlets/Outlets: Ensure that the air inlets and outlets are free from dust, lint, and other obstructions. Use a vacuum cleaner with a brush attachment to gently clean the grill and internal components if accessible.
• Inspecció: Annually inspect the heater for any signs of damage, loose wiring, or unusual wear. If any issues are found, contact a qualified electrician for repair.

7. Solució De Problemes

Abans de contactar amb l'atenció al client, review els següents problemes i solucions habituals:

Si el problema persisteix després d'intentar aquestes solucions, poseu-vos en contacte amb el servei d'atenció al client o amb un electricista qualificat.

8. Especificacions

9. Garantia i Suport

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official KING weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.

Fabricant: KING Electrical Manufacturing

Weblloc: www.king-electric.com (Exampl'enllaç, si us plau, verifiqueu-ho oficialment weblloc)
