1. Introducció
Thank you for choosing the Hoffen Stainless Steel Teakwood Diving Platform and Step Ladder. This manual provides essential information for the safe and efficient use, installation, and maintenance of your product. Please read it thoroughly before assembly and operation.

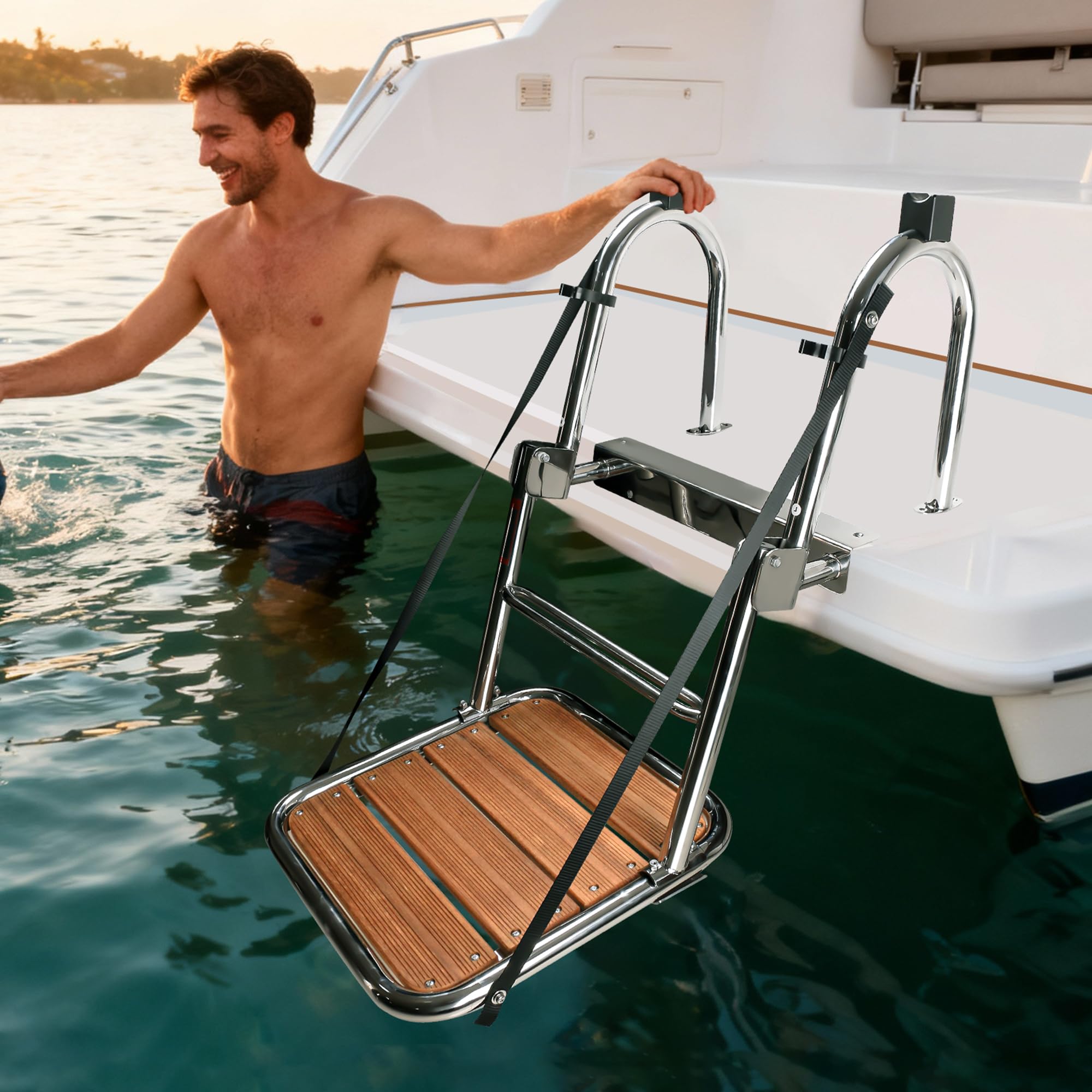

Figure 1: Hoffen Stainless Steel Teakwood Diving Platform and Step Ladder in use.
2. Informació de seguretat
- Capacitat de càrrega màxima: No supereu la capacitat màxima de pes de 600 lliures (272 kg).
- Instal·lació segura: Ensure the diving platform is securely mounted to the vessel or dock according to the installation instructions. Loose fittings can lead to injury.
- Inspeccionar abans d'utilitzar: Before each use, check all bolts, screws, and straps for tightness and signs of wear or damage. Do not use if any components are damaged.
- Superfície antilliscant: The teakwood steps are designed to be anti-slip, but caution should always be exercised, especially when wet.
- Supervisió dels nens: Children should always be supervised by an adult when using the diving platform.
- Seguretat de busseig: Always check water depth and for any obstructions before diving. Dive at your own risk.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar el muntatge:
- Stainless Steel Frame with Teakwood Steps
- Maquinari de muntatge (cargols, volanderes, etc.)
- Heavy-Duty Straps
- Manual d'usuari (aquest document)
Figure 2: Product components in folded and extended states.
4. Configuració i instal·lació
The Hoffen Diving Platform is designed for easy assembly and installation. For detailed visual instructions, please refer to the installation video below and the external PDF manual.
4.1. Passos generals d'instal·lació
- Trieu la ubicació de muntatge: Select a sturdy, flat surface on your boat or dock that can support the weight and forces exerted on the diving platform. Ensure there is sufficient clearance for folding and unfolding.
- Posicioneu la plataforma: Hold the diving platform in the desired mounting position. Mark the locations for drilling pilot holes for the mounting hardware.
- Perforar forats pilot: Using an appropriate drill bit for your mounting surface, drill pilot holes at the marked locations.
- Secure the Platform: Attach the diving platform to the mounting surface using the provided screws and washers. Ensure all fasteners are tightened securely.
- Fixeu les corretges de seguretat: Connect the heavy-duty straps to the designated points on the platform and secure them to a stable point on your vessel or dock. These straps provide additional stability and support.
- Comprovació final: Verify that the platform is firmly attached and does not wobble. Test the folding mechanism to ensure smooth operation.
4.2. Guia de vídeo d'instal·lació
Video 1: "How to install 8055S dive board" by HoffenMarine. This video demonstrates the step-by-step installation process for the Hoffen 8055S diving platform.
4.3. External Installation Manual
For a comprehensive guide with diagrams, please download the official Installation Manual:
5. Instruccions de funcionament
5.1. Extending the Platform
- Ensure the area below and around the platform is clear.
- Gently lower the platform until it is fully extended into the water.
- Confirm that the platform is stable before use.
Figure 3: Diving platform in extended position.
5.2. Folding the Platform for Storage or Seating
- Ensure no one is on the platform.
- Pull the ropes located on both sides of the platform upwards.
- Continue pulling until the platform folds up and locks into its storage or seating position.
- The folded platform can serve as a convenient seat for fishing or relaxation.
Figure 4: Diving platform folded into a seating configuration.
6. Manteniment
- Neteja regular: Clean the stainless steel and teakwood components regularly with fresh water to remove salt, dirt, and other debris. Use a mild soap if necessary, then rinse thoroughly.
- Teakwood Care: The teakwood steps may benefit from occasional treatment with teak oil to maintain their appearance and prolong their lifespan. Follow the instructions of the teak oil product.
- Inspecció de maquinari: Periodically check all mounting hardware, bolts, and straps for corrosion, wear, or looseness. Tighten any loose fasteners and replace corroded or damaged parts immediately.
- Emmagatzematge: When not in use for extended periods, especially during off-season, consider removing the platform and storing it in a dry, protected area to prevent unnecessary exposure to harsh elements.
Figure 5: Detailed features of the diving platform, including teak steps and straps.
7. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Platform feels unstable after installation. | Ferramenteria de muntatge solta. | Check and tighten all screws and bolts. Ensure the mounting surface is strong enough. |
| Difficulty folding/unfolding the platform. | Obstruction or corrosion in the hinge mechanism. | Inspect hinges for debris or corrosion. Clean and lubricate moving parts if necessary. Ensure ropes are not tangled. |
| Teakwood appears dull or faded. | Exposure to sun and water without treatment. | Clean the teakwood and apply a marine-grade teak oil or sealer as per product instructions. |
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | 8055S |
| Material | 316 Stainless Steel, Teakwood |
| Dimensions del producte (ampliades) | 20.8" d'amplada x 33" d'alçada (52.8 cm d'amplada x 83.8 cm d'alçada) |
| Altura màxima | 33 polzades (83.8 cm) |
| Capacitat de càrrega | 600 lliures (272 kg) |
| Nombre de passos | 2 |
| Característiques especials | Anti-Slip, Foldable, Handrail, Heavy Duty, Telescopic |
| Pes de l'article | 20 lliures (9.07 kg) |
Figura 6: Diagrama de dimensions del producte.
9. Garantia i Suport
For warranty information and customer support, please refer to the HoffenMarine seller page on Amazon or contact Hoffen customer service directly. Keep your purchase receipt for warranty claims.
Venedor: HoffenMarine
Política de devolució: 30-day refund/replacement policy (as per Amazon's standard policy at time of purchase).
Per obtenir més ajuda, visiteu el Hoffen Store on Amazon.
