Bellemave Queen Murphy Bed with Shelves and Storage Drawers Instruction Manual

1. Introducció

Thank you for choosing the Bellemave Queen Murphy Bed with integrated shelves and storage drawers. This innovative furniture piece is designed to maximize your living space by transforming from a stylish cabinet into a comfortable queen-sized bed. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your product.

Please read this manual thoroughly before assembly and retain it for future reference.

2. Informació de seguretat

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.

• Aneu amb compte amb les vores afilades durant el muntatge.
• Be cautious when lifting and folding the bed to avoid injury. Ensure proper lifting techniques are used, or seek assistance.
• Always ensure the bed is securely latched in the cabinet position before leaving it unattended.
• Do not allow children to play on or around the Murphy bed mechanism.
• Ensure the product is placed on a level and stable surface.
• No supereu la capacitat de pes recomanada per al marc del llit.
• Only use a mattress of appropriate size and thickness (typically 6-7 inches) to ensure proper folding and storage. An 8-inch mattress will not fit.

3. Contingut del paquet

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.

• Main Cabinet Panels (Front, Back, Sides, Top, Bottom)
• Bed Frame Components (Slats, Support Legs)
• Side Shelf Units
• Storage Drawers and Hardware
• Assembly Hardware (Screws, Bolts, Hinges, Knobs, etc.)
• Manual d'instruccions

Image: Bed frame components and slats.

Image: Integrated side shelves.

4. Muntatge i muntatge

Assembly typically requires 1-2 individuals and can take approximately 5-6 hours. A Philips head screwdriver is the only additional tool required. Follow the included detailed assembly instruction guide step-by-step.

1. Desempaquetar i organitzar: Carefully unpack all boxes and lay out components. Group similar parts and hardware.
2. Muntar l'armari principal: Begin by assembling the main cabinet structure according to the diagrams in your guide. Ensure all connections are tight and secure.
3. Install Bed Mechanism: Attach the bed frame and folding mechanism to the main cabinet. Pay close attention to hinge alignment and secure fastening.
4. Assemble Side Shelves: Construct and attach the two side shelf units to the main cabinet.
5. Instal·leu els calaixos d'emmagatzematge: Assemble the storage drawers and install them into their designated slots at the base of the cabinet.
6. Comprovacions finals: Once assembled, perform a thorough check to ensure all screws are tightened, and the structure is stable.

Image: Bed frame hinges and support structure during assembly.

Image: Cabinet with an open storage drawer.

5. Instruccions de funcionament

The Bellemave Murphy Bed is designed for easy conversion between cabinet and bed modes.

5.1. Unfolding the Bed

1. Netegeu l'àrea: Ensure there is sufficient clear space in front of the cabinet for the bed to unfold completely.
2. Unlock Latches: Locate and release any securing latches or locks that hold the bed in the upright cabinet position.
3. Gently Pull Down: Grasp the handle or front panel of the bed and gently pull it downwards. The bed frame will pivot out from the cabinet.
4. Extend Support Legs: As the bed lowers, extend the support legs to their fully locked position. Ensure they are stable on the floor.
5. Posició del matalàs: If not already in place, position your queen-sized mattress on the bed frame.

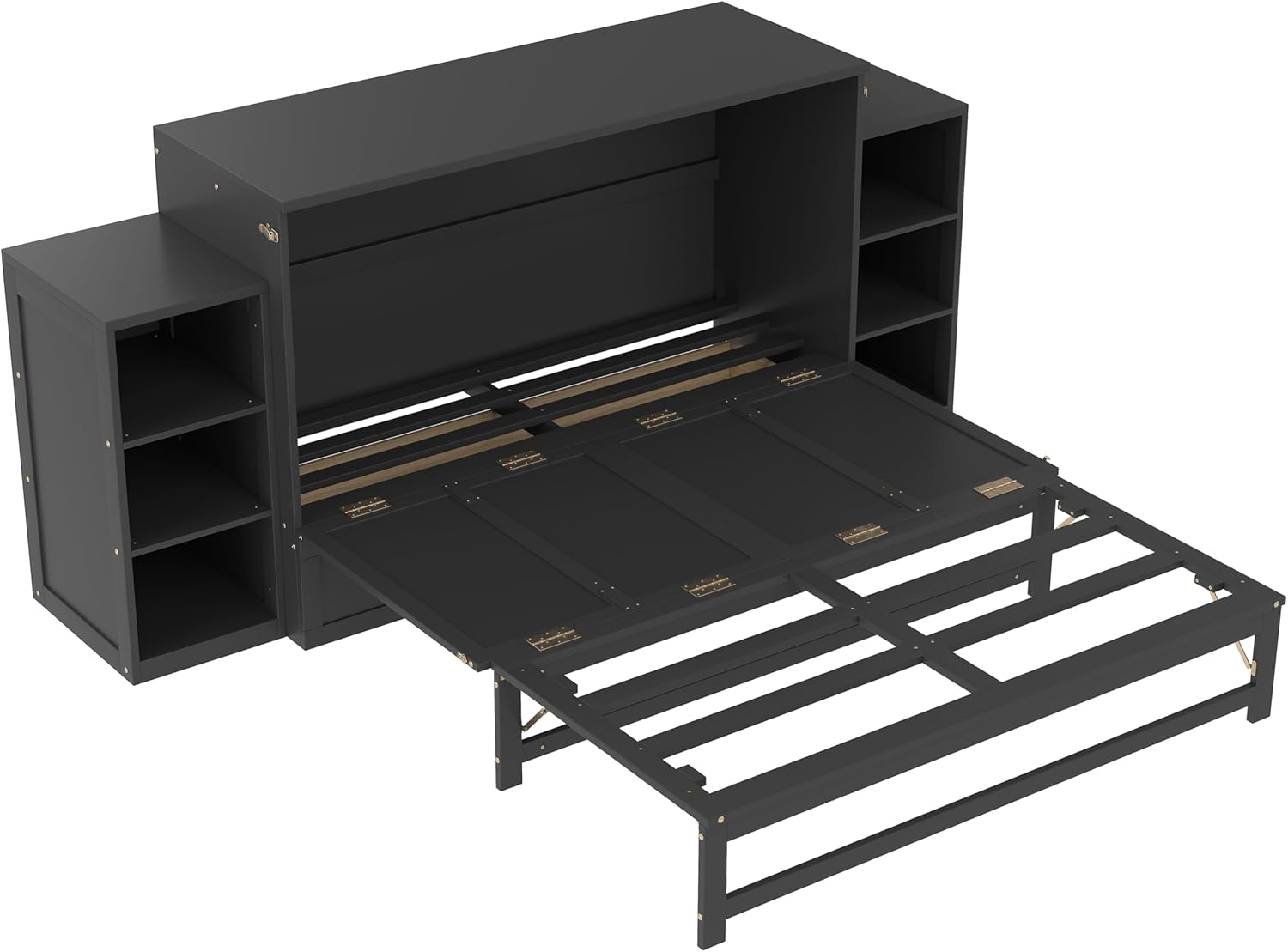

Image: Murphy bed in unfolded position, ready for use.

Image: Unfolded Murphy bed with mattress and bedding.

5.2. Folding the Bed into Cabinet

1. Treure la roba de llit: Remove any pillows or thick bedding that might obstruct the folding mechanism.
2. Retract Support Legs: Fold or retract the support legs back into their stored position.
3. Gently Lift: Grasp the front panel of the bed and gently lift it upwards, guiding it back into the cabinet opening.
4. Panys segurs: Once the bed is fully upright and flush with the cabinet, engage the securing latches or locks to hold it in place.

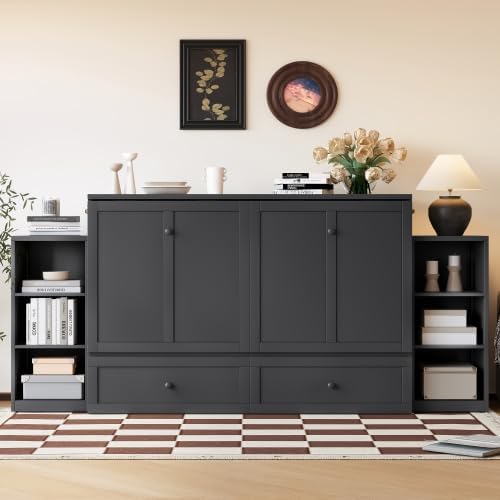

Image: Murphy bed in folded cabinet configuration.

6. Manteniment

Regular maintenance will help preserve the appearance and functionality of your Murphy bed.

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid harsh chemicals or abrasive cleaners that can damage the finish.
• Comprovació de maquinari: Periodically check all screws, bolts, and hinges to ensure they are tight. Retighten as necessary to maintain stability and prevent squeaks.
• Mechanism Lubrication: If the folding mechanism becomes stiff, apply a small amount of silicone-based lubricant to the moving parts of the hinges.
• Funcionament del calaix: Ensure drawers slide smoothly. If a drawer sticks, check for obstructions or ensure the runners are clean.

7. Solució De Problemes

8. Especificacions

• Marca: Bellemave
• Model: Queen Murphy Bed with Shelves and Storage Drawers
• Color: Vintage Dark Gray With Shelves
• Mida: Reina
• Material: Wood (primarily Pine Wood)
• Pes de l'article: Aproximadament 99 lliures
• Item Dimensions (Folded): 80.5 x 93.5 x 42.5 polzades (Llarg x Amplada x Altura)
• Estil: Modern / Farmhouse
• Muntatge requerit: Sí
• Components inclosos: Drawer, Shelves, Slat
• Gruix del matalàs recomanat: 6-7 inches (Mattress not included)

Image: Product dimensions in inches.

9. Garantia i Suport

For any questions, missing parts, or assistance with assembly or operation, please contact Bellemave customer support. Refer to your purchase documentation for specific warranty details.

Informació de contacte: Please refer to the contact details provided at the point of purchase or on the official Bellemave weblloc.
