vidaXL Rectangular Garden Parasol with Aluminum Pole, Anthracite, 180 x 110 cm

1. Informació important de seguretat

Si us plau, llegiu atentament totes les instruccions abans del muntatge i l'ús. Conserveu aquest manual per a futures consultes.

• Condicions meteorològiques: Aquest producte hauria MAI be used in bad weather, such as strong wind, heavy rain, snow, or storms. Always close and secure the parasol during adverse weather to prevent damage or injury.
• Estabilitat: Ensure the parasol is securely anchored in a stable base (not included) to prevent tipping.
• Muntatge: Follow all assembly steps precisely. Do not force components.
• Nens: Keep children away from the parasol during assembly and operation to avoid accidents.
• Manteniment: Regularly inspect the parasol for any signs of wear or damage. Do not use if damaged.

For additional safety details, please refer to the official safety document: Informació de seguretat (PDF)

2. Producte acabatview

The vidaXL rectangular garden parasol is designed to provide shade and UV protection for your outdoor spaces. Its robust aluminum frame and UV-resistant polyester canopy ensure durability and ease of use. The parasol features a 180-degree pivot and height adjustment for optimal sun coverage throughout the day.

Image 2.1: The vidaXL rectangular garden parasol providing shade on a patio.

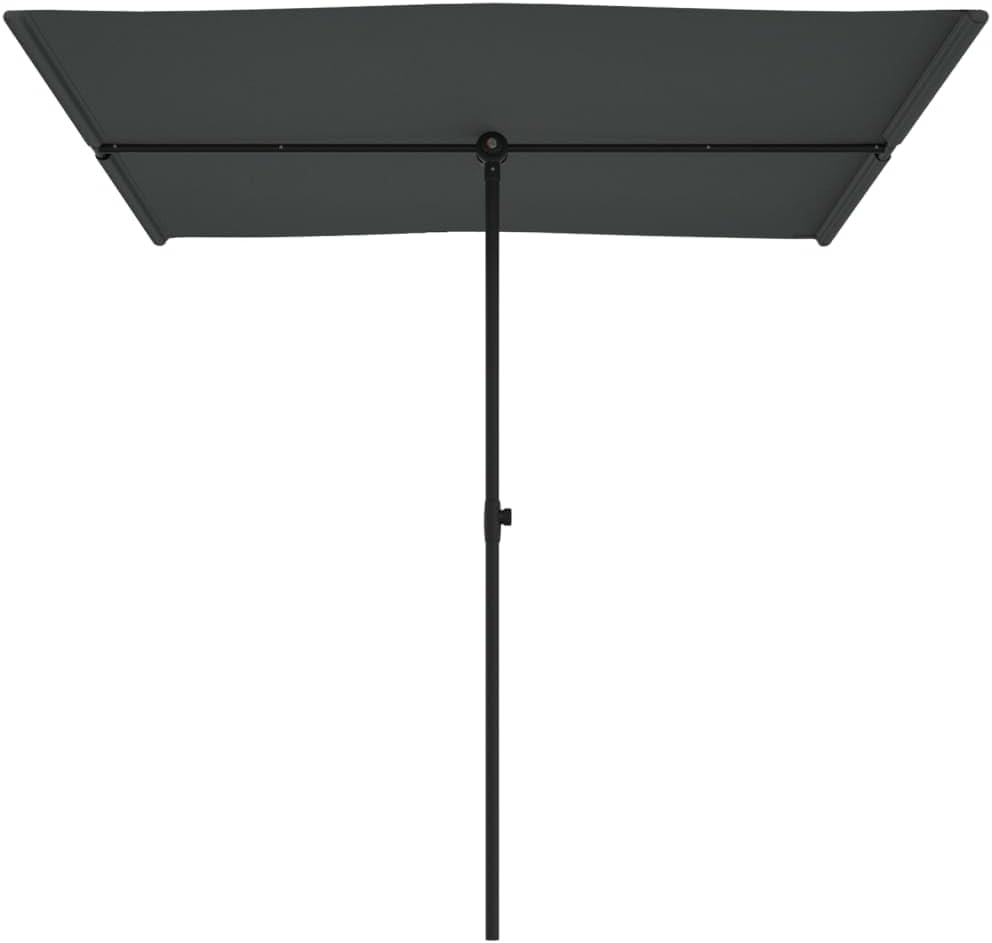

Imatge 2.2: Lateral view of the parasol, highlighting its structure.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar el muntatge:

• 1 x Parasol Canopy (Anthracite Polyester)
• 1 x Aluminum Pole (Upper Section)
• 1 x Aluminum Pole (Lower Section)
• 1 x Manual Lift/Crank Mechanism
• 1 x Rotational Tilt Mechanism
• Assembly Hardware (screws, pins, etc. - quantity may vary)

Note: A parasol base is typically sold separately and is required for stable installation.

4. Muntatge i muntatge

The parasol is designed for easy assembly. Follow these general steps:

1. Desempaquetar components: Traieu amb cura totes les peces de l'embalatge i col·loqueu-les sobre una superfície neta i plana. Consulteu la llista de contingut del paquet.
2. Muntar el pal: Connect the upper and lower sections of the aluminum pole. Ensure they are securely fastened according to the provided hardware.
3. Enganxeu el dosser: Slide the parasol canopy onto the assembled pole. The canopy should be positioned correctly to allow for opening and tilting mechanisms to function.
4. Secure in Base: Insert the assembled parasol pole into a suitable, stable parasol base (not included). Tighten any securing screws on the base to hold the pole firmly in place.
5. Mecanismes de prova: Once assembled and secured, gently test the opening, height adjustment, and tilt mechanisms to ensure smooth operation.

5. Instruccions de funcionament

5.1 Obrir i tancar el para-sol

• A obert the parasol, locate the manual lift or crank mechanism on the pole. Turn the crank clockwise (or push the slider up) until the canopy is fully extended and taut.
• A tancar the parasol, turn the crank counter-clockwise (or pull the slider down) until the canopy is fully retracted. Secure any ties or straps to keep the canopy neatly folded.

5.2 Ajust de l'alçada i la inclinació

This parasol features both height adjustment and a 180-degree rotational tilt mechanism.

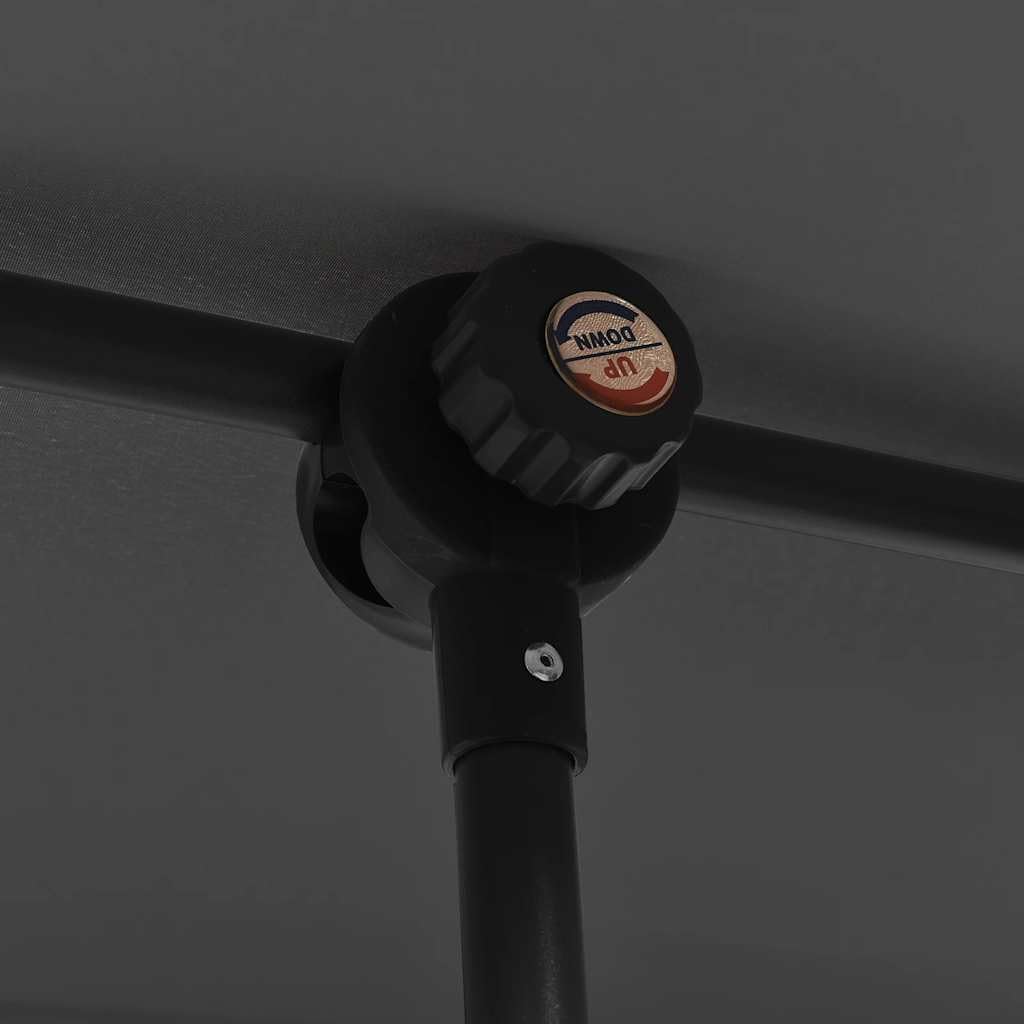

Image 5.1: Close-up of the adjustment knob.

• Ajust d'alçada: Loosen the locking knob or lever on the main pole. Adjust the pole to the desired height, then securely tighten the knob/lever to lock it in place.
• Rotational Tilt: The canopy can pivot 180 degrees. To adjust the tilt, locate the tilt mechanism near the top of the pole. Loosen the adjustment knob, position the canopy to block the sun, and then tighten the knob to secure the angle.

Image 5.2: Parasol canopy in a tilted position.

6. Manteniment

Un manteniment adequat allargarà la vida útil del vostre para-sol:

• Neteja de la capota: The polyester canopy is easy to clean. Use a mild soap solution and a soft brush or cloth to remove dirt. Rinse thoroughly with clean water and allow to air dry completely before closing or storing.
• Impermeabilització: Treat the umbrella fabric with a waterproofing spray periodically, especially if it is frequently exposed to heavy rain, to maintain its water-repellent properties.
• Cura del marc: Clean the aluminum pole and frame with a damp drap. Eviteu productes de neteja abrasius que puguin danyar l'acabat.
• Emmagatzematge: During off-season or prolonged periods of non-use, close the parasol, clean it, and store it in a dry, protected area. A protective cover (not included) is recommended.
• Inspecció: Regularly check all screws, bolts, and moving parts to ensure they are tight and functioning correctly.

7. Solució De Problemes

Consulteu la taula següent per veure els problemes habituals i les seves solucions:

8. Especificacions

Detailed specifications for the vidaXL Rectangular Garden Parasol (Model 47330):

Image 8.1: Dimensional diagram of the 180 x 110 cm parasol.

9. Garantia i Suport

For warranty information, product support, or to purchase replacement parts, please contact vidaXL customer service or visit the official vidaXL weblloc web. Conserveu el rebut de compra com a comprovant de compra.

Fabricant: vidaXL
