Toorx BRX-75 Magnetic Exercise Bike User Manual

1. Introducció

Thank you for choosing the Toorx BRX-75 Magnetic Exercise Bike. This manual provides essential information for the safe and effective assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before initial use and keep it for future reference. The Toorx BRX-75 is designed for home use, offering a comprehensive cardio workout with its 9 kg flywheel and 12 levels of magnetic resistance.

2. Informació de seguretat

Before starting any exercise program, consult your physician. This is especially important for individuals over 35, or those with pre-existing health conditions. Failure to follow these safety instructions may result in injury or damage to the equipment.

• Col·loqueu sempre la bicicleta estàtica sobre una superfície plana i estable.
• Ensure adequate space around the bike for safe operation (at least 0.6 meters on all sides).
• Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
• Porteu roba esportiva i calçat esportiu adequats. Eviteu la roba ampla que es pugui enganxar a les peces mòbils.
• No supereu el pes màxim de l'usuari 110 kg (242 lliures).
• Regularly inspect the bike for loose parts, wear, or damage. Do not use if damaged.
• Deixa de fer exercici immediatament si et sents dèbil, marejat o tens dolor.
• The LCD display is battery-powered; no electrical connection is required for the bike's operation.

3. Contingut del paquet

Carefully unpack all components and verify that all parts are present. If any parts are missing or damaged, contact your retailer immediately. The main components typically include:

• Muntatge principal del marc
• Front and Rear Stabilizer Bars
• Tija de seient i seient
• Handlebar Post and Handlebars with Console
• Pedals (esquerra i dreta)
• Maquinari de muntatge (cargols, volanderes, femelles)
• Eines per al muntatge
• Manual d'usuari (aquest document)
• Batteries for LCD Console

4. Muntatge i muntatge

The Toorx BRX-75 requires minimal assembly. Follow the steps below to set up your exercise bike. It is recommended to have two people for assembly.

1. Fixeu les barres estabilitzadores: Secure the front and rear stabilizer bars to the main frame using the provided bolts and washers. Ensure they are tightened securely for stability. The front stabilizer bar includes transport wheels.


Image: Rear stabilizer bar with protective end caps, ensuring stability.

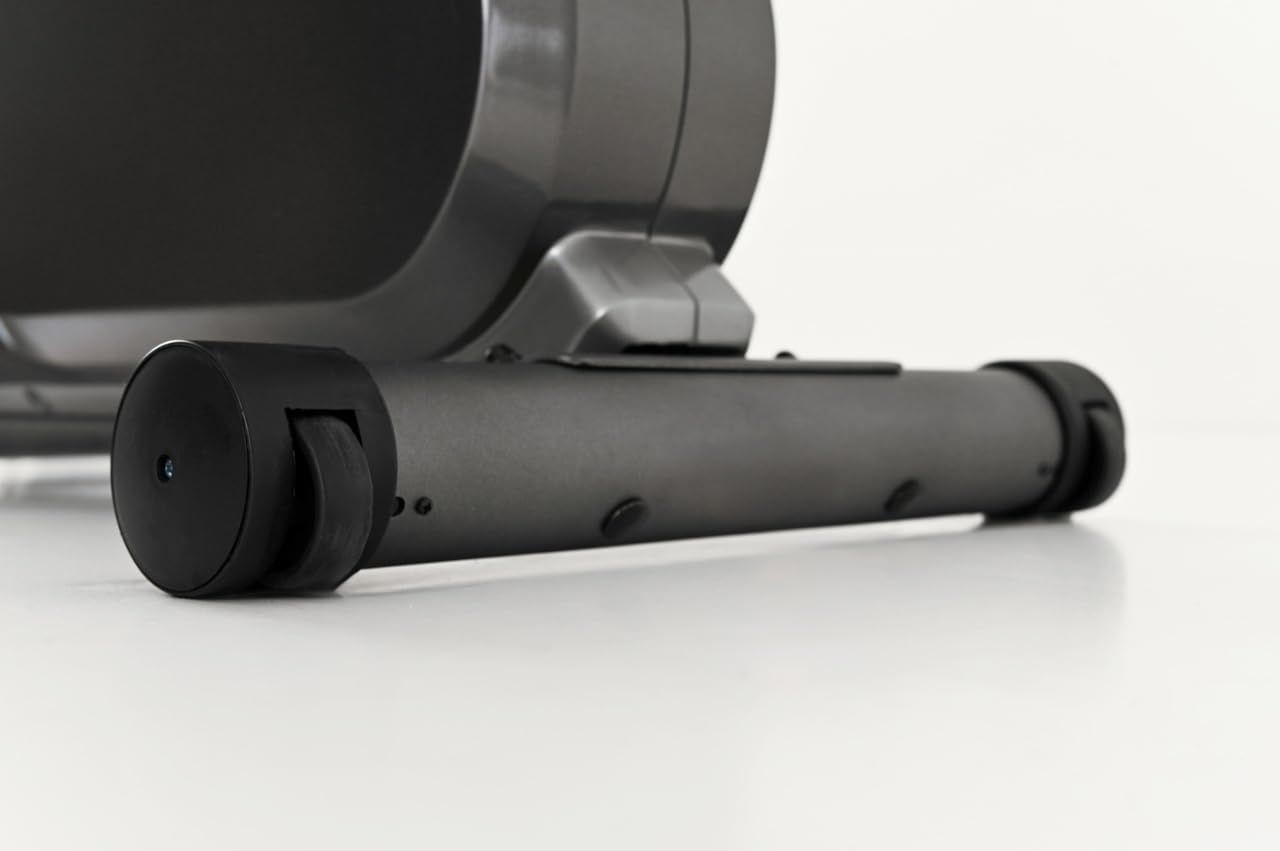

Image: Front stabilizer bar equipped with transport wheels for easy relocation.

2. Instal·lar pedals: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Ensure they are fully tightened to prevent loosening during use. The pedals are extra-large with adjustable straps.

Imatge: Lateral view of the pedal and crank assembly, showing the BRX-75 branding.


Imatge: Frontal view of the pedal and crank assembly, highlighting the extra-large pedals with adjustable straps.

3. Fixeu la tija del seient i el seient: Insert the seat post into the main frame and secure it at your desired height. Attach the seat to the seat post. The seat is adjustable both vertically and horizontally.


Image: Close-up of the ergonomically designed seat and its adjustable post.

4. Install Handlebar Post and Console: Connect the handlebar post to the main frame. Attach the console to the handlebar post, ensuring all cables are properly connected. Insert the batteries into the console.

Imatge: Frontal view of the LCD console and handlebars, featuring integrated hand pulse sensors.


Imatge: Lateral view of the console and handlebars, showing the adjustable inclination.

5. Comprovació final: Before use, ensure all bolts and nuts are securely tightened.

5. Instruccions de funcionament

5.1 Ajust del seient i del manillar

• Alçada del seient: Loosen the adjustment knob on the seat post, raise or lower the seat to a comfortable position (your leg should be slightly bent at the knee at the bottom of the pedal stroke), and re-tighten the knob.
• Posició horitzontal del seient: Loosen the knob under the seat, slide the seat forward or backward to your preferred distance from the handlebars, and re-tighten.
• Handlebar Inclination: Loosen the adjustment knob on the handlebar post to adjust the angle of the handlebars for optimal comfort and posture, then re-tighten.

5.2 Ajust de la resistència

The Toorx BRX-75 features a magnetic braking system with 12 levels of resistance. You can adjust the intensity of your workout using the tension control knob located on the main frame.

• Gireu el Pom de control de tensió clockwise (towards 'HIGH' or higher numbers) to increase resistance and make pedaling harder.
• Gireu el Pom de control de tensió counter-clockwise (towards 'LOW' or lower numbers) to decrease resistance and make pedaling easier.

Image: Close-up of the tension control knob, showing 12 levels of magnetic resistance.

5.3 Ús de la consola LCD

The intuitive LCD console displays key workout metrics to help you monitor your progress.

• Encès/apagat: The console automatically turns on when you start pedaling or press any button. It will turn off automatically after a few minutes of inactivity.
• Funcions: The display cycles through or shows simultaneously:
• HORA: Durada del teu entrenament.
• DISTÀNCIA: Distància total recorreguda.
• VELOCITAT: Current pedaling speed.
• CALORIES: Calories cremades estimades.
• RPM: Revolutions Per Minute (pedal cadence).
• IMPULS: Your heart rate, detected by the hand pulse sensors on the handlebars.
• ESCANEAR: Passa automàticament per totes les funcions de la pantalla.
• Sensors de pols manual: Grip the metal plates on the handlebars firmly with both hands to display your heart rate. Ensure your hands are clean and dry for accurate readings.

6. Manteniment

Regular maintenance ensures the longevity and safe operation of your Toorx BRX-75 exercise bike.

• Neteja: Netegeu la bicicleta amb un anunciamp drap després de cada ús per eliminar la suor i la pols. No utilitzeu productes de neteja abrasius ni dissolvents.
• Comproveu les connexions: Periodically check all bolts, nuts, and moving parts to ensure they are securely tightened. Tighten any loose components.
• Lubricació: The magnetic resistance system is generally maintenance-free. No lubrication is required for the internal mechanism.
• Substitució de la bateria: When the console display becomes dim or erratic, replace the batteries (typically AA or AAA, as specified in the console compartment).
• Emmagatzematge: Guarda la bicicleta en un lloc sec i fresc, allunyat de la llum solar directa i de temperatures extremes.

7. Solució De Problemes

If you encounter issues with your Toorx BRX-75, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Toorx customer support or your retailer.

8. Especificacions

9. Garantia i Suport

The Toorx BRX-75 Magnetic Exercise Bike is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or warranty claims, please contact your authorized Toorx retailer or visit the official Toorx website for customer support information. When contacting support, please have your model number (BRX-75) and proof of purchase readily available.
