1. Acabatview
The HOTWAV A17 Pro Max is a 4G unlocked smartphone running Android 15, featuring a large 6.75-inch 120Hz display, a 5160mAh long-lasting battery, a 13MP camera, and 128GB of expandable storage. This manual provides essential information to help you get started and make the most of your device.

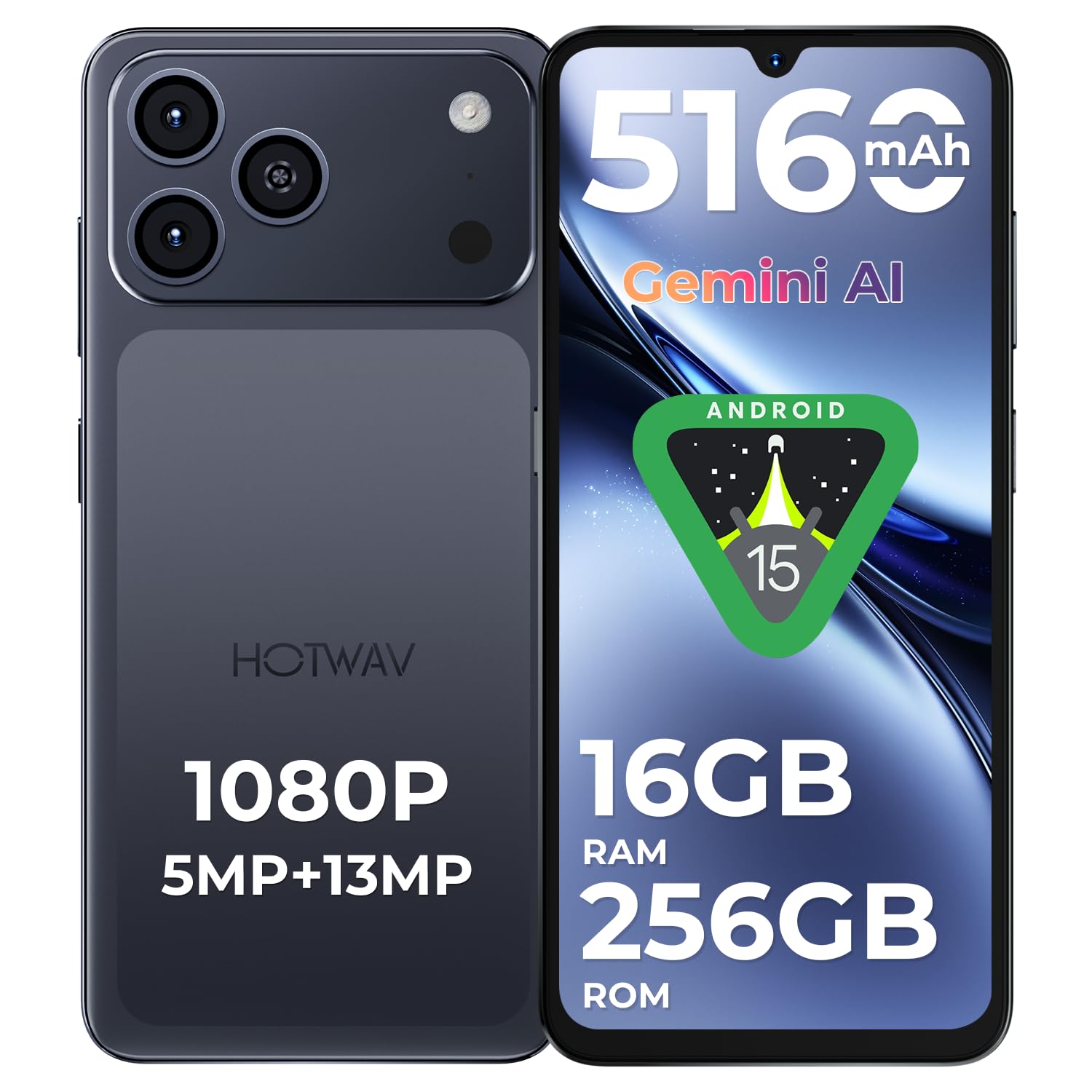

Figure 1: HOTWAV A17 Pro Max Smartphone (Black variant).
2. Què hi ha a la caixa
Your HOTWAV A17 Pro Max package includes the following items:
- 1 HOTWAV A17 Pro Max phone
- Carregador 1
- 1 Charging Cable (USB-C)
- 1 Manual d'usuari
- 1 SIM Ejection Tool
Figure 2: Package contents of the HOTWAV A17 Pro Max.
Video 1: Unboxing of a HOTWAV smartphone (X100 GT model shown, process is similar for A17 Pro Max).
3. Configuració
3.1 Inserció de targetes SIM i SD
Per instal·lar la targeta SIM i/o la targeta microSD:
- Localitza la safata de la targeta SIM al lateral del telèfon.
- Introduïu l'eina d'expulsió de la SIM al forat petit que hi ha al costat de la safata i premeu fermament fins que la safata surti.
- Col·loqueu la targeta (o targetes) nano-SIM i/o la targeta microSD a les ranures designades de la safata. Assegureu-vos que els contactes daurats estiguin mirant cap avall.
- Empenyeu amb cura la safata cap al telèfon fins que encaixi al seu lloc.
3.2 Encès inicial
Press and hold the Power button (located on the right side of the phone) until the HOTWAV logo appears. Follow the on-screen instructions to complete the initial setup, including language selection, Wi-Fi connection, and Google account setup.
4. Funcionament del vostre dispositiu
4.1 Navegació bàsica
- Botó d'encesa: Premeu per encendre/apagar la pantalla. Mantingueu premut per apagar o reiniciar.
- Botons de volum: Ajusta el volum multimèdia, el volum del to de trucada i el volum de l'alarma.
- Pantalla tàctil: Toca per seleccionar, llisca per desplaçar-te, pessiga per ampliar.
4.2 Pantalla
The HOTWAV A17 Pro Max features a 6.75-inch HD+ display with a 120Hz refresh rate, providing a smooth visual experience for scrolling, gaming, and video playback. The screen offers up to 420 nits brightness for clear outdoor visibility.
Figure 3: The 120Hz Fluid Display in action.
4.3 Rendiment i emmagatzematge
Powered by an Octa-Core processor (ARS8662) and 16GB RAM (4GB physical + 12GB virtual), the A17 Pro Max ensures smooth multitasking and app usage. It comes with 128GB of internal storage, expandable up to 1TB via a microSD card, offering ampl'espai per al teu files i mitjans de comunicació.
Figure 4: Octa-core processor for powerful performance.
Figure 5: RAM and storage configuration.
4.4 Característiques de la càmera
Capture clear photos and videos with the 13MP rear camera and 5MP front camera. The device supports various shooting modes, including Night Mode and 1080p video recording.
Figure 6: Multiple camera lenses for varied perspectives.
Figure 7: Showcase of the 5MP front camera's capabilities.
Figura 8: Examples of photos taken with the 13MP rear camera.
Figure 9: Night Mode photography examples.
4.5 Connectivitat
The A17 Pro Max supports 4G cellular technology, Wi-Fi 6, and Bluetooth 5.4 for fast and stable connections. It also includes GPS, GLONASS, Galileo, and Beidou for precise navigation.
Figure 10: Wi-Fi 6 for faster wireless speeds.
Figure 11: Bluetooth 5.4 for seamless accessory connection.
Figure 12: GPS, GLONASS, Galileo, and Beidou for accurate positioning.
4.6 Funcions de seguretat
Unlock your phone securely using facial recognition or the integrated fingerprint sensor.
Figure 13: Facial recognition and fingerprint unlock.
4.7 Sistema operatiu
The HOTWAV A17 Pro Max runs on Android 15, offering an intelligent, fluid, and intuitive user experience with enhanced security and privacy features.
Figure 14: Android 15 operating system interface.
5. Bateria i càrrega
The device is equipped with a 5160mAh battery, providing long-lasting power for a full day of intensive use. It supports 10W charging.
Figure 15: 5160mAh battery for extended usage.
6. Manteniment
6.1 Atenció general
- Keep your phone dry. Moisture can damage the device.
- Eviteu temperatures extremes.
- Clean the screen and body with a soft, dry cloth.
- Feu servir només carregadors i accessoris aprovats.
6.2 Accessoris
Consider using a screen protector and a protective case to safeguard your device from scratches and drops.
Video 2: Demonstration of a screen protector and case for the HOTWAV A17 Pro Max 4G.
7. Solució De Problemes
7.1 Problemes comuns i solucions
| Problema | Possible solució |
|---|---|
| El telèfon no s'encén | Assegureu-vos que la bateria estigui carregada. Premeu i manteniu premut el botó d'engegada durant 10-15 segons per forçar un reinici. |
| Les aplicacions es bloquegen o es bloquegen | Clear app cache/data, update the app, or uninstall and reinstall. Restart the phone. |
| Mala connexió Wi-Fi | Restart your Wi-Fi router. Forget and reconnect to the Wi-Fi network on your phone. |
| La bateria s'esgota ràpidament | Reduce screen brightness, close unused apps, disable unnecessary features (GPS, Bluetooth). Check battery usage in settings. |
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | HOTWAV |
| Nom del model | A17 Pro Max |
| Sistema operatiu | Android 15 |
| RAM | 12 GB (4 GB físic + 12 GB virtual) |
| Model de CPU | A6-5200 Octa-Core (3.2 GHz) |
| Capacitat d'emmagatzematge | 128 GB (ampliable fins a 1 TB mitjançant microSD) |
| Mida de la pantalla | 6.75 polzades |
| Resolució | 720 x 1600 píxels |
| Freqüència d'actualització | 120 Hz |
| Capacitat de la bateria | 5160 mAh |
| Resolució de la càmera posterior | 13 MP |
| Resolució de la càmera frontal | 5 MP |
| Tecnologia cel·lular | 4G |
| Connectivitat | Bluetooth 5.4, USB Type-C, Wi-Fi 6 |
| Seguretat biomètrica | Reconeixement facial |
| Dimensions | 16.8 x 7.8 x 0.8 cm |
| Conector d'auriculars | 3.5 mm |
9. Garantia i Suport
The HOTWAV A17 Pro Max comes with a 2-year manufacturer's warranty, covering free repairs in case of defects. For further assistance or support, please refer to the official HOTWAV weblloc o contacteu amb el servei d'atenció al client.
For more information, visit the official HOTWAV store: HOTWAV Store
