Rosewill VNG 650W ATX 3.1 Power Supply User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Rosewill VNG 650W ATX 3.1 Power Supply. Please read this manual thoroughly before installation and keep it for future reference. The Rosewill VNG 650W is an 80+ Gold Certified, non-modular power supply compatible with ATX 3.0 & 3.1 standards, featuring a 450W PCIe 5.1 12V-2x6 connector for modern graphics cards.

2. Informació de seguretat

• Desconnecteu sempre el cable d'alimentació de la presa de corrent abans d'instal·lar, treure o netejar la font d'alimentació.
• No obriu la font d'alimentació. Alt voltatgetagHi ha peces a l'interior i no hi ha peces que l'usuari pugui reparar. L'obertura de la unitat anul·larà la garantia.
• Ensure the power supply is installed in a well-ventilated area, away from heat sources, direct sunlight, and moisture.
• Use only the cables provided with your power supply. Using third-party cables may cause damage to your system and void the warranty.
• Connect the power supply to a grounded power outlet.
• Do not force connectors. Ensure proper orientation before plugging in any cables.

3. Contingut del paquet

Verifiqueu que tots els components siguin presents al vostre paquet:

• Rosewill VNG 650W Power Supply Unit
• Cable d'alimentació CA
• Cargols de muntatge
• Manual d'usuari
• Cable Ties (for cable management)

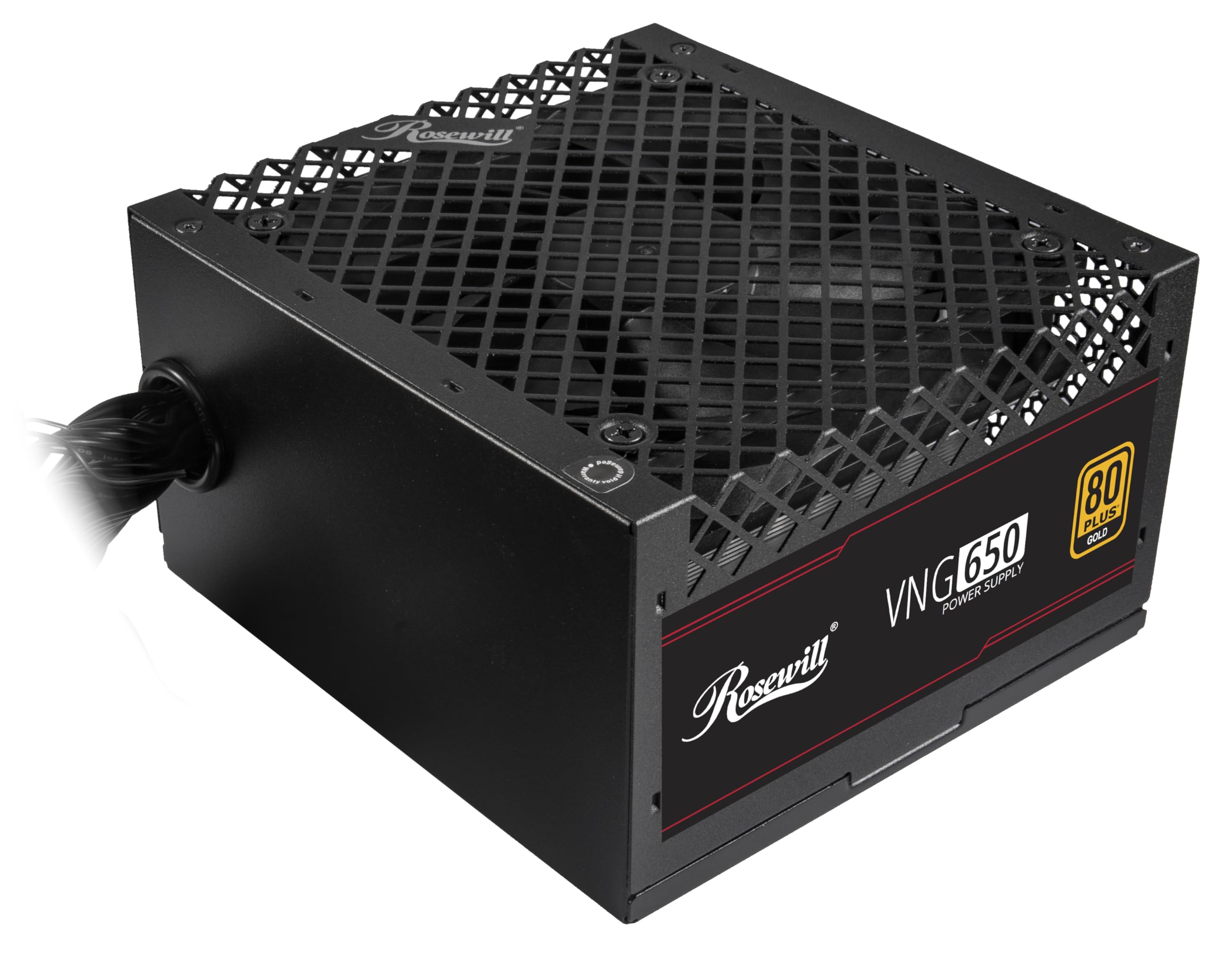

Figure 3.1: Rosewill VNG 650W Power Supply with its bundled, non-modular cables.

4. Configuració i instal·lació

Follow these steps to install your Rosewill VNG 650W Power Supply:

1. Prepareu el vostre sistema: Ensure your computer case is open and accessible. Disconnect all power from your existing power supply and remove it if necessary.
2. Muntar la font d'alimentació: Carefully slide the Rosewill VNG 650W into the power supply bay of your computer case. Secure it with the provided mounting screws.
3. Connecteu l'alimentació de la placa base: Connect the 24-pin ATX motherboard power cable to your motherboard.
4. Connecteu l'alimentació de la CPU: Connecteu el(s) cable(s) d'alimentació de la CPU de 4+4 pins a la placa base.
5. Connecteu l'alimentació de la targeta gràfica: For modern graphics cards, use the dedicated PCIe 5.1 12V-2x6 connector. For older or less demanding cards, use the 6+2 pin PCIe connectors. Ensure all necessary power connectors for your graphics card(s) are securely attached.
6. Connecteu els perifèrics: Connect SATA power cables to your storage drives (HDDs/SSDs) and Molex connectors to any other peripherals requiring them.
7. Gestió de cables: Organize the non-modular cables using the included cable ties to improve airflow and aesthetics within your case.
8. Connecteu l'alimentació de CA: Once all internal connections are made, connect the AC power cord to the power supply and then to a grounded wall outlet.

Figure 4.1: Rosewill VNG 650W Power Supply overview.

Figure 4.2: Rear panel with power switch and AC input.

Figure 4.3: Available Power Supply Connectors.

5. Instruccions de funcionament

Once installed, the Rosewill VNG 650W Power Supply operates automatically. Its 80 PLUS Gold certification ensures high efficiency, converting more AC power into usable DC power and reducing wasted heat. The low-noise design helps maintain a quiet computing environment. The power supply is designed to handle power excursions up to 235% and GPU power excursions up to 300%, providing stable power delivery for demanding components.

Figura 5.1: superior view showing the cooling fan.

6. Manteniment

To ensure optimal performance and longevity of your Rosewill VNG 650W Power Supply:

• Mantingueu-lo net: Periodically clean the exterior of the power supply and the fan grill with a soft, dry cloth. Use compressed air to gently remove dust from the fan and internal components, ensuring the system is powered off and unplugged before cleaning.
• Assegureu-vos un flux d'aire adequat: Make sure there is adequate space around the power supply for proper ventilation. Avoid blocking the intake or exhaust vents.
• Comproveu les connexions: Occasionally check that all power cables are securely connected to the power supply and your components.

7. Solució De Problemes

If you encounter issues with your Rosewill VNG 650W Power Supply, refer to the following common troubleshooting steps:

• Sense energia:
  • Ensure the AC power cord is securely plugged into both the power supply and a working wall outlet.
  • Comproveu que l'interruptor d'alimentació de la part posterior de la font d'alimentació estigui en la posició "ON".
  • Verify all internal power connections (24-pin, CPU, PCIe) are firmly seated.
  • Proveu la presa de corrent amb un altre dispositiu per confirmar que tingui corrent.
• Inestabilitat/Avaries del sistema:
  • Assegureu-vos que els requisits d'alimentació del vostre sistema no superin la capacitat de 650 W de la font d'alimentació.
  • Check for loose power connections to components.
  • Monitoritzar la temperatura del sistema per assegurar-se que els components no s'escalfin massa.
• Soroll inusual:
  • A slight fan noise is normal during operation. If the noise is excessive or unusual, ensure the fan is not obstructed by dust or cables.
  • Si el soroll persisteix, contacteu amb l'atenció al client.

If these steps do not resolve your issue, please refer to the Support section.

8. Especificacions

Figure 8.1: Electrical Specifications Label.

9. Informació de la garantia

The Rosewill VNG 650W Power Supply comes with a 5 anys de garantia del fabricant. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Rosewill weblloc o contacteu amb el servei d'atenció al client.

10. Suport

For technical assistance, warranty claims, or further inquiries, please visit the official Rosewill website or contact their customer support team. You can often find FAQs and additional resources online.

Rosewill Oficial Weblloc: www.rosewill.com
