1. Introducció
Thank you for choosing the UGREEN 6-in-1 Universal Travel Adapter. This device is designed to provide a versatile and compact charging solution for your electronic devices while traveling internationally. It features multiple AC outlets and USB ports to charge up to six devices simultaneously.
This manual provides essential information for the safe and efficient use of your adapter. Please read it thoroughly before use and retain it for future reference.
2. Informació important de seguretat
- Voltage Conversió: This product is a travel adapter, not a voltage convertidor. Ensure your devices are compatible with the local voltage (100-125V or 220-240V) before plugging them into the AC outlets. Failure to do so may damage your devices.
- Càrrega màxima: Do not exceed the maximum power rating of 2300W for 220-240V regions or 1250W for 100-125V regions.
- Només per a ús interior: This adapter is intended for indoor use in dry locations only. Do not expose to moisture or extreme temperatures.
- Seguretat infantil: The adapter includes a child safety gate on the AC outlets. Keep out of reach of children.
- Danys: Do not use if the adapter is damaged. Contact customer support for assistance.
- Desmuntatge: Do not attempt to disassemble or modify the adapter. This will void the warranty and may pose a safety risk.

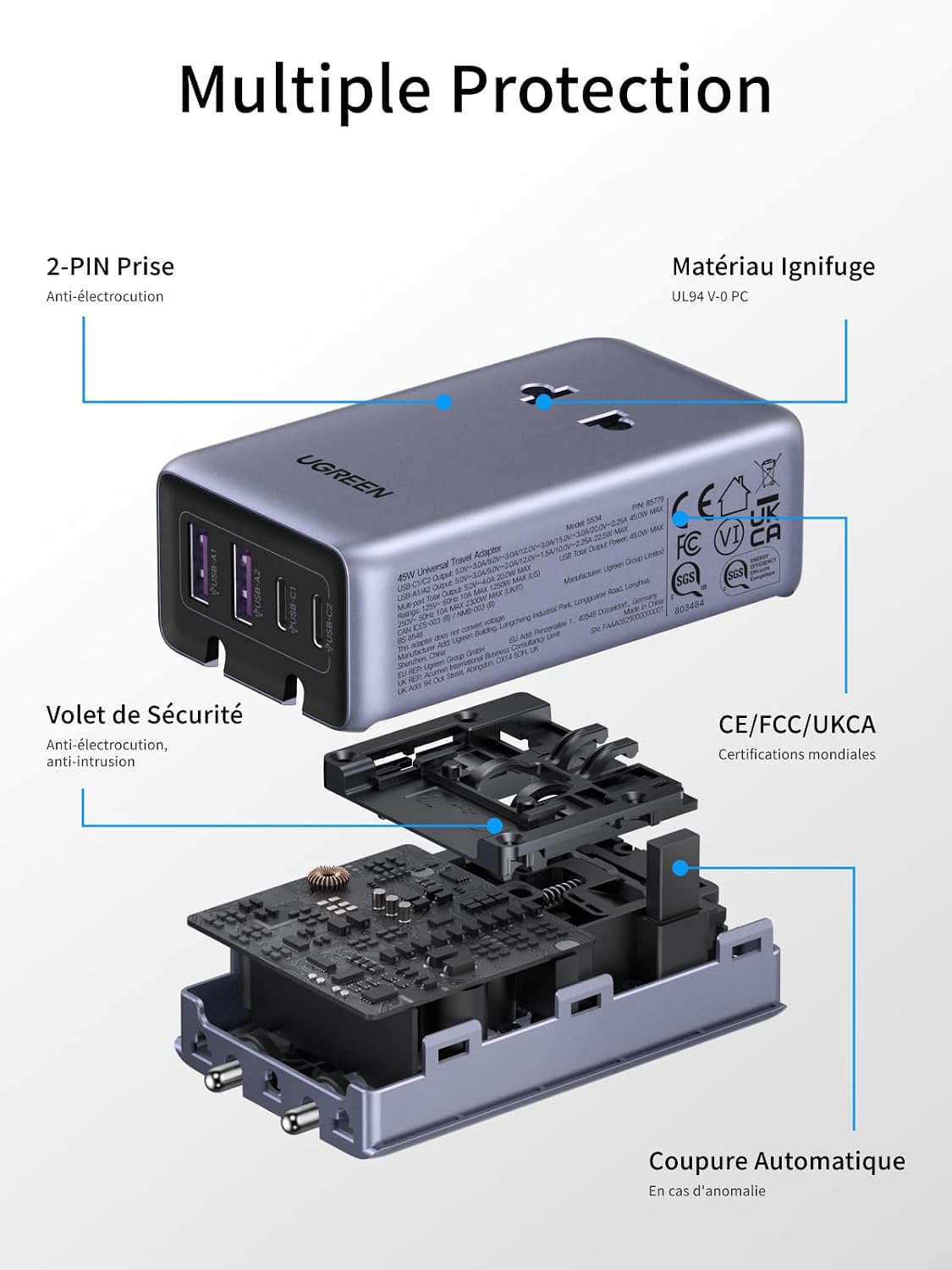

Figure 1: Internal safety features including flame-retardant casing and safety shutters.
Figure 2: Diagram showing multiple protection mechanisms: overcurrent, overvoltage, short-circuit, overload, and static electricity protection.
3. Producte acabatview
The UGREEN 6-in-1 Universal Travel Adapter (Model 85779) is a compact and versatile charging device. It integrates two AC outlets and four USB ports (two USB-C and two USB-A) into a single unit, allowing you to power and charge multiple devices simultaneously.
Figura 3: Frontal view of the UGREEN Universal Travel Adapter.
Característiques principals:
- Càrrega 6 en 1: Two AC outlets and four USB ports (2x USB-C, 2x USB-A).
- Càrrega ràpida PD 45 W: USB-C ports support Power Delivery up to 45W for rapid charging of compatible devices.
- Compatibilitat universal: Retractable pins for Type A, I, G, and C/E/K outlets, covering over 200 countries.
- Compacte i portàtil: Slim design (4.5 × 8.9 × 2.5 cm) and lightweight (135g) with foldable pins for easy travel.
- Proteccions múltiples: Built-in safeguards against overcurrent, overvoltage, short-circuit, overload, and static electricity.
Figure 4: The adapter's compact design and retractable pins for portability.
Figure 5: The adapter fits easily into a travel case, demonstrating its portability.
4. Setup and Plug Selection
To use the adapter, select the appropriate plug type for your destination. The adapter features retractable pins for various international standards.
Selecting a Plug Type:
- Identify the required plug type for your travel destination (Type A, I, G, or C/E/K).
- Locate the corresponding slider on the side of the adapter.
- Slide the button to extend the correct pins. Ensure the pins are fully extended and locked into place before use.
- To retract the pins, press the release button (if applicable) and slide the pins back into the adapter body.
Figure 6: The adapter showing different plug configurations for various regions.
Figure 7: Detailed instructions for deploying and retracting Type I (AU), Type G (UK), Type A (US), and Type C/E (EU) plugs.
5. Instruccions de funcionament
Once the correct plug type is selected and extended, insert the adapter into a wall outlet. The adapter is now ready to power and charge your devices.
Dispositius de càrrega:
- Preses de CA: Plug your AC-powered devices (e.g., laptop chargers, small appliances) into the two universal AC outlets on the adapter. Ensure the total wattage does not exceed the adapter's maximum load for the local voltage.
- Ports USB-C: Connect your USB-C compatible devices (e.g., smartphones, tablets, laptops) to the USB-C1 or USB-C2 ports for fast charging up to 45W (when using a single USB-C port).
- Ports USB-A: Connect your USB-A compatible devices to the USB-A1 or USB-A2 ports.
- Càrrega simultània: The adapter can charge up to 6 devices simultaneously (2 AC + 4 USB). Note that when multiple USB ports are used, the total power output is distributed. For example, if all four USB ports are used, the total output is 20W (5V/4A shared).
Figure 8: Charging a laptop using the 45W USB-C Power Delivery port.
Figure 9: The adapter charging multiple devices at once, demonstrating its 6-in-1 capability.
Figure 10: USB port output specifications for single and multiple port usage.
Escenaris d'ús:
Figure 11: Convenient charging in a hotel room.
Figure 12: Charging devices in an airport lounge.
Figure 13: Versatile use during international travel.
Figure 14: Ideal for study or work abroad.
6. Compatibilitat
The UGREEN Universal Travel Adapter is compatible with electrical outlets in over 200 countries and regions, supporting the following plug types:
- Type A (US): United States, China, Canada, Mexico, Japan, Thailand, etc.
- Type I (AU): Australia, New Zealand, Argentina, etc.
- Type G (UK): United Kingdom, Singapore, Hong Kong, Macau, etc.
- Type C/E/K (EU): France, Germany, Italy, Spain, South Korea, etc.
Figure 15: Comprehensive list of compatible countries and regions by plug type.
7. Especificacions
| Característica | Especificació |
|---|---|
| Marca | UGREEN |
| Número de model | 85779 |
| Pes de l'article | 135 grams |
| Dimensions (L x A x A) | 9 x 5.2 x 3.1 centímetres |
| Tipus d'endolls compatibles | Type A, Type I, Type G, Type C/E/K |
| Preses de corrent total | 6 (2 AC, 2 USB-C, 2 USB-A) |
| Volum d’entrada de CAtage | 100-240V AC, 50/60Hz |
| AC Output (100-125V) | 10 A màxim, 1250 W màxim |
| AC Output (220-240V) | 10 A màxim, 2300 W màxim |
| Sortida USB-C (port únic) | 5.0V=3.0A/9.0V=3.0A/12.0V=3.0A/15.0V=3.0A/20.0V=2.25A (45W Max) |
| Sortida USB-A (port únic) | 5.0V=3.0A/9.0V=2.0A/12.0V=1.5A/10.0V=2.25A (22.5W Max) |
| USB Output (Total, Multiple Ports) | 20W Max (5V/4A shared) |
| País d'origen | Xina |
8. Manteniment
- Neteja: Desconnecteu l'adaptador de la presa de corrent i de tots els dispositius abans de netejar-lo. Feu servir un drap suau i sec per netejar la superfície. No utilitzeu netejadors líquids ni aerosols.
- Emmagatzematge: Quan no l'utilitzeu, retireu totes les clavilles i guardeu l'adaptador en un lloc fresc i sec, allunyat de la llum solar directa i la humitat.
- Inspecció: Periodically inspect the adapter for any signs of damage, such as frayed cables or loose connections. If damage is found, discontinue use and contact customer support.
9. Solució De Problemes
Problemes comuns i solucions:
- El dispositiu no es carrega:
- Ensure the adapter is securely plugged into the wall outlet.
- Verifiqueu que el tipus d'endoll correcte estigui completament estès i bloquejat.
- Comproveu si el cable de càrrega del dispositiu està connectat correctament a l'adaptador i al dispositiu.
- Confirma que el teu dispositiu és compatible amb el volum localtage (for AC outlets).
- Reduce the number of devices connected if the adapter is overloaded.
- Càrrega lenta:
- When multiple USB ports are used, the total power output is shared. Disconnect other USB devices to maximize charging speed for a single device.
- Ensure your cable supports fast charging if using PD ports.
- Adapter feels warm:
- It is normal for the adapter to feel slightly warm during operation. If it becomes excessively hot, disconnect it immediately and check for overloading or faulty devices.
10. Garantia i Suport
Aquest producte UGREEN està cobert per una 24 mesos de garantia des de la data de compra. Aquesta garantia cobreix els defectes de fabricació i la mà d'obra en condicions d'ús normal.
La garantia no cobreix els danys causats per:
- Accident, abuse, misuse, or improper operation.
- Reparació o modificació no autoritzada.
- No seguir les instruccions d'aquest manual.
- Damage from liquids or extreme temperatures.
Atenció al client:
For technical support, warranty claims, or any questions regarding your UGREEN product, please contact UGREEN customer service through the retailer where you purchased the product or visit the official UGREEN weblloc per obtenir informació de contacte.
