1. Introducció
The SEAFLO 01 Series Remote Control LED Searchlight is engineered for marine environments, providing powerful and precise illumination. This device is designed to assist with nighttime navigation, buoy identification, docking procedures, and emergency signaling. This manual contains essential information for the safe installation, operation, and maintenance of your searchlight, ensuring optimal performance and longevity.

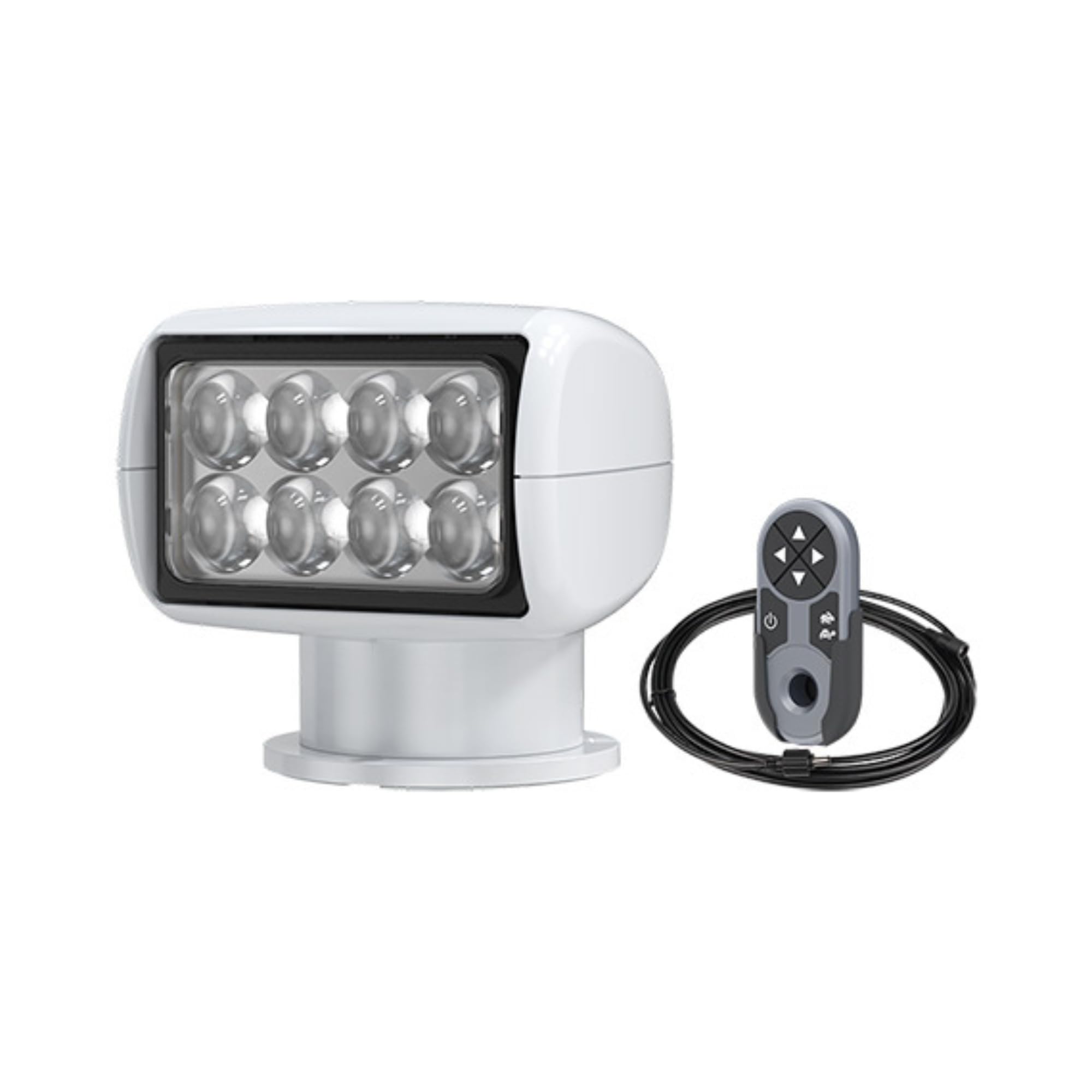

Image 1.1: The SEAFLO 01 Series Remote Control LED Searchlight, featuring a white housing and emitting a white light at 5500K.
2. Informació de seguretat
Please read and understand all safety instructions before installing or operating the searchlight. Failure to follow these instructions may result in injury, damage to the product, or property damage.
- Desconnecteu sempre l'alimentació abans de realitzar qualsevol instal·lació, manteniment o resolució de problemes.
- Ensure proper wiring and fuse protection according to marine electrical standards.
- Do not look directly into the light beam, as it can cause eye damage.
- Mount the searchlight securely to prevent movement or detachment during vessel operation.
- Mantingueu el comandament a distància sec i allunyat de temperatures extremes.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet abans de començar la instal·lació:
- (1) SEAFLO 01 Series Remote Control LED Searchlight - White 5500K
- (1) Control remot
- (1) Manual d'usuari (aquest document)
4. Especificacions
The following table details the technical specifications of the SEAFLO 01 Series Remote Control LED Searchlight:
| Especificació | Valor |
|---|---|
| Model | SFSL3-2000W-01WA |
| Voltage | 10–30V CC |
| Poder | 20W |
| Temperatura de color | 5500K (llum blanca) |
| Potència de les espelmes | 125,000 cd |
| Distància del feix | 600 metres (1968 peus) |
| Classificació impermeable | IP65 |
| Rotació horitzontal | 360° |
| Vertical Sweep | 75° |
| Color de l'habitatge | Blanc |
| Material de l'habitatge | ASA |
| Dimensions (L x A x A) | 8.27" x 7.87" x 7.68" |
| Tipus de font de llum | LED |
| Tipus de muntatge | Marine Mount |
5. Instal·lació
Proper installation is crucial for the searchlight's performance and safety. If you are unsure about any step, consult a qualified marine technician.
5.1 Ubicació de muntatge
- Select a mounting location that provides an unobstructed view and allows for full 360° rotation and 75° vertical sweep.
- Ensure the surface is flat, stable, and strong enough to support the searchlight.
- Consider the cable routing to ensure a watertight seal and protection from damage.
5.2 Cablejat
- Connect the searchlight to a 10-30V DC power source.
- Ensure the power circuit is protected by an appropriately rated fuse or circuit breaker.
- Observe correct polarity: Red wire to positive (+), Black wire to negative (-).
- Use marine-grade connectors and ensure all connections are watertight to prevent corrosion and electrical issues.
Image 5.1: The base of the SEAFLO 01 Series Searchlight, indicating mounting points for secure installation on a marine vessel.
6. Funcionament
The SEAFLO 01 Series Searchlight is operated using the included wireless remote control.
6.1 Funcions de control remot
- Botó d'encesa: Press to turn the searchlight ON or OFF.
- Directional Arrows (Left/Right): Control the horizontal 360° rotation of the searchlight.
- Directional Arrows (Up/Down): Control the vertical 75° sweep of the searchlight.
The remote allows for precise beam targeting, enabling you to adjust the light's direction from anywhere on the vessel for optimal visibility during various marine activities.
7. Manteniment
Regular maintenance will ensure the longevity and reliable performance of your SEAFLO searchlight.
- Neteja: Periodically clean the lens and housing with fresh water and a soft cloth. Avoid abrasive cleaners or solvents that could damage the finish or lens.
- Inspecció: Regularly inspect the mounting hardware and wiring for any signs of corrosion, wear, or damage. Tighten any loose fasteners.
- Comandament a distància: Keep the remote control clean and dry. Replace batteries as needed.
8. Solució De Problemes
If you encounter issues with your searchlight, refer to the following table for common problems and solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Searchlight does not turn ON. | No power supply, blown fuse, faulty wiring, remote control battery dead. | Check power connections, inspect fuse/breaker, verify wiring, replace remote control batteries. |
| Searchlight does not rotate or tilt. | Remote control battery dead, obstruction, motor fault. | Replace remote control batteries, check for physical obstructions, contact support if motor fault is suspected. |
| La sortida de llum és tènue o parpelleja. | Vol baixtage, loose connection, damaged LED. | Verifiqueu el volum d'entradatage, check all electrical connections, contact support for LED replacement. |
| El comandament a distància no respon. | Remote control battery dead, out of range, interference. | Replace remote control batteries, move closer to the searchlight, check for sources of radio interference. |
9. Garantia i Suport
The SEAFLO 01 Series Remote Control LED Searchlight is covered by a 4 anys de garantia, ensuring reliable performance. This warranty protects against defects in materials and workmanship under normal use.
For warranty claims, technical support, or further assistance, please contact SEAFLO Direct, the authorized seller. Retain your proof of purchase for warranty validation.
