FLIPSKY FT85BD Dual ESC 84V 200A Instruction Manual

Introducció

This manual provides detailed instructions for the installation, configuration, and operation of the FLIPSKY FT85BD Dual ESC. The FT85BD is a high-performance Electronic Speed Controller designed for various electric vehicles and robotics applications, including electric skateboards, scooters, ebikes, and electric motorcycles. Please read this manual thoroughly before use to ensure proper functionality and safety.

Especificacions

• Firmware: V1.4 o superior (actualització de firmware compatible mitjançant l'eina Flipsky ESC)
• Voltage: 14-84V (safe for 4S-20S)
• Corrent continu: 100A / Single; 200A / Dual (values depend on mounting and ambient temperature)
• Punt actual: 250A / Single; 500A / Dual
• Ports de comunicació: USB, CAN, UART, PPM, ADC
• Suport de senyals d'entrada: PPM, ADC, UART (actualment només compatible amb els controls remots FLIPSKY VX4 i VX3Pro), PAS
• Modes d'inici compatibles: IPDS (sense sensor), HFPI (sense sensor), HALL (amb sensor), codificador (ABI, interfície SPI del codificador AS5047)
• Multiple Speed Gear levels: Baix, Mitjà, Alt, Invers
• Front Lights, Rear Brake Lights & Horn: Suport
• Programable: Sí
• Capacitat regenerativa: Sí
• Slide Poweron & Auto shutdown: Yes (automatic shutdown time adjustable via ESC TOOL)
• Self-resetting switch with green LED button Diameter: 16 mm
• Power Wire Size: 10 AWG
• Motor Wire Size: 12 AWG
• Mida: L132*W81*H26.5mm (Including Alu. Case)
• CPU: AT32F403ARCT7 (ARM Cortex-M4, 240MHz, max PWM switching frequency 45KHz)
• Funcions de protecció: Vol baix i alttage, over-current, temperature abnormality, MOSFETs over-temperature and over-current, battery over-discharge, motor over-temperature.
• Supported motor temperature sensors: NTC-10K-100C, NTC-10K-25C, PT1000, PTC-1K-100C, KTY.

Contingut del paquet

Upon unboxing your FLIPSKY FT85BD Dual ESC, please verify that all components listed below are included and in good condition.

Image: FLIPSKY FT85BD Dual ESC with various wires and accessories.

• FLIPSKY FT85BD Dual ESC (1 pc)
• FT85BD Manual (1 pc)
• GH1.25-4Pin wire without connector (3 pcs)
• PH2.0-6Pin & ZH1.5-6Pin hall sensor wire adapter (1 pc)
• PH2.0-5Pin adapter wire (1 pc)
• USB Type-C cable (1 pc)
• Self-resetting switch with green LED button (1 pc)
• Various connection wires for motors, lights, and horn.

Note: The USB cable color (black or white) may vary.

Configuració i instal·lació

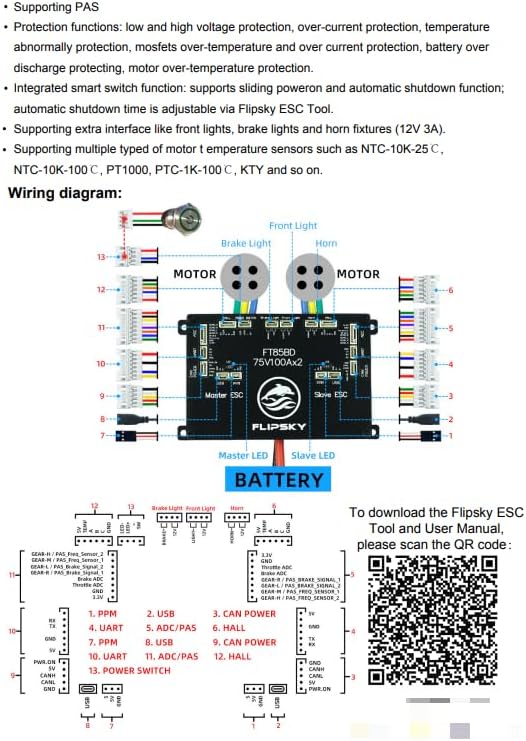

1. Esquema de cablejat

Refer to the following diagram for proper connection of all components to the FT85BD Dual ESC.

Image: Detailed wiring diagram for the FT85BD Dual ESC, showing connections for motors, battery, power switch, remote receiver, front lights, rear brake lights, and horn.

The diagram illustrates the connections for two motors (Master and Slave ESCs), battery, power switch, and various accessories. Ensure all connections are secure and correctly oriented.

2. Instal·lació física i connexions

Follow these steps to physically install and connect the FT85BD Dual ESC to your electric vehicle.

1. Muntar l'ESC: Securely mount the FT85BD Dual ESC within your vehicle's enclosure. Ensure adequate ventilation for heat dissipation.
2. Connect Motor Phases and Hall Sensor Wires: Connect the motor phase wires (typically three thick wires) from each motor to the corresponding outputs on the ESC. Then, connect the smaller hall sensor wires from each motor to the respective HALL ports on the ESC.


   Image: Close-up of hands connecting motor phase wires and hall sensor wires to the FT85BD Dual ESC.
3. Connect Power Switch: Connect the self-resetting switch with the green LED button to the POWER SWITCH port on the ESC.
4. Connect Battery Wire: Connect the battery power wires to the main power input of the ESC. Ensure correct polarity (red to positive, black to negative).
5. Connect Remote Receiver: Connect the remote receiver to the UART port on the Master ESC. This allows communication between your remote controller and the ESC.
6. Connect Front Lights: Connect the front light wires to the dedicated Front Light port on the ESC.
7. Connect Rear Brake Light: Connect the rear brake light wire to the dedicated Brake Light port on the ESC.
8. Connect Horn: Connect the horn wire to the dedicated Horn port on the ESC.

For a visual guide on wiring, please refer to the official video:

For a four-wheel drive setup using two FT85BD ESCs, follow these additional steps:

1. Prepare Two FT85BD ESCs: Ensure you have two FT85BD units.
2. Remove CAN Terminal Resistor: Obriu el casing of both ESCs. On the main ESC, locate and remove the terminal resistor of the CAN bus. This is crucial for proper communication between the two ESCs.


   Imatge: Interna view of the FT85BD ESC circuit board, highlighting the location of the CAN terminal resistor to be removed on the main unit for dual ESC setups.

3. Connect ESCs via CAN-BUS: Use a CAN-BUS wire to connect the CAN ports of the two ESCs (one main, one slave). Pay attention to the correct port direction as indicated in the video.
4. Connect Four Motors: Connect the motor and hall sensor wires for all four motors to their respective ESCs.
5. Connect USB Wire: Connect the USB wire to the main ESC's USB port.
6. Connect Battery Wires in Parallel: Connect the battery wires of both ESCs in parallel, then connect them to your battery pack.
7. Encès: Short press the power button to turn on the system. The LED lights on the ESCs should illuminate.

For a visual guide on setting up two FT85BD ESCs for a four-wheel drive system, please refer to the official video:

Configuració dels paràmetres

The FT85BD Dual ESC is highly programmable via the Flipsky ESC Tool. Proper parameter settings are crucial for optimal performance and safety. You can download the Flipsky ESC Tool and user manual from the official Flipsky website or by scanning the QR code provided in the product images.

Enllaç de descàrrega: Flipsky ESC Tool & Manual

1. Using Flipsky ESC Tool (PC Software)

1. Connect ESC to PC: Connect one side of the ESC to your computer via the provided USB cable.
2. Launch ESC Tool: Double-click to open the "Flipsky ESC Tool" software (V1.4 or above).
3. Connect to ESC: In the software, click "Connect" to establish a connection between the ESC and the tool. The ESC IDs should appear upon successful connection.
4. Set Motor Parameters: Before motor identification, set the "Motor Rated Current(A)", "Li-ion Battery Series(S)", and "Cell Cut-Off Voltage(V)" according to your motor and battery specifications. Incorrect settings can damage the ESC or motor.
5. Motor Parameter Identification: Click the "Identification Button" and confirm with "Yes" in the notification window. This process will identify your motor's specific parameters.
6. Check Identification Results: Review the identified motor parameters displayed in the software.
7. Configuració del control: Navigate to the "Control Setup" tab.
   • Set "Input Signal Type" to "UART" for remote control.
   • Choose the "Control Mode" (e.g., Current Gear Reverse Brake) and "Extra Interface" (e.g., Front Brake Light and Horn) based on your needs.
8. Desa la configuració: Click "Write Setup" to save all configured parameters to the ESC.
9. Test and Display: After saving, click "Test and Display" to read real-time data and verify the settings.

For a visual guide on parameter settings using the Flipsky ESC Tool, please refer to the official video:

2. Using Remote Controller (VX4/VX3Pro)

You can also perform some basic parameter settings and motor identification directly from your compatible FLIPSKY remote controller (VX4 or VX3Pro).

1. Enter Setting Interface: Long press the remote function button for 2 seconds to enter the setting interface.
2. Select ESC Type: Pull the throttle gear to switch to "ESC Type" (4/25) and select "FTESC".
3. Identify Motor Parameters: Pull the throttle gear again to switch to "Identify Motor Para" (21/25). Short press the function button to initiate motor identification. The remote will display "SEARCHING" and the wheels will run with a voice alert.
4. Check Display Data: After identification, check the remote display data for each ESC (e.g., NO.1, NO.2). Pull the throttle gear to navigate between pages.
5. Configuració ESC: Push or pull the throttle gear to switch to "ESC Setup" (22/25). Short press the function button to perform ESC settings. The remote will display "SEARCHING".
6. CAN Devices ID Check: Long press the function button to check all CAN devices IDs.
7. UART Extra Interface: Push or pull the throttle gear to switch to "UART Extra Interface" (27/32). Long press the function button to set all settings.
8. Sortir de la configuració: Short press the power button to exit the setting interface and return to the home screen.

For a visual guide on remote controller settings, please refer to the official video:

Instruccions de funcionament

Once the ESC is installed and configured, you can operate your electric vehicle using the remote controller.

1. Encès/apagat: Use the self-resetting switch button to power on or off the ESC. The green LED indicates power status. The ESC supports slide power-on and automatic shutdown.
2. Front Lights Control: Short press the power button on the remote controller once to turn on/off the front lights. There are three light modes available: weak, strong, and flashing.


   Image: Front lights installed on an electric skateboard, demonstrating their illumination.

3. Rear Brake Light Control: Pull down the throttle gear on the remote controller to turn on/off the rear brake light.


   Image: Rear brake light installed on an electric skateboard, showing its red illumination.
4. Horn Activation: Press the power button on the remote controller twice quickly to activate or deactivate the horn.


   Image: Horn component installed on an electric skateboard.

5. Control de velocitat: Use the throttle gear on the remote to control the speed. The ESC supports multiple speed gear levels: Low, Medium, High, and Reverse.
6. Frenada regenerativa: The ESC supports regenerative braking, which helps recharge the battery during deceleration.

Manteniment

Regular maintenance ensures the longevity and optimal performance of your FT85BD Dual ESC.

• Mantenir net: Regularly clean the ESC and its connections to prevent dust and debris buildup, which can affect performance and lead to overheating.
• Comproveu les connexions: Periodically inspect all wires and connectors for any signs of wear, corrosion, or loose connections. Secure any loose connections immediately.
• Temperatura del monitor: Ensure the ESC operates within its recommended temperature range. Excessive heat can damage components. Provide adequate airflow if necessary.
• Actualitzacions de firmware: Check the Flipsky website regularly for firmware updates. Keeping your firmware up-to-date can improve performance, add new features, and fix bugs.
• Emmagatzematge: When not in use for extended periods, store the ESC in a dry, cool environment.

Resolució de problemes

If you encounter issues with your FT85BD Dual ESC, refer to the following common troubleshooting steps:

• L'ESC no s'encén:
  • Comproveu la connexió de la bateria i el nivell de càrrega.
  • Ensure the power switch is correctly connected and functioning.
• Motor Not Spinning/Irregular Operation:
  • Verify all motor phase and hall sensor connections are secure and correct.
  • Re-run motor parameter identification using the Flipsky ESC Tool or remote.
  • Check for any error codes displayed on the remote or in the ESC Tool.
  • Ensure firmware versions are consistent between the ESC and remote controller. Inconsistent versions can cause parameter issues.
• Remote Not Connecting/Controlling:
  • Ensure the remote receiver is correctly connected to the UART port.
  • Verify the "Input Signal Type" is set to "UART" in the ESC Tool.
  • Check remote battery level and ensure it's paired with the ESC.
• Sobreescalfament:
  • Assegureu-vos que hi hagi un flux d'aire adequat al voltant de l'ESC.
  • Check motor current settings; excessive current can lead to overheating.
  • Verify motor and battery specifications are compatible with the ESC's capabilities.
• Software Connection Issues (USB/Bluetooth):
  • Ensure the correct USB drivers are installed for the ESC.
  • Prova amb un port o cable USB diferent.
  • Restart the Flipsky ESC Tool and your computer.

If issues persist, please contact FLIPSKY customer support for further assistance. You can also refer to the videos provided in the product listing for visual troubleshooting guides.

Garantia i Suport

The FLIPSKY FT85BD Dual ESC comes with a 2-month warranty. For warranty claims, technical support, or any product-related inquiries, please contact Shenzhen Flipsky Technology Company Limited directly or through your point of purchase.

Es recomana guardar el tiquet de compra com a comprovant de compra a efectes de garantia.
